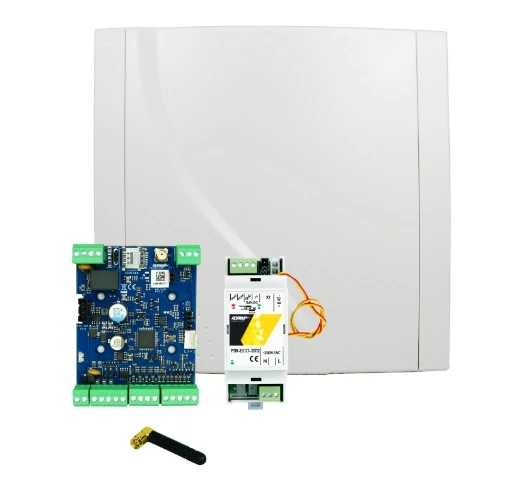

Ropam BasicLTE-SET LTE 2G/4G Communication Kit, 230V AC

Notification and control module with control panel functions. Built-in LTE modem enables 4G and 2G data transmission. Thanks to its modular design, it can be expanded with an EXP-RF radio receiver. BasicLTE can work autonomously or as an extension of other systems.

Main features of the set BasicLTE-SET: Intuitive visualization and control of the alarm system Built-in LTE modem with support for 4G and 2G networks (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz) Event notifications via: SMS, voice calls, e-mail and PUSH in RopamBasic application Remote control via: SMS, CLIP, DTMF and mobile application Support for up to 8 users (phone numbers and email addresses) Expandable with EXP-RF radio receiver - support for TR-4H remote controls Registration of up to 1000 events with automatic overwriting function Cooperation with temperature and humidity sensors (TSR, RHT-2 series) Automatic monitoring of pre-paid card account balance with notifications Real time clock (RTC), calendar, synchronization via LTE or NTP Configuration: locally via micro USB port, remotely via RopamBridge (LTE) server using software Built-in LogicProcessor for creating advanced scenarios: 10 logic conditions, 10 time relays, 4 calendar timers Free RopamBasic application (iOS / Android) for control and notifications Support for GPRS monitoring - cooperation with RMS and Kronos NET

BasicLTE communication modules, by virtue of their design and function, are dedicated to integration with other devices. Thanks to the built-in LTE modem, it is possible to transmit events and control and control the system via SMS, CLIP, DTMF, E-MAIL.

Technical parameters:

• Built-in LTE modem with support for 4G and 2G networks
• 6 configurable inputs (NO/NC)
• 2 NO/NC or analog inputs (0-10V / 4-20mA)
• Dedicated FAC input for 230V AC power supervision
• 1 relay output
• 3 OC type outputs (load capacity up to 0.7 A)
• Protected AUX output (1 A) for powering additional devices
• 4 programmable timers with calendar function
• SMA antenna connector for connecting an external antenna
• Detachable terminal connectors - convenient installation and service
• Support for up to 8 voice messages
• MicroUSB port for local configuration and software updates
• Slot for nanoSIM card
• Power supply 230V AC - 12V / 1.5 A adapter included
