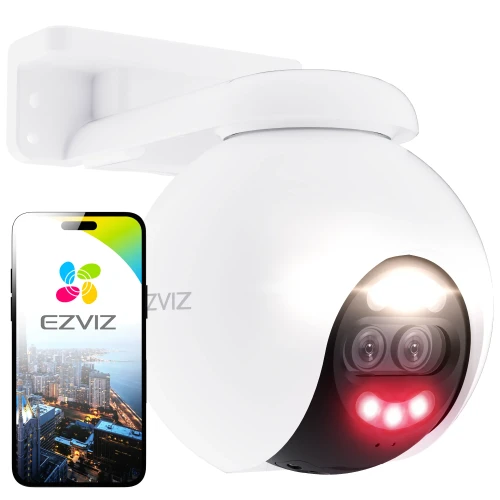

EZVIZ H80x 4K Wi-Fi IP Pan Camera, ColorFull

EZVIZ H80x Dual - Wi-Fi Rotating Camera

Experience a state-of-the-art outdoor camera that intelligently combines the power of two lenses to truly understand the lights and shadows of your surroundings and capture your most important moments. Featuring EZVIZ's proprietary ColorFULL technology and ultra-clear 4K resolution, the H80x Dual doesn't need to turn on any spotlight to bring back realistic detail in a dark space. The flexible rotating and tilting camera tracks activity by design, patrols key areas and automatically triggers alerts on the spot for peace of mind.

Package contents:

• H80x Dual rotating camera
• Documentation - User manual, warranty card, adjustments
• Template - A small-sized template with mounting holes for the camera
• Power supply - A key electronic component that provides power to the device
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera's connectors from moisture

Features of the EZVIZ H90 Dual camera

• 4K Ultra HD image (3840 × 2160) - extremely detailed recordings, ideal for identifying faces, license plates and fine details.
• Dual lens with PT function (Pan 340°, Tilt 70°) - wide pan and tilt range allows you to monitor a large area without the need for multiple cameras.
• Intelligent human and vehicle detection with AI - advanced algorithms reduce false alarms and focus on real threats.
• Night mode with IR illumination up to 30m - clear images even in total darkness thanks to the large 1/2.7" CMOS sensor and IR light.
• Built-in microphone and speaker - two-way conversation - allows you not only to listen, but also to speak through the camera (e.g. to scare off an intruder).
• Support for microSD cards up to 512 GB + EZVIZ CloudPlay cloud - flexible options for storing recordings, locally or online.
• Waterproof and dustproof housing (IP65) - camera ideal for outdoor use, resistant to rain, dust and weather conditions.
• 2.4 GHz Wi-Fi connection and RJ45 port - flexible choice between wireless and wired, depending on the installation.
• H.265 compression - efficient video transmission with less card space and less network load.
• Auto-tracking - the camera can track moving people or vehicles, keeping them in the center of the frame.

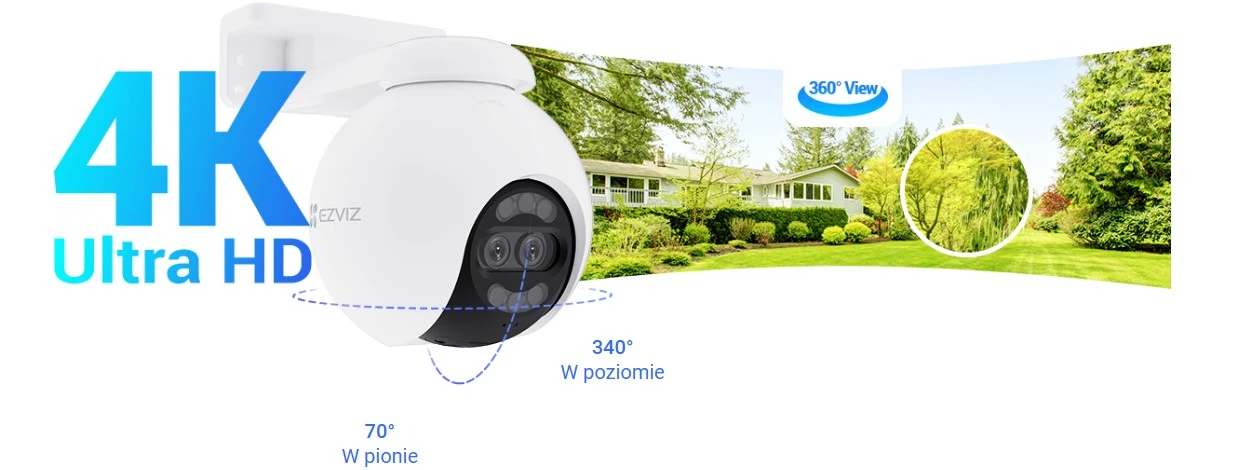

Panoramic view with 4K vision

The H80x Dual is determined to raise the level of protection for your outdoor space. With realistic 4K resolution, it guarantees to capture even the smallest details - you'll easily see your happy dog's face even from a distance. Complementing the pan and tilt function, the camera offers comprehensive 360-degree protection for long-lasting peace of mind.

ColorFULL Night Vision: always stay true to color

Full color vision is now possible at night thanks to EZVIZ's innovative ColorFULL technology. Even when all the lights are off, every colorful detail can be captured and presented in a natural way. The camera faithfully reproduces reality even in very low-light conditions - it reproduces colors with the right proportions of light and shadow throughout the scene, without uneven brightness or dark corners. It helps capture the finest details, maintain awareness of the lurking situation and reduce annoying flashes.

Intelligently detect events you care about You don't have to constantly check the door or rush to the backyard when you hear absurd sounds. With the H80x Dual, you'll know every time a person or vehicle visits. It notifies you of people and vehicles in motion and reduces unnecessary alarms triggered by objects in your environment.

Track and focus with zoom, all automatically With its intelligent tracking function, the H80x Dual camera ensures that no event disappears easily from the camera's static view. When it identifies human activity, it automatically rotates and zooms in to capture the unfolding activity in a full video recording.

Greeting can be that simple Enjoy two-way communication by simply using your phone. You can also pre-record specific voice messages that will automatically play when the camera detects people.

Adjustable sound and light alarm The camera offers an extra level of security with its active defense function. When it spots intruders, it sets off a powerful siren and flashes two spotlights. What's more, users can flexibly adjust the sound and light alarm settings to suit their preferences.

Technical specifications:

Specifications - EZVIZ CS-H80x-R100-8G82WKFL
Model	CS-H80x-R100-8G82WKFL
Camera
Image sensor	CMOS 1/2.7 inch with progressive scanning
Shutter opening time	Adaptive shutter
Lens	4mm @ F1.0 / F1.6, viewing angle: 46° (V), 87° (H), 103° (D)
PT angle	Pan: 340°, Tilt: 70°
Minimum illumination	0.01 lux @ (F1.0, AGC ON), 0 lux with IR
Lens mount	M12
Day/night switch	IR filter with automatic switch off
Noise reduction (DNR)	3D DNR
WDR	Digital WDR
BLC	Supports
Night vision	30 m / 98 ft
Video and audio
Max resolution	3840 × 2160
Frame rate	Automatic adaptation
Video compression	H.265 / H.264
H.265 type	Main profile
Video transmission	Ultra HD - adaptive
Audio bitrate	Auto-adaptive
Network
Wi-Fi	802.11b/g/n (2.4 GHz)
Channel bandwidth	20 MHz
Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission speeds	11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi pairing	AP
Protocol	Proprietary - EZVIZ Cloud
Ethernet	RJ45 (10/100 Mbps)
Features
Intelligent alarm	Human/vehicle detection (AI)
Alarm zones	Supported
Two-way conversation	Supported
Auto-tracking	Supported
Other features	Anti-Flicker, dual stream, control signal, password, watermark
Storage
MicroSD card	Max 512 GB
Cloud	EZVIZ CloudPlay (subscription)
General
Operating temperature	-30°C ~ 50°C, humidity ≤ 95% (non-condensing)
Degree of protection	IP65
Power supply	12 V DC / 1 A
Power consumption	Max. 12W
Dimensions	170 × 112 × 154 mm
Packaging dimensions	205 × 176 × 194 mm
Weight	630 g (with packaging: 1035 g)
Package contents
- 4K H80x dual camera - Drill template - Waterproof kit - Screw kit - Power adapter - Legal information × 2 - Quick start guide
Certifications
CE / UL / WEEE / RoHS / REACH
