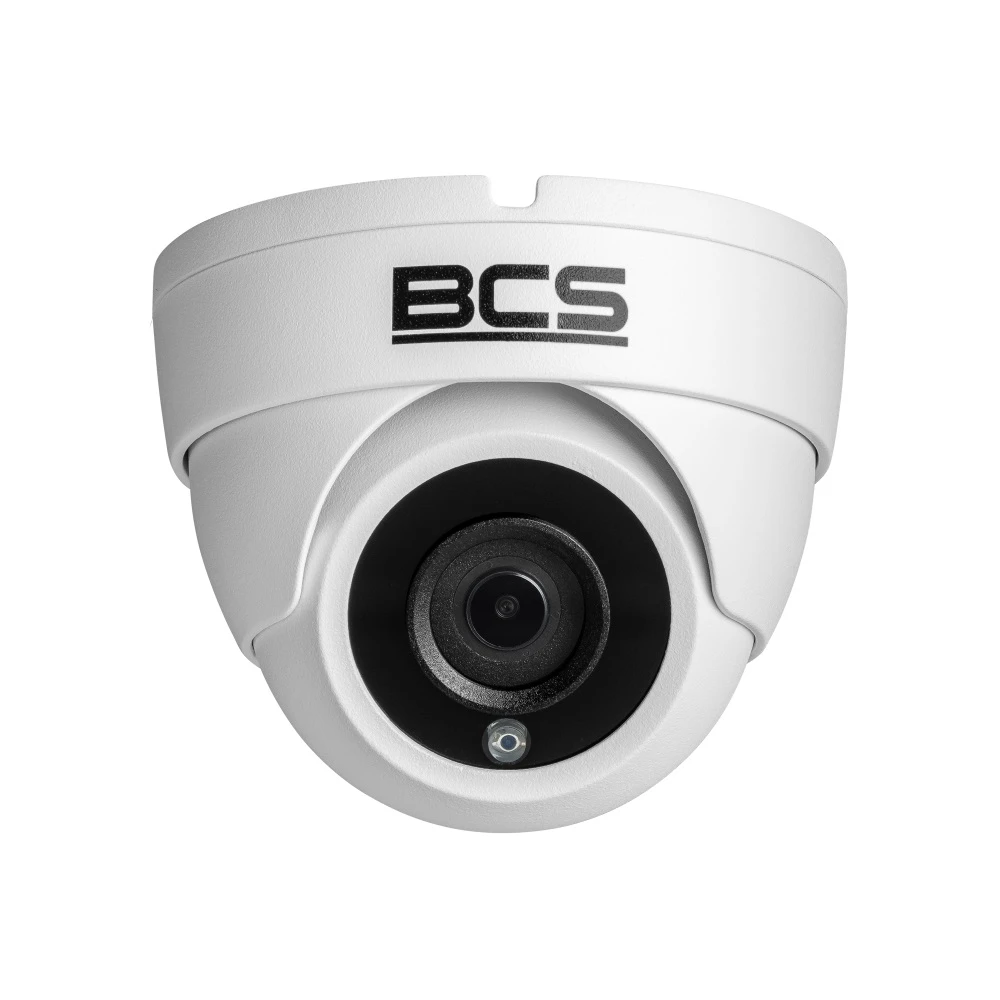

Camera 4in1 BCS-EA15FR3(H2), 5Mpx, 1/2.5" STARVIS, IR 30m, DWDR
Photo gallery
-
Manufacturer
-
Product Code
BCS-EA15FR3(H2)
-
Warranty
36 miesięcy
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Connectivity: Wired
- Memory card slot: No
- Audio: No
- Color: White
Ask about this product show form
Product Description
Product contents:
The BCS-EA15FR3-G(H2) camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.
Kit contents:
- 1x 5Mpx dome camera - BCS-EA15FR3-G(H2)
- Documentation - User manual, warranty card, adjustments
- Template - Small size template with camera mounting holes
- Screws and mounting studs - Everything you need to mount the camera
- Sealing kit - A set of accessories to protect the camera's connectors from moisture
BCS products are devices that focus on ease of use, literally anyone can handle their installation and configuration with the included instructions.
Main features:
- Sensor: 1/2.5" STARVIS CMOS- max resolution 2704 x 1950
- Fixed lens: 3.6mm - viewing angle 100°
- Built-in infrared illuminator with a range of up to 30m
- Built-in mechanical sliding infrared filter (ICR)
- 75 Ohm (1 Vp-p) composite BNC video output
- IP66 sealed housing
High-quality image
The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
- A: 1280x720p ( 1Mpx )
- B: 1920x1080p ( 2Mpx )
- C: 2048x1536p ( 3Mpx )
- D: 2560x1440p ( 4Mpx )
- E: 2560x1960p ( 5Mpx )
- F: 3840x2160p ( 8Mpx )
IP66 weatherproof designThis housing protects the BCS-EA15FR3-G(H2) from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage. |  |
Wide dynamic range - That is, high quality in difficult conditions
The WDR (Wide Dynamic Range) function of the BCS-EA15FR3-G(H2) is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:
- Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
- Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
- Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
- Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.
Automatic day/night modeAdapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. |  |
Technical specifications:
| Camera | BCS-EA15FR3-G(H2) |
|---|---|
| Product line | BCS UNIVERSAL |
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 5 Mpx |
| Sensor | 1/2.5'' |
| Scanning system | Progressive Scan |
| Pixels | 2704(H)×1950(V) |
| Lens | fixed |
| Focal length | 3.6 mm |
| Aperture | F1.2 |
| Focus | Fixed |
| Iris | Fixed |
| Viewing angle | H: 100° |
| Sensitivity of the camera | 0.05Lux(F1.2,AGC) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Resolutions | AHD/TVI 5M(2704×1950)@20fps AHD/TVI/CVI 4M(2560×1440)@25/30fps 2M(1920×1080)@25/30fps |
| Day/Night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| Illuminator | 30m |
| Support | Operation of settings in the OSD menu of the camera by the DVR type BCS-XVR |
| Power supply type | 12V DC |
| Power consumption | max 5W |
| Housing color | Graphite |
| Degree of protection IP | IP66 |
| Operating conditions | - 20°~+60° max 95% RH |
| Dimensions | Ø80×94mm |
| Weight | 0.3 kg |
