BCS Point Monitoring Set 8x BCS-P-EIP54VSR4-Ai2-G 4MP, SkyLight, IR 40m, Microphone

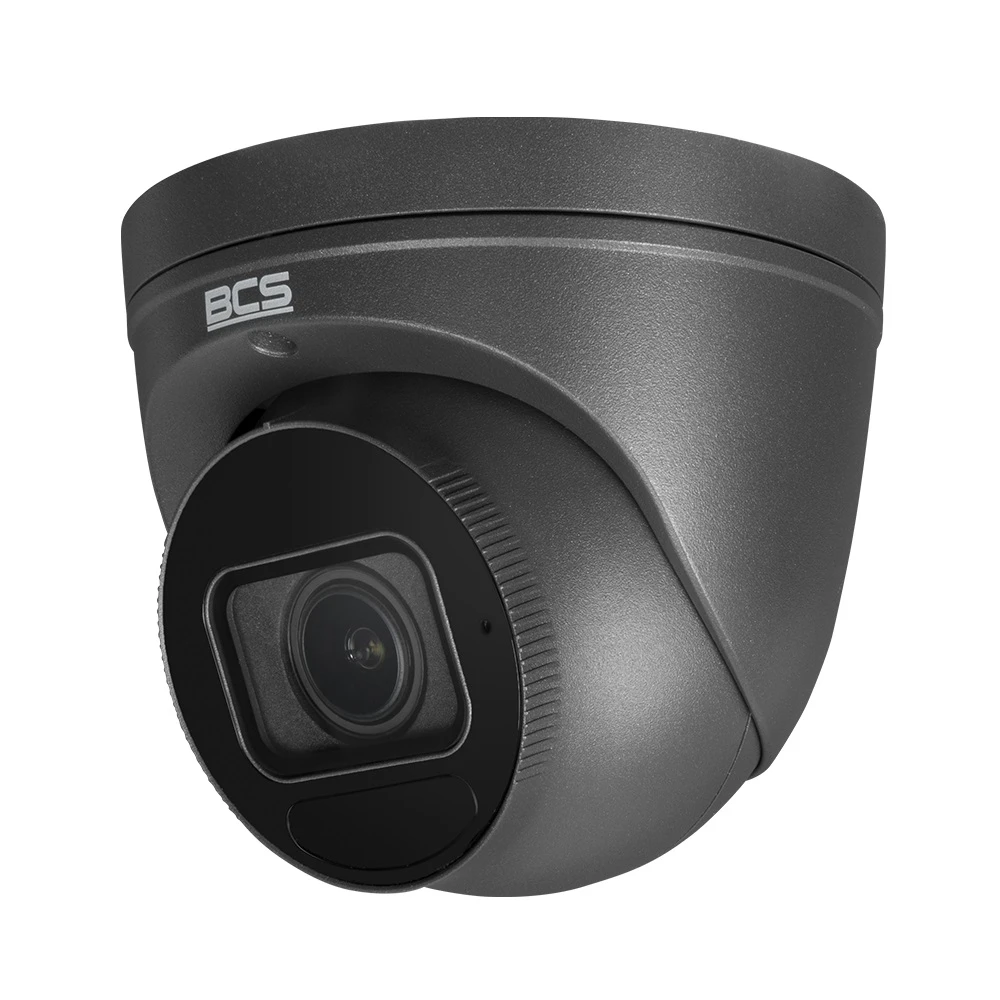

Na zdjęciu znajduje się czarna, kopułowa kamera IP marki BCS o rozdzielczości 4MPx. Kamera ma nowoczesny design i jest przeznaczona do monitoringu.

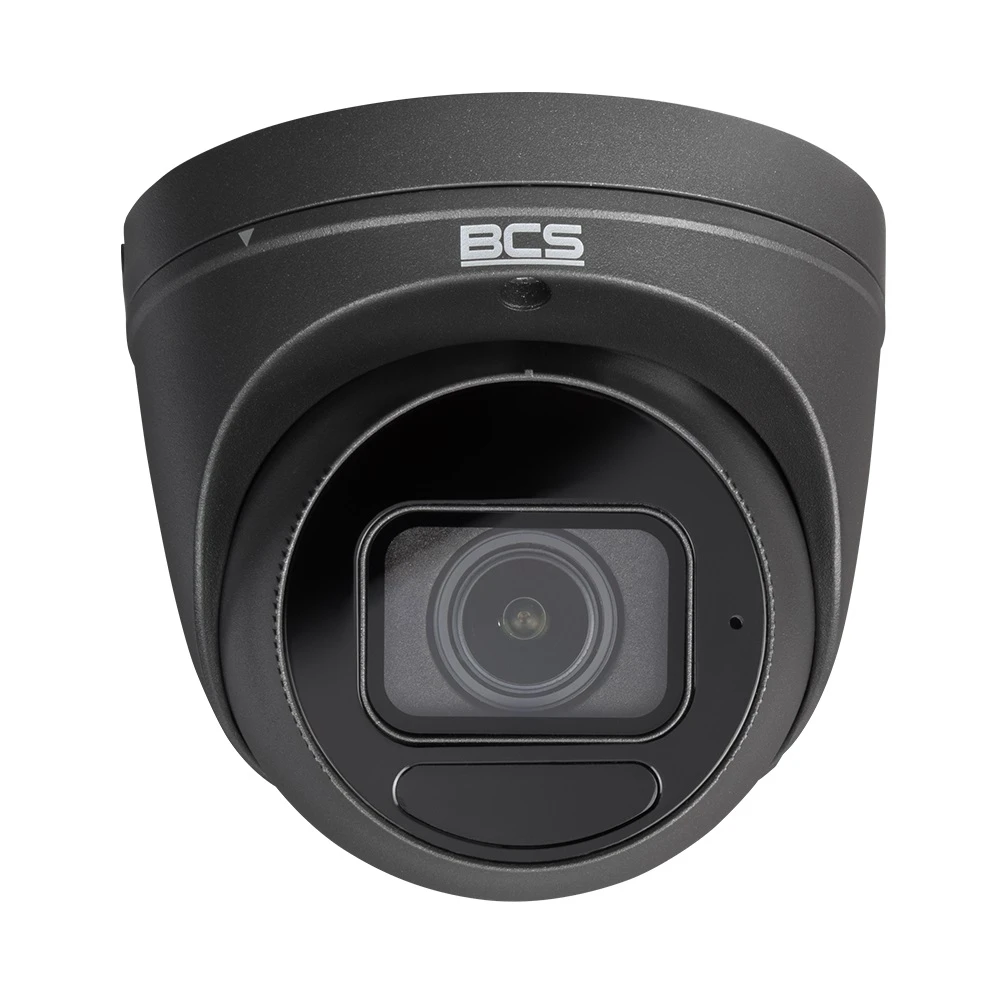

Na zdjęciu znajduje się czarna, kopułowa kamera IP marki BCS z widocznym obiektywem na środku. Kamera ma nowoczesny design i jest przeznaczona do monitoringu.

Manufacturer
BCS Point
Product Code

ZM35302
Warranty

24 miesiące

Technology: IP
Resolution: 4Mpx
Enclosure: Dome
Night visibility: up to 40m
Number of cameras: 8
Connectivity: Wired
Memory card slot: Yes
Audio: Yes
Color: Black

see description

Ask about this product show form

Availability: Product temporarily unavaliable

Price (Incl. VAT):

2 347,35 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Main features:

4 Mpx dome camera with 1/3" CMOS sensor
2.7-13.5mm motozoom lens with 4x optical zoom
High sensitivity (0.002Lux) and IR range up to 40m
WDR 120 dB, 2D/3D DNR technology
Supports H.265+ compression
Compliant with NDAA and ONVIF standard (S/G/T)
IP67 and IK10 housing
Built-in microphone
Built-in microSD card slot (max. 256 GB)
Support for intelligent functions from the camera: face detection, area intrusion, line crossing
Drive ensures stability and reliability in heavy data read/write situations.

AI functions:

Perimeter protection: Area intrusion, line crossing
Object recognition: Person/vehicle recognition, false alarm reduction
Face detection: Face detection and tracking, face capture
Person counting: Counting people at line crossing/entry into area, counting entrances/exits

This camera combines advanced surveillance features with intelligent image analysis, providing high resolution quality, a wide range of AI functions, and robust protection against weather and mechanical conditions.

Automatic day/night mode

Adapted to work in all lighting conditions with visibility up to 40m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the largest possible area

The 2.7 - 13.5mm lens provides a wide field of view, ideal for monitoring large areas. With a viewing angle of 98.26°~31.35° horizontally, 54.76°~18.55° vertically. The BCS-P-EIP54VSR4-Ai2-G camera can capture a wide scene with minimal blind spots. This configuration is especially useful in places that require wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image

The light-sensitive sensor and high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The BCS-P-EIP54VSR4-Ai2-G records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

MicroSD card slot

The BCS-P-EIP54VSR4-Ai2-G camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design

This housing protects the BCS-P-EIP54VSR4-Ai2-G camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The BCS-P-EIP54VSR4-Ai2-G camera is equipped with a built-in microphone, which allows recording ambient sound and transmitting it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Remote access from your phone and desktop computer

BCS systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

Access video preview and play back recorded footage
Save parts of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in BCS-P-EIP54VSR4-Ai2-G cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-P-EIP54VSR4-Ai2-G cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

Detection (63m): The system is able to detect the presence of an object or person at a distance of up to 63 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
Recognition (12m): Recognition at a distance of up to 12m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, car or other object.
Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-P-EIP54VSR4-Ai2-G , which enables the recording of clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-P-EIP54VSR4-Ai2-G , which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Video noise can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of an area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Main features of the camera:

4 Mpx dome camera with 2.7-13.5mm motozoom lens
Advanced AI features include person and vehicle recognition
Perimeter protection enables intelligent detection of zone intrusion and line crossing
High image quality even in challenging lighting conditions thanks to 0.002Lux sensitivity, 120 dB WDR and digital defog
Three video streams, H.265+ compression and microSD card storage up to 256GB provide flexible recording options
Camera compliant with NDAA, ONVIF (S/G/T) and support via CMS, mobile apps and Web Service
Robust IP67 and IK10-rated housing ensures reliable operation in demanding outdoor conditions

Main features of the DVR:

Number of channels: 8 to 8Mpx
Technology: IP
Resolution: 3840 x 2160(4K)
Video compression: Ultra H.265/H.265/H.264
Video inputs/outputs: VGA, HDMI
Audio inputs/outputs: 0/1
Archiving: 1x HDD (up to 6TB) (disk not included)
2x USB (2x USB 2.0)
Network interface: 1x RJ-45 port (10/100M)
Face detection, People counting, Intruder, Line crossing
Power supply: 12V DC

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features of the Toshiba S300:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Accessories included:

Camera specifications:

General
Scanning system	Progressive
Sensor	1/3'' 4Mpx CMOS
Number of pixels	2688(H)×1520(V)
Sensitivity	0.003Lux(F1.6,AGC), 0Lux(B/W,IR)
S/N ratio	56dB
White balance (AWB)	Automatic/manual
DORI distance	Detection: 63m, Observation: 25m, Recognition: 12m, Identification: 6m
Basic functions
Lens	2.7mm ~ 13.5mm F1.2
Field of view	H: 98.26°~ 31.35°, V: 54.76°~ 18.55°
Backlight compensation	BLC / HLC / WDR(120dB)
Shutter	Automatic/manual (1~1/100000s)
Gain control (AGC)	Yes
Noise reduction (DNR)	2D/3DNR
Bitrate	128Kbps~16Mbps
Additional features
Motion detection	Yes, 4 areas
Restricted zones	8 areas
Mirroring	Yes
Infrared illuminator	Up to 40m
Day/night function	Mechanical ICR filter
Alarm input/output	None
Audio input / output	None
Built-in microphone	Yes
Video features
Compression	H.265 / H.265+ / H.264 / H.264+ / MJPEG
Resolution	4M(2688×1520)(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF(352×288)
Stream speed	Main: 2688×1520/2560×1440/2304×1296/1920×1080/1280×720 (30fps) Second: 1280×720/704×576/640×360/704×288/352×288 (30fps) Third: 704×576/640×360/704×288/352×288 (30fps)
Bitrate	128Kbps~16Mbps
Network functions
Network connection	1x RJ-45 (10/100)
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatibility	ONVIF (S/G/T)
Mobile users	iOS, Android
Memory card slot	MicroSD up to 256GB
Other
Power supply	12VDC / PoE (802.3af)
Power consumption	7W
Working temperature	-30°C ~ +60°C
Weight	690g
Dimensions	Ø129×110mm
Classes	IP67, IK10

Technical specifications of the recorder:

Technical specification of the BCS-P-NVR0401-4KE-III DVR.
Product line	BCS Point
System	IP
Channels	8
Disks	1 (no disk included)
Disk capacity	6 TB
Max recording resolution	8 Mpx
Input bandwidth	64 Mbps
Output bandwidth	48 Mbps
Display performance	1×8M(30fps) / 1×5M(30fps) / 2×4M(30fps) / 4×3M(25fps) / 4×2M(30fps)
Recording resolution	8M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF
Video compression	H.265+ / H.265 / H.264+ / H.264
Video outputs	HDMI 4K / VGA
HDMI display resolution	3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
VGA display resolution	1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
Output split	1/8 (3/4 corridor mode)
Playback	1/8
Users	128
Interfaces	2×USB 2.0
Audio output	1
Audio compression	G.711A / G.711U
Support	Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
Networking	RJ-45 10/100Mbps
Compatibility	ONVIF
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Power supply	12V DC
Power consumption (without drives)	max 5W
Operating conditions	-10°C~+55°C, max 90% RH
Enclosure	1U
Dimensions (W×D×H)	260×240×47 mm
Weight (without drives)	1 kg
