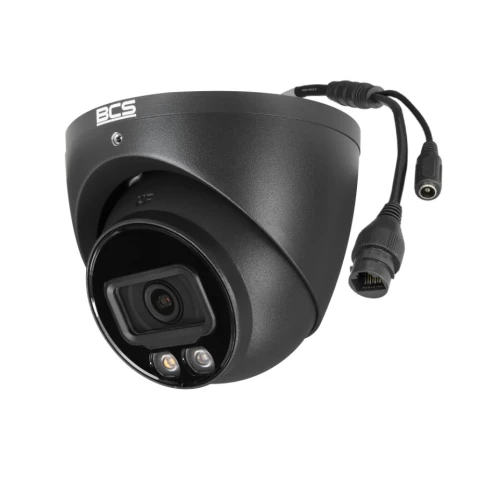

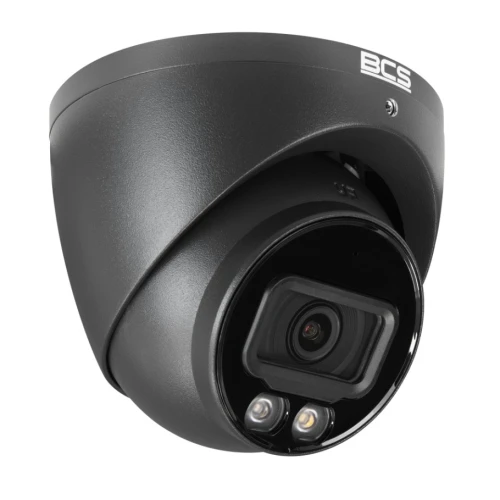

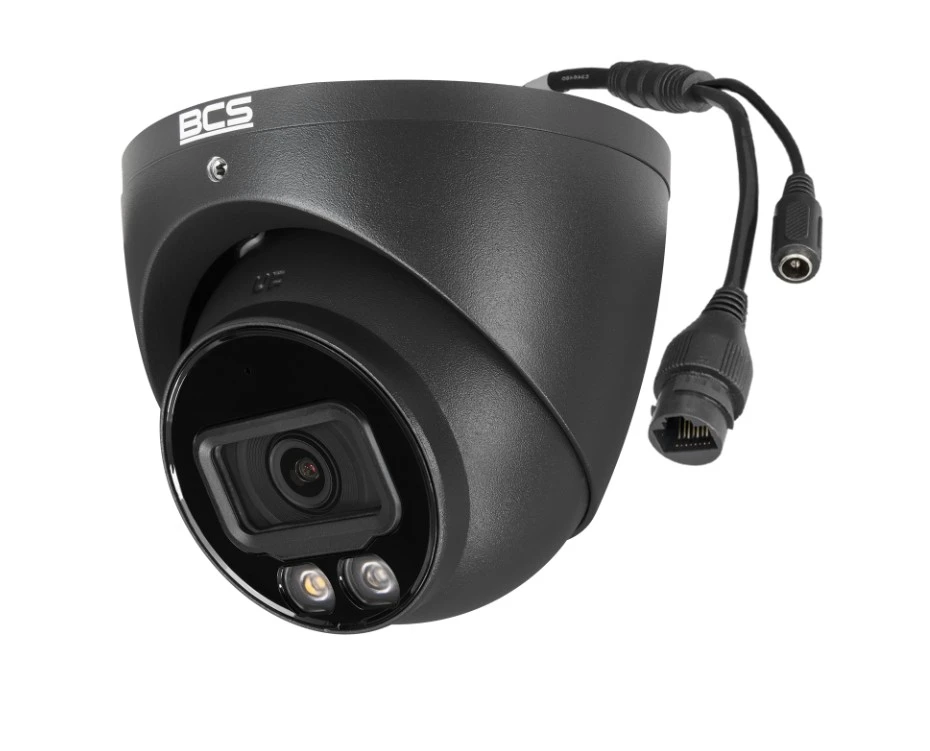

IP Dome Camera 6MP BCS-L-EIP16FCR3L3-Ai1-G, NightColor, IR 30m, WDR 120dB

Here are the main features of the BCS-L-EIP58FCR3L3-Ai1(3) camera:

General features:

• Product line: BCS Line
• Camera type: Dome
• Resolution: 8 Mpx (3840 × 2160)
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 3840(H) × 2160(V)
• RAM: 256 MB
• ROM: 2 GB

Lens:

• Focal length: 2.8 mm (fixed)
• Aperture: F1.0
• Focus: Fixed
• Iris: Fixed
• Digital zoom: 16×

Viewing angle:

• H: 106°
• V: 55°
• D: 125°

DORID:

• Detection range: 91 m
• Observation: 36 m
• Recognition: 18 m
• Identification: 9 m

Camera sensitivity:

• Color: 0.004 Lux (F1.0, 30IRE)
• B/W: 0.0004 Lux (F1.0, 30IRE), 0 Lux (IR)

Image technology:

• WDR: 120 dB
• Background compensation: BLC / HLC / WDR (120 dB) / SSA
• Shutter: Auto / manual (1/3 ~ 1/100000s)
• Gain control (AGC): Auto / manual
• Noise Reduction: 3D DNR
• LDC: Lens Distortion Correction
• RoI: Region of Interest
• Defog: Electronic

Image Rotation:

• Functions: Mirror, Flip 0°/90°/180°/270°

Resolutions and Streams:

• Main stream: 3840×2160 (1~25/30fps)
• Second stream: 704×576 (125fps), 704×480 (130fps)
• Third stream: 1920×1080 (1~25/30fps)

Bitrate:

• H.264: 3 kbps ~ 16384 kbps
• H.265: 3 kbps ~ 16384 kbps

Video compression:

• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding

Day/Night:

• ICR: Mechanical infrared filter
• Illuminator type: IR LED + White Light
• Illuminator range: 30 m
• NightColor: Yes

Audio:

• Microphone: Yes
• Speaker: Yes
• Optical/sound alarm: Yes
• Audio compression: G.711A / G.711Mu / G.723 / G.726 / PCM

Storage:

• Memory card slot: microSD (up to 256 GB)
• Storage: FTP, SFTP, NAS

Network and Power:

• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF (S/G/T)
• Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
• Power supply: 12V DC / PoE (802.3af)
• Power consumption: Max 10.1 W

Housing and protection:

• Housing color: White
• Protection class: IP67
• Operating conditions: -40°C ~ +60°C, max 95% RH
• Dimensions: Ø122 × 110.9 mm
• Weight: 0.75 kg

AI functions:

• Perimeter protection: Intrusion into the area, crossing the line
• Object recognition: Person/vehicle recognition, false alarm reduction
• SMD: SMD 4.0
