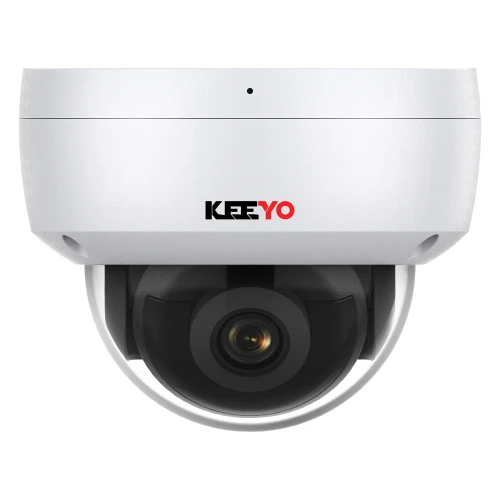

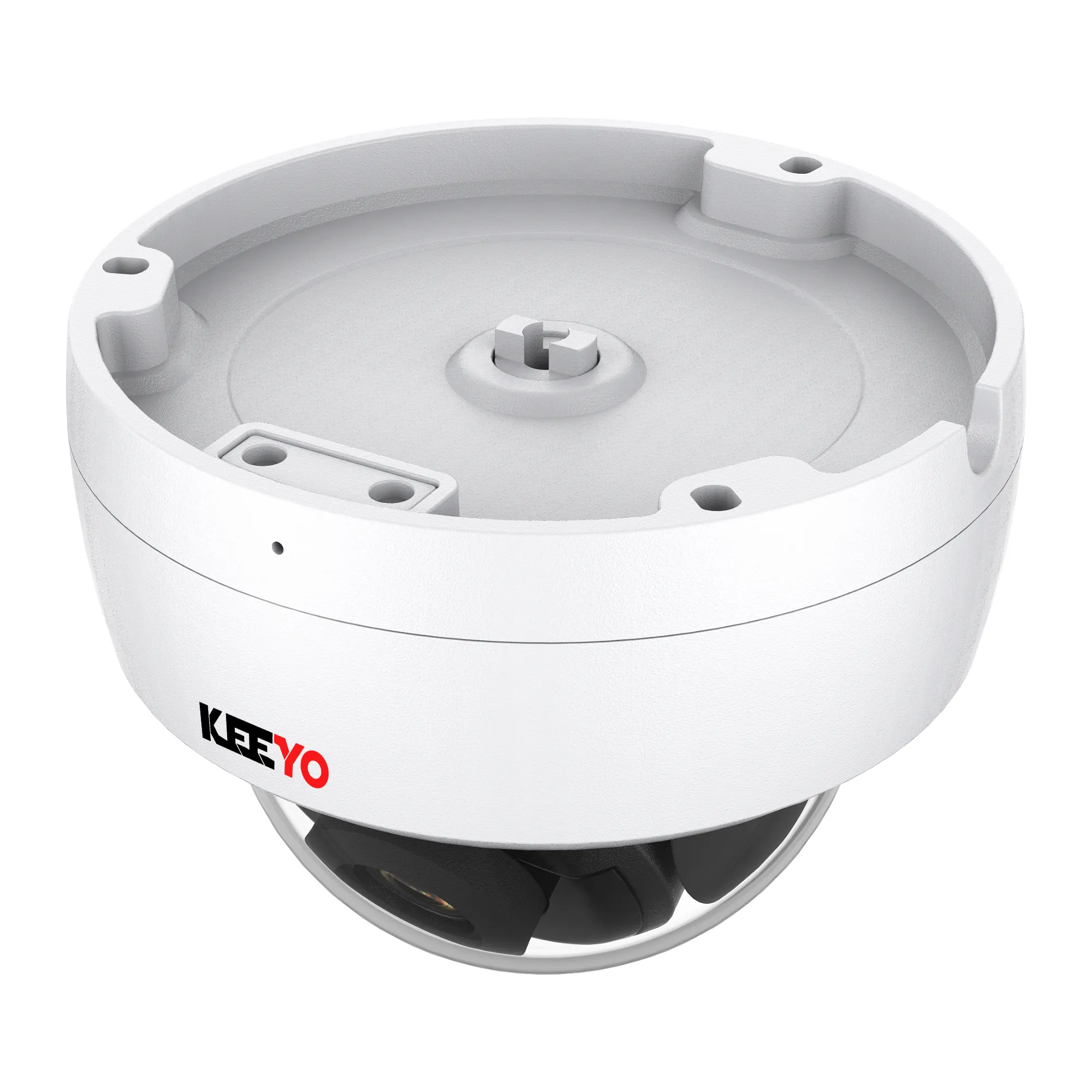

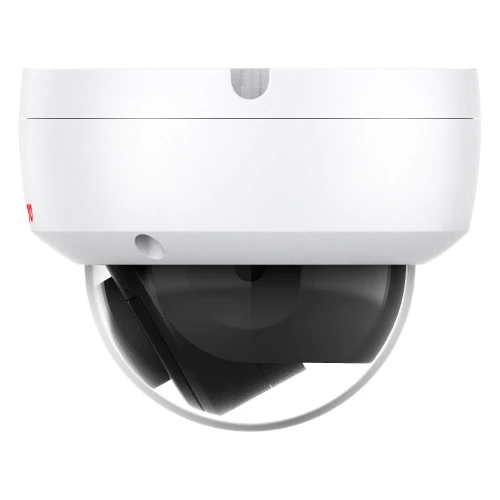

Vandal-proof dome IP camera KEEYO LV-V-IP5M30DF-IK 5MP, IR 30m, IK10, smart features

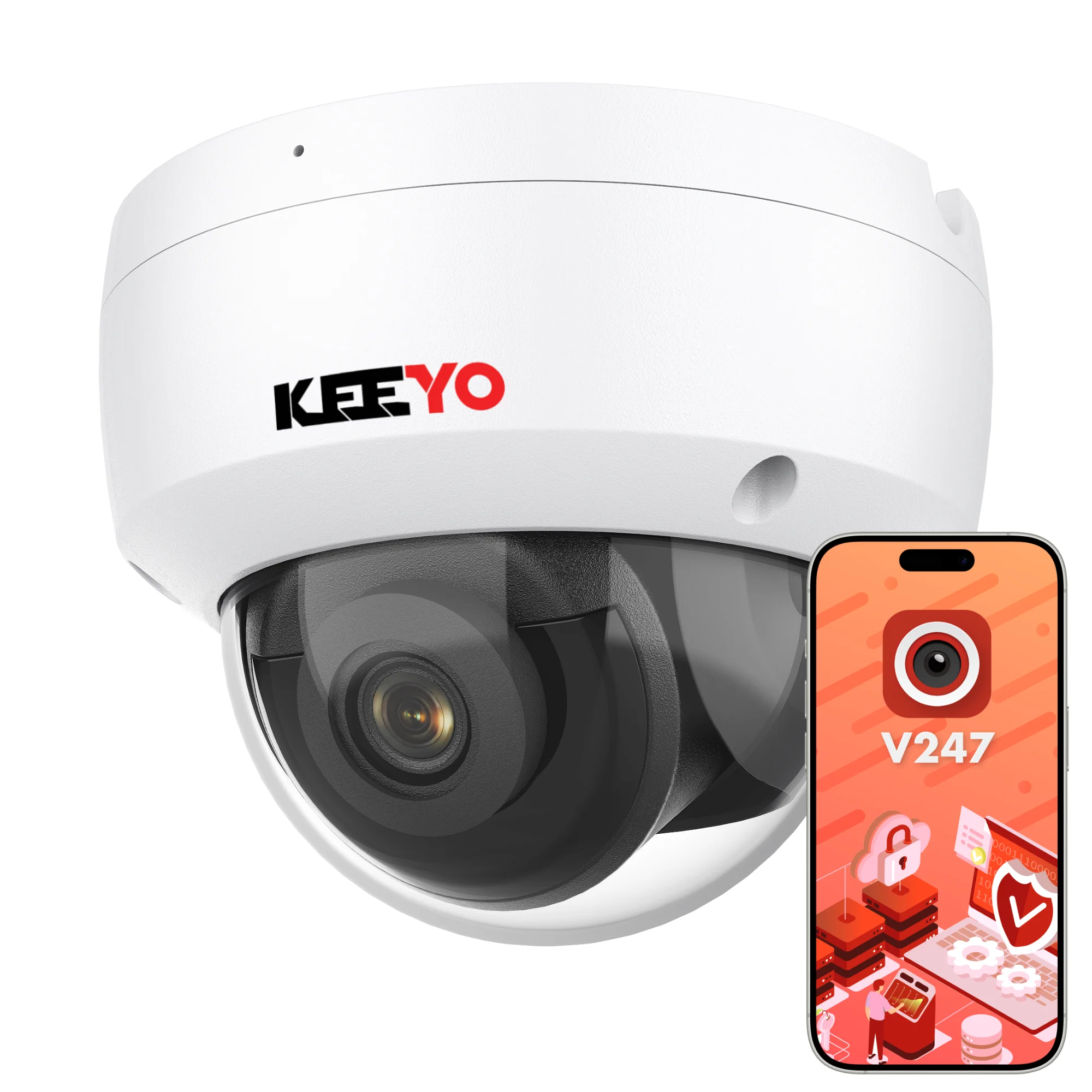

The V247 is a quick and easy way to operate your property's surveillance system, allowing you to:

✅Access video previews and play back recorded footage

✅Save video snippets to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Even more security

IK10 is the highest level of mechanical resistance on the IK scale, which means the device is protected against impacts of up to 20 joules of energy - equivalent to being hit with a hammer or thrown with a heavy object, for example. Cameras with IK10 rating are especially recommended for applications in public spaces such as bus stops, schools, parking lots or elevators, where there is a risk of vandalism. The IK10-compliant housing effectively protects the electronics inside the camera, increasing its reliability and durability even in harsh environments.

Power Over Ethernet (PoE)

The LV-V-IP5M30DF-IK 's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Accurate notifications without false alarms

The LV-V-IP5M30DF-IK 's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.

With such detection, the camera has the ability to perform additional detection tasks. The LV-V-IP5M30DF-IK additionally detects:

• Line crossing
• Wandering
• Assembly
• Intrusion into the area

Built-in microphone

The LV-V-IP5M30DF-IK 's built-in microphone enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The LV-V-IP5M30DF-IK records at 5Mpx resolution ensuring that even the smallest detail is captured in the footage.

Automatic Day/Night mode

Adapted to work in all lighting conditions, the LV-V-IP5M30DF-IK with up to 30m visibility even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Region of Interest

The LV-V-IP5M30DF-IK 's Region of Interest (ROI) function allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in that area while reducing quality in other parts. This makes more efficient use of the camera's resources and bandwidth, focusing on key areas such as entrances or checkouts.

MicroSD card slot

The LV-V-IP5M30DF-IK camera has a built-in microSD card slot, which allows you to store video recordings locally on media with a capacity of up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the LV-V-IP5M30DF-IK to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need to use additional lighting, which can lead to energy savings and cost reductions.

Weather-resistant

With an IP67 rating, the camcorder can be placed anywhere. Even during the harshest weather conditions, the LV-V-IP5M30DF-IK guarantees trouble-free operation thanks to the high-quality materials of the device's housing.

Technical specifications:

Camera
Image sensor	1/2.8" SONY Starvis, back-illuminated CMOS
Resolution	5MP
Effective pixels	2592×1944
Video compression	H.264/H.265/H.264+/H.265+
Audio compression	G711A/U, AAC, MP2L2
TV system	PAL/NTSC
Shutter time	Auto: 1/3 - 1/100000 sec.
Minimum illumination	Color: 0.003 Lux@(F1.6, AGC ON), B/W: 0 Lux with IR
Signal-to-noise ratio	60dB
Scanning system	Progressive
Video output	Network
Lens	Focal length: 2.8 mm (FOV h:96°, v:72°, d:124°), 4 mm (FOV h:80°, v:56°, d:107°), 6 mm (FOV h:54°, v:29°, d:62°); Fixed focal length lens, options: 2.8 and 4 mm
Focus adjustment	Fixed
Aperture	F1.6
Pixels	5MP
Night illumination	5 LEDs 38mil
Illumination range	30 meters
Illumination mode	Automatic control
Activation of lighting	Smart, manual, schedule mode
Ethernet	RJ-45 (10/100Base-T)
Wireless	None
Protocols	TCP/IP, IPv4/6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP, QoS, 802.1x
ONVIF	ONVIF support
P2P	YES
POE	Built-in, IEEE 802.3af compliant
Video delay	0.3s (on LAN)
Main streams	1: 2592×1944@30fps; 2: 2560×1440@30fps; 3: 1920×1080@30fps / 1280×720@30fps
Auxiliary streams	1: 1280×720@30fps; 2: 720×480@30fps; 3: None.
Browsers	IE8-11, Google Chrome, Firefox, Safari (Mac)
Smartphone	iPhone, Android
AI functions	Intruder detection (human and vehicle detection), human-based motion detection
Day/night mode	Color / B/W (IR-CUT)
Image settings	Saturation, Brightness, Contrast, Sharpness, Mirroring, 3D NR, White balance, Anti-flicker, Video tampering, HLC
Full color	None
Corridor mode	None
Anti-fog mode	None
ROI	Supported
BLC	Supported
WDR	Supported
Motion detection	Supported
Privacy masks	3 rectangular zones
Recording modes	NVR/CMS/WWW
Languages	Chinese (simplified and traditional), English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian
Audio	Built-in microphone
Alarm	None
SD card slot	Optional, internal, up to 256GB
Housing	Metal, IP67
IR-CUT filter	YES
Operating temperature	-30℃ ~ +60℃, RH max 95%.
Storage temperature	-20℃ ~ +60℃, RH max 95%
Power supply	DC12V±10%, 500mA
Dimensions	Ø110.99 × 87.11 mm
Weight	0.66kg (with color box)
