Dahua IP Kit 8x IPC-HDW3649QM-S-IL-0280B, AI, Smart Dual Light, Color Full, AcuPick, SMD 4.0

Manufacturer
Dahua
Warranty

36 miesiący

Technology: IP
Resolution: 6Mpx
Enclosure: Dome
Night visibility: do 30m
Connectivity: Wired
Memory card slot: Yes
Audio: Yes
Color: White

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

1 252,01 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Product Description

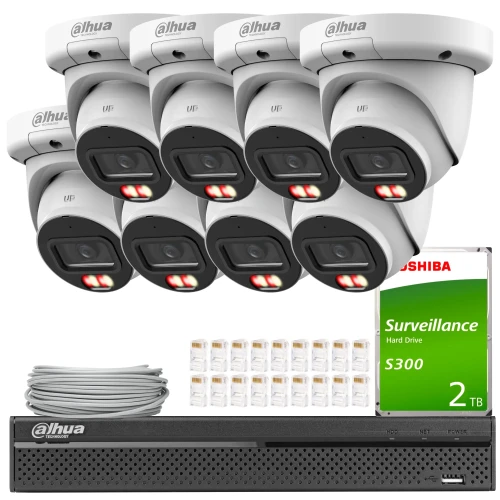

Kit contents:

8x 6 Mpx dome camera - IPC-HDW3649QM-S-IL-0280B
1x Dahua Rejstrator NVR4108HS-8P-4KS3
1x Toshiba S300 2TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
UTP cat.5e cable ( 40m )
Set of RJ45 plugs

Main features of the set:

Complete monitor kit with 8 cameras, recorder and all necessary accessories.
Video footage is recorded in high resolution 6 Mpx.
Possibility of remote monitoring via web browser, PC application and mobile device application.
Toshiba S300 2TB hard drive from the Surveillance series, dedicated to CCTV solutions.
Audio recording using the cameras' built-in microphone.
Built-in web server, operation via CMS or mobile client.
A wide range of AI functions.
High-powered Dual Lights that will accurately illuminate the space of your property.
In addition to the image, the camera also captures the audio track.
The camera is IP67-rated, which means it can work in the harshest conditions.

Dahua products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the instructions included.

Main product features:

1/2.7" 6MP HD CMOS sensor, sensitivity 0.007lux/F1.4
Resolution of 3288x1850 (6MP) at 25/30 fps
2.8mm lens
Smart Dual Light: IR + white LED (30m range, 4 modes)
Full-Color - color images around the clock
Built-in microphone
Support for microSD cards up to 512GB
AI: IVS perimeter protection, human/vehicle classification, SMD 4.0, AcuPick
WDR 120dB, 3D NR, BLC, HLC, SSA, LDC, E-defog, RoI
IP67 metal housing
Power supply: 12V DC or PoE (802.3af), Dual Power Backup
Support for ONVIF, RTSP, RTMP, P2P
Viewing via Smart PSS, DSS, DMSS, IE, Firefox, Chrome browsers
36-month warranty

Main product features:

Dahua IP DVR with up to 12 Mpx (4000x3000 px) support.
Advanced intelligent image analysis functions (IVS, face detection, people counting, heat map)
Built-in SMD PLUS function with people and vehicle classification and false alarm filtering
Smart Playback recording search and search by time and type of event
Support for advanced AI functions after cooperation with Dahua cameras (e.g. face detection, perimeter protection, scene change)
Video outputs: HDMI 4K and VGA
Built-in 8-port PoE (802.3af/at) switch - 25.5W per port, total load up to 72W
Audio support: 8 channels from cameras, two-way audio, CINCH audio input and output
Supports SATA hard drive up to 20TB
Compression methods: Smart H.265+, H.265, Smart H.264+, H.264
Maximum throughput: 160 Mbps (without AI), 80 Mbps (with AI)
Full support for TCP/IP networking, IPv4/IPv6, HTTP/HTTPS, FTP, P2P, SNMP, ONVIF 22.12
Remote access via free DMSS app (iOS, Android) and via web browser
Built-in 2 USB 2.0 ports, archiving to flash drive or USB drive
Control of PTZ (Speed Dome) cameras
Supports motion detection, privacy zones, advanced intelligent image analysis
Compact size (260 x 233 x 48 mm) and weight 0.91 kg
Power supply 53V DC (power adapter included), power consumption up to 10W (without HDD)
Supports Polish and English language

Features of Toshiba S300 Surveillance 2TB drive

The Toshiba S300 Surveillance 2TB drive is designed for surveillance, providing reliable storage space.
It is available in a 3.5-inch format, making it easy to install in standard enclosures.
It features a SATA 6 Gbps interface for fast data transfer.
It operates at 5,700 RPM, which optimizes its performance in monitoring systems.
The drive has a 64MB cache (buffer), which speeds up read and write operations.
It was designed specifically for use in monitoring systems and supports simultaneous recording from up to 64 high-definition cameras.
The drive is designed for continuous operation, which means reliable 24/7 operation.
Dynamic Cache technology allows for optimal cache management in the data read and write cycle.

Smart Dual Light- customize the scene lighting to suit your needs.

Smart Dual Light is an advanced lighting technology used in surveillance cameras that combines two types of LEDs:

IR LEDs - infrared LEDs for nighttime surveillance in black and white mode,
White LEDs - visible light emitting diodes for capturing full color video even in the dark.

Automatic day/night mode

Adapted to work in all lighting conditions IPC-HDW3649QM-S-IL-0280B with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The IPC-HDW3649QM-S-IL-0280B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HDW3649QM-S-IL-0280B records at 6Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3288x1850p ( 6Mpx )

IP67 weatherproof design

This housing protects the IPC-HDW3649QM-S-IL-0280B camera from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. IP67-enclosed cameras can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The IPC-HDW3649QM-S-IL-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras

DMSS is a mobile application for viewing video and managing Dahua DVRs and cameras on smartphones and tablets. It allows you to remotely operate your devices, including:

✅ Live viewing of surveillance cameras
✅ PTZ control - pan, zoom and angle of view adjustment
✅ Two-way audio support
✅ Recording of recordings and taking screenshots (snapshot)
✅ Recordings management and archive playback

The DMSS application provides convenient and intuitive access to monitoring from anywhere, enhancing the control and security of Dahua systems.

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in IPC-HDW2649TM-S-IL-0280B cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wizsense - Object Classification

The Dahua IPC-HDW3649QM-S-IL-0280B camera uses the advanced WizSense module, based on deep learning AI algorithms, to accurately classify objects distinguishing between people and vehicles. This effectively minimizes false alarms and ensures high detection accuracy.

Intelligent recording search - AcuPick

The IPC-HDW3649QM-S-IL-0280B camera supports the AcuPick function, which allows intelligent tagging of detected objects and their quick search in the recordings of the whole system. Please note that a DVR that supports this technology is required to fully support the AcuPick function.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HDW2649TM-S-IL-0280B to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the IPC-HDW2649TM-S-IL-0280B that improves image quality in challenging lighting conditions, especially at night or in low-light conditions. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the IPC-HDW2649TM-S-IL-0280B camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

MicroSD card slot

The IPC-HDW2649TM-S-IL-0280B camera has a built-in microSD card slot that allows local storage of video recordings on media up to 512GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.

Efficient storage

H.265 coding, also known as High Efficiency Video Coding (HEVC), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265 coding
in surveillance DVRs are:

Higher Compression Efficiency: H.265 makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the load on the CPU, resulting in lower power consumption of the surveillance equipment.

Technical specifications:

Main
Sensor	1/2.7" 6MP HD CMOS
Resolution	6Mpx, 3288 (H) x 1850 (V) pixels
RAM / ROM	1GB / 256MB
Scanning system	Progressive
Shutter	Automatic / manual, 1/3s ~ 1/100000s
Signal to noise ratio	>56dB
Minimum illumination	0.007 Lux/F1.4 (Color, 30 IRE); 0.0007 Lux/F1.4 (B/W, 30 IRE); 0 Lux (Multi-core LEDs on).
Position adjustment	Panorama: 0°~360°, Tilt: 0°~80°, Rotation: 0°~360°.
Illuminator
Type and number of LEDs	2 Multi-core LEDs - IR LED + white light LEDs
Illuminator range	IR: 30m; LED: 30m
Illuminator modes	IR, Warm Light, Smart Dual Light (IR+LED), Schedule
Lens
Type	Fixed focal length, M12
Focal length	2.8mm (F1.4)
Viewing angle	H: 110°, V: 58°, D: 132°
Macro mode	Sharpness from 1.4m
DORI range	Detection: 84.8m; Observation: 33.9m; Recognition: 17.0m; Identification: 8.5m
Video compression	H.265 / H.264 / MJPEG
Smart Codec / AI	Yes (H.265+ / H.264+ / AI H.265 / AI H.264)
Number of streams	3
Resolutions	6MP / 5MP / 4MP / 3MP / 1080p / 720p / D1 / CIF / VGA
Speed	25/30 fps at 6MP
Bitrate	3Kbps ~ 16384Kbps (H.264/H.265)
Day / Night	ICR, color, black & white
WDR	120dB
Noise reduction	3D NR
BLC / HLC / SSA	Yes
White balance	Automatic / manual
Distortion correction (LDC)	Yes
Motion detection	Yes (4 zones)
ROI	Yes (4 zones)
Digital defog	Yes
Image rotation	0°, 90°, 180°, 270°
Privacy zones	8 zones
Audio
Compression	G.711a, G.711Mu, PCM, G.726, G.723
Microphone	Built-in
AI - Intelligent functions
Perimeter protection	Line crossing, intruder detection, people and vehicle classification
AI SSA	AI automatic image adaptation
SMD 4.0	High precision human and vehicle detection, false alarm filter
AcuPick	Intelligent object search in preview and recordings
Alarm
Triggers	No card, full card, card error, tampering, motion detection, etc.
Interface
Ethernet	RJ45 10/100Mbps
Power supply	DC 12V / PoE 48V (802.3af)
MicroSD slot	up to 512GB
Networking
Protocols	IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTMP, SMTP, FTP, DHCP, DDNS, NTP, P2P, etc.
Cyber security	Configuration and video encryption, HTTPS, WSSE, syslog, account lockout
ONVIF	S / T / G / M profile
Browsers	IE11+, Chrome 41+, Firefox 50+
Mobile platforms	iOS, Android
Other
Housing	Metal (IP67)
Dual emergency power supply	Yes
Power consumption	Max 7.4W (12V DC), 9.5W (PoE)
Operating temperature	-40°C ~ +60°C
Humidity	0 ~ 95%
Weight	530g
Dimensions	⌀122 x 105.5mm
Warranty	36 months

Technical specifications of the recorder:

Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H .264
Bitrate:	max. 160 Mbps (without AI) max. 80 Mbps (AI)
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 8 cameras
Network interface:	1 x RJ-45 10/100/1000 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / admin Administrator password should be set at the first startup
Access from cell phone:	Port : 37777 or access via cloud (P2P) Android : Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Privacy Zones Functions implemented when the DVR cooperates with cameras supporting these functions : Intelligent Image Analysis : perimeter protection, scene change Face detection - supports 6 types of face attribute extraction Face recognition people counting heat map
Mouse operation:	Yes
IR remote control included:	No
PoE Switch:	Built-in 8-port PoE switch, 25.5 W / Channel - PoE (802.3af/at)
Maximum total switch load:	72 W
Power supply:	53 V DC / 1.81 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.91 kg
Dimensions:	260 x 233 x 48 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

What is the Dahua company?

Dahua is a global company whose products power the field of electronics industry. Dahua is a well-known manufacturer of such devices and accessories as network cameras, NVR cameras, HDCVI and HDCVI HCVRs, intercoms, alarms, motion detectors and access system components.

Why buy Dahua Tehonology products?

Dahua products are first and foremost excellent value for money - the brand offers its customers high-quality products at a satisfactory price in both IP and HDCVI video technology. Dahua devices are primarily characterized by price-quality ratio.

Dahua Technology devices are also simple and uncomplicated to use, while at the same time advanced in terms of the functionality of the device software. They include many options for configuring free remote access to a given system, making Dahua products both multifunctional and functional.

Structure of Dahua Technology

Dahua Technology is a company that was established in 2001. Its headquarters are located in China, in Hangzhou. Today, it has a number of subsidiaries around the world, and Dahua has more than 16,000 employees in 200 offices and 54 overseas subsidiaries covering Asia, America, Europe, the Middle East, Oceania, Africa, Africa and more. Dahua provides unparalleled quality, reliability and stability in the services and products it delivers. About 50% of them are constantly working on development and research. The company's products are available in more than 180 countries around the world. Solutions with the brand's logo are widely used in key areas such as public safety, traffic, energy, banking and finance, retail and many others.

Dahua Technology has a track record of large-scale international projects, including the Rio Olympics, the Hangzhou G20 summit, Recife Subway in Brazil and the China International Import Expo. The company's position can be evidenced by being ranked second in the global CCTV and video surveillance equipment market in 2014 (according to an IHS report).

Dahua Technology products

Dahua Technology manufactures and distributes state-of-the-art video surveillance systems along with the necessary accessories.

One of Dahua's core products are surveillance cameras. The modern monitoring systems manufactured by Dahua are perfect for installation both in apartments and private homes, as well as in larger facilities - such as stores, hotels and halls. Mounted in the right places, Dahua cameras effectively protect property from burglary and theft. All Dahua devices in this area are equipped, among other things, with an infrared illuminator, which allows day and night image recording.

Dahua DVRs work fully compatible with the brand's cameras and are primarily used to play back high-resolution images from the connected camera. These more technologically advanced devices can be connected simultaneously to several or even a dozen cameras.

The Dahua video intercom, on the other hand, is a very functional device, allowing easy verification of the identity of any visitor even before letting them into the house.

Ivel.pl has been one of the distributors of Dahua Technology products in Poland for years. So we warmly invite both companies and installation companies, as well as corporate clients to cooperate with us. We offer full support in the process of solution selection, sales and service.

Zamknij
