Smoke Detector SD-87A2
Photo gallery
-
Manufacturer
-
Product Code
SD-87A2
-
Warranty
24 miesiące
- Sensor type: Smoke
Ask about this product show form
Product Description

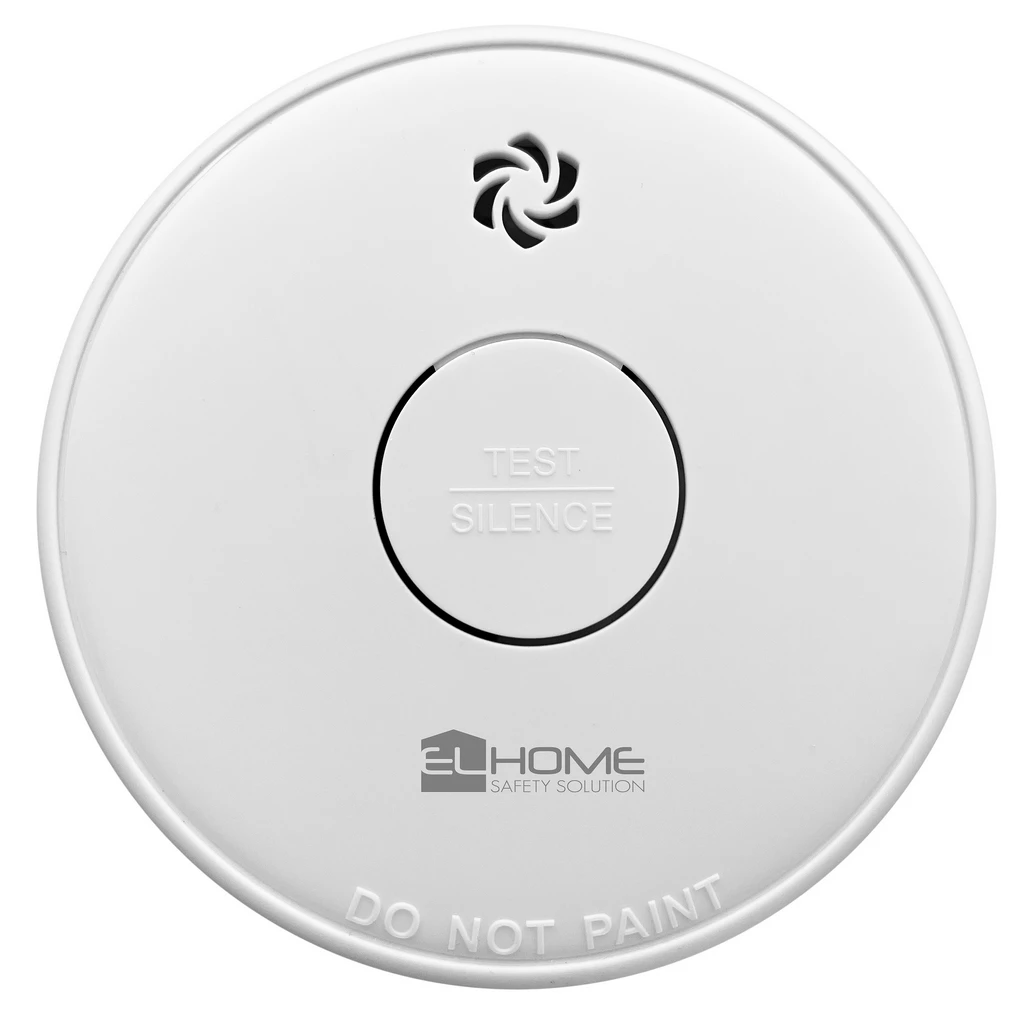

SD-87A2 smoke detector
The device is designed to monitor closed rooms for the presence of smoke and to signal a fire hazard when it is detected. It is equipped with a high-performance photo-optical sensor that provides effective smoke detection. The sensor is designed to be mounted on the ceilings of protected rooms. When it detects a threat in the form of smoke, it immediately activates:
- acoustic alarm - a signal of about 85 dB emitted by the built-in speaker,
- optical alarm - a flashing LED located on the front of the device housing.

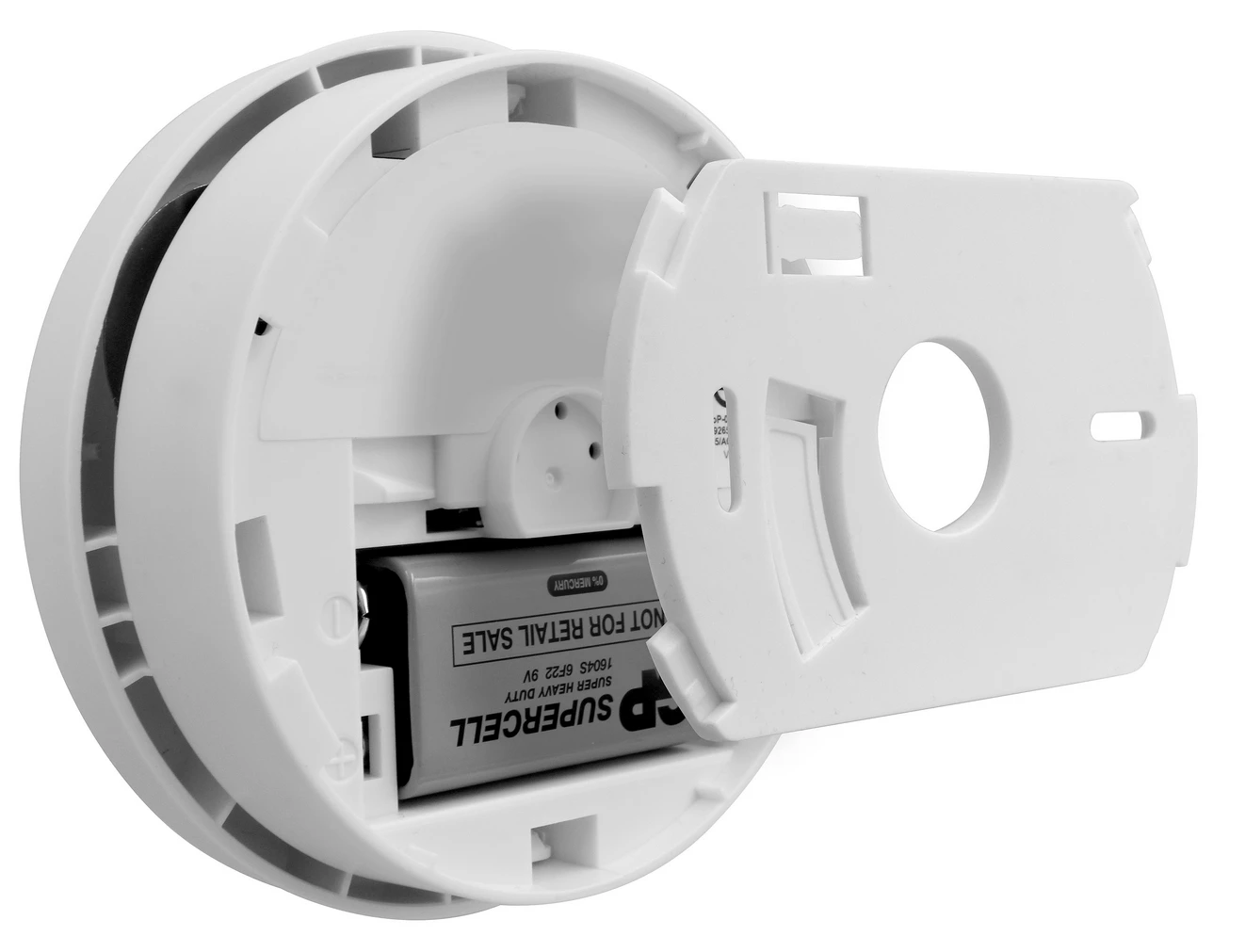

The device has a test button for checking the correct operation of the sensor. It is also equipped with a circuit that monitors the state of charge of the battery, so that the user is informed when it needs to be replaced.
| Technical specifications | |
|---|---|
| Sensor | |
| Power supply voltage | 9 V DC |
| Protection factor | IP20 |
| Sensor type | photo-optical |
| Types of detected threats | smoke |
| Power supply type | Battery |
| Sensor current consumption - standby / alarm | <15μA / <25mA |
| Recommended place of installation | ceilings, indoors |
| Max. sound level | 85 dB / 3 m |
| Detection range of the sensor | approx. 20-25 m² |
| Case protection factor | IP20 |
| Humidity | ≤ 93% RH |
| LCD display | No |
| Test button | Yes |
| Low battery (or power failure) indication | Yes |
| Failure indication | Yes |
| Temperature operating range of the sensor | 0ºC ~ +40ºC |
| Sensor dimensions (H x W x D) | ø100 x 34 mm |
| Net weight of the sensor | 80 g |
| Logistics data | |
| Package dimensions (W x SZ x G) | 200 x 140 x 50 mm |
| Gross weight | 170 g |
| Type of packaging | Blister |
