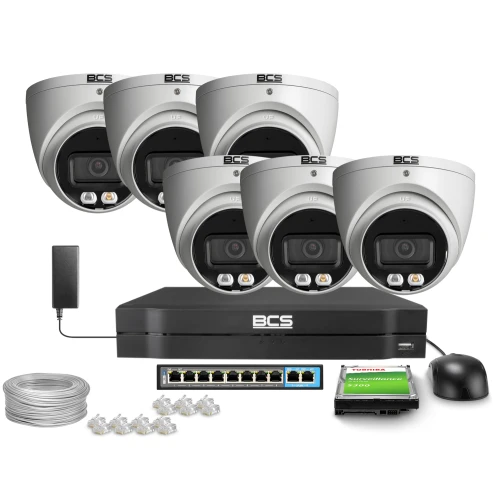

IP Monitoring Kit 6x BCS-L-EIP18FCR3L3-AI1 8MP, NightColor, WDR 120dB, IR 30m
Photo gallery
-
Manufacturer
-
Product Code
ZM35478
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Number of cameras: 6
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Related products
Product Description
Here are the main features of the BCS-L-EIP18FCR3L3-AI1 camera:
- Product line: BCS Line
- Camera type: Dome
- Resolution: 8 Mpx (3840×2160 pixels)
- Sensor: 1/2.7'' CMOS, Progressive Scan
- Pixels: 3840(H)×2160(V)
- RAM: 256MB
- ROM: 128MB
- Lens: Fixed
- Focal length: 2.8mm
- Aperture: F1.6
- Focus: Fixed
- Iris: Fixed
- Digital zoom: 16×
- Viewing angle:
- H: 111°
- V: 58°
- D: 132°
- DORI:
- Detect: 85m
- Observe: 34m
- Recognize: 17m
- Identify: 9m
- Camera Sensitivity:
- 0.008Lux (Color, F1.6, 30IRE)
- 0.0008Lux (B/W, F1.6, 30IRE)
- 0 Lux (IR)
- S/N ratio: 56 dB
- White balance (AWB): Auto / manual
- WDR: 120 dB
- Background compensation: BLC / HLC / WDR (120 dB)
- Shutter: Auto / manual 1/3~1/100000s
- Gain Control (AGC): Auto / manual
- Noise Reduction: 3D DNR
- Image rotation: Mirror, Flip 0°/90°/180°/270°
- Number of streams: 2
- Stream resolutions:
- Main stream: 3840×2160 (
120fps), 2688×1520 (125/30fps) - Second stream: 704×576 (
125fps), 704×480 (130fps)
- Main stream: 3840×2160 (
- Bitrate:
- H.264: 32 Kbps~8192 Kbps
- H.265: 12 Kbps~8192 Kbps
- Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Day/night mode: ICR mechanical infrared filter
- Illuminator type: IR LED + White Light, range up to 30m
- NightColor: Yes
- Microphone: Yes
- Audio compression: G.711A / G.711Mu / G.726 / PCM
- Storage: FTP, SFTP
- Memory card slot: microSD up to 256GB
- Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
- Motion Detection: 4 zones
- Privacy masks: 4 zones
- Network: RJ-45 10/100 Mbps
- Compatibility: ONVIF (S/G/T)
- Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Boujour
- Power supply type: 12VDC / PoE (802.3af)
- Power consumption: max 5.9W
- Housing color: White
- IP protection class: IP67
- Operating conditions: -40°C~+55°C, max 95% RH
- Dimensions: Ø106×94mm
- Weight: 0.39 kg
Intelligent functions (Ai):
- Perimeter protection: Area intrusion detection, line crossing.
- Object recognition: Person/mechanical vehicle recognition, false alarm reduction
- SMD Plus: Smart Motion Detection Plus, advanced motion detection
The BCS-L-EIP18FCR3L3-AI1 camera is an advanced, high-resolution 8 Mpx dome camera with smart monitoring features and a wide range of viewing angles. Ideal for precision monitoring and image analysis.
