External U/UTP Cat.6 Cable Dahua PFM920-6UN BLACK

External U/UTP Cat.6 Cable Dahua PFM920-6UN BLACK
  • Manufacturer

    Dahua
  • Product Code

    PFM920-6UN

  • Warranty

    24 miesiące


Ask about this product show form

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

91,80 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 21,24 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

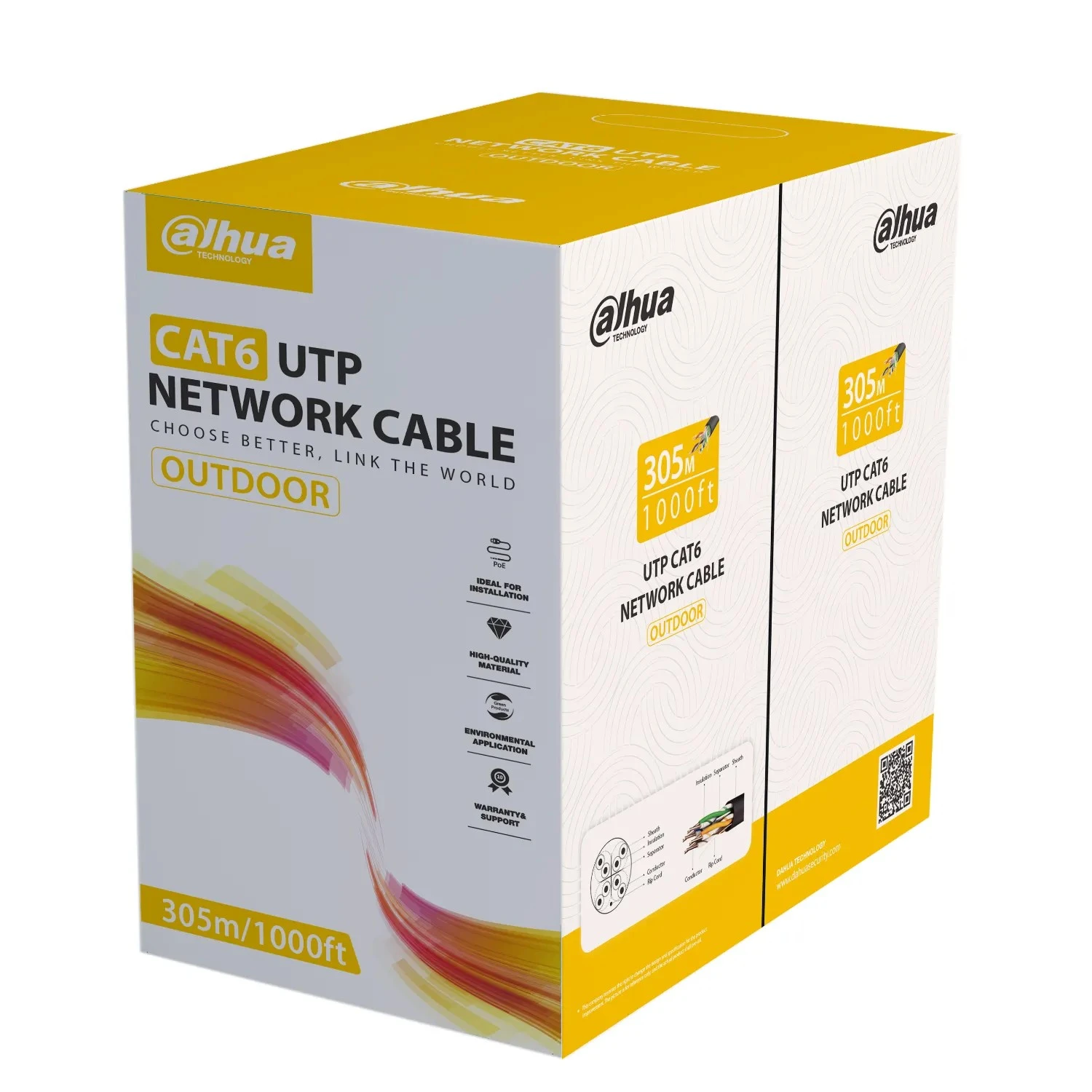

U/UTP CAT6 305m outdoor network cable (black, PE sheath).

Product information:

  • 305 m (1000 ft)/carton Outdoor U/UTP CAT6 cable, power over Ethernet, single cable compatible.
  • Conductor material: high purity oxygen-free copper.
  • Customized PE outer sheath, a certain degree of water resistance. Environmentally friendly, and all materials used are RoHS compliant.
  • 10-year warranty.

Technical specifications:


CategoryParameterValue
GuideMaterialOxygen-free copper (purity 99.97%)
Conductor structure0.53 mm ± 0.02 mm
AWG cross section24AWG
InsulationInsulation materialHDPE
Min. average thickness0.21 mm
Insulation diameter0.95 mm ± 0.06 mm
Insulation colors8 conductors: blue, white-blue; orange, white-orange; green, white-green; brown, white-brown
Tearing cordMaterialPolyester
Specifications3 × 150D
SeparatorMaterialPE
SpecificationTransparent 4.3 × 0.35 mm
Inner sheathMaterialPVC
Min. average thickness0.45 mm
Diameter5.6 mm ± 0.4 mm
ColorWhite
Outer jacketMin. average thickness0.5 mm
Mantle materialMDPE
Mantle diameter6.8 mm ± 0.4 mm
Jacket colorBlack
ElectricalMax. DC resistance9.5 Ω@100 m
Min. insulation resistance5000 MΩ-km
Resistance unbalance2% (inside pair), 4% (between pairs)
Dielectric strengthNo breakthrough at 1kV DC for 1 minute
TransmissionImpedance100 Ω ± 15 Ω
Crosstalk (NEXT)≥39.30 dB/100 m@250 MHz
Attenuation34.8 dB/100 m@250 MHz
Reflectance loss≥17.3 dB/100 m@250 MHz
MechanicalTensile strengthJacket ≥13.5 MPa, insulation ≥16 MPa
Elongation at breakJacket ≥150%, insulation ≥300%
Bending radius>8 × outside diameter
Conductor elasticity≥10%
EnvironmentalShrinkage of insulation≤5%
Color migrationNo migration
Aging - strength and elongation≥12.5 MPa, ≥100%
Bending test at low temp.No cracks
Heat shock testNo cracks
Operating/installation/storage temperatures-20°C to +60°C / 0°C to +50°C / -10°C to +40°C
Storage humidity<60% RH
SafetyFlammability testConforms to IEC 60332-1-2
PackagingCable length305 m ± 2 m
Packing method305 m per carton, 2 inner cartons
Packaging dimensions433 × 433 × 230 mm
Transport dimensions495 × 457 × 466 mm
Net/gross weight13.5 kg ± 0.6 kg / 14.5 kg ± 0.6 kg
ComplianceStandardQ/DXJ 067-2024
