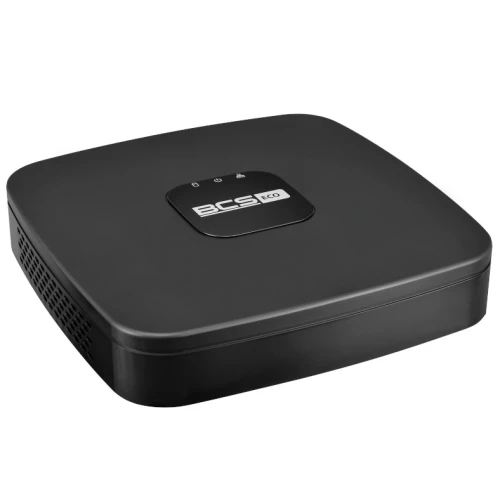

IP Recorder BCS LINE BCS-L-SNVR0801-4KE-8P(2) 8-channel, 12MP, PoE, 4K HDMI/VGA
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-SNVR0801-4KE-8P(2)
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 8
- Built-in POE switch: Yes
Ask about this product show form
Related products
Product Description
Product Contents:
The box includes:
The box includes:
- 1x DVR - BCS LINE BCS-L-SNVR0801-4KE-8P(2).
- Documentation - User manual, warranty card, regulations
- 1x Power supply
- 1x Mouse
- Screws for hard drive mounting
Main features:
- Support up to 8 cameras and 1 audio input/1 audio output - full control of video and audio.
- Advanced H.265+ / H.264+ / MJPEG compression - save space while maintaining high quality recordings.
- High recording resolution up to 12MP - detailed video recording.
- Performance: up to 144 Mbps (72 Mbps for AI) - smooth recording and video transmission.
- HDMI and VGA outputs with 1/4/8/9 split support - flexible viewing options.
- AI functions: perimeter protection and person/vehicle recognition on 4 channels - intelligent event analysis.
- ONVIF (S/G/T) compatibility - broad compatibility with IP devices.
- Built-in 8-port PoE switch - easy power and signal transmission with a single cable.
- Support for hard drives up to 20TB - ample space for recording footage.
- Compact chassis (270×205×45mm), low power consumption and -10°C ~ +50°C operation - reliable and energy efficient.
P2P function
In BCS-L-SNVR0801-4KE-8P(2) DVRs is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
In BCS-L-SNVR0801-4KE-8P(2) DVRs is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
- Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
- Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
- Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.
Efficient storage
H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern DVRs such as the BCS-L-SNVR0801-4KE-8P(2). It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ encoding in surveillance DVRs are:
H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern DVRs such as the BCS-L-SNVR0801-4KE-8P(2). It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ encoding in surveillance DVRs are:
- Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
- Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
Remote access from phone and desktop computer
BCS systems allow you to configure, control and view using apps that will provide you with constant access to your monitoring from anywhere on earth with internet access. The above programs allow you to:
BCS systems allow you to configure, control and view using apps that will provide you with constant access to your monitoring from anywhere on earth with internet access. The above programs allow you to:
- Access video preview and play back recorded footage
- Save portions of the video to your smartphone's memory
- Configure time frames for motion detection
- Receive notifications from motion detection or other events
- Share your device with other smartphones with the mobile app, such as family members or employees
Technical specifications:
| Technical specifications | |
|---|---|
| Video and audio | |
| Camera support | 8 |
| Audio input/output | 1/1 |
| Display | |
| Resolution | VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Playback | 1/4/8 |
| Output breakdown | HDMI/VGA: 1/4/8/9 |
| Display performance | 1×12M(30fps) / 1×8M(30fps) / 2×5M(30fps) / 3×4M(30fps) / 6×2M(30fps) 1×8M Ai(30fps) / 1×5M Ai(30fps) / 2×4M Ai(30fps) / 4×2M Ai(30fps) |
| Recording | |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Recording resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 |
| Bit rate | Input bandwidth. 144Mbps (72Mbps Ai) Output bandwidth 72Mbps (36Mbps Ai) Recording 144Mbps (72Mbps Ai) |
| Alarm | |
| Alarm inputs | - |
| Alarm outputs | - |
| Playback and archiving | |
| Archiving | Flash memory (USB) / download via network |
| Network | |
| Interface | 1x RJ-45 port (10M/100M) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Registration |
| Compatibility | ONVIF (S/G/T) |
| Number of PoE ports | 8 |
| Disk support | |
| HDD | 1x HDD up to 20TB |
| HDD RAID mode | - |
| Additional interfaces | |
| USB | 2x USB2.0 |
| Additional interfaces | - |
| Smart functions | |
| Ai - Functions from the recorder | SMD Plus |
| Ai - Functions from cameras | Perimeter protection, SMD Plus |
| Ai - Perimeter protection | 4 channels from cameras |
| Ai - SMD | 4 channels from cameras / 4 channels from DVR (person / motor vehicle recognition) |
| General | |
| Power supply | DC53V |
| PoE | Built-in 8-port PoE switch, max. 72W (max. per port 25.5W) |
| Current consumption | Max. 10W (without disk) |
| Operating temperature | -10°C ~ +50°C |
| Dimensions (W×D×H) | 270×205×45 mm, smart |
| Net weight | 680g |
