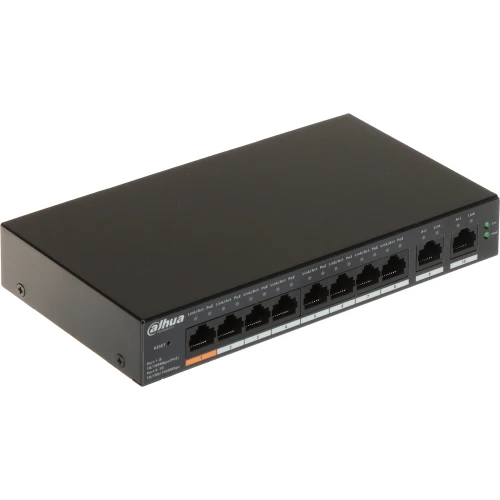

Switch PoE Dahua CS4010-8ET-60 8x PoE 2x Uplink

Switch PoE Dahua CS4010-8ET-60 8x PoE 2x Uplink
  • Manufacturer

    Dahua
  • Product Code

    CS4010-8ET-60

  • Warranty

    24 miesiące


Ask about this product show form

  • Save -7%
  • Availability: in stock Shipping 24h

Price (Incl. VAT):

61,12 € 65,37 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Cechy główne:

  • 1× Hi-PoE 60 W + 7× PoE 802.3af/at (do 30 W/port) – elastyczne zasilanie kamer, w tym jednego urządzenia wysokiej mocy na porcie 1.
  • Dwa porty uplink Gigabit – stabilny backhaul 1 Gb/s dla rejestratora/NVR lub sieci szkieletowej.
  • Long Distance PoE do 250 m (10 Mb/s) – zasilanie i transmisja do odległych punktów bez dodatkowych extenderów.
  • Zarządzanie przez WWW i chmurę (DoLynk Care) – łatwa konfiguracja, monitoring i zdalne wsparcie.
  • Watchdog PoE – automatyczny restart zawieszonych urządzeń dla wyższej niezawodności.
  • Port-Based VLAN (do 32) + LLDP + Flow Control (802.3x) – prosta segmentacja i lepsza stabilność ruchu w sieci CCTV.
  • Ochrona przeciwprzepięciowa i ESD – 4/2 kV (linie wspólne/różnicowe) oraz 6/8 kV (Contact/Air) dla większej odporności instalacji.
  • Metalowa obudowa desktop, zasilacz w zestawie – szybki montaż, możliwość instalacji na ścianie, pobór mocy max. 65 W
Switch PoE Dahua CS4010-8ET-60 – wydajne zasilanie i transmisja dla systemów CCTV

Switch Dahua CS4010-8ET-60 oferuje 8 portów PoE (w tym 1 Hi-PoE do 60 W) oraz 2 porty uplink Gigabit, zapewniając stabilną transmisję i elastyczne zasilanie kamer IP. Obsługuje tryb Long Distance PoE do 250 m, Watchdog PoE oraz zarządzanie przez WWW i chmurę (DoLynk Care). Solidna, metalowa obudowa z zabezpieczeniami przeciwprzepięciowymi i ESD gwarantuje niezawodną pracę w wymagających instalacjach monitoringu.


Specyfikacja techniczna:

Switch PoE Dahua CS4010-8ET-60
Porty
Porty LAN (PoE) 8 × RJ45 (1 × Hi-PoE + 7 × PoE 802.3af/at)
Porty Uplink 2 × RJ45 (Uplink)
Diody LED Power, System, Link/Act, PoE
Transmisja
Przepustowość portów 10/100 Mb/s: porty 1–8 (LAN & PoE); 10/100/1000 Mb/s: 2 porty uplink
Wydajność przełączania 4.8 Gb/s
Szybkość przekierowań 3.57 Mpps
Tablica MAC 8k
Zasilanie PoE
Moc na port Port 1: Hi-PoE do 60 W; Porty 2–8: PoE 802.3af/at do 30 W
Budżet PoE (sumaryczny) 60 W
Tryb zasilania (8-pin) 1–2(+), 3–6(−), 4–5(+), 7–8(−)
Zarządzanie i tryby pracy
Zarządzanie WWW oraz chmura (aplikacja DoLynk Care)
Tryby Long Distance PoE (250 m, 10 Mb/s, porty 1–8), Port-Based VLAN (porty 1–8), Watchdog PoE (porty 1–8)
Funkcje Watchdog PoE, Loop Protection, LLDP, Port-Based VLAN (do 32), 802.3x Flow Control, klient DHCP, przycisk RESET
Sieć i dostęp
Domyślny adres IP 192.168.1.110
Domyślne konto admin / –
Obudowa i zasilanie
Obudowa / kolor Desktop, metalowa / czarny
Zasilanie 53 V DC / 1.22 A (zasilacz w komplecie)
Pobór mocy max. 65 W
Wymiary / waga 190 × 106 × 30 mm / 0.49 kg
Warunki pracy i certyfikaty
Temperatura pracy −10 °C … +55 °C
Zabezpieczenia Ochrona przepięciowa (wspólne/różnicowe): 4/2 kV; ESD: 6 kV (Contact) / 8 kV (Air)
Certyfikaty CE
Producent i gwarancja
Producent / marka DAHUA
Gwarancja 3 lata

  • Lista punktowana

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
