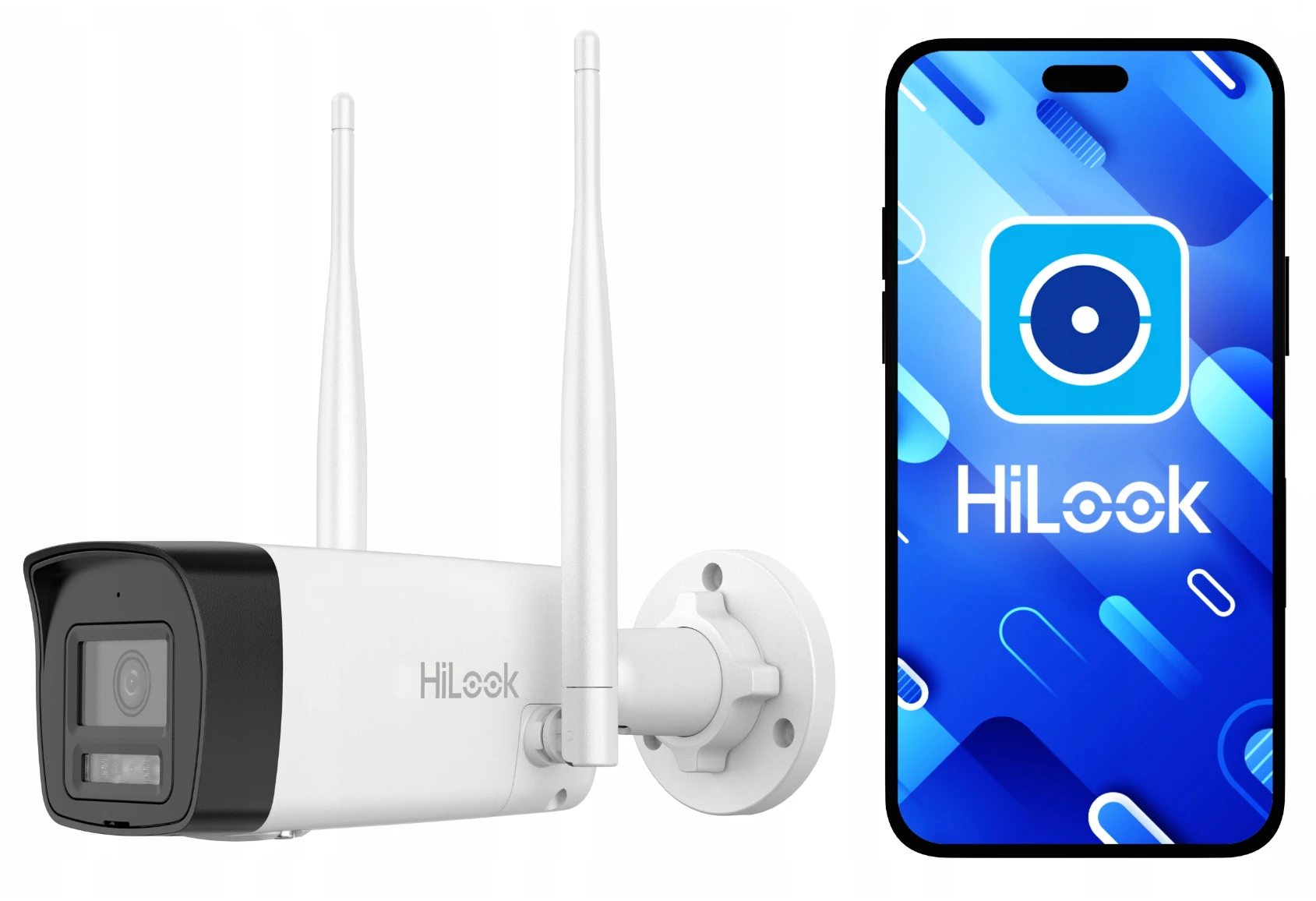

Wi-Fi Camera WIFICAM-B4 EasyLink HiLook by Hikvision

The WIFICAM-B4 also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

✅ 4Mpx ✅ Hybrid Light ✅ Microphone ✅ Silhouette Detection ✅.

WIFICAM-B4 is a high quality 4Mpx camera that is best suited for small or medium sized properties like home, store or small business. Thanks to the infrared illuminator with a range of 30m, it won't fail after dark either, and the White Light system, will additionally allow you to get color images at night, thanks to the white light. It can be used both indoors and outdoors.

The camera is designed to work with the WIFIKIT-xx set. It requires connection to NVS DVR for operation.

Features of WIFICAM-T4 HiLook by Hikvision camera:

• ✅ High-quality imaging with 4 Mpx resolution.
• ✅ Support for human and vehicle detection
• ✅ Hybrid Light
• ✅ Built-in microphone for temporary audio protection
• ✅ Video compression: H.265+/H.264+/H.265/H.264
• ✅ Lens: 2.8mm
• ✅ Smart features: motion detection

Remote access from desktops and smartphones The mobile app is a quick and easy way to operate your property's surveillance system, with it you will be able to:   ✅Access the video preview and play back the recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees

People and vehicle detection The camera uses an advanced algorithm that distinguishes between pedestrians and vehicles, allowing you to further filter the notifications you care about.

High-quality image The WIFICAM-B4 camera's light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 4Mpx resolution. It guarantees that the most important details are captured on the footage.

Efficient storage H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern cameras such as the WIFICAM-B4. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors.

Technical specifications of the camera:

• 1/2.7" CMOS image sensor with progressive scanning
• Max. resolution 2560 × 1440
• Min illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR
• Lens
• Focal length 2.8mm
• Horizontal field of view 79°, vertical 40°, diagonal 94°
• Aperture F1.6
• Illuminator
• Type of auxiliary light: infrared, white light
• Range of infrared light: up to 20 m, distance of white light: up to 15 m
• Infrared wavelength: 850 nm
• PTZ
• Range of motion (rotation) 0° to 350°
• Motion range (tilt) 0° to 75°
• Panning speed Up to 20°/s
• Tilt speed Up to 10°/sec.
• Video
• Main stream
• 50 Hz：20 fps（2560 × 1440，1920 × 1080，1280 × 720）.
• 60 Hz：20 fps（2560 × 1440，1920 × 1080，1280 × 720）.
• Sub-stream
• 50 Hz：20 fps（768 × 432）
• 60 Hz：20 fps（768 x 432）
• Video compression H.265, H.264, MJPEG
• Video bit rate from 32 Kbps to 8 Mbps
• Type H.264 Basic profile/main profile/high profile
• Type H.265 Master profile
• Audio
• G.711ulaw/AAC-LC audio compression
• AAC-LC audio bit rate: 16 Kbps, 32 Kbps, 64 Kbps; G.711ulaw: 64 Kbps.
• Audio sampling frequency 8 kHz/16 kHz
• Ambient noise filtering Yes
• Networking
• Protocols IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour
• API Open network video interface (S profile, G profile, T profile), ISAPI, SDK, Hik-Connect
• Wireless connectivity (Wi-Fi)
• Wi-Fi Protocols IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
• Frequency range from 2.4 GHz to 2.4835 GHz
• Channel bandwidth 20/40 MHz
• Wireless range
• Up to 80 m
• (Performance varies depending on actual environment)
• Network
• User/Host
• Up to 32 users. 3 levels: Administrator, Operator and User
• Security
• Password protection, complex password, watermark, basic and shortcut authentication for HTTP, WSSE and shortcut authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Image
• Image settings
• Saturation, brightness, contrast and sharpness adjustable via client software or web browser
• Wide dynamic range (WDR)
• Digital WDR
• Image enhancement
• BLC, HLC, 3D DNR image
• Privacy mask
• 4 programmable rectangular privacy masks Interface
• Ethernet interface
• 1 self-adaptive RJ45 10M/100M Ethernet port
• Built-in microphone
• 1 built-in microphone
• Built-in storage
• Built-in speaker
• 1 built-in speaker Events
• Basic event
• Motion detection (support for alarm triggering by specific types of targets (people and vehicles)), video tamper alarm, exception
• Linking
• Monitoring center notification, emailing, recording trigger （-F）, capture trigger, audio warning General
• Power supply
• 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
• Dimensions
• Ø124 mm × 119 mm (Ø4.89" × 4.68")
• Weight
• Weight: approximately 290 g (0.6 lbs) Weight with packaging: approximately 390 g (0.8 lbs)
• Material
• Plastic
• Operating conditions
• -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
• General functions
• Heartbeat, anti-banding, mirror, password protection, password reset via email Validation
• Protection
• IP66
