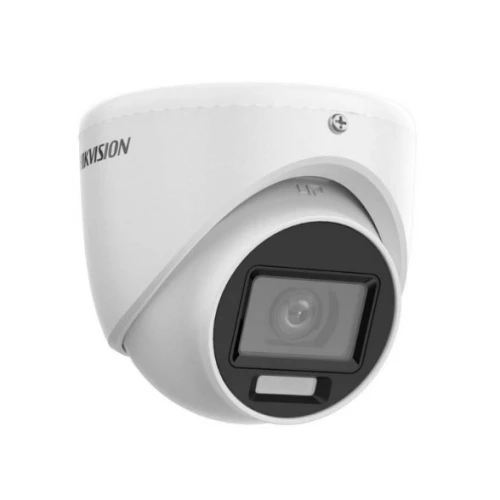

Kamera analogowa Hikvision DS-2CE76K0T-LMFS(2.8mm) HD Smart Hybrid Light 3K

Kamera analogowa Hikvision DS-2CE76K0T-LMFS(2.8mm) HD Smart Hybrid Light 3K
  • Manufacturer

    HiLook by HIKVISION
  • Product Code

    DS-2CE76K0T-LMFS(2.8mm)

  • Warranty

    24 miesiące

  • Technology: AHD/HD-CVI/HD-TVI
  • Resolution: 5Mpx
  • Enclosure: Dome
  • Night visibility: up to 30m
  • Connectivity: Wired
  • Memory card slot: No
  • Color: White

Ask about this product show form

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

59,73 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

Contents of the TVICAM-T8M-20DL package:


In addition to the camera, the box also contains useful instructions and mounting accessories to speed up the entire process of mounting the camera.

  • 1x 8 Mpx dome camera - HiLook by Hikvision TVICAM-T8M-20DL.
  • Documentation - User manual, warranty card, adjustments
  • Template - Small size template with camera mounting holes
  • Screws and mounting studs - Everything you need to mount the camera
  • Waterproof kit - A set of accessories to protect the camera's connectors from moisture

HiLook by Hikvision products are all about ease of use, literally anyone can handle the installation and setup thanks to the included instructions.

Features of the TVICAM-T8M-20DL camera:


  • High-quality imaging with 8 Mpx, 3840 x 2160 resolution.
  • 2.8mm fixed lens
  • Infrared range up to 30 meters
  • White light range - 20 meters
  • Support for four analog TVI/AHD/CVI/CVBS systems
  • IP66 water and dust resistance


High-quality image


The light-sensitive sensor in the TVICAM-T8M-20DL camera and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

  • A: 1280x720p ( 1Mpx )
  • B: 1920x1080p ( 2Mpx )
  • C: 2048x1536p ( 3Mpx )
  • D: 2560x1440p ( 4Mpx )
  • E: 2560x1960p ( 5Mpx )
  • F: 3840x2160p ( 8Mpx )



Automatic day/night mode


Adapted to work in all lighting conditions, the TVICAM-T8M-20DL with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. The LED range is 20 meters.
Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

IP66 weatherproof design

This housing protects the TVICAM-T8M-20DL from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty areas. Cameras with IP66 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Wide dynamic range - That is, high quality in difficult conditions


The WDR (Wide Dynamic Range) function of the TVICAM-T8M-20DL is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:



  • Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
  • Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
  • Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
  • Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.



LED illumination and color images after dark


The TVICAM-T8M-20DL camera's white light illumination function is used to improve image quality in low-light conditions. Here are some key aspects of this technology:

  • Improving nighttime visibility: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
  • Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.


TVICAM-T8M-20DL Technical Specifications:

TVI-T8M-20DL
Category Camera
Sensor 4K CMOS
Signal standard PAL/NTSC
Resolution max. 3840 x 2160
Sensitivity 0.01 Lux (F1.2, AGC ON), 0 Lux at IR
Shutter opening time PAL: 1/25s-1/50000s
NTSC: 1/30s-1/50000s
Lens 2.8mm
Recording angle H: 108° V: 59°
IR illuminator Yes, range up to 30m
White light illuminator Yes, range up to 20m
Infrared filter Mechanical ICR
Head adjustment range Panorama: 0° to 360°
Rotation: 0° to 75°
Tilt: 0° to 360°
Recording speed TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI: 4 MP @25 fps/30 fps
CVBS: PAL, NTSC
Image functions
AWB Auto, Manual
Day/night mode Auto / color / black and white
BLC Yes
HLC Yes
Wide Dynamic Range Yes, digital DWDR
Image adjustment functions Exposure, Sharpness, DNR, Flip, Smart IR
Video interface
Video output 1x HD Analog (BNC)
Video operation mode TVI/AHD/CVI/CVBS (automatic adjustment)
General
Protection class IP66
Power supply 12 VDC
Power consumption ≤4.6W
Operating temp. -40 °C to 60 °C
Permissible humidity ≤90%
Housing material metal + plastic
Dimensions 80 mm × Ø85.1 mm
Weight 310 g

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

A white dome-shaped security camera with a prominent lens and adjustable zoom capabilities. It features a durable design suitable for both indoor and outdoor surveillance, with a visible cable for connectivity.

in stock Shipping 24/48h

IP Camera IPC-HDW2841T-ZS-27135 WizSense 8.3Mpx

  • Technology: IP
  • Resolution: 8Mpx
  • Night visibility: up to 40m
  • Lens: 2.7 ... 13.5mm
  • Connectivity: wired

318,86 €

szt

Add to Watchlist

A sleek, white Dahua thermal imaging IP camera with a 13mm lens, designed for precise surveillance. The camera features a robust mounting bracket for secure installation.

Product temporarily unavaliable

IP Thermal Camera TPC-BF5601-T(13MM) Dahua

  • Technology: TCP/IP
  • Resolution: 1280 x 1024 - 1.4 Mpx
  • Lens: 13mm
  • Thermal imaging
  • Fire detection

10 481,97 €

pcs.

No product

Add to Watchlist

A white dome-shaped security camera with a prominent lens and LED light, designed for ceiling mounting. The camera features a durable casing and includes a network cable for connectivity.

in stock Shipping 24/48h

IP Camera DS-2CD2343G2-I (4MM) ACUSENSE 4Mpx Hikvision

  • Technology: IP
  • Resolution: 4Mpx
  • Night visibility: 30m
  • Lens: 4mm
  • Connectivity: wired

167,70 €

pcs.

Add to Watchlist

Outdoor white Hikvision IP camera with dual antennas and a sleek, modern design. Features include a weather-resistant casing and multiple connectivity ports for enhanced security monitoring.

Product temporarily unavaliable

IP camera DS-2CV2021G2-IDW(2.8MM)(E) wifi - 2.1 Mpx Hikvision

  • Resolution: 1920 x 1080 -2.1 Mpx
  • Lens: 2.8 mm
  • Viewing angle: 111 °
  • IR illuminator range: 30 m
  • Support for two-way audio

128,65 €

pcs.

No product

Add to Watchlist

PTZ-N4MP-P 4Mpx Rotating IP Camera HiLook by Hikvision

in stock Shipping 24h

PTZ-N4MP-P 4Mpx Rotating IP Camera HiLook by Hikvision

  • Technology: IP
  • Resolution: 4MP
  • Night visibility: up to 30m
  • Lens: 2.8mm
  • Connection: wired

91,66 €

pcs.

Add to Watchlist

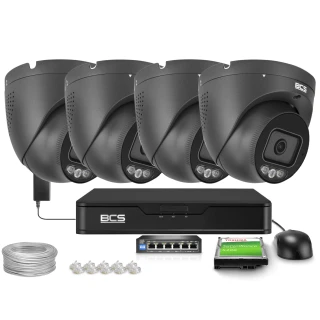

Zestaw do monitoringu IP 4x BCS-P-EIP25FSR3L3-AI2(2) Black 5 Mpx, WhiteLight, WDR130dB, NightColor
