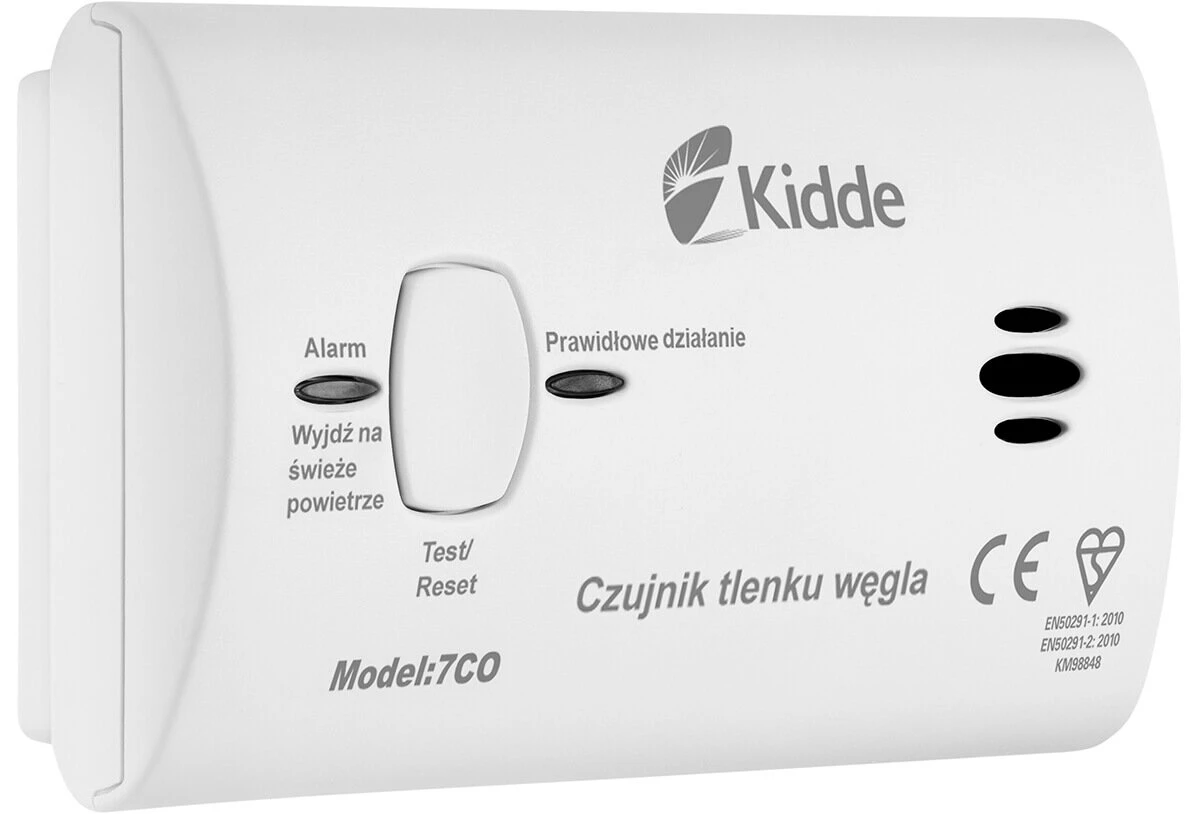

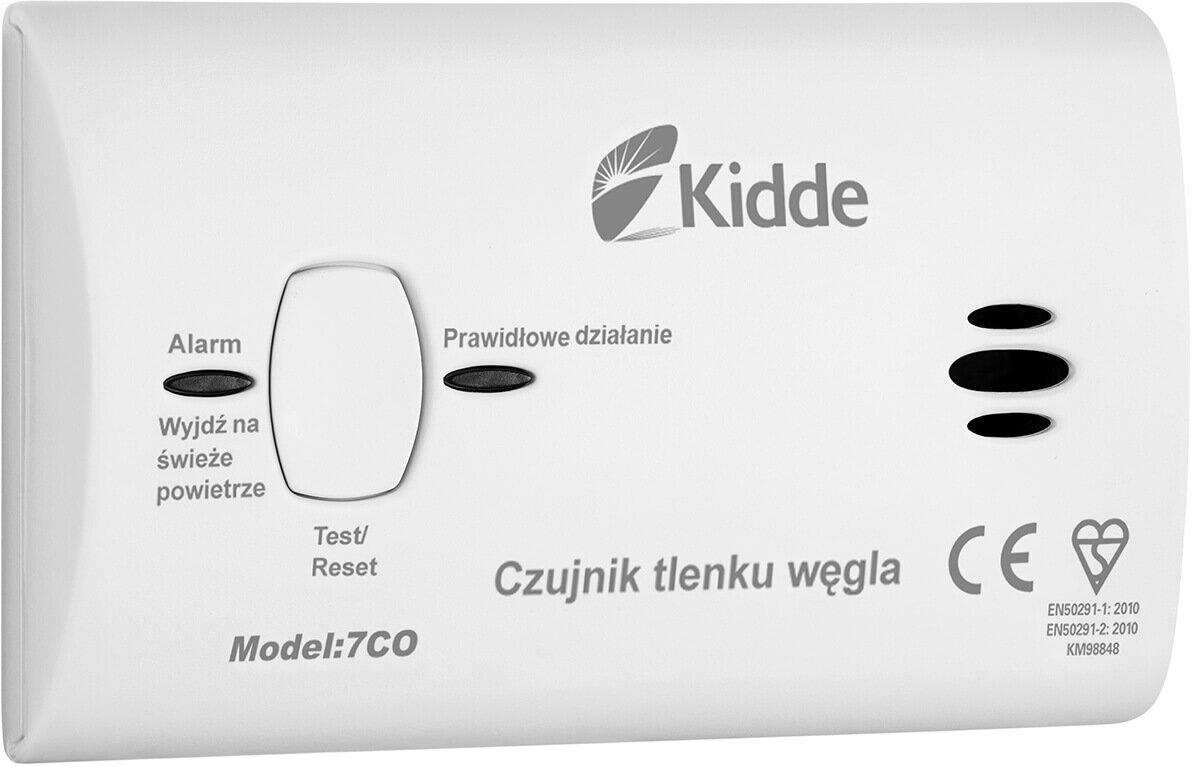

7CO Carbon Monoxide Detector Kidde

A new generation carbon monoxide detector equipped with a Kidde electrochemical sensor that guarantees a 10-year service life, more than 40% longer compared to Series 5 detectors and other devices available on the market.

It has a Test / Reset button that allows you to check the correct operation of the device or disable the alarm signaling. The integrated battery power supply allows the detector to be mounted in the most optimal location and provides protection also in case of power failure in the network.

Thanks to its special shock-resistant design, the detector has been approved for use not only in houses and apartments, but also in caravans, campers and boats (it has a BSI certificate confirming compliance with the PN-EN 50291-2:2010 standard). It can be installed on a wall or placed on a flat surface.

After 10 years of power activation, the sensor will remind you to replace the device.


Advantages of the sensor:

• Electrochemical technology - one of the world's most precise electrochemical sensors
• Longer working life by at least 40% compared to most sensors available on the market
• Loud alarm signaling
• Test/Reset button - to control and operate the device
• Battery power supply for protection also in case of power failure
• Possibility to mount on a wall or place the sensor on a flat surface
• Indication of abnormal operation and end of operating period
• Low power supply voltage indication
• Simple installation and operation
• Small dimensions and weight
• Aesthetic and durable housing
• Very low operating cost
• 10-year warranty

The detector is certified to meet the requirements of the Polish standard PN EN 50291-1: 2010 for home carbon monoxide detectors. Compliance with the aforementioned standard has been confirmed by an independent testing unit of the British Standard Institute (BSI).

Certificates and approvals:

• PN-EN 50291-1:2010, certificate of approval for apartments and houses
• PN-EN 50291-2:2010, certificate of approval for use in caravans, campers and boats
• CE declaration

Technical specifications:

Signaling
Exceeding the permissible concentration of CO	acoustic 85 dB and optical (red LED)
Low power supply (battery discharged)	short beep every 60 seconds and red LED flashes
Malfunction	Two short beeps every 30 seconds and red LED flashes every 30 seconds
End of operating period	two short beeps every 30 seconds and red LED flashes twice or red LED lights up and continuous alarm sounds
Test/Reset button	to control and operate the device. When the button is pressed, the device performs a control test, and if the alarm is activated allows you to turn it off
Alarm activation times	Alarm thresholds in accordance with PN-EN 50291-1:2010
30 PPM	no alarm before 120 min.
50 PPM	must alarm within 60-90 min.
100 PPM	must alert within 10-40 min.
300 PPM	must alert within 3 min
Technical parameters
Sensor	Electrochemical CO sensor by KIDDE- one of the most precise electrochemical sensors in the world

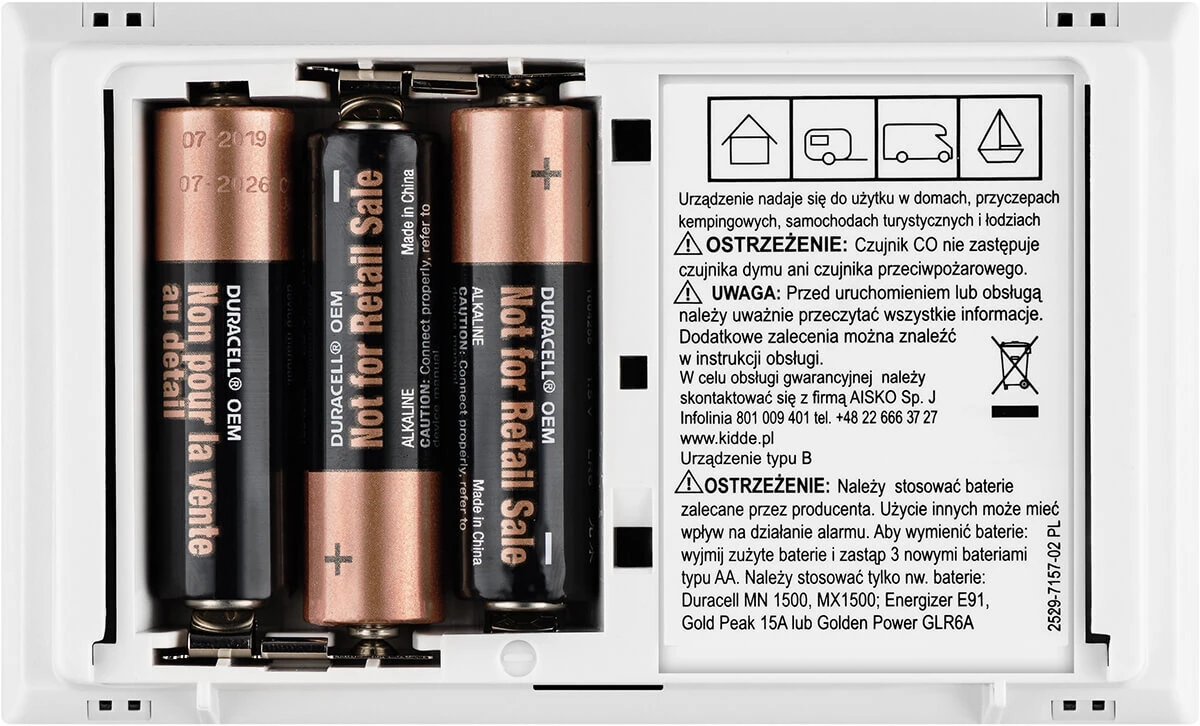

Power supply	DC, three alkaline batteries 1.5V type AA (supplied)

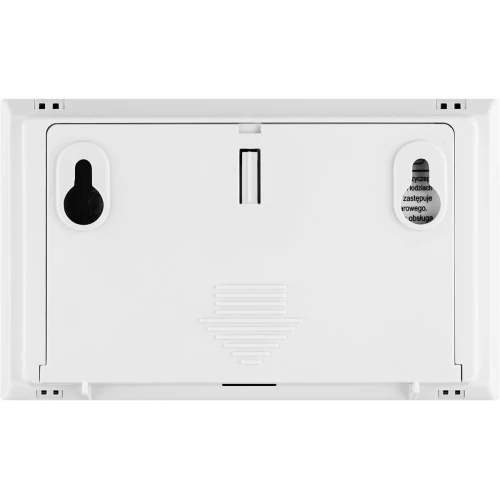

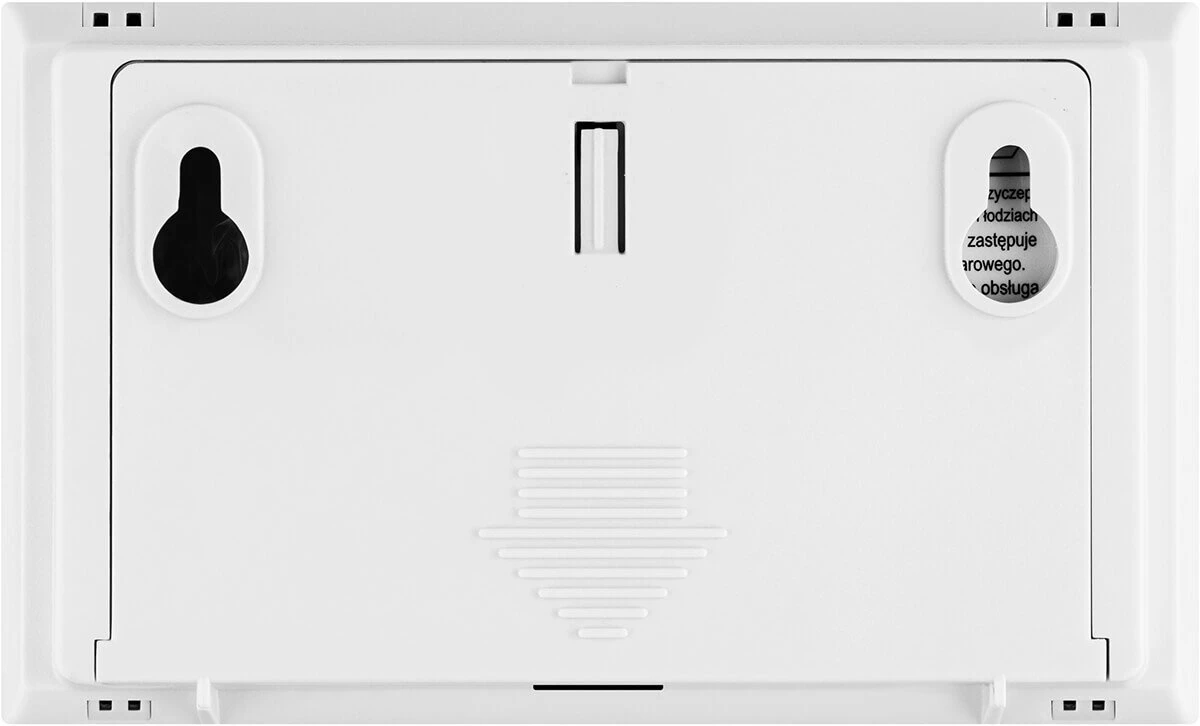

Mounting method	On the wall (mounting screws included) or as a free-standing unit
Dimensions	118mm x 70mm x 40mm
Weight with batteries	160 g
Temperature range	0°C ...+40°C: operation -10°C ...+60°C: transportation and storage
Humidity	Up to 90% RH, non-condensing
