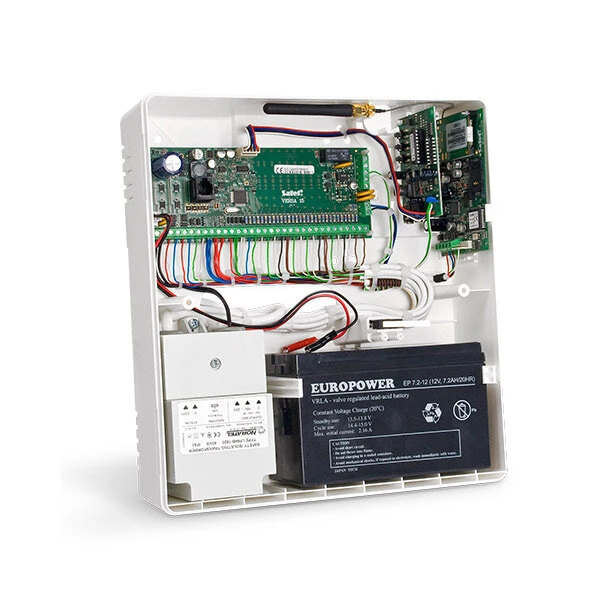

Set VERSA 5-KLCD
Photo gallery
-
Manufacturer
-
Product Code
VERSA5-KLCD
-
Warranty
24 miesiące
-
Time for return
30 days
Ask about this product show form

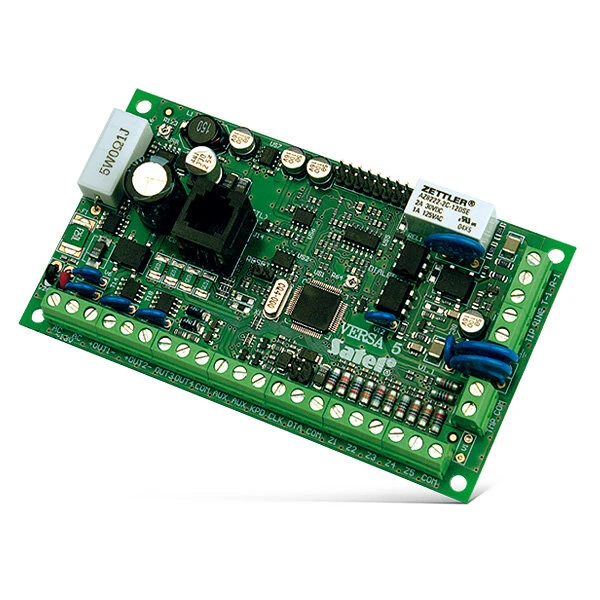

Product Description
- EN50131 Grade 2 compliant
- 5 inputs expandable up to 30:
- choice of configurations: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- ability to operate rolling shutter and vibration detectors
- presence monitoring of detectors
- additional tamper input
- 4 to 12 programmable outputs
- 3 power outputs
- system division into 2 zones:
- 3 surveillance modes in each zone
- control by user or with timers
- possibility of simple software update (firmware) allowing to enrich the control panel with additional functionality
- RS-232 port (RJ socket) for control panel programming
- built-in telephone communicator with functions:
- monitoring (SIA, ContactID, others)
- voice messaging (8 numbers, 16 messages)
- remote programming (300 bps modem)
- cooperation with GSM/GPRS modules:
- voice/SMS messaging
- SMS/GPRS monitoring
- system control by means of:
- LCD or LED keypads (up to 6)
- VERSA-LCDM-WRL wireless keypads (VERSA 5 Firmware v1.04 or later)
- INT-TSG touch-screen keypads (INT-TSG Firmware v1.03 or later, VERSA 5 Firmware v1.04 or later)
- remote controls
- ability to easily update software (firmware) to facilitate the use of future devices
- support for up to 31 passwords:
- 30 regular users
- 1 installer
- name editing for easy operation and system management
- timers:
- 4 timers with exception handling
- 2047 event memory
- automatic diagnostics of basic system components
- built-in switching power supply with a capacity of 1 A:
- overload protection
- protection against complete battery discharge
- regulation of battery charging current
LCD keypad for VERSA series control panels
The keypad is designed for everyday operation of VERSA alarm systems. Thanks to the LCD display, which shows text messages, using even the advanced functionality of the control panel is simple and convenient. Additional convenience is provided by function keys for easy selection of standby modes: full, night and day.
- easy-to-read LCD display
- LEDs indicating partition and system status
- quick activation of the selected arming mode by means of function keys
- Panic, FIRE, AID alarms called from keypad
- backlighting of the display and keys
- audible signaling of selected events in the system
- signaling loss of communication with the control panel
OPU-4 P
Housing
- double tamper protection
- possibility to install wireless devices with antennas inside the housing
- dimensions: 266 x 286 x 100 mm
- space for transformer: 40 or 60 VA
- possibility to mount APS-412 power supply in place of transformer
- surface mounting
- application:
- control panels manufactured by SATEL
- expansion modules manufactured by SATEL
- GSM communication modules manufactured by SATEL
- ACCO access controllers with and without power supply
- ACCO-NT access control panel
"Source: SATEL sp. z o.o., www.SATEL.pl".
