VERSA IP
Photo gallery
-
Manufacturer
-
Product Code
VERSAIP
-
Warranty
24 miesiące
-
Time for return
30 days
Ask about this product show form
Product Description
The VERSA IP control panel is designed to protect small and medium-sized premises. It makes it possible to create a wired or wireless system, as well as a hybrid system, combining both. It cooperates with ACU-120 and ACU-270 controllers, which offer excellent operating range of ABAX family devices - even up to 500 m in an open area.

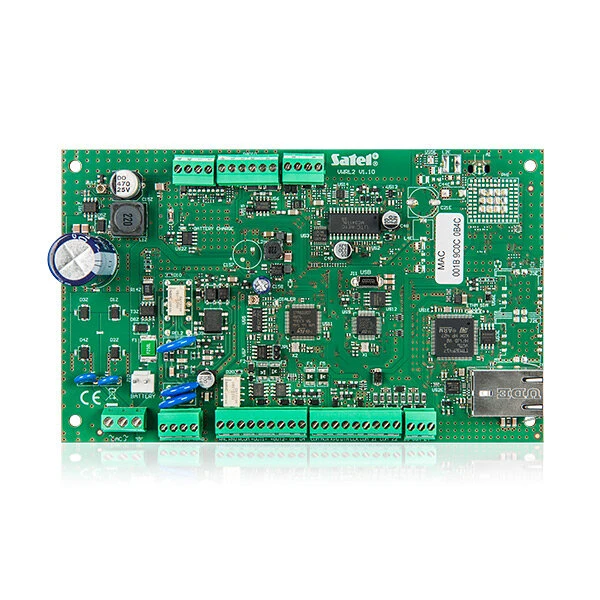

VERSA IP is a solution combining functionalities that were previously available through the use of several separate devices. Its main board integrates modules: ETHM, INT-VG, INT-AV and PSTN dialer. Thanks to this, the VERSA IP control panel allows communication through two channels (Ethernet and PSTN), ensuring effective information transfer.
Technical specifications:
"Source: SATEL sp. z o.o., www.SATEL.pl".
VERSA IP is a solution combining functionalities that were previously available through the use of several separate devices. Its main board integrates modules: ETHM, INT-VG, INT-AV and PSTN dialer. Thanks to this, the VERSA IP control panel allows communication through two channels (Ethernet and PSTN), ensuring effective information transfer.
- 4 programmable wired inputs (expandable to 30):
- support for NO and NC type detectors, as well as rolling shutter and vibration detectors
- support for EOL and 2EOL configurations
- Additional NC-type tamper input
- 5 programmable wired outputs (expandable to 12):
- 2 high-current outputs
- 2 low-current outputs of OC type
- 1 relay output
- 3 power outputs
- output for connecting an enclosure-mounted dedicated piezoelectric transducer (acoustic signaling)
- division of the system into 2 zones:
- possibility to assign a zone to two zones
- system control by means of:
- LCD or LED keypads
- VERSA-LCDM-WRL wireless keypads
- INT-TSG touch-screen keypads
- proximity cards
- remote controllers
- integrated PSTN module enabling:
- monitoring (SIA, ContactID, others)
- voice messaging (8 numbers, 16 messages)
- remote programming (300 bps modem) by means of the DLOADX program
- built-in ETHM module enabling:
- e-mail messaging
- control by means of VERSA CONTROL application offering PUSH messaging
- monitoring to the station
- programming by means of the DLOADX program
- built-in voice module:
- nearly 13 minutes for messages used in the voice menu
- more than 4 minutes for 16 messages for telephone messaging (a message can last up to 16 seconds)
- built-in USB-HID socket
- memory for 2047 events
- support for 30 users, each of which can be assigned:
- password
- proximity card
- remote control
- 4 timers enabling automatic:
- arming/disarming of zones
- output control (light on/off, garden sprinkler, etc.)
- detachable terminal strips
Technical specifications:
| Voice messages | 16 |
| Load capacity of low-current programmable outputs | 50 / 12 VDC mA |
| Event memory | 2047 |
| Zones | 2 |
| Timers | 4 |
| Current capacity of the power supply | 2 A |
| Housing dimensions | 266 x 286 x 100 mm |
| Electronics board dimensions | 173 x 105 mm |
| Operating temperature range | -10...+55 °C |
| Supply voltage (±15%) | 18 V AC, 50-60 Hz |
| Maximum humidity | 93±3% |
| Current consumption from 230 V mains - standby | 120 mA |
| Current consumption from battery - standby | 160 mA |
| Battery fault notification voltage (±10%) | 11 V |
| Battery cut-off voltage (±10%) | 10,5 V |
| Environmental class according to EN50130-5 | II |
| Maximum current consumption from 230 V mains | 160 mA |
| Maximum current consumption from battery | 200 mA |
| Programmable wired inputs | 4 |
| Maximum number of programmable inputs | 30 |
| Wired programmable outputs | 5 |
| Maximum number of programmable outputs | 12 |
| Power supply outputs | 3 |
| Communication buses | 1 |
| Manipulators | up to 6 |
| Grade of protection according to EN 50131 | Grade 2 |
| AUX output load capacity | 500 / 12 V DC |
| Recommended transformer | 40 VA |
| Weight (with enclosure and accessories) | 1220 g |
| Users | 30 |
| E-mail addresses for notification | 8 |
| Text messages | 64 |
| Load capacity of +VR output | 200 / 12 V DC |
| KPD output load capacity | 500 / 12 V DC |
| Load capacity of the programmable relay output | 1000 / 24 V DC mA |
| Load capacity of high-current programmable outputs | 1100 / 12 V DC mA |
| Output voltage range | 10.5 V...14 V DC |
| Battery charging current | 800 mA |
| Power supply output voltage | 12 V DC ±15% |
| Telephone numbers for notification | 8 |
"Source: SATEL sp. z o.o., www.SATEL.pl".
