Smoke and heat detector for alarm systems TSD-1

Round smoke and heat detector with a white, vented design and a central sensor. Features a small red indicator light for status alerts.
Round smoke and heat detector with a white, vented design and a central sensor. Features a small red indicator light for status alerts.

Photo gallery

  • Manufacturer

    SATEL

  • Product Code

    TSD-1

  • Warranty

    24 miesiące

  • Sensor type: Smoke
    Warm

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

32,39 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric visible smoke detector, and a redundant differential temperature sensor. The unique design of the sensing chamber ensures high sensitivity and non-directionality, while a precision Hexamesh stainless steel filter prevents some dirt and small insects from entering its interior. The detector's DIP switch configuration and built-in end-of-line parametric resistors make it easy to connect it to virtually any control panel with a 12-volt power supply.

Device Features:
  • unique Swirl chamber for accelerated smoke detection
  • smoke detection in accordance with EN54-7 requirements
  • heat detection in accordance with EN54-5
  • operating mode selection switches (smoke, heat, multisensor)
  • selection of line type: NO/NC/2EOL via switches
  • precision Hexamesh stainless steel filter
  • indication of chamber contamination
  • easy installation in the base
  • cooperation with any 12 V control panel

Technical specifications:

Power supply voltage (±15%)12 V DC
Housing dimensionsø108 x 61 mm
Operating temperature range-10...+55 °C
Standby current consumption250 μA
Maximum current consumption24 mA
Weight164 g
Permissible relay contact load (resistive)40 mA / 16 V DC
Maximum humidity93 ±3%
Class according to EN 54-5 (thermal sensor)A1R
Minimum static alarm notification temperature54 °C
Maximum static alarm notification temperature65 °C
Environmental class in accordance with EN50130-5I


"Source: SATEL sp. z o.o., www.SATEL.pl".

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

SATEL sp. z o.o.

ul. Budowlanych 66

80-298 Gdańsk

satel@satel.pl

Zamknij

Similar products in this category

Magnetic sensor K-3

in stock Shipping 24h

Magnetic sensor K-3

Power supply: Max 20V
Type of detection: Opening
Installation: Wired
Closing distance: 15mm
Opening distance: 24mm

7,58 €

szt

Add to Watchlist

The image shows a brown magnetic contact sensor with two rectangular components, each featuring mounting holes for installation. The sensor is designed for security systems, with visible branding and certification markings.

in stock Shipping 24h

Magnetic sensor (brown) B-1M BR (10 pieces)

Maximum switchable voltage: 100V
Type of detection: Opening
Installation: Wired
Closing distance: 30mm
Opening distance: 33mm

53,53 €

pcs.

Add to Watchlist

Carbon monoxide alarm with a sleek white design and replaceable battery, featuring a test button for easy functionality. The packaging highlights safety certifications and the manufacturer's website.

in stock Shipping 24h

Carbon monoxide sensor FireAngel FA3313-INT

  • Power supply: 2xAA batteries
  • Type of detection: Carbon monoxide
  • Sensor Type: Electrochemical
  • Installation: Wireless
  • Warranty: 10 years

28,72 € 36,07 €

pcs.

Add to Watchlist

  • Save -20%

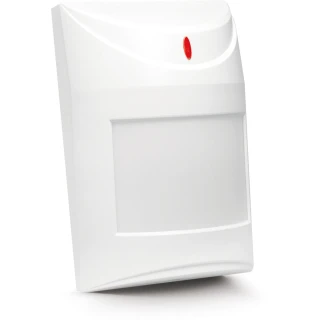

AQUA Plus Infrared Sensor
