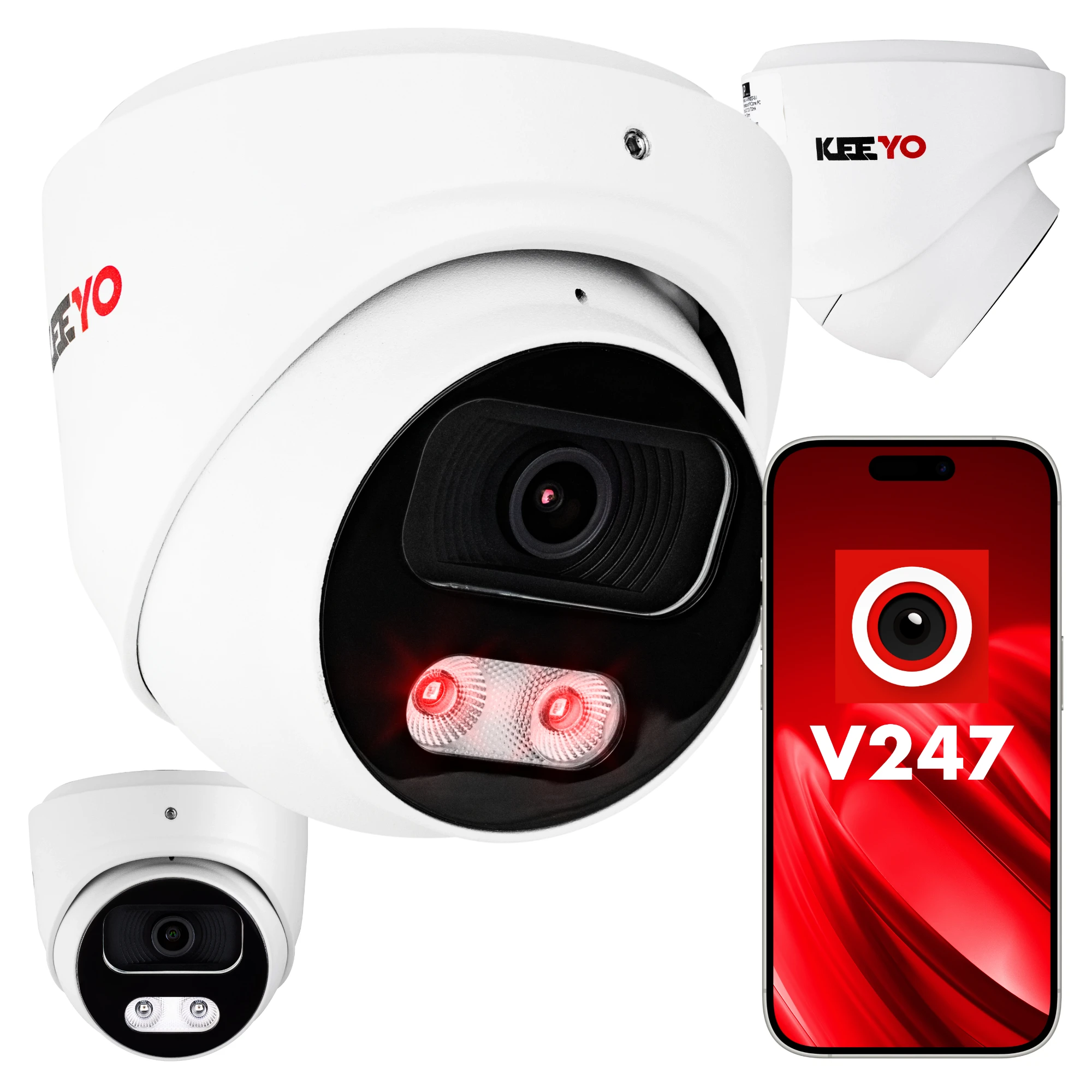

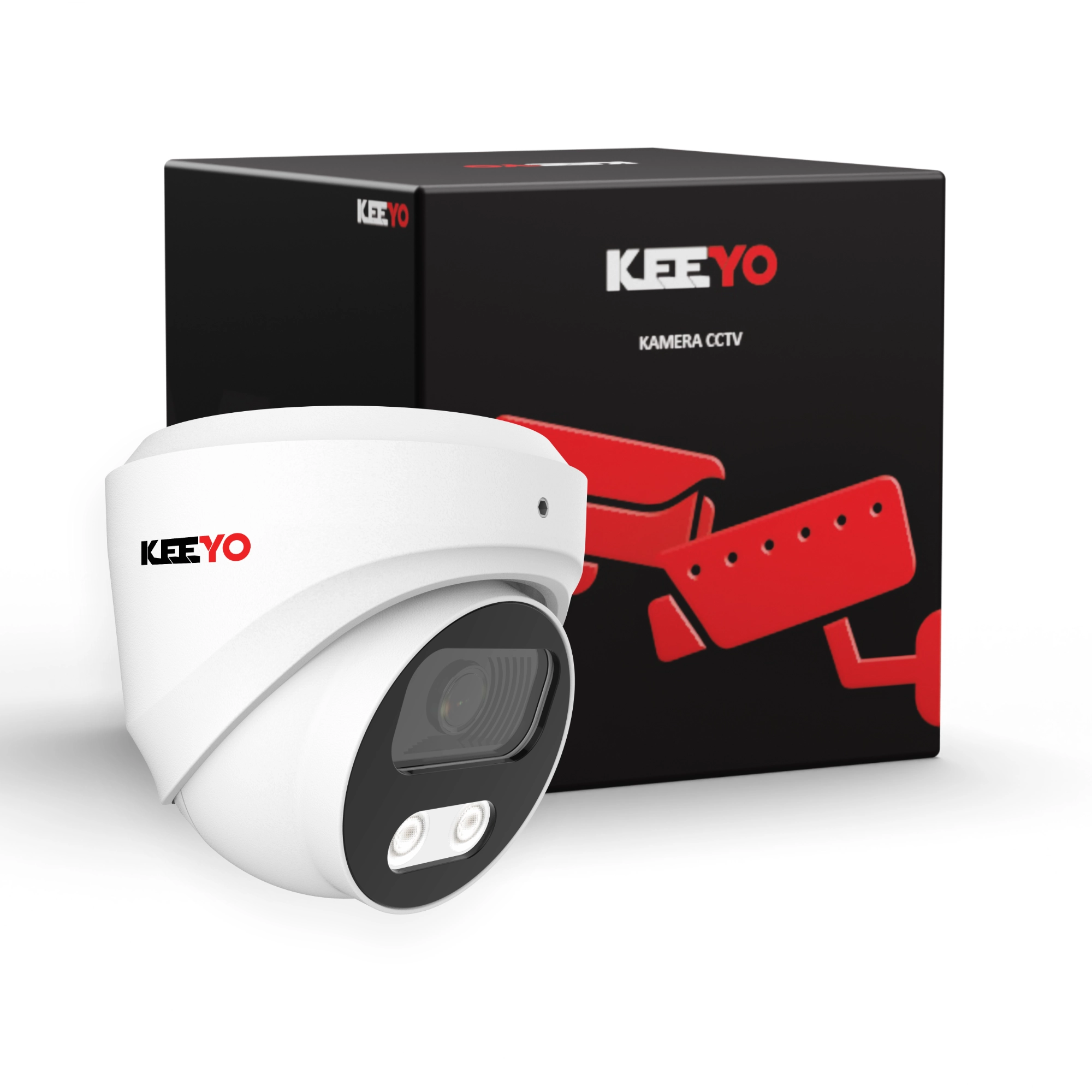

IP Dome Camera 5Mpx IR25m KEEYO LV-V-IP5M25DF-B
Photo gallery
-
Manufacturer
-
Product Code
LV-V-IP5M25DF-B-II
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 25m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 0,37 MB
-
Size: 0,28 MB
Related products
Product Description
LV-V-IP5M25DF-B is a camera created for good quality surveillance. It is a network camera, which means that the video signal is transported digitally, so it is of much better quality than in analog cameras. In addition, it is equipped with 120dB hardware WDR, this allows the camera to retain image detail in dark and brightened areas. It has two infrared LEDs, which are fully sufficient to illuminate most properties. In addition, it can be used as an independent surveillance device thanks to support for memory cards with a maximum capacity of 512GB.
Features of the LV-V-IP5M25DF-B camera
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
The latest technologies used in the camera's sensor and sensor, combined with advanced optics, provide images of high quality and excellent sharpness compared to lower resolution cameras. The device records at 5Mpx resolution ensuring that even the smallest detail is captured on the footage.
The camera uses the highest quality sensor created by the Sony brand. Thanks to it, the camera's capabilities have been pushed to the limit to give you the best protection for your property.
Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
The use of Wide Dynamic Range (WDR) 120dB takes care of the quality of the recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
on
Features of the LV-V-IP5M25DF-B camera
- High-resolution 5Mpx video recording
- Infrared range of up to 25m
- Enhanced dynamic range with 120DB hardware WDR technology
- PoE power supply support with IEEE 802.3af standard
- AI functions: intruder detection, line crossing, wandering, gathering detection, vehicle detection
- Supports microSD cards with a maximum capacity of 512GB
- 128° field of view
- Robust IP67-certified housing
Video preview of the LV-V-IP5M25DF-B camera
Remote access from desktops and smartphones
The mobile app is a quick and easy way to operate your property's video surveillance system, with it you will be able to:
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
Support popular browsers
The WEB server on KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.
High-quality image
The latest technologies used in the camera's sensor and sensor, combined with advanced optics, provide images of high quality and excellent sharpness compared to lower resolution cameras. The device records at 5Mpx resolution ensuring that even the smallest detail is captured on the footage.
Sony sensor
The camera uses the highest quality sensor created by the Sony brand. Thanks to it, the camera's capabilities have been pushed to the limit to give you the best protection for your property.
Automatic Day/Night mode
Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Wide dynamic range: WDR 120dB
The use of Wide Dynamic Range (WDR) 120dB takes care of the quality of the recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
Resistant to weather conditions
The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
on
| Camera | |
| Image sensor | 1/2.8" SONY Starvis CMOS with backside illumination |
| Image resolution | 5MP |
| Effective pixels | 2616 (S) x 1964 (W) |
| Compression | H.264/H.265/JPEG/AVI |
| Audio compressi | G711A/U |
| TV system | PAL/NTSC |
| Electronic curtain time | Auto: 1/3-1/100000 s |
| Minimum illumination | Color: 0.006 Lux @ (F1.6, AGC ON), Black & White: 0 Lux with IR. |
| Signal-to-noise ratio | |
| Scanning system | Progressive |
| Video output | Network |
| Reset button | No |
| Lens | |
| Focal length and field of view | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
| Lens type | Fixed focal length lens, optional 2.8mm |
| Focus control | Fixed |
| Aperture | F1.6 |
| Pixels | 5MP |
| Night vision | |
| Infrared diode | 42µ x 2 pcs. |
| Infrared range | 25M |
| Infrared status | Automatic control |
| Infrared switching on | Intelligent, manual and timer mode |
| Network | |
| Login details | login: admin password: admin |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/D |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP |
| ONVIF | Supports ONVIF 19.12 (S/T/G profile) |
| P2P | YES |
| POE | Internal, support IEEE 802.3af |
| Video delay | 0.3 s (within LAN) |
| Main stream 1 | 2592*1944@30 fps |
| Main stream 2 | 2560*1440@30 fps |
| Main stream 3 | " 1920*1080@30 fps |
| 1280*720@30 fps" | |
| Additional stream 1 | 1280*720@30 fps |
| Additional stream 2 | 720*480@30 fps |
| Additional stream 3 | N/D |
| Triple mode | N/D |
| IE browser | IE8-11, Google Chrome, Firefox, Mac Safari |
| Smartphone | iPhone, Android |
| AI features | |
| Intelligent analysis | Intrusion detection, line crossing, wandering, people gathering detection (based on people detection), vehicle movement detection |
| Camera functions | |
| Day/Night | Color / Black & White (IR-CUT) |
| Image configuration | Saturation / Brightness / Contrast / Sharpness, Mirroring, 3D NR, White balance, Flicker control (FLK), Shutter detection, HLC |
| Full color | N/D |
| Corridor pattern | Support |
| De-noise mode | N/D |
| ROI | Support |
| BLC | Support |
| WDR | 120 dB |
| Motion detection | Support (allows motion detection based on person movement only) |
| Privacy mask | 3 rectangular zones |
| Recording mode | NVR/CMS/Web |
| Language | "Simplified Chinese, Traditional Chinese, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese." |
| Interface | |
| Microphone | No |
| Alarm | N/D |
| SD card slot | Internal, support for up to 512 GB |
| RS485 | N/D |
| General | |
| Housing | Sphere: metal, base: plastic, IP67 |
| Infrared filter | YES |
| Operating temperature | -20℃ ~ +60℃, max. 95% RH |
| Storage temperature | -20℃ ~ +60℃, max. 95% RH |
| Power source | DC12V±10%, 700mA |
| Dimensions | ￠109 x 93 (W) mm |
| Weight | 600 g |
