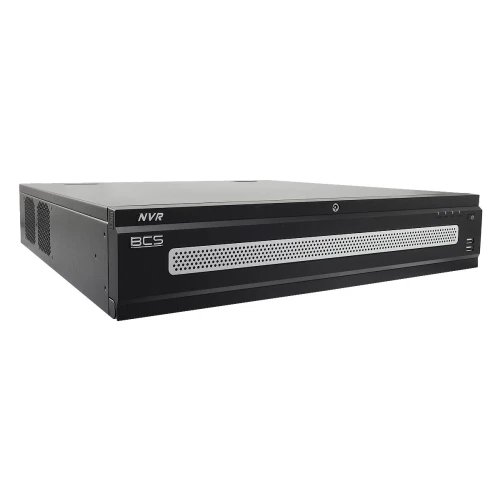

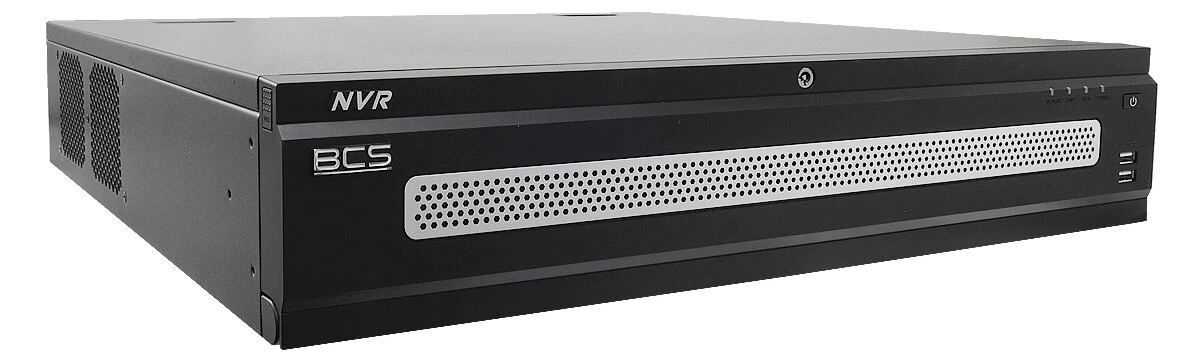

IP Network Recorder BCS-NVR12808-4K-RR
Photo gallery
-
Manufacturer
-
Product Code
BCS-NVR12808-4K-RR
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 128
- Built-in POE switch: No
Ask about this product show form
Product Description
Main features:
- 128 Channel NVR Network Recorder
- H.265/H.264/MJPEG dual stream encoding
- Intel processor for simultaneous viewing, recording and remote management
- Live viewing in Ultra HD 3840x2160 resolution
- Recording max. up to 128 cameras up to 12Mpx Max. biterate 256 Mbits
- Channel playback max. up to 16 at up to 1080p resolution, at 12/8/6/5/4 Mpx max. playback up to 4 channels.
- Support for IP cameras of other brands: BCS, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and ONVIF
- Remote control of camera recording parameter settings (selected models)
- Search and configuration of IP cameras on the network
- Support for PTZ and 3D positioning with BCS-SDIPxxx series high speed PTZ cameras
- Support for 8 SATA III drives up to max. 48TB (total), 1 e-Sata port up to 8TB
- Support for RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Hot-Swap, iSCSI support, N+M cluster operation
- 4 USB2.0/USB3.0 ports
- Compatibility with selected 3G/WiFi modems (USB)
- P2P(cloud) support - a function that allows remote access without port forwarding and public IP address
- Video preview:
Mobile devices with systems: Android, iOS
Web browsers: IE - Built-in web-service, CMS(DSS/PSS/Smart PSS) & iDMSS/gDMSS
Technical Specifications:
| Model: | BCS-NVR12808-4K-RR |
| System | |
| Processor | High-performance Intel processor |
| Operating system | Embedded LINUX |
| Functionality | Pentaplex function |
| Control | Front panel, Mouse, Keyboard, Networking |
| Video and Audio | |
| Support for IP cameras | 128 channels |
| List of manufacturers | BCS, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and ONVIF 2.0 |
| Video output | 2 HDMI, 1 VGA, 1 TV |
| Output/Input. Audio | 1 channel input, 1 channel output, two-way audio path, support for audio from IP cameras |
| Screen | |
| Split screen | First HDMI Output : 1/4/8/9/16/36, Second HDMI Output : 1/4/8/9/16 |
| Video output resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Sequence | yes |
| Privacy zones | 4 definable detection zones on each channel |
| OSD | Camera name, time, video loss, camera lock, motion detection, recording |
| Recording | |
| Compression | H.265 / H.264 / MJPEG |
| Recording in resolution | 12Mpx, 6Mpx, 5Mpx, 3Mpx, 1080p, 1.3Mpx, 720P |
| Recording speed | do 25kl/s@D1/720p/1.3Mpx/1080P/3Mpx/5Mpx |
| Max. bandwidth occupancy | From 48 ~ 16384 KBits Bitrate limits : incoming bandwidth up to 384 Mbits, recording up to 256 Mbits, transmission up to 128 Mbits |
| Recording quality | CBR, VBR(1~6 levels) |
| Recording modes | Manual, Schedule (Regular (Continuous), MD (Video detection: Motion Detection, Fade, Cover), Alarm), Stop. |
| Recording priority | Manual > Alarm > MD > Regular |
| Recording intervals | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec. |
| Detection & Alarm | |
| Event triggering | Recording, PTZ, Tour, Alarm, Email, FTP, Spot, Buzzer & screen messages |
| Motion Detection | |
| Zones: | 396(22×18) |
| Sensitivity: | 1~6 |
| Video Fade & Obstruction | Yes |
| Alarm Inputs | 16 channels |
| Alarm/relay outputs | 8 channels |
| Playback & Archiving | |
| Channel playback | 1/4/9/16 |
| Search mode | Time/Date, Alarm, MD & Advanced search (every second), Smart Search |
| Playback functions | Play, Pause, Stop, Rew, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Archive, Digital zoom |
| Archiving | Flash drive / USB HDD / USB CD&DVD-RW / Network download. |
| Network | |
| Port | 2 x RJ-45 port (10/100M/1000M) |
| Network functions | HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (BCS IP cameras, DVR), iSCSI |
| Max. number of users | 128 (simultaneously) |
| Smartphone support | iPhone, iPad, android, Windows Phone |
| Disk support | |
| HDD | 8 SATA III ports , max. 48TB (total) or 6 SATA ports + 1 CD/DVD burner, removable HDD pickle |
| eSATA | 1 eSATA port, up to. 8TB (max. 4 SATA drives) |
| Occupancy | Max 3.6GB/H per channel |
| HDD Management | HDD grouping, Hibernation, Error detection & Support RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Hot-Swap |
| Additional interfaces | |
| USB | 4 ports |
| RS232 | Keyboard, PC communication |
| RS485 | PTZ |
| Other | |
| Power supply | AC 100~240V, 50/60Hz |
| Current consumption | 40W |
| Operating conditions | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimensions smart 1U | 2U, 486mm×454.9mm×91mm(W×D×H) |
| Weight | 9 KG (without HDD) |
