Set for swing gates Beninca KBILL4024.PM

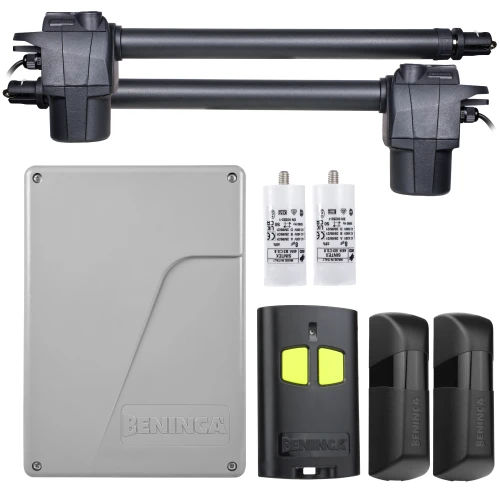

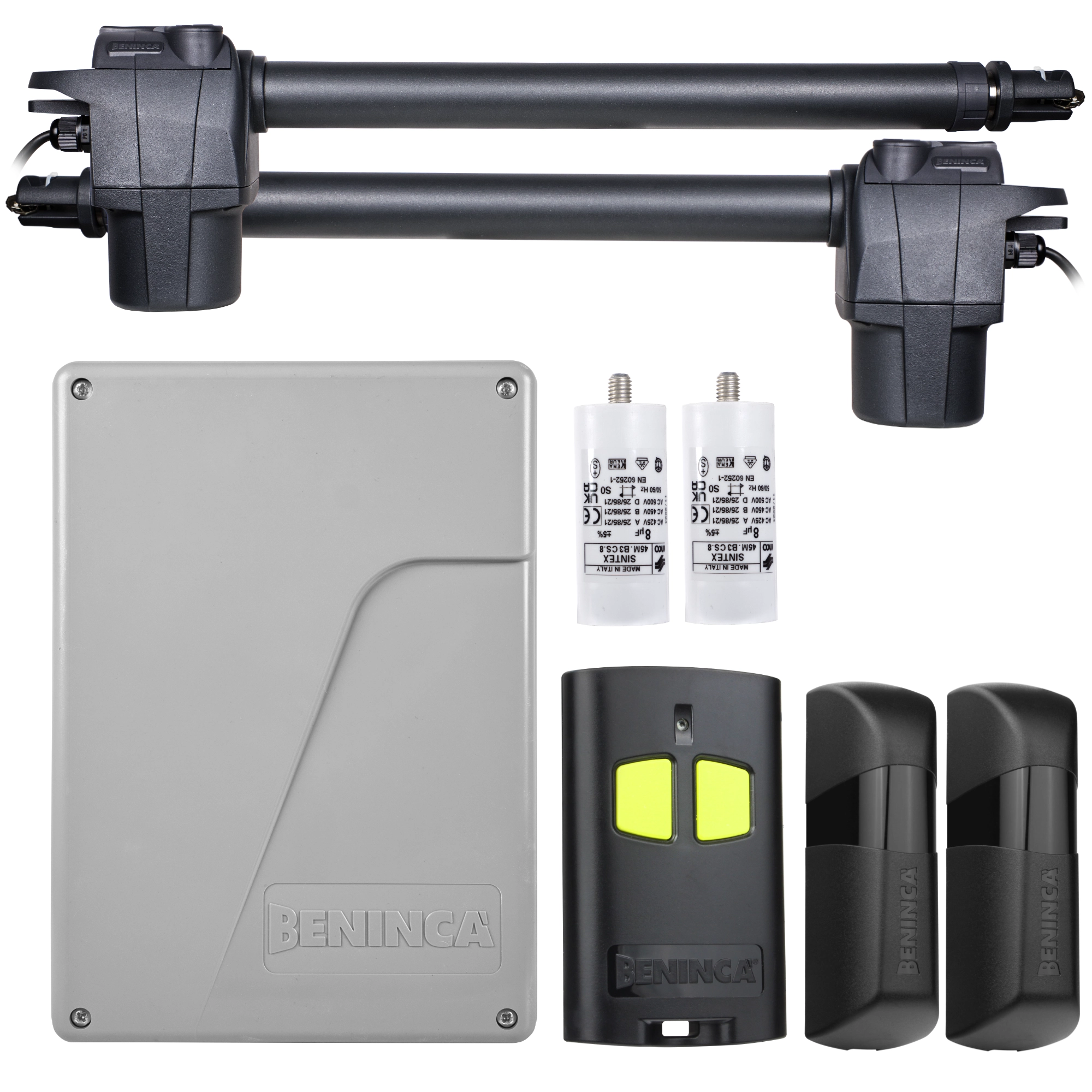

BENINCA KBILL BILL4024.PM set for swing gates with a leaf width of up to 4 m, mounted on metal posts, as well as on wide ones such as clinker, requires mechanical movement stops

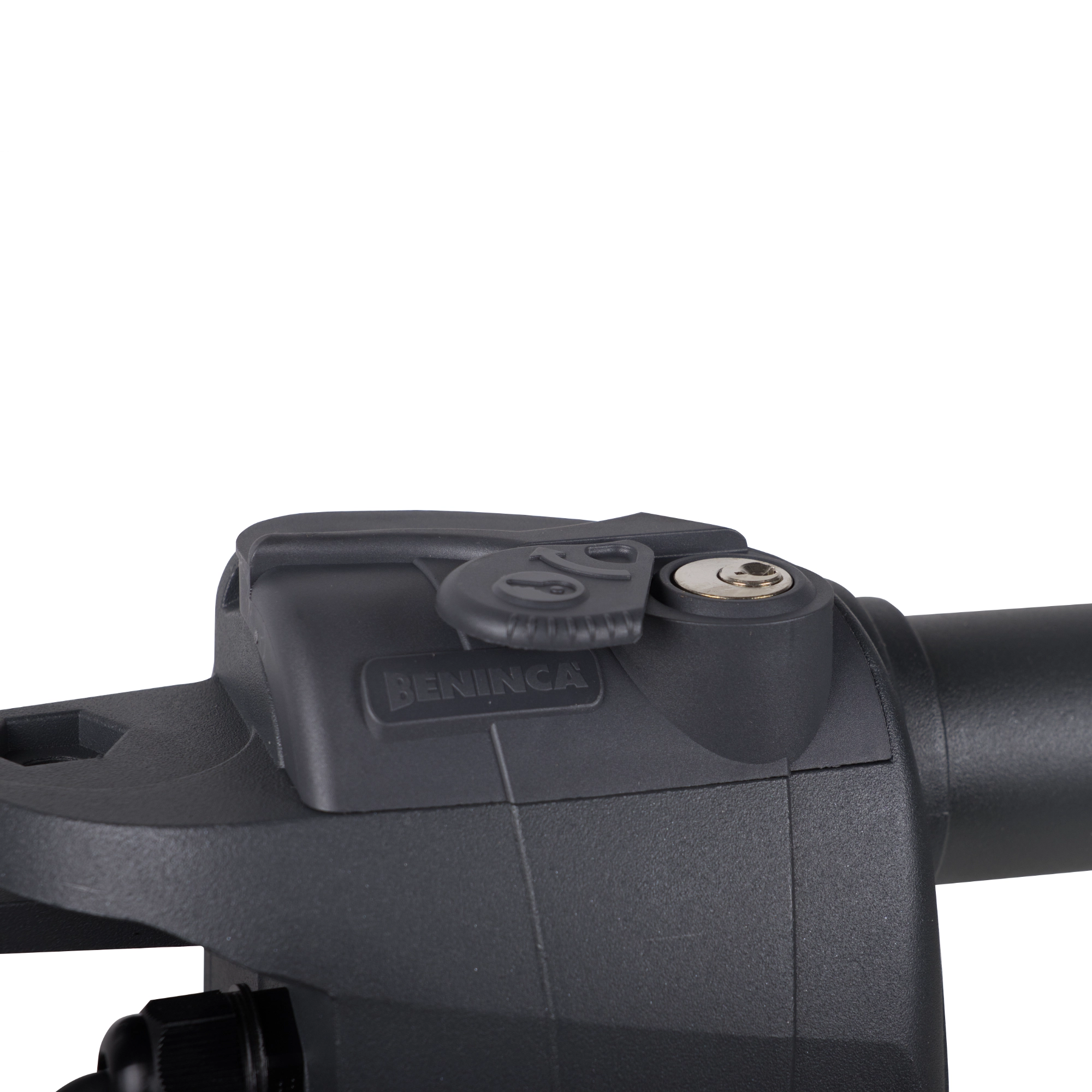

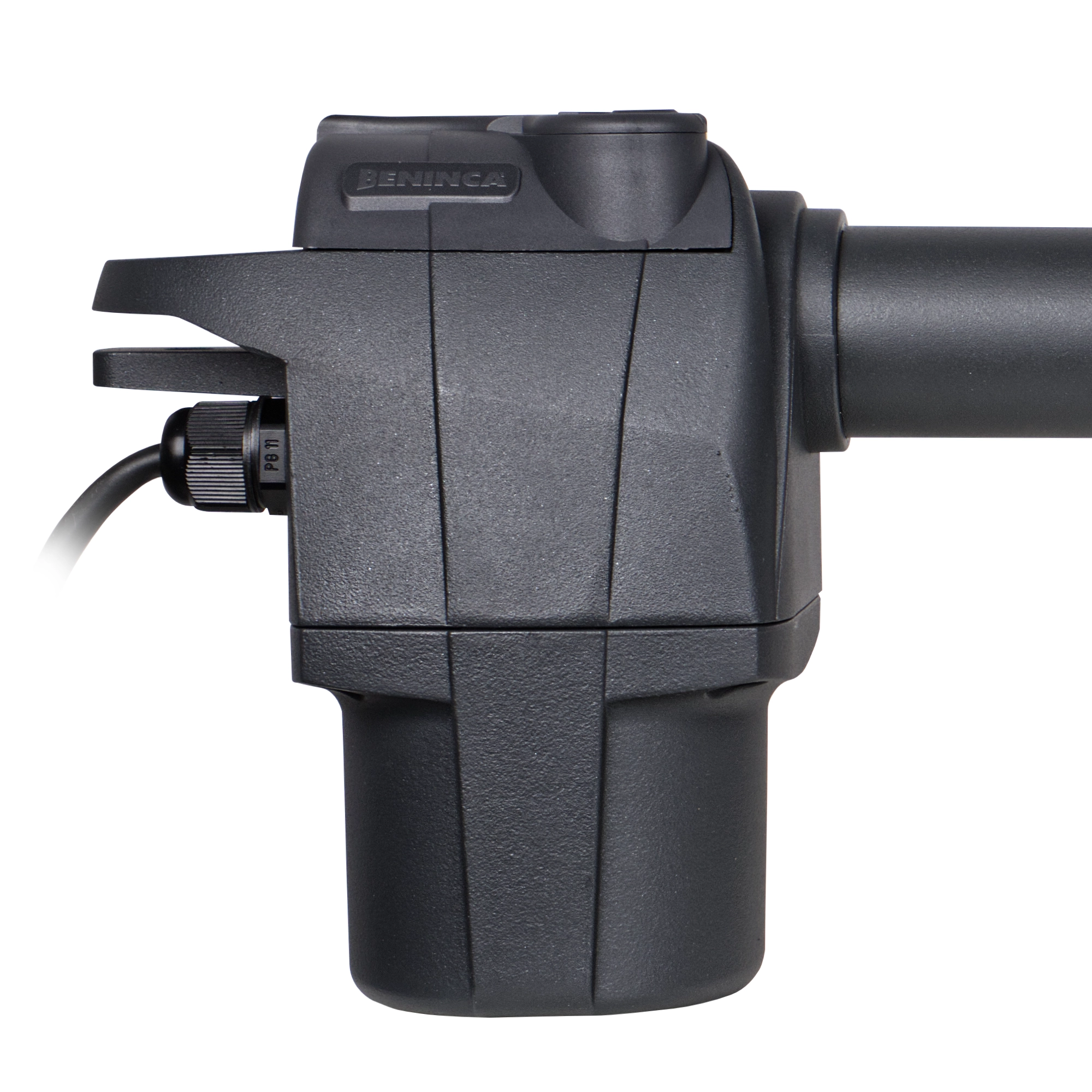

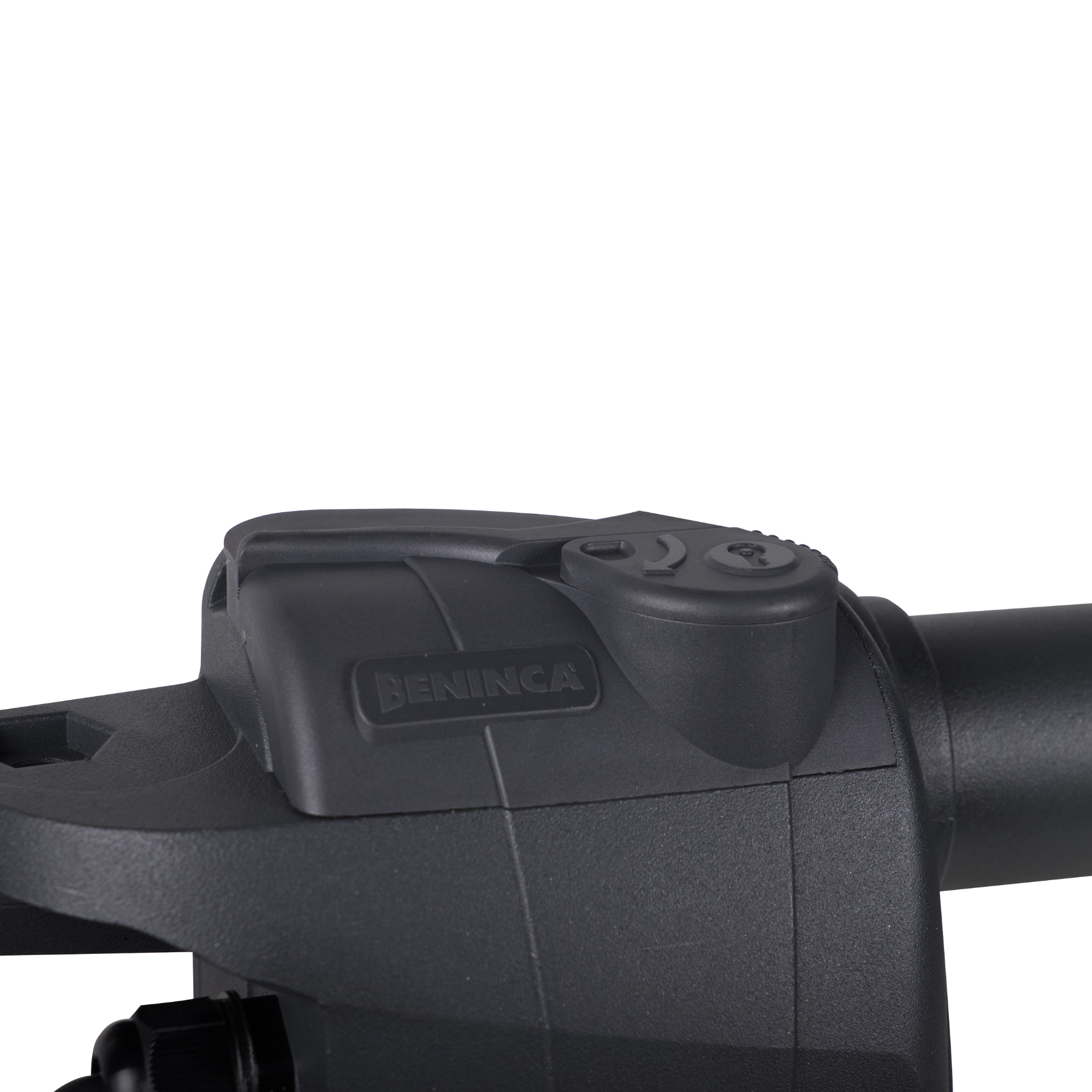

• 2 x Electromechanical actuator "BILL4024"

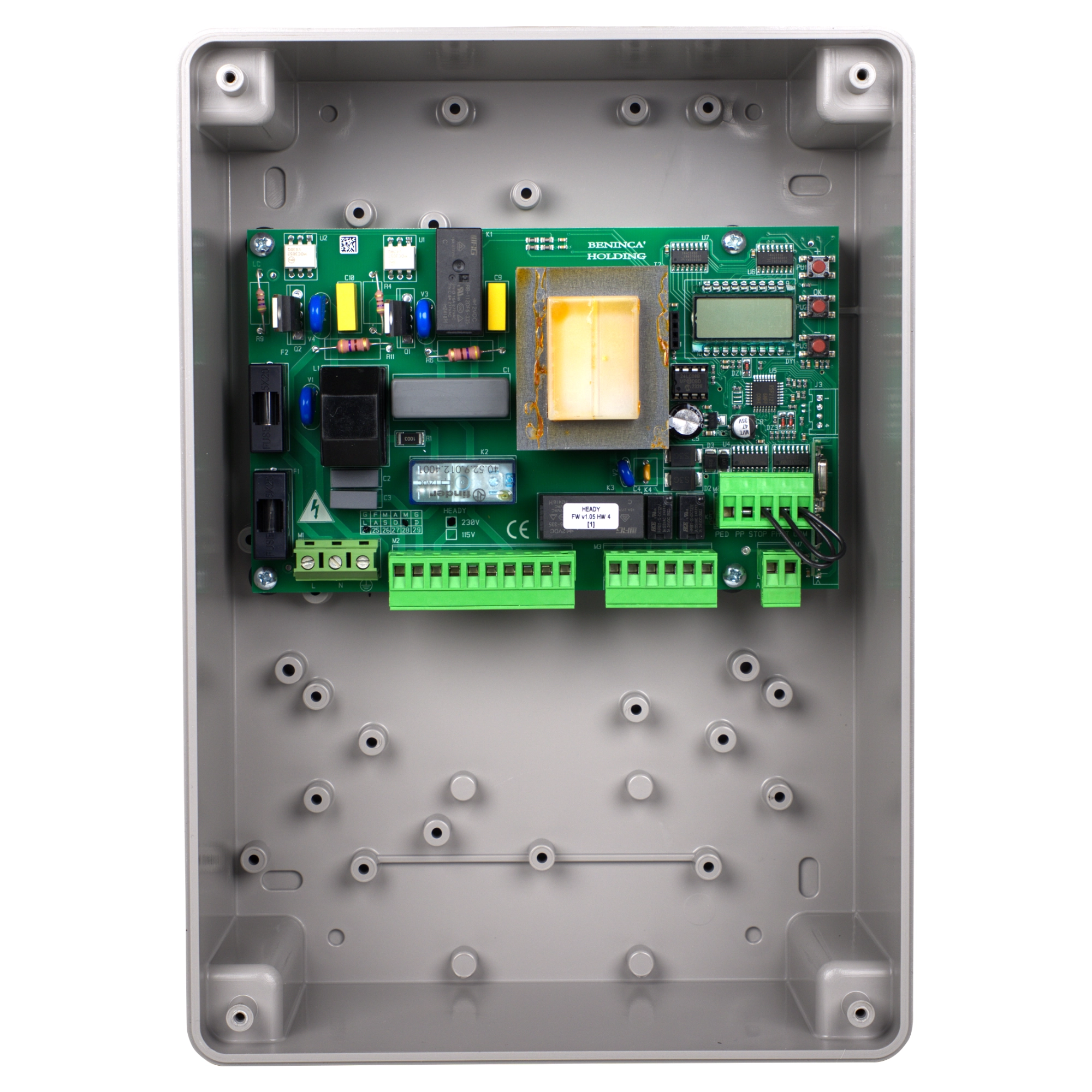

• 1 x 24 Vac external control panel "HEADY"
• 1 x Pair of synchronization photocells "PUPILA"
• 1 x 2 channel remote control "TO.GO2A"

MAXIMUM WING LENGTH

KBILL4024 is able to operate gates with maximum leaf length of 400cm.

• 24 Vdc non-turn electromechanical actuator
• Careful appearance and optimal size, suitable for forged gates, among others

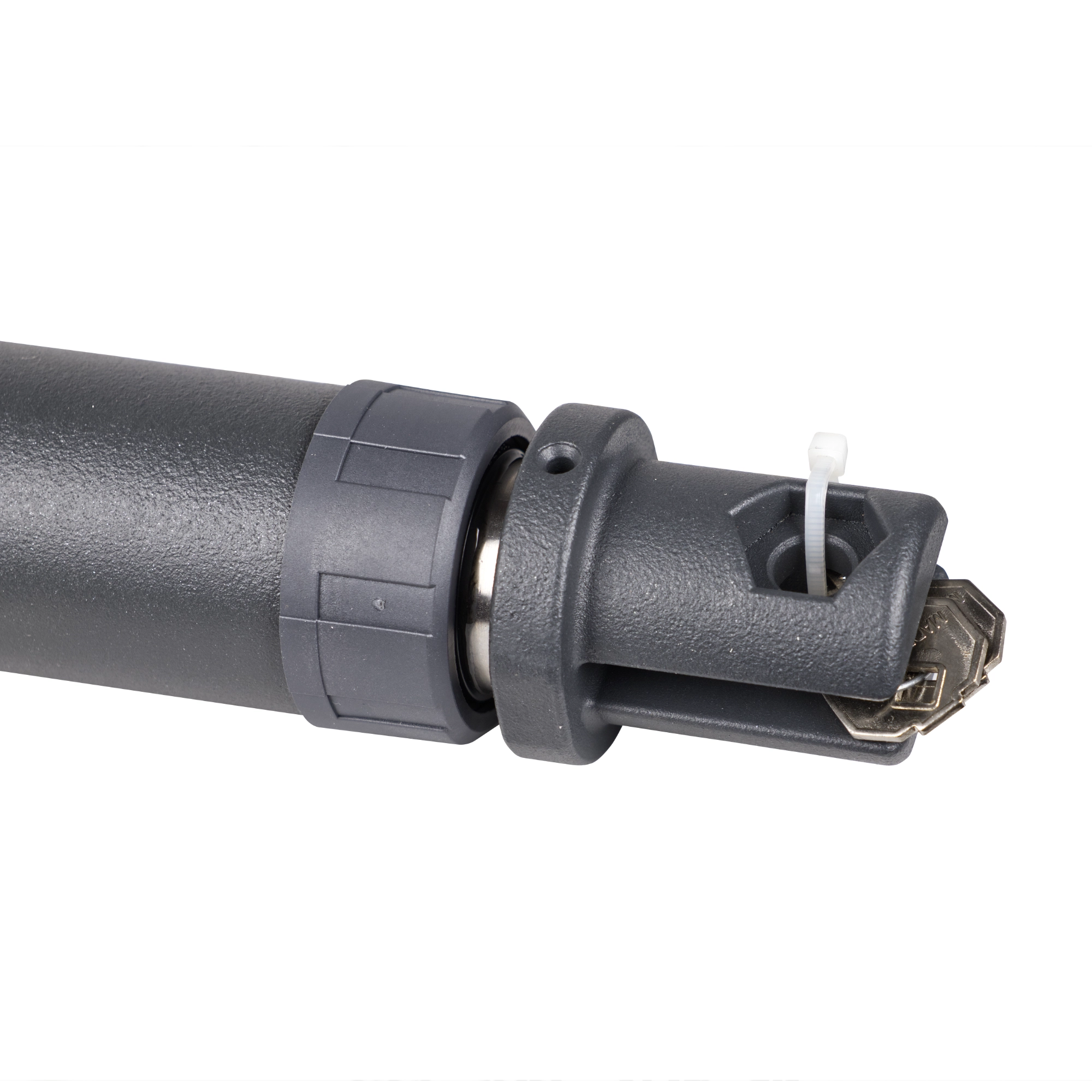

• Protection of the worm gear from dirt with a special stainless steel rim and telescope. Can operate in harsh weather conditions
• Simple and quick installation due to reduced shape and installation requirements

• Application - 1 or 2 actuators for swing gates.
• Power supply of the control panel - 24Vdc

• Built-in LCD display.
• Built-in 433.92 MHz radio receiver. Ability to upload 64 fixed, variable or ARC codes.
• Terminal blocks easy to use (removable).
• Inputs for limit switches - separate for each actuator.
• Inputs: open, close and gate function (partial gate opening).
• Inputs for photocells open-close and open.
• Input of safety edge 8K2.
• Output for service light, gate position indicator, second radio channel and photocell test.
• Self-learning function.
• Electronic adjustment of parameters of individual actuators.
• Protection against crushing through the use of an amperometric sensor and encoder connection.
• Regulation of release in the closing and opening phases, independently for each actuator.
• Configuration of functions and management of remote controls via ADVANTOUCH.
• Possibility to check the current number of cycles.
• Password access to the programming of the control panel
