Product Description
Complete set for measuring human body temperature.
High accuracy and non-contact measurement. Accurate, fast temperature measurement of many people at the same time, Automatic recording of elevated temperature.
Modern body temperature measurement system provides a thermal solution, very effective for detecting people infected with viral disease. The main task of such a system is to quickly identify people who have an elevated body temperature. If an exceedance of a certain limit value (e.g. 37.8°C) is detected, the system will automatically trigger an alarm (e.g. a light or sound signal). This makes it possible to quickly and reliably identify individuals for further, accurate examinations.

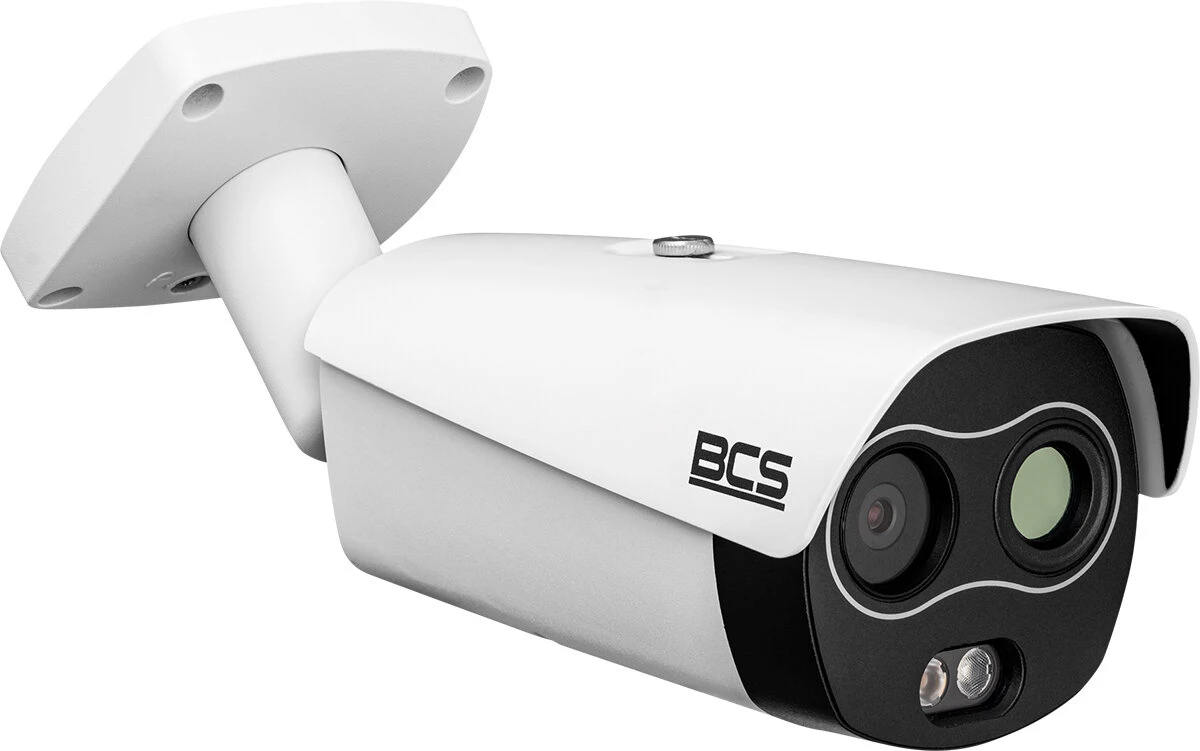

Technical specifications of the BCS-TIP5220807-IR-TTW camera
| Sensor Focal plane array detector | Uncooled microbolometer sensor with active vanadium oxide VOx absorbing material |
| Thermal sensitivity | <50mK@F/1.1 |
| Image settings | Brightness/ sharpness/ROI/AGC/FFC/3DNR |
| Lens | Fixed 7mm viewing angle H:24° V:18° |
| Temperature Measurement | 30°C~45°C |
| Accuracy Max | (±1°C, ±1%) After calibration (±0.3°C, ±0.3%) |
| Measurement mode | Point/Line/Area |
| II Sensor | 1/2.8" 2Mpx |
| Lens | Fixed 8mm F1.9 |
| Viewing angle | H: 40° V: 22° |
| Video compression | H.265/H.264/MJPEG |
| Bitrate | H.264: 640 ~ 8192Kbps |
| Features | Defog, privacy zone, ROI, Ultra DNR, BLC, HLC, WDR |
| Audio | 1 input and 1 output |
| Day/night | Mechanical infrared filter ICR 35m illuminator |
| Alarm | 2 inputs / 2 outputs |
| Interfaces | RS485, BNC 1.0Vp-p/75Ω |

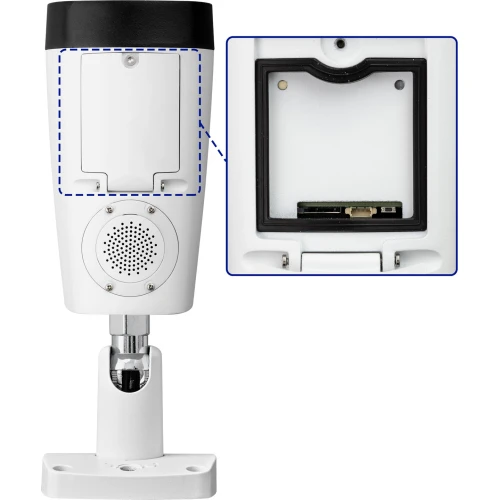

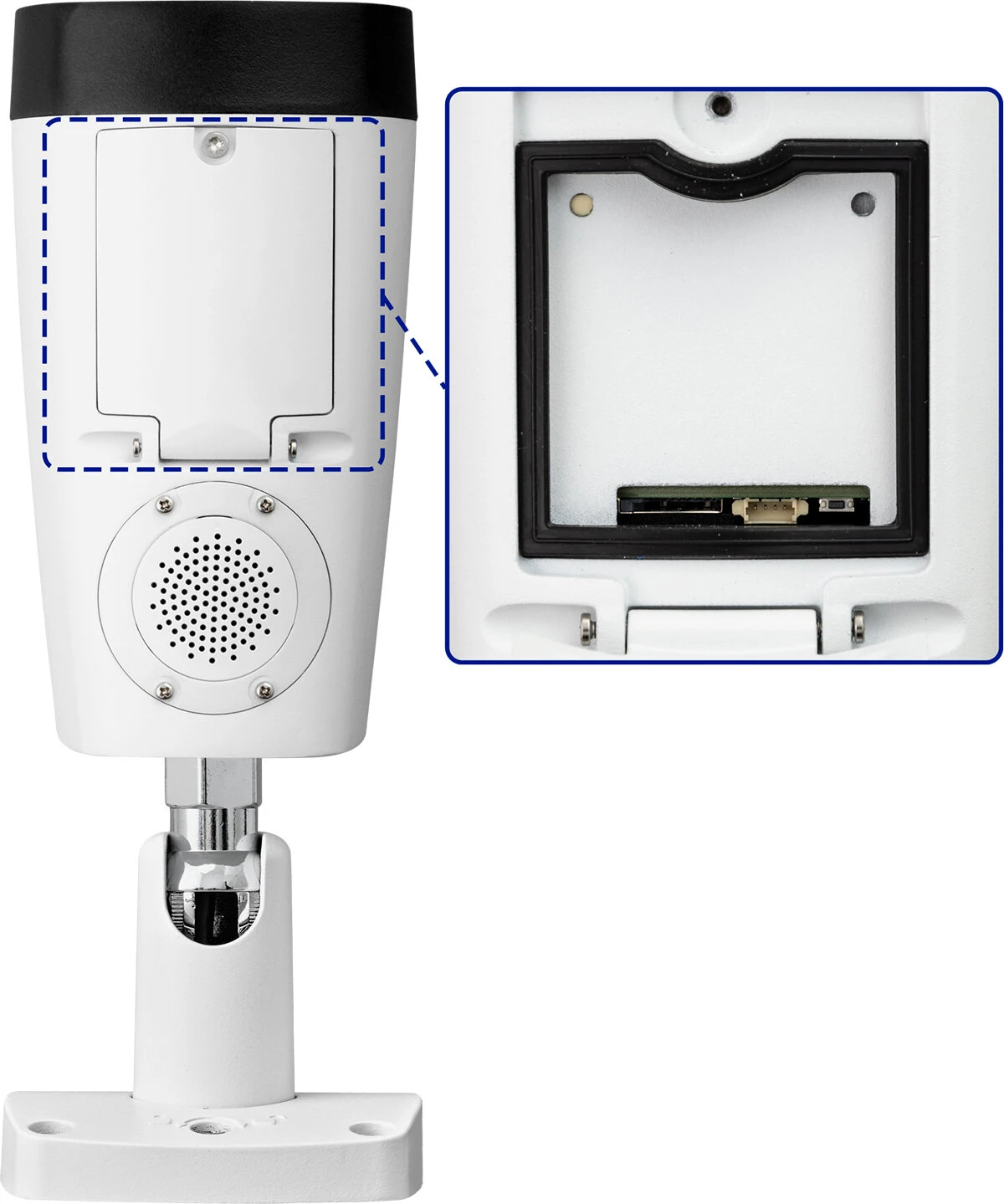

| Memory card | microSD up to 128GB |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF compatibility | S&G profiles, API |
| Users | Maximum of 20 logged on |
| Power supply | mobile iOS, android |
| Operating conditions 10°C~+35°C, 10%~95% RH | DC12V/ PoE(802.3af) Power consumption <12W |
| Housing | Metal outdoor, IP67 protection |
| Weight | 1.5kg |
| Thermal camera BCS-TIP5220807-IR-TTW | |
| Sensor | Matrix focal length detector - uncooled microbolometer sensor with active vanadium oxide VOx absorbing material |
| Number of pixels | 256(H) ×192(V) |
| Pixel size | 12um |
| Thermal sensitivity | <50mK@F/1.1 |
| Spectral characteristics | 8~14um |
| Image settings | Brightness/sharpness/ROI/AGC/FFC/3DNR |
| Color palette | 18 schemes |
| Fixed Lens | 7mm viewing angle H:24° V:18° |
| Temperature Measurement | 30°C~45°C |
| Accuracy | Max (±1°C, ±1%) After calibration (±0.3°C, ±0.3%) |
| Measurement mode | Point/Line/Area |
| Measurement presets | 12 |
| Main stream | 1280×960@25fps/1024×768@25fps/640×480@25fps/256×192@25fps |
| Second stream | 640×480@25fps/256×192@25fps |
| BCS-TIP5220807-IR-TTW Video Camera | |
| Sensor | 1/2.8" 2Mpx |
| Pixel count | 1920(H) ×1080(V) |
| Lens | Fixed 8mm F1.9 |
| Viewing angle | H: 40° V: 22° |
| Sensitivity | Color: 0.002Lux, B/W: 0.0002Lux, IR On: 0Lux |
| Shutter | 1/1s~1/30000s |
| Video compression | H.265/H.264/MJPEG |
| Main stream | 1920×1080@25fps/1280×720@25fps |
| Second stream | 704×576@25fps/352×288@25fps |
| Bitrate | H.264: 640 ~ 8192Kbps |
| Image rotation | Mirror/Flip |
| Features | Defog, privacy zone, ROI, Ultra DNR, BLC, HLC, WDR |
| Audio | 1 input and 1 output |
| Audio compression | G.711a/G.711mu/AAC |
| Day/night | Mechanical infrared filter ICR 35m illuminator |
| Alarm | 2 inputs / 2 outputs |
| Network | RJ-45 (10/100Base-T) |
| Interfaces | RS485, BNC 1.0Vp-p/75Ω |
| Memory card | microSD up to 128GB |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Compatibility | ONVIF Profile S&G, API |
| Users | Maximum of 20 logged on |
| Mobile users | iOS, android |
| Power supply | DC12V/ PoE(802.3af), Power consumption <12W |
| Operating conditions | 10°C~+35°C, 10%~95% RH |
| Housing | Outdoor metal, IP67 protection |
| Weight | 1.5kg |

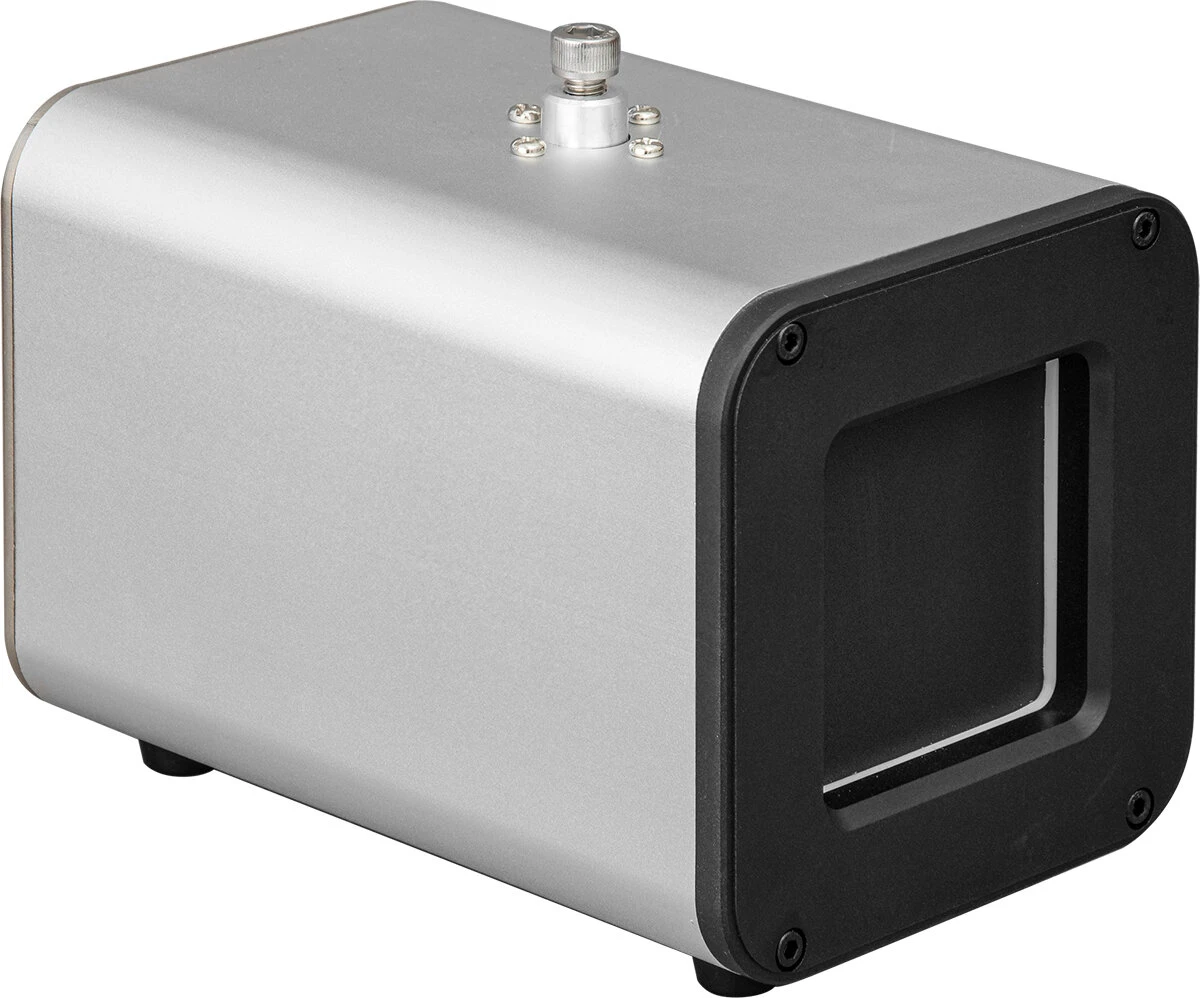

Black Body
| Operating temperature | 40.0℃（ ambient temperature +5.0℃~ 50.0℃）. |
| Temperature resolution | 0.1℃ |
| Temperature measurement accuracy | ±0.2℃（Single point）. |
| Temperature stability | ±( 0.1～0.2 )℃/30min |
| Effective emissivity | 0.97±0.02 |

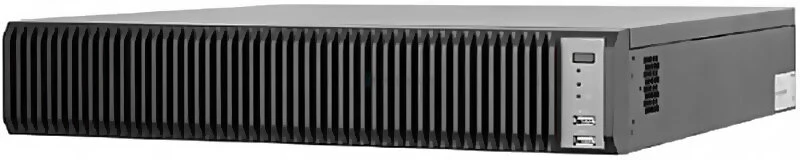

Intelligent NVR BCS-IVS12808-Ai
| Intelligent NVR BCS-IVS12808-Ai | |
| Interface | Local/Web-service |
| AI support | Face detection, face recognition, metadata, perimeter protection |
| Perimeter protection | 16 channels(device), 64 channels(camera) |
| Face detection | 6 attributes (gender, age, glasses, facial expression - 6 types, chin, protective material on face) 6 channels(device), max 12 images per channel, 20 channels(camera) |
| Face recognition | 50 face database, 300000 images 6 channels(device) performance 20 images per second, 20 channels(camera) |
| License plate recognition | 50 plate databases, 300000 images, white/black list, 32 channels(ITC camera) |
| Metadata person | 10 person attributes (top part type and color, bottom part type and color, headgear, bag, age, gender, umbrella) |
| Metadata vehicle | 9 vehicle attributes (registration, registration color, vehicle type, vehicle make, phone call, seat belt...) 4 channels(device), 32 channels(camera) |
| Remote connections | 128 channels |
| Bitrate bandwidth | Incoming: 400Mbps, Recording: 320Mbps, Outgoing: 96Mbps |
| Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/CIF/QCIF |
| Decoding | 20 channels 1080P@30fps |
| Video output | HDMI1/VGA1 AND independent HDMI2/VGA2 and HDMI4K outputs |
| Window splitting | Local 36 / web-server 16 |
| Video compression | Smart H.265+/Smart H.264+/H.265/H.264 |
| Audio compression | G.711A/G.711U/PCM/G726 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Mobile users | iOS, android |
| Compatibility | ONVIF (S profile), CGI, SDK |
| Playback | 16 channels. |
| Recording | Internal HDD × 8 SATA3.0 max 10TB per HDD |
| RAID | 0/1/5/6/10 |
| Audio | 1 input /2 outputs |
| Alarm | 16 inputs / 8 outputs |
| Interfaces | eSATA, RS232, RS485, 4×USB, 4×RJ-45 10/100/1000Mbps |
| Power supply | 100V AC-240V AC 50±2%Hz Power consumption 40W(without HDD) |
| Weight | 8.55kg |
| Dimensions | 439.7mm × 446.2mm × 89mm |
| Operating conditions | 0°C ~ 45°C 10%RH-90%RH |
FullHD LED Monitor DS-D5022QE-B
| LED monitor DS-D5022QE-B | |
| Matrix diagonal: | 21.5 " |
| Nominal resolution: | 1920 x 1080 px |
| Screen aspect ratio: | 16 : 9 |
| Matrix type: | LED |
| Contrast ratio: | 1000 : 1 |
| Brightness: | 250 cd/m2 |
| Viewing angles: | 170 ° horizontally 160 ° vertically |
| Response time: | 5 ms (typical) |
| Built-in speakers: | - |
| Connection sockets: | 1 x HDMI 1 x VGA 1 x Power socket - 230 V AC |
| Number of displayed colors: | 16.7 million |
| Housing type: | Plastic |
| Monitor mounting standard: | VESA 100 |
| Parameter adjustment: | OSD - using the buttons on the monitor |
| Power supply: | 230 V AC |
| Power consumption: | < 30 W (typical) < 0.4 W (in sleep mode) |
| Weight: | 3.3 kg |
| Dimensions: | 511 x 377 x 170 mm (with stand) |
| Manufacturer/Brand: | Hikvision |
Set includes:
- BCS-TIP5220807-IR-TTW - dual camera, thermal imaging + video with high accuracy temperature measurement,
- BCS-WT - temperature standard,
- BCS-IVS12808-Ai - 128 channel DVR to support the system,
- BCS-BTL - Ai license for one channel to support system operation,
- DS-D5022QE-B - fullHD LED monitor,
- ST4000VX007 - 4TB hard drive,
- in addition, the set includes two tripods and mounting adapters.
Note!!! Waiting time about 5-6 weeks product only on request.
