OSD-50HD Character Generator

The image shows a green circuit board featuring multiple integrated circuits and connectors, designed for electronic applications. It includes various components such as capacitors, resistors, and a central processing chip.
The image shows a green printed circuit board featuring various integrated circuits, resistors, and capacitors. It is designed for electronic applications, with a compact layout and multiple connection points.
The image shows the underside of a green printed circuit board featuring various soldered components and intricate circuitry. Visible elements include multiple connection points, a yellow capacitor, and several small resistors.
Front view of a slim electronic circuit board featuring various components, including connectors and integrated circuits. The board is designed for compact installations, measuring 11.5 mm in height.
A green circuit board featuring multiple integrated circuits, connectors, and electronic components. The board is designed for use in electronic devices, showcasing a compact and efficient layout.
Diagram showing the dimensions and layout of an electronic device, featuring multiple circular and rectangular components with precise measurements in millimeters. The schematic includes labeled distances between various elements, providing detailed specifications for installation or assembly.
A green circuit board featuring a MicroSD adapter and multiple pin connectors, designed for integration with Arduino Nano. The board includes labeled components and ports for easy connectivity and system integration.

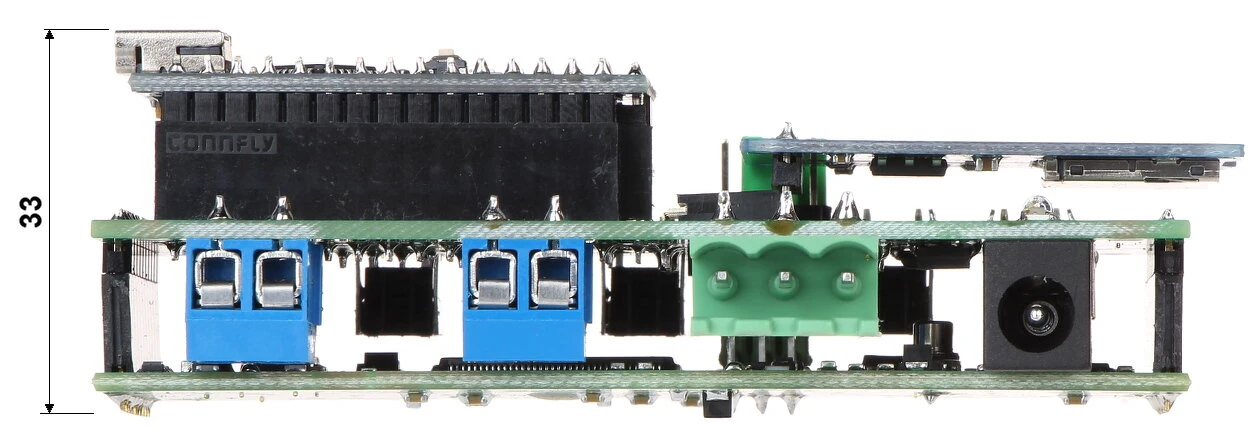

The image shows a green electronic circuit board featuring multiple connectors and ports, designed for integration with various electronic systems. It includes labeled sections for power input and output, as well as slots for additional components.
The image shows a compact electronic module featuring multiple blue and green terminal blocks for connectivity, alongside a black relay and a power input socket. The module is designed for integration into various electronic systems, with a slim profile measuring 24mm in height.
A green circuit board featuring an Arduino microcontroller and a memory card adapter, equipped with various ports and connectors. The board is designed for integration with other electronic components, offering versatile connectivity options.
A compact electronic development board featuring a microcontroller with multiple pin connectors and a USB port for programming. The board is designed for prototyping and includes various input/output options for versatile project applications.
The image shows a green electronic circuit board with multiple pins and connectors, designed for integration into larger electronic systems. The board features a black connector and a blue component at the base, indicating its modular functionality.
The image shows a green electronic circuit board featuring a microcontroller and a blue MicroSD card adapter. The board includes various components such as resistors, capacitors, and connectors for versatile electronic projects.
The image shows a compact electronic module featuring multiple connectors, including blue terminal blocks and a green connector, designed for integration into various electronic projects. The module's side profile highlights its layered circuit boards and pin headers, emphasizing its versatile connectivity options.
A green circuit board with multiple pins and connectors, featuring a mounted microcontroller module on top. The board is designed for integration with various electronic systems, offering versatile connectivity options.
The image shows a green circuit board featuring a MicroSD adapter and various electronic components, including a microcontroller. It has labeled connections for power, system, and RS-485 communication.
The image shows a compact electronic module featuring multiple push buttons and pin connectors, designed for integration into larger electronic systems. The module includes a green terminal block and a row of gold-plated pins for versatile connectivity options.
Diagram illustrating a direct RS-485 connection to an OSD-50HD, used for tasks such as firmware updates. The flowchart shows the connection sequence from RS-485 to Arduino Nucleo, and finally to the OSD-50HD.
Diagram illustrating the connection between RS-485, Arduino Nucleo, and OSD-50HD. The flow is shown with arrows indicating data transfer from RS-485 to Arduino Nucleo, and then to OSD-50HD.
Diagram illustrating the direct connection of sensors to an Arduino Nucleo board, leading to an OSD-50HD module. The flowchart shows a straightforward setup for integrating sensor data processing with Arduino and display modules.
Diagram illustrating the connection setup for a temperature sensor with an Arduino, showing the flow through PORT-22 and OSD-50 to a monitor. The image highlights the integration of components for efficient data transmission and display.
A diagram illustrating a configuration setup with a scale, featuring components such as a SNIF-42 device, PORT-22, and OSD-50, connected to a PC and a monitor. The setup includes a camera linked to the system, demonstrating an integrated network for data management.
Diagram illustrating the connection of multiple sensors to a Nucleo board, with PORT-22 and OSD-50 modules facilitating communication. The setup includes a camera and a monitor, connected via labeled cables for efficient data transmission.

  • Manufacturer

    Delta

  • Product Code

    OSD-50HD

  • Warranty

    24 miesiące

  • Time for return

    30 days

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

141,45 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Shipping from: 1,20 €

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The device is used to superimpose alphanumeric characters, raster graphics and vector graphics on the camera image. The OSD-50HD is produced as a PCB and dedicated to devices where simultaneous observation of the image and reading of data sent from sensors placed in the device is required. Assuming cooperation of OSD-50HD with such solutions as Arduino or Nucleo, we additionally suggest using PORT-22 converter. From the video signal side, OSD-50HD works as a pass-through device, having signal input and output. The device's control protocol can be found in the technical documentation.

Supported standards:AHD, HD-CVI, HD-TVI
Video signal gain:0 dB
Ability to change the font and create your own array of graphic characters:Yes
Built-in KF (cash register) protocols:No
Ability to add KF (cash register) protocols:No
Support for vector graphics:Yes
Raster graphics support:Yes
Software upgradeable:Yes
PCB enclosure:No
Built-in stabilizer:No
Communication:UART 3.3 V
Communication using optional devices:PORT-22
Maximum number of characters per line:50
Maximum number of lines:40
Maximum number of characters per screen:2000
Ability to change font size:Yes
Abilityto change the position of subtitles:Yes
Crosshair generator:Yes
Keyboard lock:No
Power supply:
  • 3.3 V DC
  • Power supply via PORT-22
Current consumption:240 mA (both inputs: 3V3A and 3V3D)
Cooperation:
  • SG-1 mode - protocol of SG-1 device operating in symbol display mode, possibility to implement own protocols
  • Character terminal mode and hexadecimal display mode
  • There is a possibility to customize the software, such as: adding a new communication protocol supporting other devices than those listed
Weight:0.02 kg
Dimensions:91 x 36 x 11 mm
Manufacturer / Brand:DELTA
