4-in-1 Camera TVICAM-T5M-20DL 5Mpx Smart Hybrid-Light 50m HiLook by Hikvision

4-in-1 Camera TVICAM-T5M-20DL 5Mpx Smart Hybrid-Light 50m HiLook by Hikvision

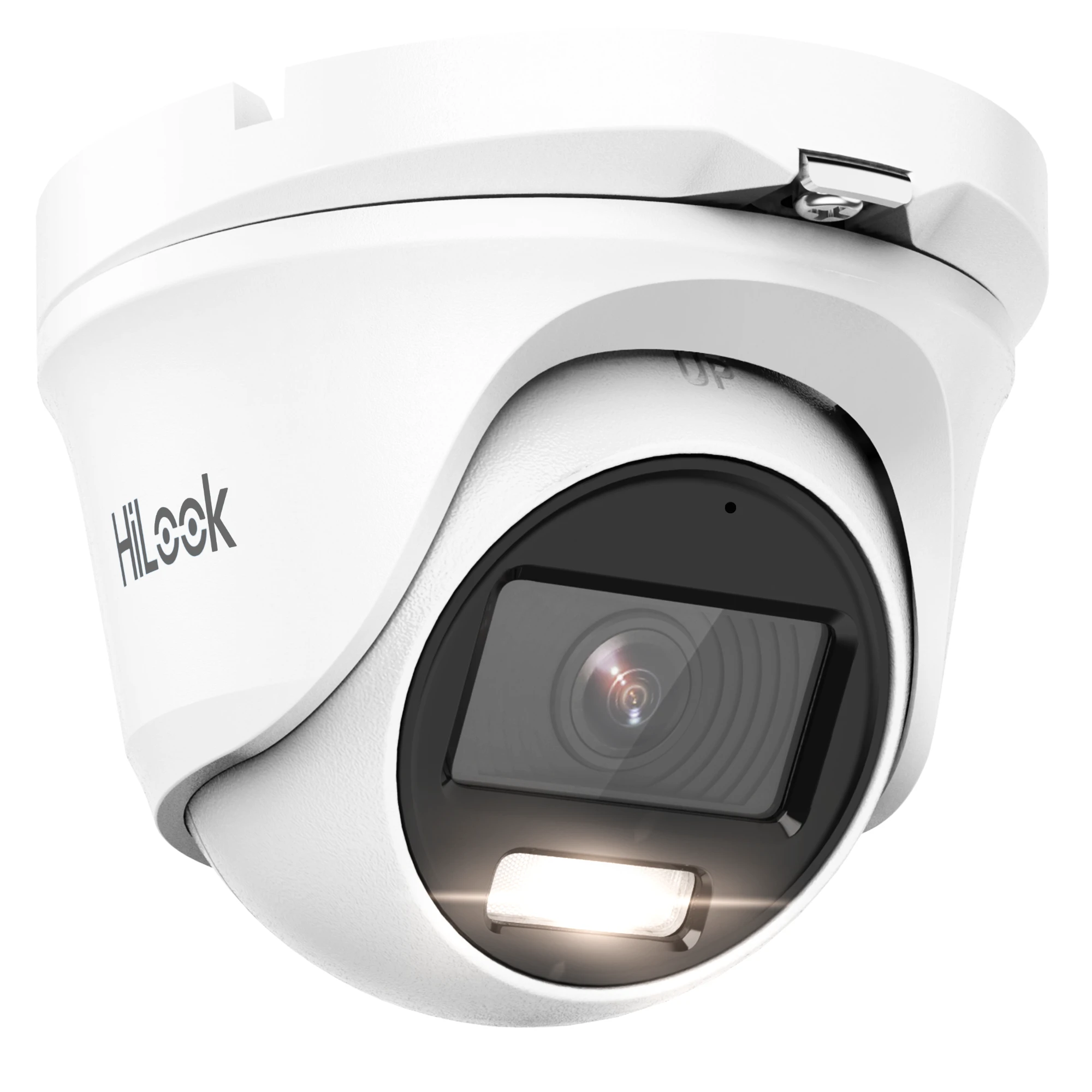

A white dome security camera with a sleek design, featuring a prominent lens and infrared sensor for enhanced night vision. The camera is branded with the HiLook logo, indicating its reliable performance for surveillance needs.
A sleek, dome-shaped security camera with a metallic finish is prominently displayed against a dark background, featuring a glowing lens. The text "DO 20m" indicates its effective range for surveillance.
A white security camera with a sleek, modern design is partially submerged in vibrant blue water, highlighting its durability and water-resistant features. The camera lens is prominently displayed, emphasizing its high-definition capabilities.
  • Manufacturer

    HiLook by HIKVISION
  • Product Code

    TVICAM-T5M-20DL

  • Warranty

    24 miesiące

  • Technology: AHD/HD-CVI/HD-TVI
  • Resolution: 5Mpx
  • Enclosure: Dome
  • Night visibility: up to 30m
  • Connectivity: Wired
  • Memory card slot: No
  • Audio: No
  • Color: White

Ask about this product show form

  • Save -10%
  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

22,42 € 24,78 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Related products

Product Description

Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

Contents of the TVICAM-T5M-20DL package:


In addition to the camera, the box also contains useful instructions and mounting accessories to speed up the entire process of mounting the camera.

  • 1x 2Mpx dome camera - HiLook by Hikvision TVICAM-T5M-20DL.
  • Documentation - User manual, warranty card, adjustments
  • Template - Small size template with camera mounting holes
  • Screws and mounting studs - Everything you need to mount the camera
  • Waterproof kit - A set of accessories to protect the camera's connectors from moisture

HiLook by Hikvision products are all about ease of use, literally anyone can handle the installation and setup thanks to the included instructions.

Features of the TVICAM-T5M-20DL camera:


  • High-quality imaging with 5 Mpx, 2560 x 1944 resolution.
  • 2.8mm fixed focus lens
  • Infrared range up to 20 meters
  • White light range - 20 meters
  • Support for four analog TVI/AHD/CVI/CVBS systems
  • IP66 water and dust resistance
Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

High-quality image


The light-sensitive sensor in the TVICAM-T5M-20DL camera and a high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The device records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

  • A: 1280x720p ( 1Mpx )
  • B: 1920x1080p ( 2Mpx )
  • C: 2048x1536p ( 3Mpx )
  • D: 2560x1440p ( 4Mpx )
  • E: 2560x1960p ( 5Mpx )
  • F: 3840x2160p ( 8Mpx )
Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision


Automatic day/night mode


TVICAM-T5M-20DL automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down.
The infrared range is 20 meters.

Automatic day/night mode


Adapted to work in all lighting conditions TVICAM-T5M-20DL with visibility up to 20m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision



Motion detection


TVICAM-T5M-20DL has a built-in algorithm for detecting motion in the video. In addition, it allows you to send notifications to your phone or computer.

In addition, you can freely set the area of interest, so that, for example: receive notifications only on motion from the entrance gate.

In addition to recording 24/7, the cameras can also record only fragments when motion is detected, which will translate into a reduction in hard drive consumption.
Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

IP66 weatherproof design

This housing protects the TVICAM-T5M-20DL from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty areas. Cameras with IP66 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

Wide dynamic range - That is, high quality in difficult conditions


The WDR (Wide Dynamic Range) function of the TVICAM-T2M-20DL is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:



  • Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
  • Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
  • Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
  • Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.


Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision


LED illumination and color images after dark


The TVICAM-T2M-20DL camera's white light illumination function is used to improve image quality in low-light conditions. Here are some key aspects of this technology:

  • Improving nighttime visibility: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
  • Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.

Kamera 4w1 TVICAM-T5M-20DL 5Mpx IR 20m HiLook by Hikvision

Technical specifications of TVICAM-T5M-20DL:

Camera
Image Sensor CMOS 5 MP
Max Resolution 2560 (S) × 1944 (W)
Min. illumination Color: 0.01 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Open Time PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s
Day/Night Mode ICR
Angle adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotation: 0° to 360°
Signal System PAL/NTSC
Lens Lens
Lens Type 2.8 mm fixed focal length
Focus and POV length 2.8 mm, horizontal POV: 85°, vertical POV: 63°, diagonal POV:110°
Lens Mount M12
Image Parameter Switch STD/HIGH-SAT
Image settings Brightness, Sharpness, Mirroring, Smart IR, AGC
Frame Rate TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps CVI: 4 M @ 30 fps, 4 M @ 25 fps CVBS: PAL/NTSC
Day/Night Mode Auto/Color/Cz-B (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image enhancement BLC, HLC
White Balance ATW/Manual
Interface
Video output 1 HD analog output
General
Material Metal
Dimensions Ø82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
Weight Approx. 230 g (0.51 lb.)
Operating conditions -40 °C to 60 °C, Humidity: 90% or less (non-condensing)
Communication Hik-Connect, HiLookVision
Language Polish
Power supply 12 VDC ±25%
Power consumption Max. 4.3 W
Infrared range Up to 20 m
Approval Protection
Degree of Protection IP66



Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
