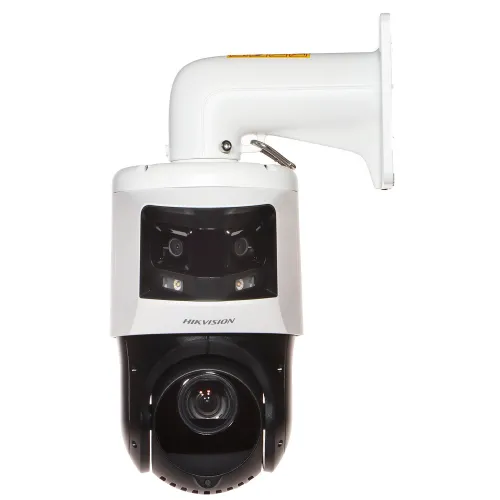

Hikvision DS-2SE4C225MWG-E/26(F0) TandemVu ColorVu Outdoor PTZ IP Camera - 1080p 4.8...120mm

The DS-2SE4C225MWG-E/26(F0) camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

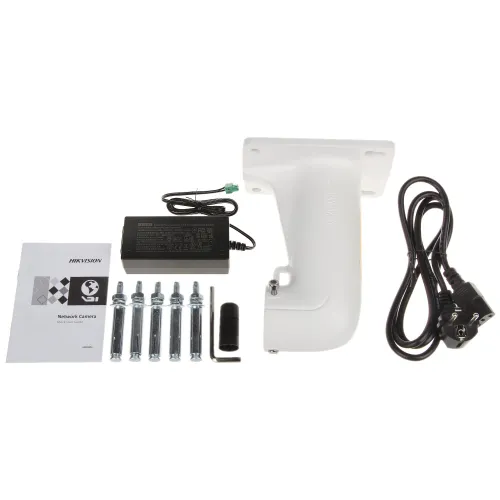

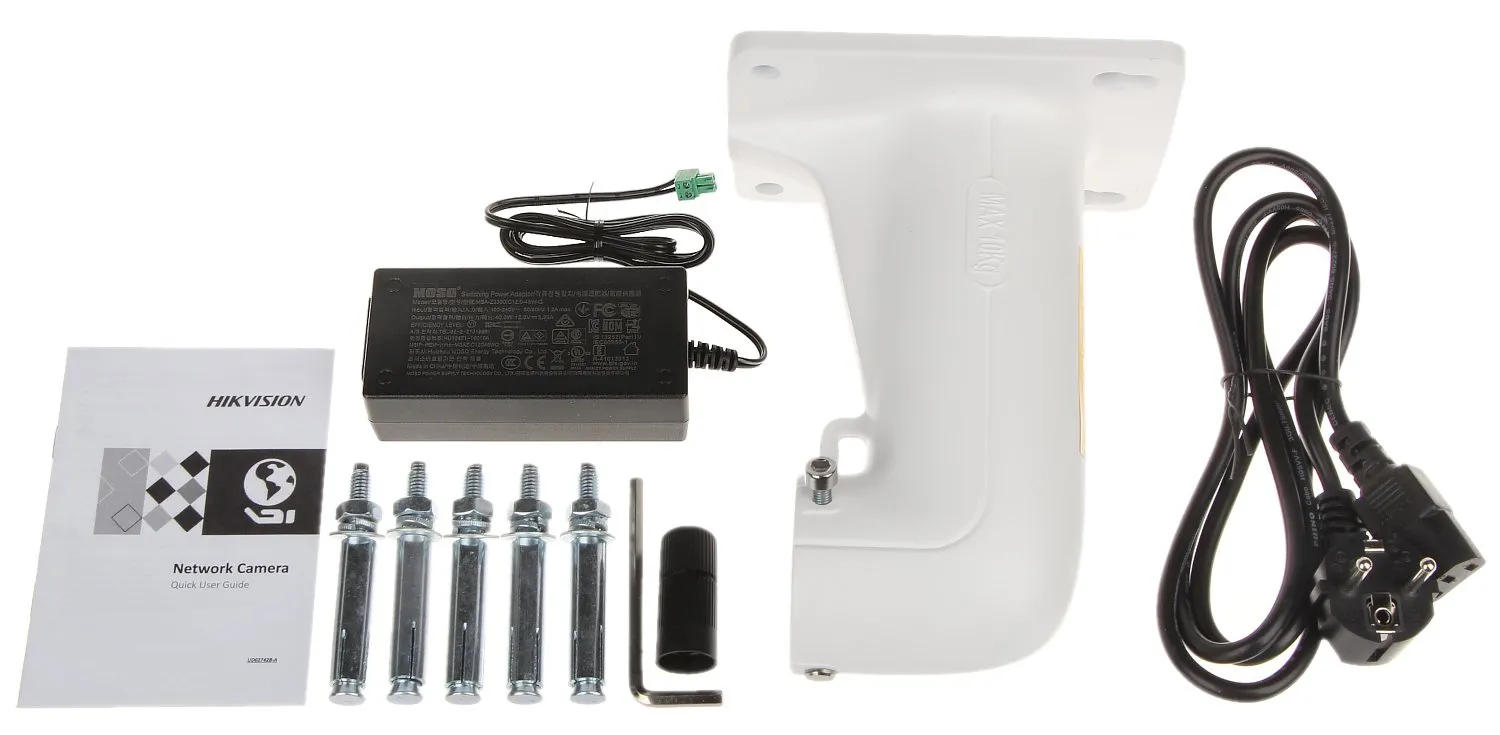

Kit contents:

• 1x 2 Mpx / 6 Mpx PTZ camera - DS-2SE4C225MWG-E/26(F0)
• Template - Small size template with mounting holes of the camera
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera connectors from moisture
• 12V DC power adapter

Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Main product features:

• Communication standard: TCP/IP
• Sensors: PTZ camera - 1/2.8" CMOS, Camera 2 - 1/2.5" CMOS
• Resolution: PTZ camera - 1920 x 1080 (1080p), Camera 2 - 3680 x 1656 (6 Mpx)
• Optical zoom: x25, digital zoom: x16
• Viewing angle: PTZ camera - 55° to 2.4°, Camera 2 - 180° (panoramic view)
• Range of IR illuminator: 100m (PTZ camera)
• White light illuminator (LED) range: 30 m (Camera 2)
• Panningspeed: Up to 80°/s (horizontal/vertical) with presets
• Panning range: Horizontal - 360° continuous, Vertical - -15° to 90°
• Video compression methods: H.265+, H.265, H.264+, H.264, MJPEG
• Micro SD card support: Up to 256GB, with ANR function (recording on network failure)
• Smart features: WDR (120 dB), 3D-DNR, EIS, F-DNR (Defog), ROI, BLC/HLC, ICR
• Intelligent image analysis: Line crossing, intrusion, face detection, false alarm filtering (people/vehicles)
• Power supply: PoE (802.3at) and 12V DC / 3.33A (power supply included)
• Housing: Speed Dome, metal, IP66 rating, operating temperature: -30°C to 65°C

DS-2SE4C225MWG-E/26(F0) is a PTZ camera with advanced surveillance features offers up to 6 Mpx resolution and 25x optical zoom, enabling detailed surveillance of large areas. With a wide viewing angle and intelligent image analysis features such as face detection and false alarm filtering, it provides effective protection. The camera is equipped with an IR illuminator with a range of up to 100m for nighttime monitoring, and its robust IP66-rated Speed Dome housing ensures reliable performance in harsh weather conditions. Power over PoE and the ability to store locally on a Micro SD card up to 256GB add to the flexibility of installation and use.

ColorVu - innovative technology from Hikvision

ColorVu technology is an innovative solution developed by Hikvision that allows cameras such as the DS-2SE4C225MWG-E/26(F0) to capture full-color images around the clock, even in very low light conditions. Traditional security cameras switch to black-and-white mode at night using an infrared (IR) illuminator, which limits the ability to discern details. ColorVu, on the other hand, provides vivid, colorful images at night for better identification of objects and people.

Automatic day/night mode Adaptable PTZ camera with visibility up to 100m even in total darkness. White light reaches up to 30m. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the largest possible area

The DS-2SE4C225MWG-E/26(F0) PTZ camera's lens features a varifocal range of 4.8mm to 120mm, allowing up to 25x optical zoom. With such a wide focal range, this lens is capable of capturing both wide panoramic shots and detailed close-ups, ideal for precision monitoring.

A unique feature of this lens is its ability to quickly and smoothly adjust the angle of view from 55° to as little as 2.4°, which, combined with the camera's high speed (up to 80°/second), allows for instant tracking of moving objects. Thanks to the use of advanced lenses and optical technology, this lens offers sharp, clear images, even at maximum zoom. This makes it ideal for high-precision applications, such as monitoring public buildings, large spaces, or perimeter security.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2SE4C225MWG-E/26(F0) records at 2Mpx resolution. It guarantees that even the smallest detail will be captured on the footage. The second camera records in 6Mpx. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

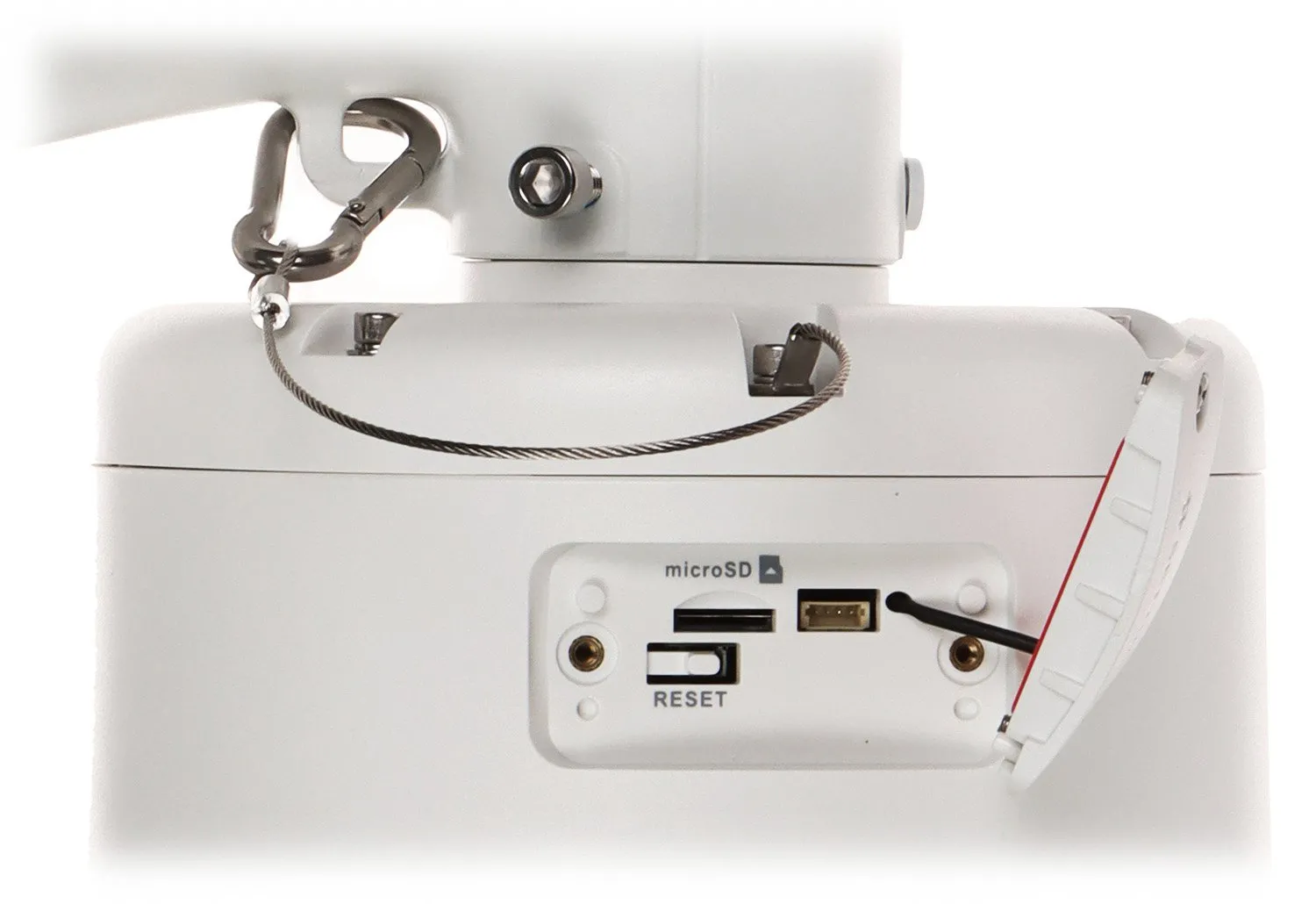

Slot for microSD card The DS-2SE4C225MWG-E/26(F0) camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems, or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the DS-2SE4C225MWG-E/26(F0) camera from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP66 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Have continuous access to your cameras The Hik-Connect mobile app was created to allow end users to conveniently manage security devices such as cameras and DVRs via smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom: Hik-ProConnect is a comprehensive cloud-based solution designed for Hikvision installers and system integrators. This tool allows you to effectively manage the services you provide to your customers and grow your business in a subscription model. (paid application) The iVMS-4200 software is designed for easy and comprehensive configuration and management of Hikvision devices such as switches, DVRs and NVRs, IP cameras, alarm systems, access control and storage devices. (Free application) The SADP (Search Active Devices Protocol) application provides a user-friendly and installation-free software tool for online device search. It searches for active online devices in your subnet and displays information about those devices. (Free application) HikCentral Professional is security integration software designed to manage a variety of security challenges on a single, intuitive platform. It enables both the management of individual systems, such as video surveillance, access control, and alarm systems, and the linking of multiple systems within an integrated architecture. (paid application)

People / face and vehicle detection Motion detection with silhouette recognition of people, five faces at a time and vehicles on DS-2SE4C225MWG-E/26(F0) cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as theDS-2SE4C225MWG-E/26(F0) to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Main advantages:

• Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
• Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
• Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
• Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.



How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the DS-2SE4C225MWG-E/26(F0) camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of your surveillance system to the specific spatial conditions and security needs of an area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Secure your recordings

The ANR (Automatic Network Replenishment) function is a feature used in video surveillance systems to ensure continuous recording and video recording in the event of a network connection failure or interruption. The ANR function is particularly useful in IP surveillance systems where cameras are connected to a DVR (NVR) or server via a computer network. When there is a problem with the network connection between the camera and NVR (e.g. due to network failure, signal loss, router or switch problems), cameras equipped with the ANR function automatically switch to local recording to a microSD memory card mounted in the camera.

Artificial intelligence Equipped with advanced artificial intelligence (AI) features, the DS-2SE4C225MWG-E/26(F0) camera offers much more than traditional surveillance. With AI, the camera is able to analyze images in real time, allowing it to intelligently recognize and classify objects such as people and vehicles. This significantly reduces the number of false alarms that can be triggered by, for example, animals or irrelevant movements in the camera's field of view.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
