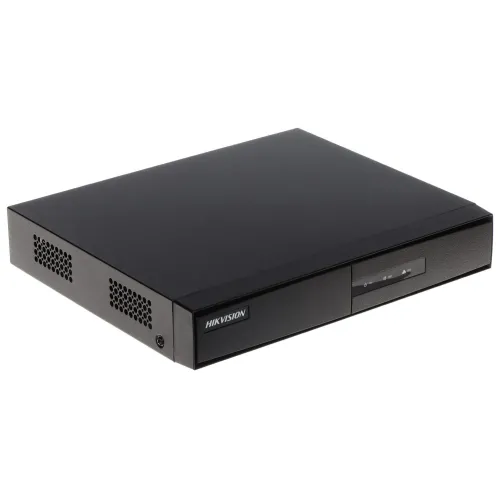

IP Recorder DS-7104NI-Q1/4P/M(D) 4 channels, 4 PoE Hikvision
Photo gallery
-
Manufacturer
-
Product Code
DS-7104NI-Q1/4P/M(D)
-
Warranty
24 miesiące
Ask about this product show form
Related products
Product Description
DVR DS-7104NI-Q1/4P/M(D) is a professional device used in IP surveillance installations Recording is done in the H.265+ compression standard, allowing to obtain the best image quality using minimum network bandwidth and disk capacity.
| Standard: | TCP/IP |
| Supported resolutions: | max. 6 Mpx |
| Video outputs: | 1 pcs. HDMI 1 pcs. VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | No |
| Audio outputs: | No |
| Video compression method: | H.265+ / H .265 / H.264+ / H. 264 |
| Bitrate: | max. 40 Mbps |
| Supported hard drives: | 1 x 6 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Archiving to external media: | Archiving to USB drive (flash drive, external drive) |
| Search and playback of recordings: | Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Simultaneous playback of recordings from up to 4 cameras @ 1080p Smart Search function Smart Playback function |
| Network interface: | 1 x RJ-45 10/100 Base-TX |
| Network functions: | Live video viewing, Playback of recordings, Archiving of recordings - iVMS-4200 application The device has the ability to work with Hik-Connect application for mobile devices. |
| Network protocols: | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP |
| ONVIF: | Yes |
| Default IP address: | 192.168.1.64 |
| Default admin login / password: | admin / - Administrator password should be set at the first startup |
| Access from cell phone: | Port: 8000 or access via cloud (P2P)
|
| Web access ports: | 80 |
| Access ports via PC application: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
| Access ports via mobile application: | 8000 |
| RTSP URL: |
|
| USB: | 2 pcs. USB 2.0 |
| Serial port: | No |
| Alarm inputs / outputs: | No |
| PTZ control: | IP Speed Dome cameras. |
| Motion detection: | Yes |
| Intelligent Image Analysis: | Yes |
| Selected features: | IVS analysis: line crossing, intrusion |
| Mouse operation: | Yes |
| IR remote control included: | No |
| PoE Switch: | Built-in 4-port PoE switch, 25.5 W / Channel - PoE (802.3af/at) |
| Maximum total switch load: | 36 W |
| Power supply: | 48 V DC / 1 A (power adapter included) |
| Power consumption: | ≤ 10 W (without HDD) |
| Operating temperature: | -10 °C ... 55 °C |
| Weight: | 0.84 kg |
| Dimensions: | 260 x 225 x 48 mm |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 303618108 |
