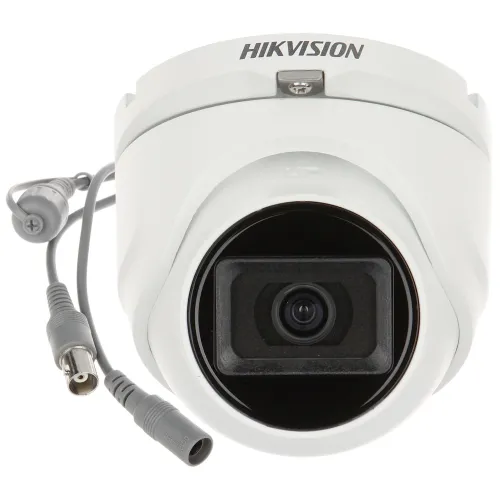

AHD, HD-CVI, HD-TVI, PAL Camera DS-2CE76H0T-ITMF(2.8mm)(C) - 5Mpx Hikvision
Photo gallery
Product Description

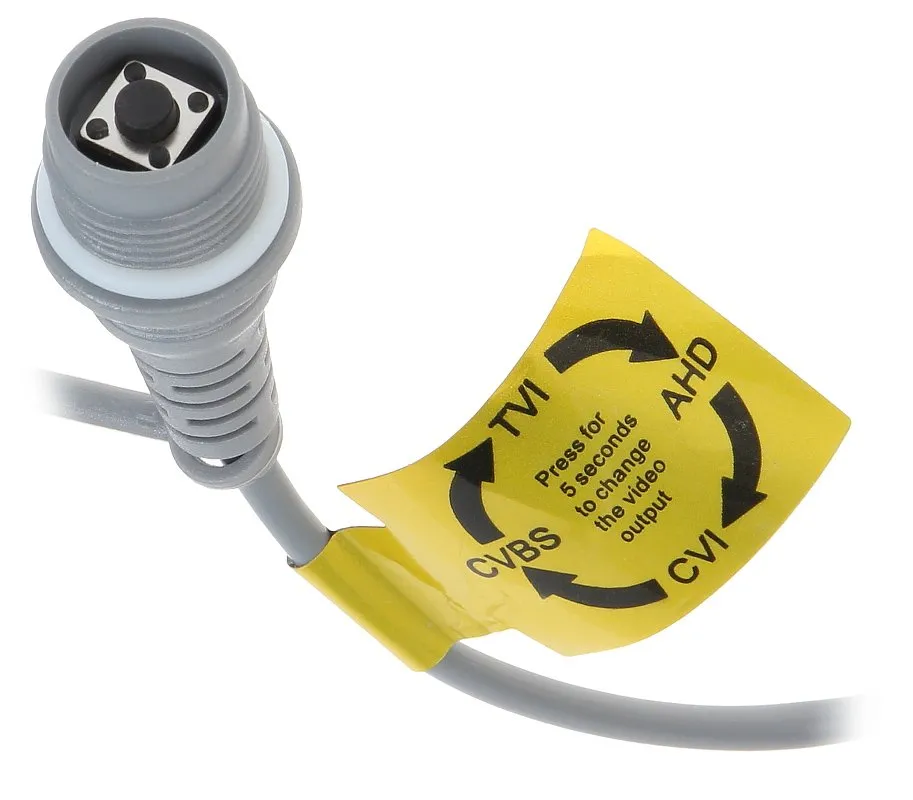

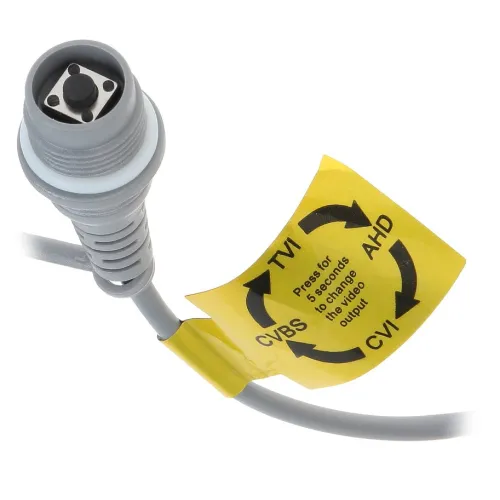

Megapixel camera with Progressive scan CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface. AHD / HD-CVI / HD-TVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable at a resolution of 5 Mpx (AHD / HD-TVI) / 4 Mpx (HD-CVI) During transmission there are no delays and the original high image quality is preserved Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the button for about 5 seconds. In the case of video transmission by means of twisted-pair cable and impedance matching transformers, it is necessary to take into account the possibility of signal reflections and signal interleaving. The camera meets the IP67 waterproof class.
| Standard: | AHD / HD-CVI / HD-TVI / CVBS |
| Sensor: | Progressive Scan CMOS |
| Matrix size: | 5 Mpx |
| Resolution: |
|
| IR illuminator range: | 30 m |
| IR illuminator power adjustment: | Automatic |
| Lens: | 2.8 mm |
| Viewing angle: |
|
| Cooperation with IR illuminator: | ICR - Mechanical infrared filter |
| Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
| Selected features: |
|
| OSD on-screen menu: | OSD menu available through the DVR |
| Power supply: | 12 V DC / 340 mA |
| Power consumption: | ≤ 4.3 W |
| Housing: | Dome, Metal |
| Color: | White |
| Protection class: | IP67 |
| Vandal resistant: | No |
| Operating temperature : | -40 °C ... 60 °C |
| Weight: | 0.29 kg |
| Dimensions: | 91 x 83 x 68 mm |
| Manufacturer/Brand: | Hikvision |
| SAP Code: | 300613623 |
