6x Monitoring Kit BCS-P-TIP28FWR3L2-AI2 8Mpx, Full Color, Microphone, Speaker, Smart Features

Our kits are carefully selected devices that guarantee full compatibility and efficiency. You will find all the necessary components and accessories that will allow you to immediately start installing and configuring your equipment.

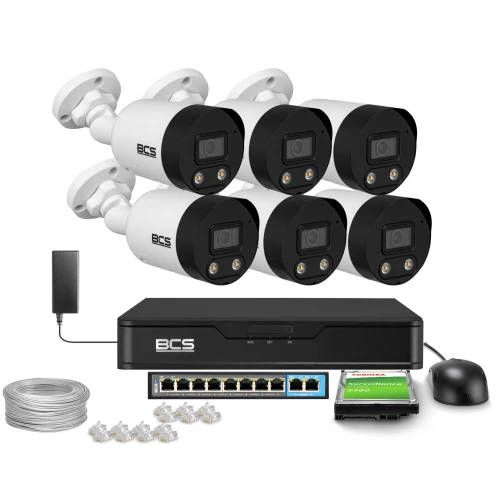

The kit includes:

• BCS-P-NVR0801-4KE-III DVR ( 1pc ).
• BCS-P-TIP28FWR3L2-AI2 camera ( 6pcs ).
• PoE switch BCS-B-SP0802 ( 1pc ).
• Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• UTP cat.5e cable ( 30m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of RJ45 plugs

Main features:

• Complete monitor kit with 6 cameras, DVR and all necessary accessories.
• High image quality 3840(H)×2160(V) (8Mpx)
• Viewing angle of the cameras: H: 112.4° V: 60.1°
• Outdoor/indoor mountable camera
• Built-in intelligent image recognition and analysis algorithms
• Ai - Perimeter protection - Intrusion into the area, crossing the line
• Ai - Object recognition - Person/vehicle recognition for area intrusion,
• line crossing reduces false alarm triggering.
• Ai - Face Detection - Face detection and tracking, face photo.
• Person counting for line trespassing/area intrusion, entrance counting, exit counting
• Enhanced recording performance with H.265+ codec
• Infrared light range - 30m
• Cameras meeting IP67 waterproof rating
• Audio recording with the cameras' built-in microphone
• 120dB hardware WDR
• 1TB hard drive, dedicated for use in video surveillance systems
• Possibility of remote monitoring via web browser, PC application and mobile device application.
• P2P (cloud) support - a feature that allows remote access without port forwarding and public IP address

BCS products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

High-quality image The light-sensitive matrix and high-quality sensor, combined with advanced optics, deliver high-quality images with excellent sharpness. The BCS-P-TIP28FWR3L2-AI2 records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in BCS-P-TIP28FWR3L2-AI2 is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Main features of BCS-P-TIP28FWR3L2-AI2:

• 8Mpx IP dome camera
• 1/2.7" PS CMOS sensor
• NightColor technology
• ADC technology
• NDAA compliance
• Fixed lens 2.8mm
• WDR120dB
• IR 30m, WhiteLight 20m
• Microphone, speaker
• IP67 housing
• Built-in intelligent image recognition and analysis algorithms
• Ai - Perimeter protection - Intrusion into the area, crossing the line
• Ai - Object recognition - Person/vehicle recognition for area intrusion,
• line crossing reduces false alarm triggering.
• Ai - Face Detection - Face detection and tracking, face photo.
• Person counting for line trespassing/area intrusion, entrance counting, exit counting

Main features BCS-P-NVR0401-4KE-III:

• Display and record up to 4 IP cameras in 4K resolution
• Kompresja H.265+/H265/H.264+/H.264
• Max incoming bandwidth 64Mbps, outgoing bandwidth 48Mbps
• Simultaneous operation of HDMI(3840x2160) and VGA(1920x1080) outputs
• Advanced video detection: motion detection, obstruction, video loss
• Support for intelligent functions
• Support for 1 SATA drive up to 6TB
• 1 audio output
• 1xRJ45, 2xUSB
• Built-in web server, CMS support, BCS mobile application
• 12V DC power supply

Efficient storage

H.265+ coding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) feature of the BCS-P-TIP28FWR3L2-AI2 is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

IP67 weatherproof design This housing protects the BCS-P-TIP28FWR3L2-AI2 from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Remote access from phone and desktop computer BCS systems allow you to configure, control and view via applications , which will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to: Access video preview and play back recorded footage Save fragments of the video to smartphone memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

IP67 weatherproof design This housing protects the BCS-P-TIP28FWR3L2-AI2 from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Wide dynamic range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) function of the BCS-P-TIP28FWR3L2-AI2 is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

Video and audio recording The audio recording function of the BCS-P-TIP28FWR3L2-AI2 allows you to record audio along with video, which greatly enhances the capabilities and efficiency of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Automatic day/night mode Adapted to work in all lighting conditions, the BCS-P-TIP28FWR3L2-AI2 with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

LED illumination and color image after dark

The white light illumination function of the BCS-P-TIP28FWR3L2-AI2 is used to improve image quality in low-light conditions. Here are some key aspects of this technology:

• Improving nighttime visibility: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
• Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.

Audiovisual recording on a memory card The microSD card in the BCS-P-TIP28FWR3L2-AI2 allows local storage of recorded data without the need for a continuous connection to an external storage system, ensuring independence and reliability in the event of loss of internet connection. In addition, it allows easy access to stored recordings, making it easier to analyze events and archive key footage. Maximum supported capacity - 256GB

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as surveillance cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

• Detection (84m): The system is able to detect the presence of an object or person at a distance of up to 84 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
• Observation (34m): At distances of up to 34 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
• Recognition (17m): Recognition at distances of up to 17 meters enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
• Identification (8m): At a distance of up to 8 meters, the system is able to provide a highly detailed image that can identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Active protection

The active deterrence feature of surveillance cameras, such as lights that turn on or beeps, is designed to immediately deter potential intruders from committing a break-in or act of vandalism. This proactive security method not only enhances the effectiveness of monitoring through real-time deterrence, but can also help quickly notify owners or security services of a potential threat before an incident occurs.

Who will this monitoring kit be suitable for?

This is a modern solution with a wide range of applications. Reach for this versatile kit if you are interested, for example, in monitoring rooms, grounds or facilities both indoors and outdoors. It will prove useful wherever you can run a cable installation.

With its help it is possible, among other things:

• monitoring of a store,
• monitoring of a wholesale and warehouse, as well as a production hall,
• monitoring of a school, monitoring of a kindergarten or other educational institutions,
• monitoring of a backyard, sports field or playground,
• monitoring of a private home,
• monitoring of a bar and restaurant,
• monitoring of a parking lot.

Choose this set if you need a professional monitoring system that will not let you down.
