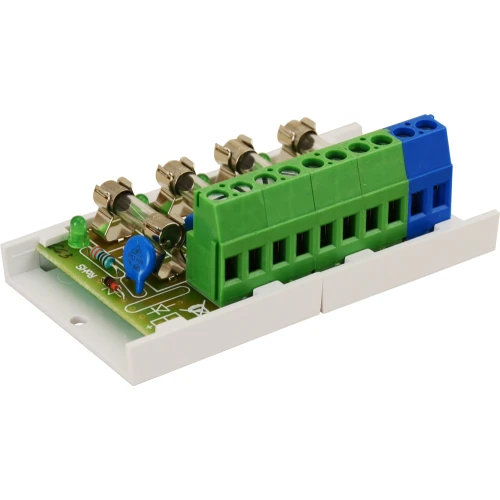

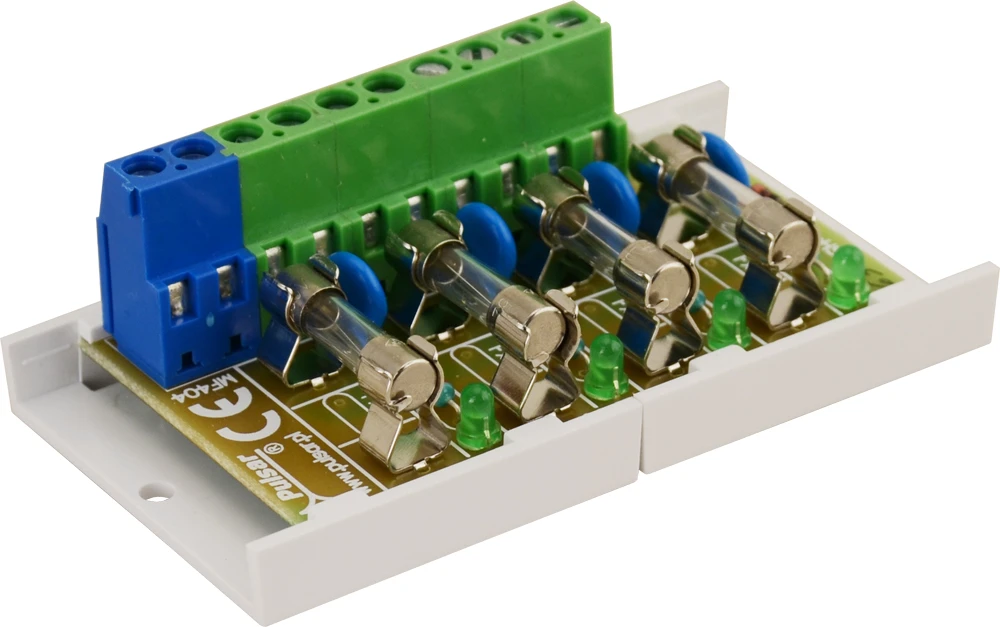

LB4/4×2A/2.5/FTA Fuse Module AWZ589 PULSAR

• Power supply: 10 - 30 V DC
• Power output: 4 x 2 A / Uaux = Uin
• Fuse: 4 x 2A (TOPIK)
• Inputs / Outputs: 1 / 4 - 2.5mm² / 2.5mm²
• Power input: screw connector or DC 5.5/2.1 socket
• Splitter strip
• Dimensions: 80 x 27 x 43 [+/-2 mm].
• Protections: SCP, OLP, overvoltage
• Module mounting options: mounting strip, adhesive tape
• Signaling: optical LED signaling
• Warranty: 2 years
• Notes: Can be mounted on PSD series power supplies (desktop)



PULSAR's AWZ589 LB4/4×2A/2.5/FTA fuse module is a specialized device designed to protect electrical circuits through the use of fuses. Modules of this type are widely used in power supply and protection systems in various electrical and electronic installations.

Purpose

The module is designed to protect against overloads and short circuits in electrical circuits. Through the use of fuses, it prevents damage to devices connected to the circuits.

Number of channels

The device has 4 channels, which means that it can protect four separate electrical circuits.



Type ofconnectors

The module uses FTA (Fast Terminal Assembly) type connectors, which provide fast and safe connection of wires.

Parameters of fuses:

• Fuse current: Each of the four fuses is rated at 2A.
• Wires: Wires of 2.5mm² are used in the module to ensure adequate current carrying capacity and minimize the risk of overheating.
