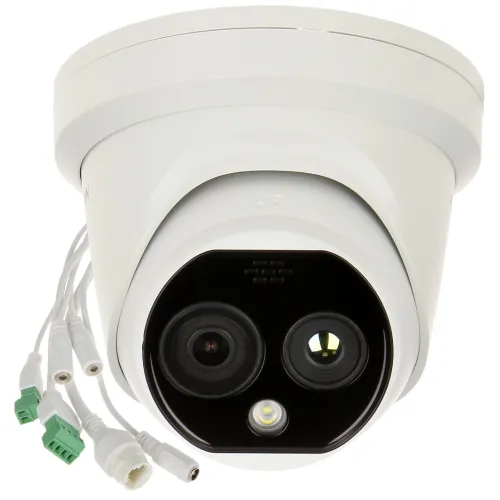

Hybrid Thermal Imaging IP Camera DS-2TD1217-6/QA 6.2mm - 720p, 8mm - 4MP - Hikvision
Photo gallery
-
Manufacturer
-
Product Code
DS-2TD1217-6/QA
- Technology: Thermal
- Resolution: 4Mpx
- Enclosure: Dome
- Night visibility: do 15m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
DS-2TD1217-6/QA thermal imaging camera is a state-of-the-art solution to detect the presence of people, animals and vehicles regardless of the prevailing video conditions The device is equipped with a sensitive VOx microbolometer, allowing to observe objects in fog, smoke and in the absence of light.
An additional advantage of DS-2TDxxxx series cameras is the ability to detect fire and send a signal to the control panel in case of its occurrence.
THERMAL IMAGING CAMERA:An additional advantage of DS-2TDxxxx series cameras is the ability to detect fire and send a signal to the control panel in case of its occurrence.
| Sensor: | Uncooled VOx microbolometer |
| Array size: | 160 x 120 px |
| Spot size: | 17 µm |
| Thermal sensitivity (NETD): | ≤ 40 mK @ F1.1 |
| Spectral range: | 8 µm ... 14 µm |
| Color palettes: | Yes |
| Lens: | 6.2 mm |
| Viewing angle: | 25 ° |
| Optical Zoom: | No |
| Digital Zoom: | 2x, 4x |
| Resolution: | 1280 x 720 - 720p, 704 x 576 640 x 480 352 x 288 320 x 240 |
| Temperature measurement: |
|
| Temperature measurement range: | -20 °C ... 150 °C |
| Temperature measurement accuracy: | ± 8 °C |
VIDEO CAMERA:
| Transducer: | 1/2.7 " Progressive Scan CMOS |
| Matrix size: | 4 Mpx |
| Lens: | 8 mm |
| Viewing angle: | 39.4 ° |
| Optical Zoom: | No |
| Digital Zoom: | No |
| IR illuminator range.: | 15 m |
| White light (LED) illuminator range: | 30 m |
| Resolution: | 2688 x 1520 - 4 Mpx 1920 x 1080 - 1080p 1280 x 720 - 720p |
General Data:
| Standard: | IP |
| Video output: | No |
| RS-485 interface: | Yes |
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Video compression method: | H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | 1 / 1 |
| Audio: |
|
| Main stream bit rate: | 25 fps @ 4 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of online users: | 32 |
| ONVIF: | Yes |
| Cell phone access: | Port : 8000 or access via cloud (P2P)
|
| Default IP address: | 192.168.1.64 |
| Default admin login/password.: | admin / - Administrator password should be set on first startup |
| Web access ports: | 80 |
| Access ports via PC application: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
| Access ports via mobile application: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: |
|
| Intelligent Video Analysis: |
|
| Selected features: |
|
| Security features: |
|
| Power supply: |
|
| Power consumption: | ≤ 6 W @ 12 V DC ≤ 6.5 W @ PoE (802.3af) |
| Housing: | Dome - Metal |
| Color: | White |
| Protection class: | IP67 |
| Mechanical protection class: | No |
| Operating temperature : | -40 °C ... 65 °C |
| Weight: | 0.94 kg |

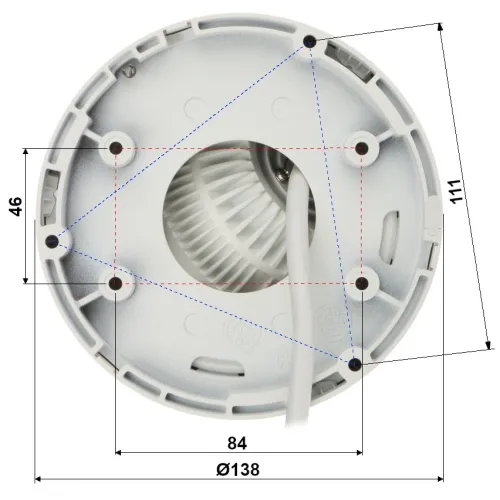

| Dimensions: | Ø 138.3 x 123.1 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, German, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Dutch, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Hungarian |
| Manufacturer/Brand: | Hikvision |
| SAP Code: | 305401439 |
