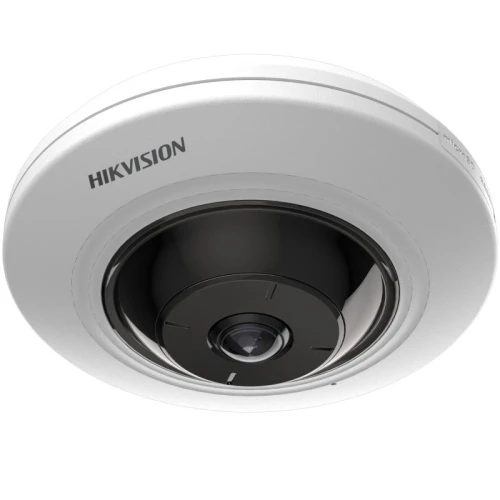

IP Fisheye Camera DS-2CD2955G0-ISU (1.05mm), 5MP, IR 8m - Hikvision

Photo gallery

Manufacturer
HIKVISION
Product Code

DS-2CD2955G0-ISU(1.05mm)
Warranty

36 miesięcy

Technology: IP
Resolution: 5Mpx
Enclosure: Dome
Night visibility: do 8m
Connectivity: Wired
Memory card slot: Yes
Audio: Yes
Color: White

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

344,36 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Main product features:

Sensor: 1/2.8" Progressive Scan CMOS
Resolution: 3 Mpx, 2048 × 1536 pixels
Sensitivity: 0.005Lux @ F1.2, AGC ON; 0.017Lux @ F2.2, AGC ON; 0 Lux with IR
Lens: 1.05mm @ F1.6
Viewing angle: 180° (horizontally and vertically)
Shutter: 1/3 s to 1/100,000 s
IR illuminator: up to 8m
Video compression: H.265+, H.265, H.264+, H.264, MJPEG
Video bitrate: 32 Kbps ~ 16 Mbps
Video features: AWB, AGC, WDR 120dB, 3D DNR, BLC, ROI, Defog
Day/night switching: Automatic / schedule / by alarm input (model -S)
Archiving: NAS (NFS, SMB/CIFS support), ANR
Users: Up to 32 users, 3 access levels
Alarms: Video tampering, disk error, IP address conflict, illegal login
Network protocols: TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, NTP, UPnP, IPv6, SSL/TLS
Security: HTTPS encryption, password protection, 802.1X authentication, watermarking
Interfaces: Ethernet 10/100 Base-T, microSD slot up to 128GB, audio and alarm input/output
Power supply: DC 12V, PoE (802.3af)
Operating temperature: -10°C ~ +50°C
Dimensions: Ø119.9×41.2mm
Weight: 0.6kg

DS-2CD2935FWD-I(1.16mm) is an advanced monitoring device, offering 3 Mpx (2048 × 1536 pixels) resolution and a wide 180° viewing angle. Equipped with a 1/2.8" Progressive Scan CMOS sensor, it provides high image quality even in low-light conditions, thanks to a sensitivity of 0.005Lux and a built-in IR illuminator with a range of up to 8 meters. The camera supports H.265+ bidirectional video compression, which saves disk space without sacrificing image quality. With WDR 120dB, 3D DNR and automatic day/night switching features, the camera guarantees reliability in all conditions. In addition, the device supports PoE for easy installation, and has advanced security options such as HTTPS encryption and 802.1X authentication, making it an ideal choice for modern surveillance systems.

Capture the widest possible area

The 1.05mm lens provides a wide field of view, ideal for monitoring large areas. With a 180° horizontal, 180° vertical viewing angle, the DS-2CD2935FWD-I(1.16mm) camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2CD2935FWD-I(1.16mm) records at 3Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

MicroSD card slot

The DS-2CD2935FWD-I(1.16mm) camera has a built-in microSD card slot that allows local storage of video recordings on media up to 512GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

Have continuous access to your cameras

The Hik-Connect mobile app was created to allow end users to conveniently manage security devices, such as cameras and DVRs, using smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom:

Hik-ProConnect is a comprehensive cloud-based solution designed for Hikvision installers and system integrators. This tool allows you to effectively manage the services you provide to your customers and grow your business in a subscription model. (paid application)
The iVMS-4200 software is designed for easy and comprehensive configuration and management of Hikvision devices such as switches, DVRs and NVRs, IP cameras, alarm systems, access control and storage devices. (Free application)
The SADP (Search Active Devices Protocol) application provides a user-friendly and installation-free software tool for online device search. It searches for active online devices in your subnet and displays information about those devices. (Free application)
HikCentral Professional is security integration software designed to manage a variety of security challenges on a single, intuitive platform. It enables both the management of individual systems, such as video surveillance, access control, and alarm systems, and the linking of multiple systems within an integrated architecture. (paid application)

Motion detection

Motion detection on DS-2CD2083G2-LI2U (2.8mm) cameras is an advanced feature that allows surveillance systems to be more precise and effective. It detects intrusion and movement in a specific region.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the DS-2CD2083G2-LI2U (2.8mm) to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the DS-2CD2935FWD-I(1.16mm), which improves image quality in challenging lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the DS-2CD2935FWD-I(1.16mm) camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Secure your recordings

The ANR (Automatic Network Replenishment) function is a feature used in video surveillance systems to ensure continuous recording and video recording in the event of a network connection failure or interruption. The ANR function is particularly useful in IP surveillance systems where cameras are connected to a DVR (NVR) or server via a computer network. When there is a problem with the network connection between the camera and NVR (e.g. due to network failure, signal loss, router or switch problems), cameras equipped with the ANR function automatically switch to local recording to a microSD memory card mounted in the camera.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Technical specifications:

Camera	DS-2CD2935FWD-I(1.16mm)
Main
Sensor	1/2.8" Progressive Scan CMOS
Sensitivity	0.005Lux @ F1.2, AGC ON , 0.017Lux @ F2.2, AGC ON, 0 Lux with IR
Shutter	1/3 s to 1/100,000 s
System	PAL/NTSC
Lens
Focal length	1.05 mm
Viewing angle	180° (horizontal); 180° (vertical)
Aperture	F1.6
Mounting	M12
IR illuminator	Up to 8m
Compression
Video	Main stream: H.265+ / H.265 / H.264+ / H.264 Secondary stream: H.265 / H.264 / MJPEG
Video bitrate	32 Kbps ~ 16 Mbps
Maximum resolution
Processing speed and resolution (main stream)	50Hz:25fps (2048 × 1536, 1600 × 1200, 1280 × 960) 60Hz:30fps (2048 × 1536, 1600 × 1200, 1280 × 960)
Processing speed and resolution (auxiliary stream)	50Hz: 25fps (352 × 288, 704 × 576) 60Hz: 30fps (352 × 240, 704 × 576)

Image adjustment	Rotation mode, saturation, brightness, contrast, sharpness (set via software or web browser)
Image functions	AWB, AGC, WDR 120dB, 3D DNR, BLC, ROI, Defog
Day / night switching	Automatic / schedule / by alarm input (on -S model)
Networking
Network archiving	NAS (NFS,SMB/CIFS support), ANR
Users	Up to 32 users, 3 levels: Administrator, operator and user
Alarm triggering	Video tamper alarm, full HDD, HDD error, disconnected network, IP address conflict, illegal login
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Security	Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filtering, basic and encrypted authentication for HTTP/HTTPS, WSSE and encrypted authentication for ONVIF, TLS1 .2
Compatibility with the standard	ONVIF (profile S and G), ISAPI
Intelligent functions
Line crossing detection	Crossing of a specific line (supports one line)
Intruder detection	Intrusion and movement in a specified region (supports one region)
ROI	Supports one region for each stream
Interfaces
Ethernet	1x RJ-45 10/100 Base-T
Memory slot	1x microSD/ microSDHC/ microSDXC card slot up to 128GB
Power supply	1x 5.5/2.1 socket on cable
Audio	1x input, 1x output
Alarm	1x input, 1x output (DC24V, 1A or AC110V, 500mA, max.).
Other
Power supply	DC 12V ± 25%, 0.4 A, 4.8 W,PoE (802.3af, 36V to 57 V, class 3), 0.4 A to 0.7 A, 6.4 W,
Operating temperature	-10°C ~ +50°C
Weight	0.6kg
Dimensions	Ø119.9×41.2mm
