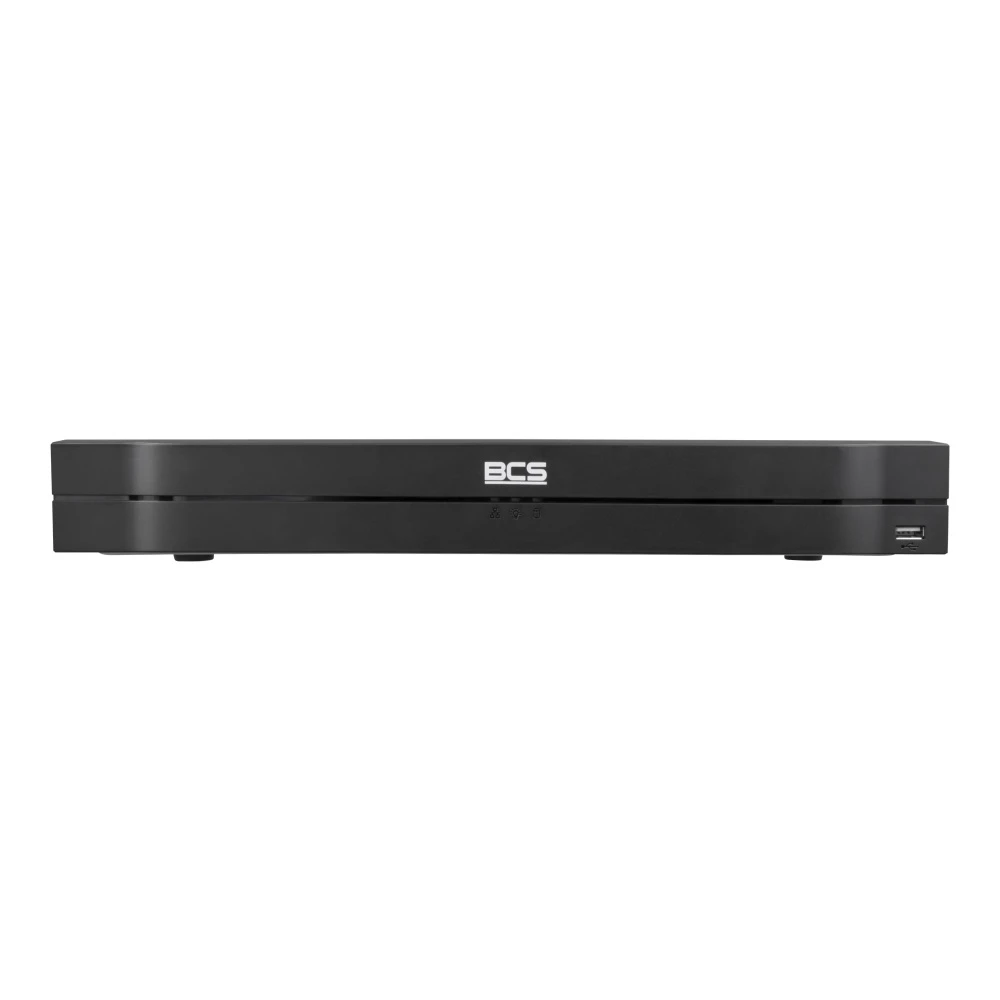

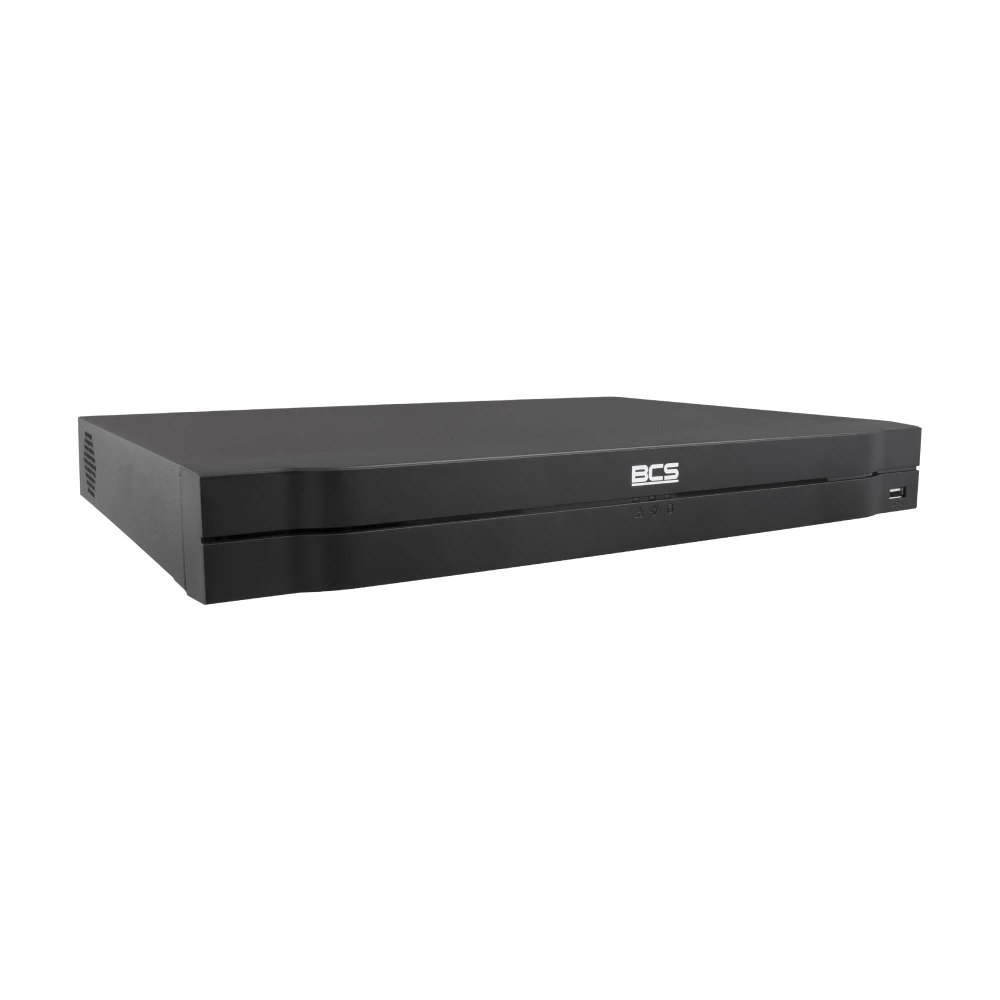

8-channel hybrid recorder BCS-L-NVR0802-A-4K-8P

Main features of the BCS-L-NVR0802-A-4K-8P DVR:

• Product line: BCS Line
• System: IP
• Pentaplex function: live viewing / recording / playback / archiving / remote access
• Channels: 8
• Disks: 2
• Disk Capacity: Maximum 16 TB
• Max recording resolution: 32 Mpx
• Input bandwidth: 384Mbps (200Mbps for AI)
• Output bandwidth: 384Mbps (200Mbps for AI)
• Display performance:
  • 2×32M @ 20fps
  • 2×24M @ 20fps
  • 4×16M @ 30fps
  • 5×12M @ 30fps
  • 8×8M @ 30fps
  • 1×32M AI @ 20fps
  • 1×24M AI @ 20fps
  • 2×16M AI @ 30fps
  • 4×12M AI @ 30fps
  • 4×8M AI @ 30fps
  • 8×5M AI @ 30fps
• Recording resolution: 32M / 24M / 16M / 12M / 8M / 5M / 4M / 2M / 1.3M / 720P / D1
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• HDMI output: HDMI 4K
• VGA output: VGA
• HDMI display resolution: 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768
• VGA display resolution: 1920×1080 / 1280×1024 / 1280×720 / 1024×768
• Output split: 1/4/8/9
• Playback: 1/4/9 channels simultaneously
• Archiving: Possibility to rip footage to external media like USB FLASH, USB HDD
• Number of users: 128
• Interfaces:
  • 1×USB2.0
  • 1×USB3.0
  • Serial port: RS232, RS485
• Audio input/output: 1 / 1, audio compression: G.711A / G.711U / G.726 / PCM
• Alarm input/output: 4 / 2
• Support: Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Network: RJ-45 10/100/1000Mbps
• Compatibility: ONVIF (S/G/T), support for third-party cameras
• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration
• PoE Standard: IEEE 802.3 af/at
• PoE Switch: 130W power, max. 25.5W/port, 8 PoE channels
• Power supply: 100~240V AC
• Power consumption (without drives): max. 10W
• Operating conditions: -10°C~+55°C, max 93% RH
• Enclosure: 1U
• Dimensions (W×D×H): 375×328×53 mm
• Weight (without drives): 2.7 kg

AI Features:

• Face detection: 2 channels from DVR, 8 channels from cameras
• Face identification: 8 channels of detection from cameras + identification from DVR, up to 20 face databases, 20K images.
• Perimeter protection: 4 channels from DVR, 10 rules per channel, 8 channels from cameras
• Metadata: 8 channels from cameras, person and motor vehicle attributes
• ARTR: 8 channels from cameras, black and white list of up to 20 thousand items
• SMD: 8 channels from DVR, 8 channels from cameras

This DVR offers advanced monitoring features with support for high resolution up to 32 Mpx, wide compatibility with cameras from various manufacturers, and extensive artificial intelligence functions, making it ideal for demanding security systems.
