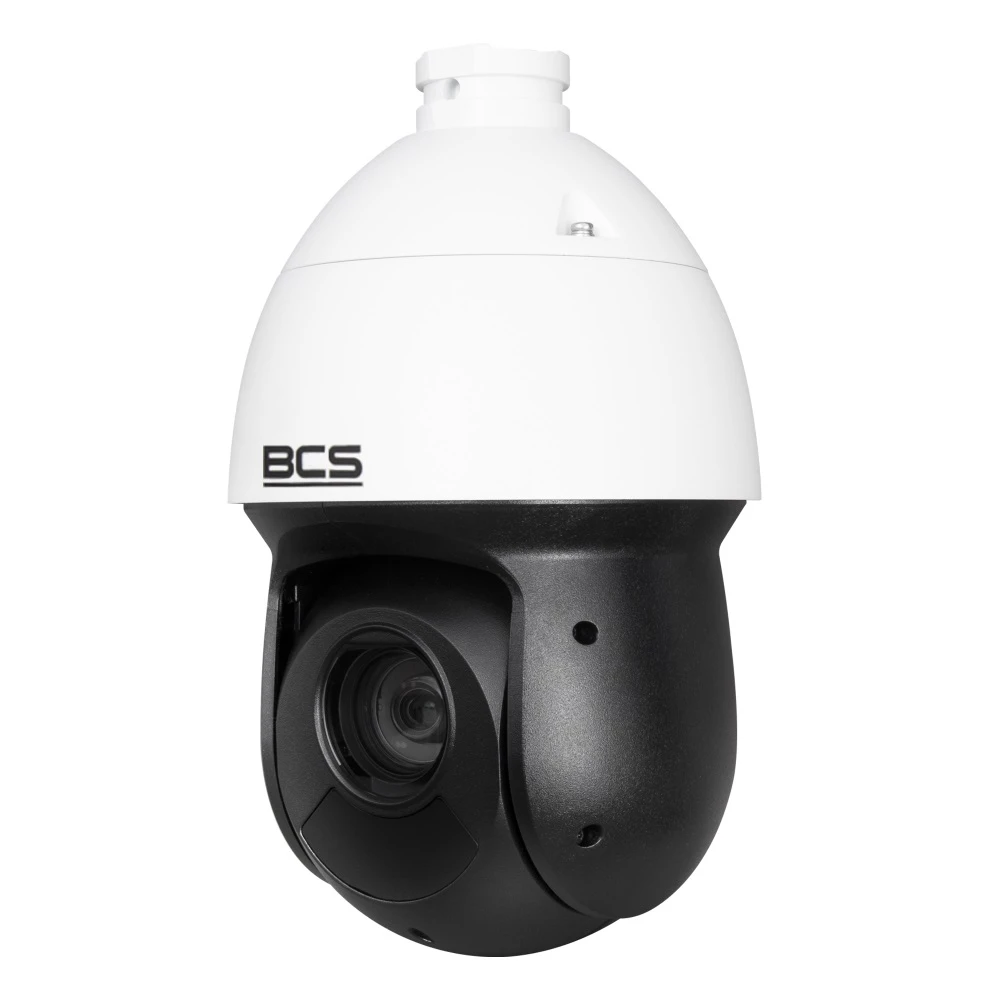

BCS-L-SIP2225SR10-Ai2 IP PTZ Camera, SkyLight, WDR 120dB, IR 100m

Main Features of BCS-L-SIP2225SR10-Ai2 Camera:

1. Product Line: BCS Line
2. Camera Type: PTZ (Pan-Tilt-Zoom)
3. Resolution: 2 Mpx
4. Sensor: 1/2.8'' CMOS STARVIS with Progressive Scan system
5. Lens: Motozoom, focal length 4.8~120 mm
6. Aperture: F1.6~3.5
7. Zoom:
   • Optical zoom: 25×
   • Digital zoom: 16×
8. Viewing Angle:
   • Horizontal: 58.5°~2.8°
   • Vertical: 33.2°~1.5°
   • Diagonal: 67.5°~3.2°
9. DORI:
   • Detect: 1613m
   • Observe: 646m
   • Recognize: 323m
   • Identify: 161m
10. Camera Sensitivity:
    • 0.005 Lux (Color, F1.6)
    • 0.0005 Lux (B/W, F1.6)
    • 0 Lux (IR)
11. WDR: 120 dB
12. Noise Reduction: 2D/3D DNR
13. Image Stabilization: Electronic (EIS)
14. Illuminator: IR LED, range up to 100m
15. Audio:
    • 1 audio input
    • 1 audio output
    • Compression: G.711A / G.711Mu / G.726 / G.722.1 / G.729 / MPEG2-L2
16. Interfaces:
    • 1× RJ-45 10/100 Mbps
    • MicroSD memory card slot up to 512GB
17. Video Streams:
    • Main: 1920×1080 / 1280×960 / 1280×720 (25/30fps)
    • Second: 704×576 / 704×480 / 640×480 / 352×288 / 352×240 (25/30fps)
    • Third: 1920×1080 / 1280×960 / 1280×720 (25/30fps)
18. Video Compression: H.265, H.265+, H.264+, H.264, MJPEG
19. Power supply: 12VDC / PoE(802.3at), Power consumption max 20W
20. Operating Conditions: -40°C~+60°C, max 95% RH
21. IP Protection Class: IP66
22. Surge protection: TVS 6kV
23. Dimensions: Ø160mm×270mm
24. Weight: 2.4kg
25. PAN speed: 0.1°/s~80°/s (80°/s preset)
26. TILT speed: 0.1°/s~80°/s (80°/s preset)
27. PAN range: 0°~360°
28. TILT Range: -15°~90° auto-flip
29. Automation Features: 300 presets, 8 tours (32 presets each), 5 tracks, 5 scans
30. AI - Built-in Intelligent Functions:
    • Perimeter Protection: Area intrusion, line crossing, rapid movement, crowd detection, parking detection
    • Object Recognition: Person/mechanical vehicle recognition for area intrusion, line crossing (false alarm reduction)
    • Face Detection: Face detection and tracking, recognition of facial attributes and expressions
    • SMD: Smart Motion Detection
31. Accessories included: Wall mount

The BCS-L-SIP2225SR10-Ai2 camera is an advanced PTZ camera with high sensitivity, wide zoom range and advanced AI smart features, ideal for applications requiring precise long-distance surveillance.
