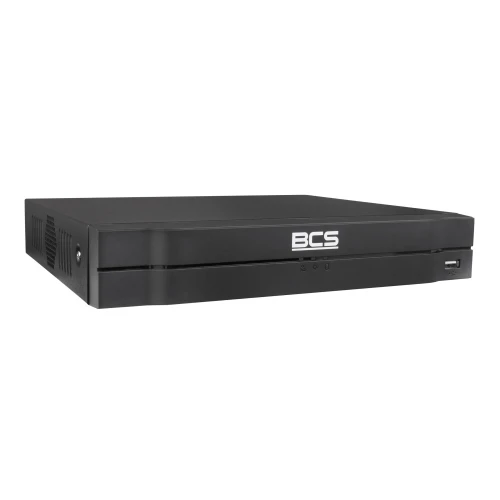

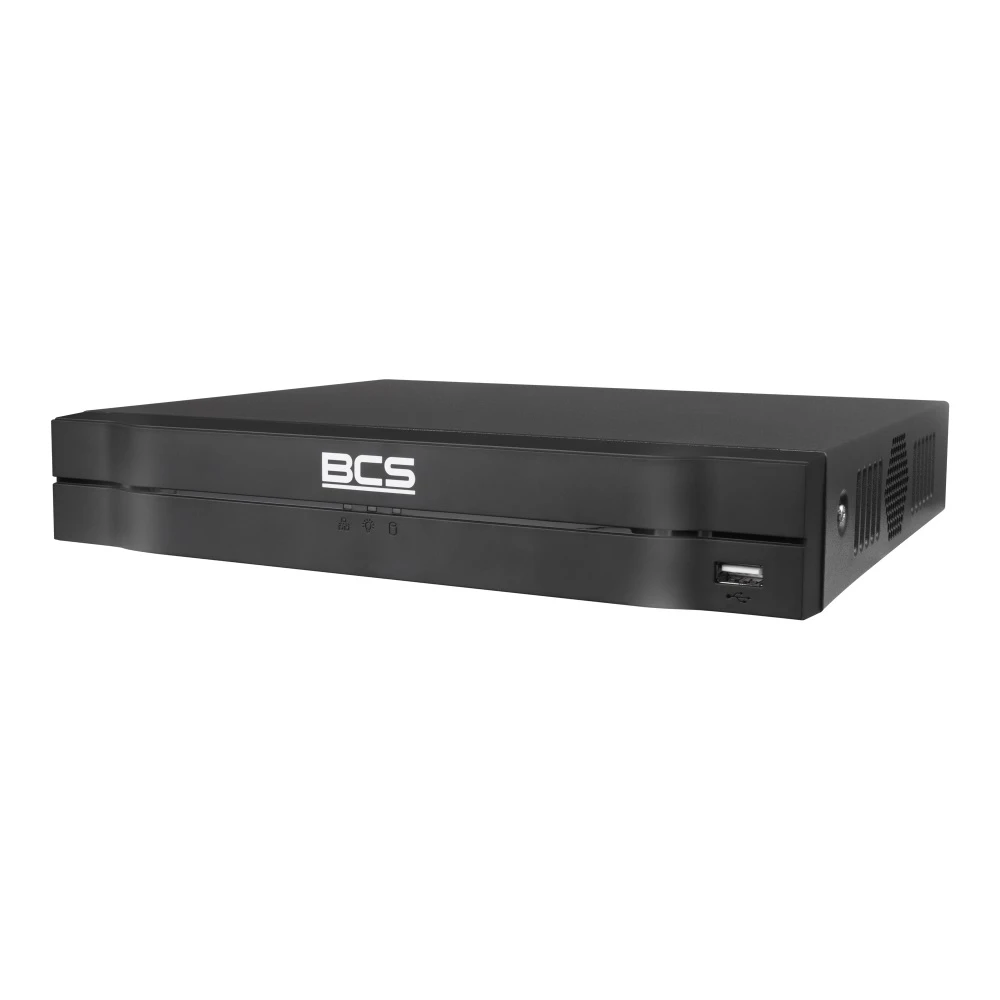

16-channel recorder BCS-L-XVR1601-4KE(5), single-disk, 5-system HDCVI/AHD/TVI/ANALOG/IP
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-XVR1601-4KE(5)
-
Warranty
36 miesięcy
- Technology: AHD/HD-CVI/HD-TVI/IP
- Number of channels: 16
- Built-in POE switch: No
Ask about this product show form
Product Description
Here are the main features of the BCS-L-XVR1601-4KE(5):
- Product line: BCS Line
- Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG / IP
- System: Analog HD + IP
- Pentaplex function: live viewing, recording, playback, archiving, remote access
- Channels: 16+16 (16 analog + 16 IP)
- Disks: 1 (maximum capacity 16 TB)
- Maximum recording resolution: 8 Mpx
- Input/output/recording bandwidth: 128 Mbps
- Supported HD-CVI cameras: 4K@25/30fps, 6MP@20fps, 5MP@20fps, 5MP@25fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps, 720p@50/60fps
- Supported AHD cameras: 4K@15fps, 5MP@20fps, 4MP@25/30fps, 3MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
- Supported HD-TVI cameras: 4K@15fps, 5MP@20fps, 4MP@25/30fps, 3MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
- Analog cameras supported: CVBS PAL/NTSC
- IP cameras: Support up to 8 Mpx (16 channels)
- Recording resolutions: 8M, 6M, 5M, 4K Lite, 4M, 3M, 4M Lite, 1080P, 720P, 960H, D1, CIF
- Main stream: 8M (7fps), 6M (10fps), 5M (12fps), 4K Lite/4M/3M (15fps), 4M Lite/1080P/720P/960H/D1/CIF (25/30fps)
- Second stream: 960H (15fps), D1/CIF (25/30fps)
- Bitrate: 32 Kbps ~ 6144 Kbps
- Video compression: H.265+, H.265, H.264+, H.264, Ai coding
- HDMI outputs: HDMI 4K
- VGA output: VGA
- HDMI display resolution: 3840×2160, 1920×1080, 1280×1024, 1280×720
- VGA display resolution: 1920×1080, 1280×1024, 1280×720
- Output split: 1/4/8/9/16 (1/4/8/9/16/25/36 IP)
- Playback: 1/4/9/16
- Archiving: Capable of ripping footage to external media such as USB FLASH, USB HDD
- Users: 128
- Interfaces:
- 1×USB2.0
- 1×USB3.0
- Serial port: RS485
- Audio input/output: 1 input, 1 output
- Audio compression: G.711A, G.711U, PCM
- Motion detection: Zones: 396 (22×18)
- Privacy masks: 4
- Network: RJ-45 (10/100/1000 Mbps)
- Compatibility: ONVIF
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
- Power supply: 12V DC
- Power consumption (without drives): Max 15 W.
- Operating conditions: -10°C ~ +55°C, max 90% RH
- Enclosure: 1U
- Dimensions: 325×256×55 mm
- Weight (without drives): 1.3 kg
- POE: Yes
- Ai - Built-in intelligent functions: Yes
- Ai - Smart functions from DVR:
- Perimeter protection (person/vehicle recognition)
- Intelligent motion detection (person/vehicle recognition)
- Face detection and identification
- Ai - Perimeter protection: 8 HD analog channels
- Ai - Face detection: 2 channels analog HD, face attributes (gender, age, glasses, facial expression, mask, facial hair), max 12 images per second
- Ai - Face identification: 2 channels analog HD, max 8 images per second, up to 10 face databases, 20,000 images
- Ai - SMD: 16 channels of analog HD
