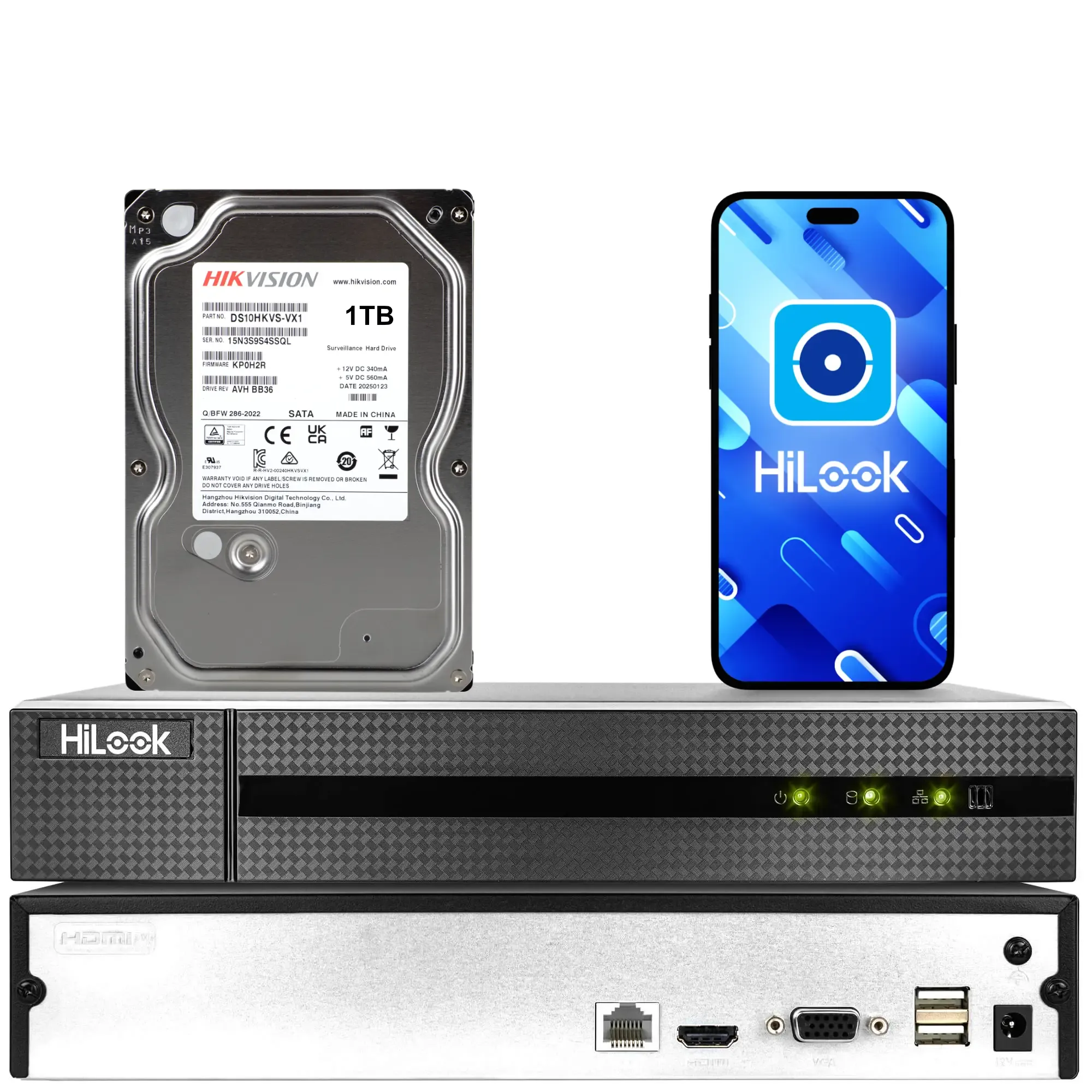

HiLook by Hikvision IP Recorder NVR-4CH-5MP with 1TB Drive

Product content:

In addition to the NVR-4CH-5MP DVR, the box includes useful instructions and mounting accessories to speed up the entire process of mounting the DVR.

The box includes:

• 1x DVR - NVR-4CH-5MP HiLook by Hikvision with built-in 1TB disk.
• Documentation - user manual, warranty card, regulations
• 1x Power supply
• 1x Mouse
• Screws for mounting the hard drive

HiLook Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Main features NVR-4CH-5MP:

• Up to 4 IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1 channel @8 MP/3 channels @4 MP/6 channels @1080p decoding capability
• Incoming bandwidth up to 40 Mbps
• Built-in 1TB drive

Professional and Reliable

• H.265+ compression effectively reduces storage space by up to 75%

HD Video Output

• Simultaneous HDMI and VGA outputs
• HDMI video output with up to 4K resolution

Storage and Playback

• 1 SATA interface for hard drive connection (up to 8TB capacity per hard drive)
• Intelligent search/intelligent playback for improved playback efficiency

Intelligent Features

• Motion detection 2.0 on 1 channel
• Support for multiple VCA (Video Content Analytics) events
• Configurable special smart camera functions such as VCA detection (motion, line crossing, intrusion, etc.)

Network and Ethernet access

• 1 10/100 Mbps self-adjusting Ethernet interface
• HiLookVision for easy network management

Built-in 1TB drive

The DVR is equipped with a built-in 1TB hard drive, eliminating the need to purchase additional storage media. This enables long-term video recording without interruptions or the need for frequent archiving. The built-in disk ensures stable operation, faster access to recordings and greater security of stored files. Ideal for continuous and reliable monitoring.

P2P function

In NVR-4CH-5MP is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern DVRs such as NVR-4CH-5MP/4P. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ encoding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Remote access from your phone and desktop computer Hikvision systems allow you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back the recorded footage Save fragments of the video to your smartphone memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees Hik-Connect - Free app for iOS and Android smartphones iVMS-4200 - Free desktop app

Compatibility with NAS servers

The NVR-4CH-5MP's NAS (Network Attached Storage) server recording allows you to centralize video data storage in one place, making it easier to manage and access recordings from multiple cameras. In addition, the use of NAS servers can enhance data security through redundancy and the ability to use advanced protection and backup mechanisms, minimizing the risk of losing important recordings.

Technical specifications:

Motion Detection 2.0
People/Vehicle Analysis	1-channel
Video and Audio
IP Video Input	4-channels
Input bandwidth	40 Mbps
Outgoing bandwidth	80 Mbps
HDMI Output	1-channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output	1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI/VGA simultaneous output
Audio Output	1-channel, RCA (Linear, 1 KΩ)
Two-way Audio	1-channel, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	4-channel
Decoding capability	1-channel@8 MP (30 fps)/3-channel@4 MP (30 fps)/6-channel@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection	32
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
PoE	-
Interface	-
Power	-
Standard	-
Auxiliary Interface	-
SATA interface	1 SATA interface
Capacity	Maximum 8 TB capacity per drive
USB interface	2 × USB 2.0
Alarm input/output	N/A
General
Power supply	48 VDC, 1.35 A
Consumption	≤ 10 W (without HDD and PoE)
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity	10% to 90%
Dimensions (S × G × W)	265 × 225 × 48 mm
Weight	≤ 1 kg (without HDD, 2.2 lb.)
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
