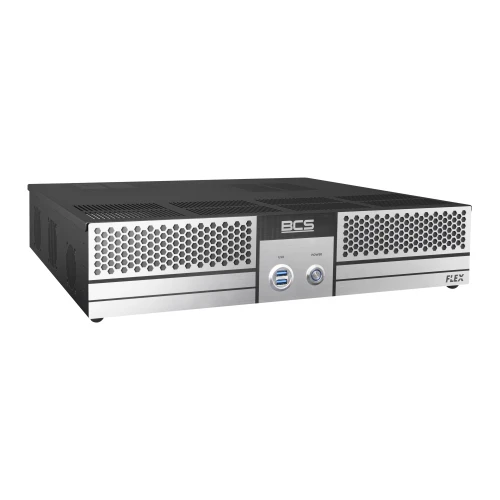

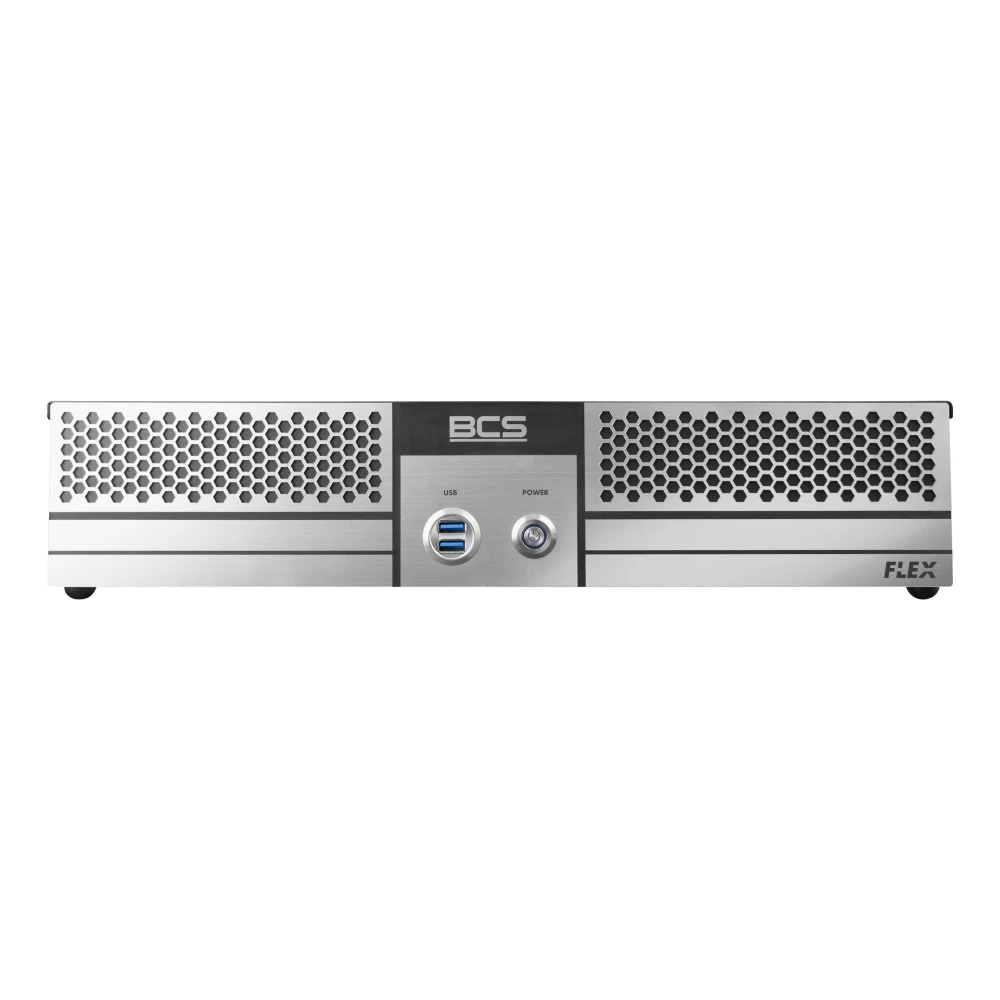

70-Channel IP Recorder BCS-F-NVR7004, Motion Detection, IVS, 24TB, PENTAPLEX
Photo gallery
-
Manufacturer
-
Product Code
BCS-F-NVR7004
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 70
- Built-in POE switch: No
Ask about this product show form
Product Description
Here are the main features of the BCS-F-NVR7004 device:
- Product line: BCS FLEX
- Compliance with NDAA: National Defense Authorization Act
- System: IP
- Application: IP DVR with Intel Core i7 processor and Linux operating system
- Pentaplex function: Live viewing, recording, playback, archiving, remote access
- Channels: 70
- Disks: 4 (maximum capacity 24 TB)
- RAID type: 0/1/5/10
- Recording mode: Continuous, schedule
- Input bandwidth: 2.5 Gbps
- Output bandwidth: 2.5 Gbps
- Video compression: H.265, H.264
- Outputs:
- HDMI: 4K (3840×2160)
- VGA: 1920×1080
- DisplayPort: 4K
- Output split: 1/4/8/9/16/25/36/64
- Playback: 1/4/8/16/32/64/70
- Archiving: Possibility of ripping footage to external media such as USB FLASH, USB HDD
- Interfaces:
- 5×USB 2.0
- 3×USB 3.0
- Audio input/output: 1 input, 1 output
- Audio compression: Realtek® Audio CODEC, High Definition Audio, support 2/4/5.1/7.1 channels
- Alarm: Motion detection, IVS (Intelligent Video Surveillance)
- Support: Local CMS BCS Manager
- Network: 1×RJ-45 10/100/1000/2500 Mbps (optional two network cards)
- Compatibility: ONVIF, support for third-party cameras
- Power supply: 240V AC
- Power consumption (without drives): Max 500W
- Housing: 2U
- Dimensions: 440×385×100 mm
