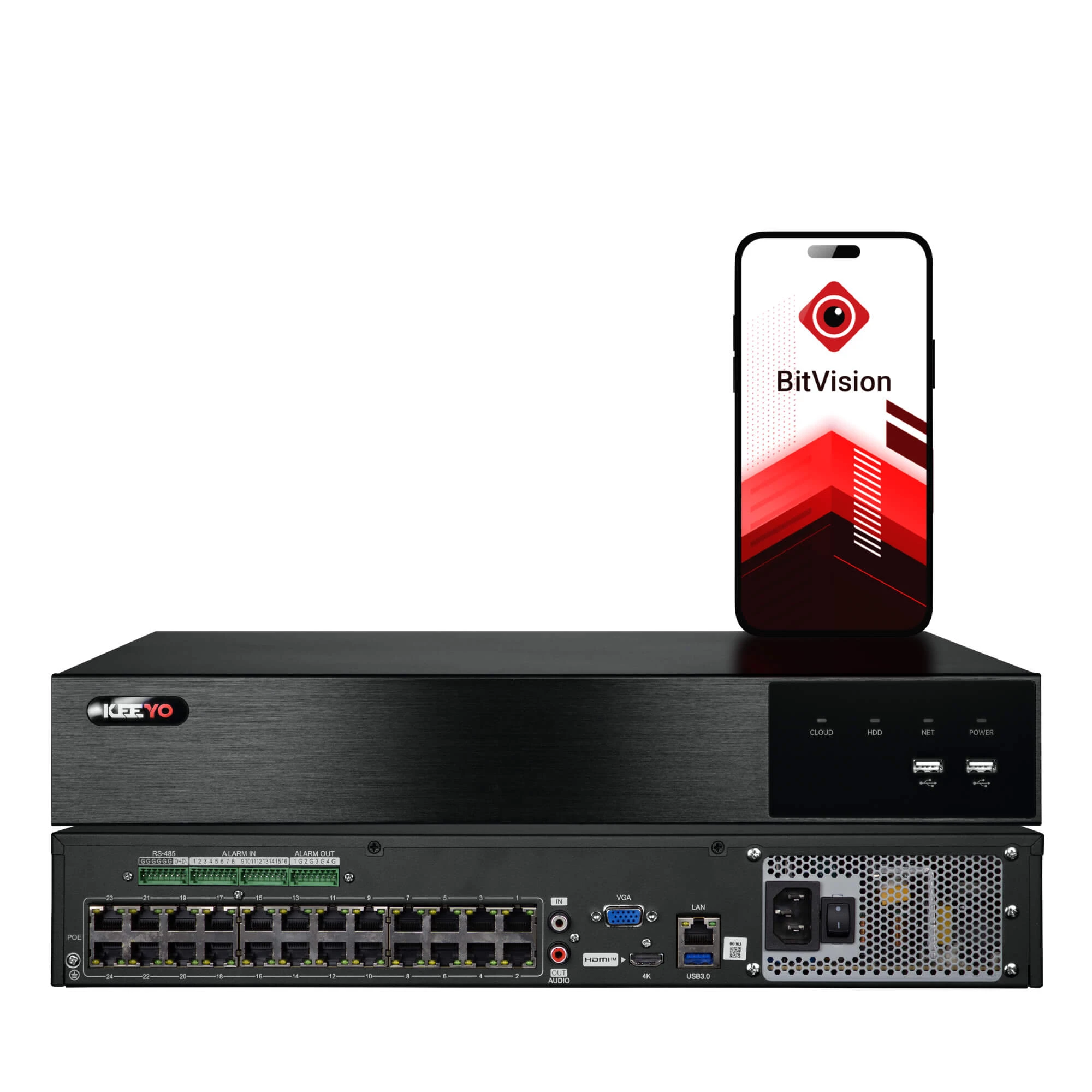

KEEYO LV-V-NVR-32CH-24P-K4 PoE Network Recorder 32 Channel 24x PoE 4x SATA
Photo gallery
-
Manufacturer
-
Product Code
LV-V-NVR-32CH-24P-K4
-
Warranty
24 miesiące
- Technology: IP
- Number of channels: 32
- Built-in POE switch: Yes
Ask about this product show form
Product Description
Package contents:
- 1x LV-V-NVR-32CH-24P-K4 DVR.
- 1x User manual
- 1x Wired mouse
- 1x Power adapter
Main features of LV-V-NVR-32CH-24P-K4 DVR:
- Support for IP cameras from other manufacturers
- Up to 32 IP cameras can be connected
- H.265+ video compression
- Live viewing, recording and playback of footage from cameras up to 12 Mpx
- 4x SATA interface for recording and backup
- 24-port PoE switch
- 1 10/100/1000Mbps network card with automatic speed selection
- Simultaneous HDMI/VGA output
- In-app support via mobile devices with systems: Android, iOS
- Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
- Modern casing
- Built-in web server, support via CMS or mobile client
- ONVIF support
Remote access from desktops and smartphones
Bitvision is a simple and fast way to operate your property monitoring system, thanks to it you will be able to:
✅Access video previews and playback stored footage
✅Save snippets of video to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
Power Over Ethernet (PoE)
PoE is a technology that allows both data and power to be transmitted over a single Ethernet cable. It is widely used in various network devices, including surveillance DVRs such as the KEEYO LV-V-NVR-32CH-24P-K4 (NVR - Network Video Recorder) and IP cameras. Power over Ethernet is an effective solution for surveillance systems that simplifies installation, management and increases the flexibility of security systems. With PoE, it is possible to create more advanced and reliable surveillance systems while reducing installation and maintenance costs.
Support for popular browsers
KEEYO LV-V-NVR-32CH-24P-K4 DVR supports popular web browsers such as Chrome, Mozilla Firefox and Safari. This allows users to enjoy convenient and hassle-free access to the surveillance system from different platforms and devices, providing full flexibility and convenience.
H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.
Technical specifications:
| Model | LV-V-NVR-32CH-24P-K4 |
|---|---|
| System | |
| Main processor | Cortex A53 quad-core |
| Operating System | Embedded LINUX |
| Video | |
| Input | 32 kanały (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF) |
| Output | 1×HD, 1×VGA |
| Audio | |
| Input | 1 RCA port, support for 32-channel IPC audio input |
| Output | 1 RCA port (line-level, 1kΩ), HD output |
| Audio bit rate | 64kbps |
| Audio compression standard | G711U, G711A, AAC |
| Intercom | Yes (two-way) |
| Alarm | |
| Sensor input | 16 channels |
| Output | 4 channels |
| Motion detection | 32 channels, MD zones: 396 (22 × 18) |
| Trigger events | Recording, email, FTP, screenshot, buzzer and screen tips, alarm output |
| Display | |
| HD output 1 | 4K (3840×2160) / 2K (2560×1440) / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| HD 2 output | None |
| VGA | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Screen splitting | 36CH/25CH/17CH/16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH |
| Digital zoom | Yes |
| OSD | Camera title, time, recording, motion detection, event alert |
| Recording | |
| Video compression | H265 / H264 / H265+ / H264+ |
| Resolution | 12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2688×1520/2560×1440), 3MP (2048×1536), 1080P (1920×1080), 1280×1024, 960P (1280×960), 720P (1280×720), 960H (960×480), D1 (720×576/720×480) |
| Recording speed | PAL: 12MP@32CH×25fps, 8MP@32CH×25fps, 5MP@32CH×25fps, 4MP@32CH×25fps, 3MP@32CH×25fps, 1080P@32CH×25fps, 960P@32CH×25fps, 720P@32CH×25fps, D1@32CH×25fps NTSC: 12MP@32CH×30fps, 8MP@32CH×30fps, 5MP@32CH×30fps, 4MP@32CH×30fps, 3MP@32CH×30fps, 1080P@32CH×30fps, 960P@32CH×30fps, 720P@32CH×30fps, D1@32CH×30fps |
| Recording modes | Manual / Schedule / Motion detection / Alarm / Intelligent events |
| Playback and Backup | |
| Local playback synchronization | 2CH 12MP@30fps, 4CH 8MP@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps, 16CH D1@30fps |
| Decoding capability | 1080P (1920×1080) @ 480fps |
| Remote playback synchronization | Yes |
| Search mode | All, by time, motion detection, alarm, tags, smart events, images, logs |
| Playback functions | Playback, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
| Backup modes | USB device / Network |
| Network | |
| Interface | 2×RJ45 10M/100/1000M Adaptive Ethernet interface. |
| Incoming bandwidth | 320Mbps |
| Outgoing throughput | 160Mbps |
| Network functions | IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE |
| Onvif | S profile, T profile |
| Web browsers | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS software | Supports Windows 7 / Windows 8 / Windows 10 / Windows 11 / Mac OS |
| Cloud support | Yes |
| Smartphone | iPhone, Android |
| POE | Interfaces: 24× independent 100Mbps POE network interfaces (AF mode output power 15W per port) Line layout: 45/78 Total output power: ≤200W Plug and Play support: Yes Network cable extension mode: Max 200M |
| Wi-Fi | None |
| Data storage | |
| Interface type | 4 SATA (3.5" SATA) hard drive interfaces |
| Capacity | Up to 10 TB for each HDD |
| eSATA | None |
| General | |
| Language | Polish |
| USB interface | Front panel: 2× USB 2.0 Rear panel: 1× USB 3.0 |
| RS485 | 1 port |
| Power consumption | 100-240VAC, 50/60Hz, ≤20W (excluding hard disk and POE) |
| Operating environment | -10℃～50℃, humidity 10%～90%. |
| Product dimensions (S×G×W) | 440mm × 372mm × 69mm |
| Net weight | 4.38kg (without HDD) |
| Gross weight | 5.68kg (without HDD) |
