4x IPC-HFW1439TL1-A-IL-0280B Monitoring Kit, 4MP WDR 2.8 mm Dahua
Photo gallery
-
Manufacturer
-
Product Code
ZM34162
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 4Mpx
- Enclosure: Tube
- Night visibility: up to 30m
- Number of cameras: 4
- Color: White
Ask about this product show form
Related products
Product Description

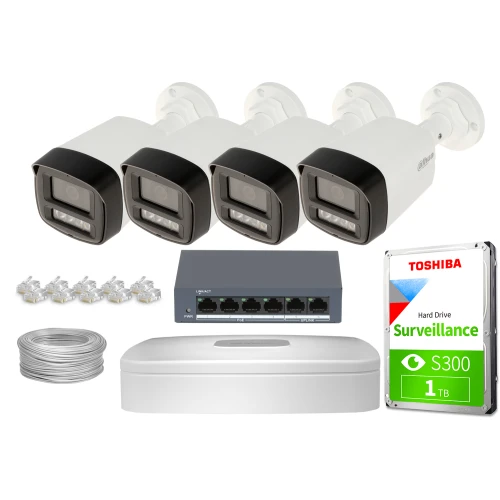

The kit includes:
- 4x Camera IPC-HFW1439TL1-A-IL-0280B
- 1x NVR2104-4KS3 DVR
- 1x 4 port PoE switch
- 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
- UTP cat.5e cable ( 20m )
- Set of RJ45 plugs
- Sticker "ATTENTION MONITORED OBJECT".
Main features:
- 4 Mpx (2560 x 1440) matrix and lower resolutions (from 3 Mpx to 720p)
- 1/2.9" Progressive Scan CMOS sensor
- 2.8mm lens
- Viewing angle: 94°
- Range of IR illuminator and LED white light: up to 30m
- Built-in microphone
- Audio detection and AAC compliance
- Support for ONVIF and access from mobile devices (DMSS app)
- Video compression methods: H.265+, H.265, H.264+, H.264, MJPEG
- WDR - 120 dB (wide dynamic range)
- 3D-DNR (digital noise reduction)
- ROI (enhancement of selected parts of the image)
- BLC/HLC (backlight/strength compensation)
- Intelligent image analysis: human detection
- Image rotation, mirroring and configurable privacy zones (max. 4)
Key features:
- WDR 120db Wide Dynamic Range, a camera function that makes it possible to record a wide range of light intensity. The use of an appropriate sensor in the camera increases the effectiveness of observation of overexposed and underexposed objects - dark elements are simultaneously brightened and overly bright ones darkened.
- BLC Black Light Compensation - backlight compensation, a camera function that allows to obtain properly exposed (not overexposed and not underexposed) part of the image through exposure compensation.
- HLC High Light Compensation - strong light compensation, a function that allows you to block (darken) strongly lit objects to increase their clarity.
- DNR 2D/3D Digital Noise Reduction - digital noise reduction, an algorithm to remove noise from the image at high signal gain values.
- Privacy Mask - a technology that allows masking of designated zones to preserve the privacy of bystanders, e.g.: windows, backyard, neighbor's door. Such a system guarantees 100% privacy and allows the camera to be used virtually anywhere.
High-quality imageThe light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HFW1439TL1-A-IL-0280B records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
|  |

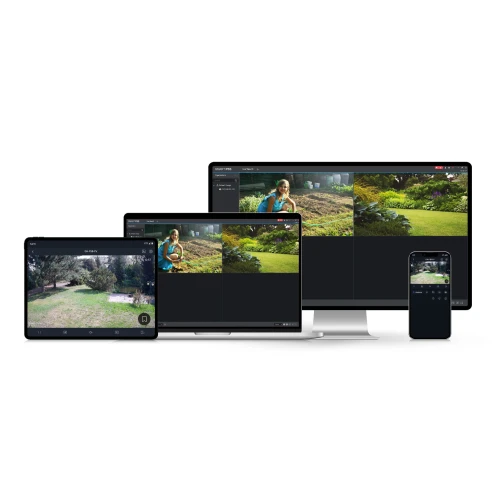

Remote access from your phone and desktop computerDahua systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:
| |
Automatic day/night modeThe camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down. The infrared range is 30 meters. |  |
Built-in microphone - a more complete picture of the situation
The IPC-HFW1439TL1-A-IL-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places requiring detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.
Hide what shouldn't be seen
Privacy masks are a feature that allows you to tailor the operation of your surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.
Reduce unnecessary noise
Main advantages:
- Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
- Better compression and smaller file size: Video noise can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
- Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
- Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.
Wide dynamic range - That is, high quality in difficult conditions
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HFW1439TL1-A-IL-0280B to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera software then combines these images to produce a single, well-balanced frame in which all the details are visible.
- Better image quality: With crisp detail in both dark and bright parts of the image, 120 dB WDR technology eliminates the problem of so-called "burn-in" and "underexposure."
- Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
- Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
Efficient storage
H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:
- Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
- Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
Main features of the camera:
- 4 Mpx (2560 x 1440) matrix and lower resolutions (from 3 Mpx to 720p)
- 1/2.9" Progressive Scan CMOS sensor
- 2.8mm lens
- Viewing angle: 94°
- Range of IR illuminator and LED white light: up to 30m
- Built-in microphone
- Audio detection and AAC compliance
- Support for ONVIF and access from mobile devices (DMSS app)
- Video compression methods: H.265+, H.265, H.264+, H.264, MJPEG
- WDR - 120 dB (wide dynamic range)
- 3D-DNR (digital noise reduction)
- ROI (enhancement of selected parts of the image)
- BLC/HLC (backlight/strength compensation)
- Intelligent image analysis: human detection
- Image rotation, mirroring and configurable privacy zones (max. 4)
Main features of the DVR:
- Video inputs: 4 IP channels
- Video outputs: 1x VGA, 1x HDMI (4K UHD)
- Maximum recording resolution: 12 Mpx / 8 Mpx (with AI features)
- Maximum bitrate: 80 Mbps (input), 80 Mbps (recording), 60 Mbps (output)
- Compression formats: H.265+, H.265, H.264+, H.264, MJPEG
- Audio input/output: 1x RCA (input), 1x RCA (output)
- Network interface: Ethernet RJ45 10/100 Mbps
- Disk support: 1x SATA HDD (up to 20 TB)
- AI functions: object classification (human/vehicle) on 4 channels
- SMD+: classification with false alarm filtering
- Audio recording: from up to 4 IP cameras
- Window splitting in local mode: 1 or 4
- Arming and disarming: one click
- Supported protocols: ONVIF, CGI, SDK, P2P
The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.
Main features of the Toshiba S300:
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
Accessories included:
IPC-HFW1439TL1-A-IL-0280B Technical Specifications.
| Camera | IPC-HFW1439TL1-A-IL-0280B |
|---|---|
| Standard: | TCP/IP |
| Sensor: | 1/1.8 " Progressive Scan CMOS |
| Matrix size: | 8.3 Mpx |
| Resolutions: | 3840 x 2160 - 8.3 Mpx, 4K UHD , 3072 x 2048 - 6 Mpx , 3072 x 1728 - 5 Mpx , 2592 x 1944 - 5 Mpx , 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2048 x 1536 - 3 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Lens: | 2.8 mm |
| Viewing angle: |
|
| IR illuminator range: | 30 m |
| RS-485 interface: | No |
| Memory card slot: | Supports Micro SD cards up to 256GB (local recording possible) |
| Video compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: | 1 / 1 |
| Audio: |
|
| Main stream bit rate: | 25 fps @ 8.3 Mpx |
| Network interface: | 10/100 Base-T(RJ-45) |
| Network protocols: | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| WEB Server: | Built-in |
| Max. number of online users: | 20 |
| ONVIF: | 22.06 |
| Cell phone access: | Port: 37777 or access via cloud (P2P) |
| Default admin login / password: | admin / - Administrator password should be set on first startup |
| Default IP address: | 192.168.1.108 |
| Web access ports: | 80, 37777 |
| Access ports via PC application: | 37777 |
| Access ports via mobile app: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Selected features: |
|
| Housing: | Dome, Metal |
| Color: | White |
| Protection class: | IP67 |
| Vandal resistant: | IK10 |
| Power supply: |
|
| Power consumption: |
|
| Operating temperature : | 40 °C ... 60 °C |
| Weight: | 0.53 kg |
| Dimensions: | Ø 112 x 89 mm |
| Supported languages: | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian. |
| Manufacturer/Brand: | Dahua |

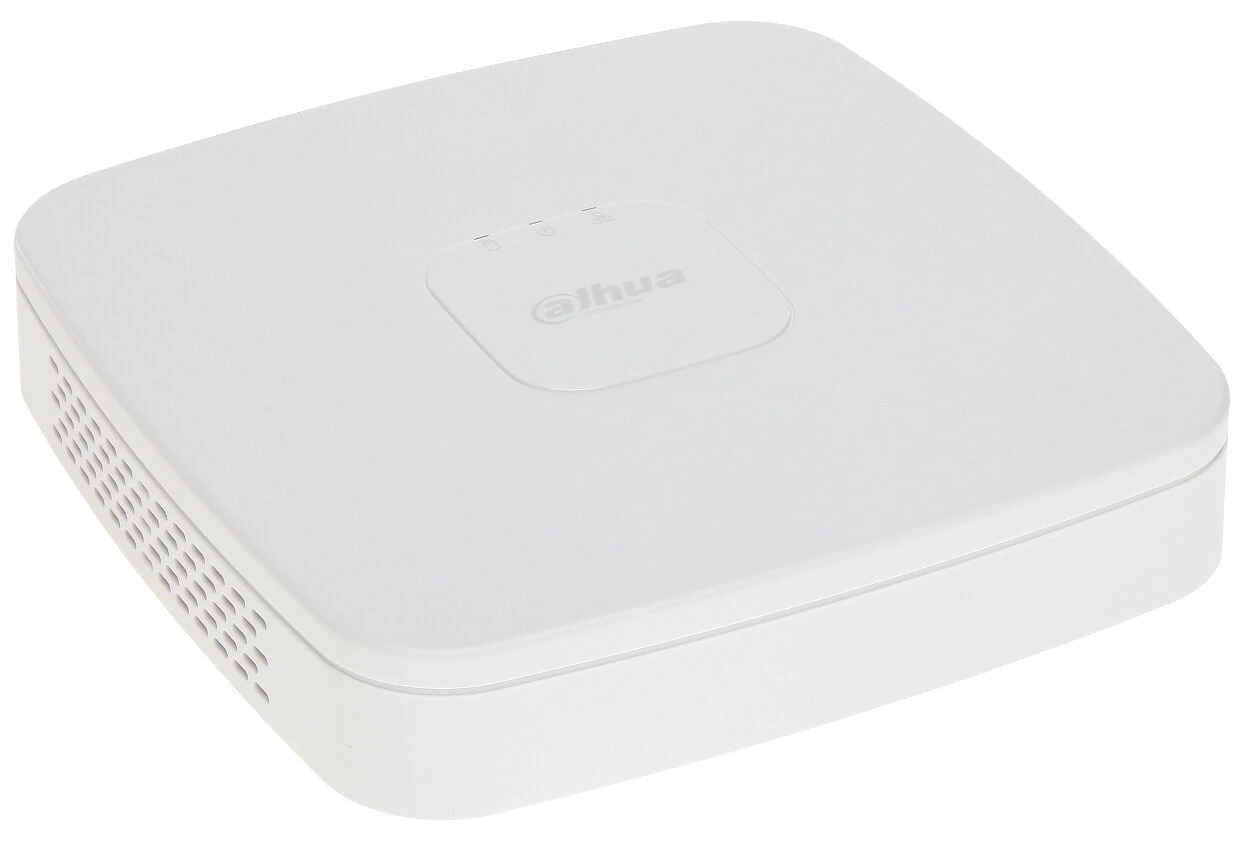

Technical specifications NVR2104-4KS3
| Recorder | NVR2104-4KS3 |
|---|---|
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px |
| Video outputs: | 1 pcs. HDMI 4K 1 pcs. VGA |
| Audio support: |
|
| Audio inputs: | 1 pc. CINCH |
| Audio outputs: | 1 pcs. CINCH |
| Video compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG |
| Bitrate: | max. 80 Mbps |
| Supported hard drives: | 1 x 20 TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Archiving to external media: | Archiving to USB drive (flash drive, external drive) |
| Search and playback of recordings: |
|
| Network interface: | 1 x RJ-45 10/100 Base-TX |
| Network features: | Full network support, Remote copy of recordings, Built-in web server |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Register |
| ONVIF: | 22.12 |
| Default IP address: | 192.168.1.108 |
| Default admin login / password: | admin / - Administrator password should be set on first startup |
| Access from cell phone: | Port: 37777 or access via cloud (P2P) |
| Web access ports: | 80, 37777 |
| Access ports via PC application: | 37777 |
| Access ports via mobile app: | 37777 |
| RTSP URL: |
|
| USB: | 2 pcs. USB 2.0 |
| Serial ports: | No |
| Alarm inputs/outputs: | No |
| PTZ control: | IP Speed Dome cameras. |
| Motion detection: | Yes |
| Intelligent Image Analysis: | Yes |
| Selected features: |
|
| |
| Mouse operation: | Yes |
| IR remote control included: | No |
| PoE switch: | No |
| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Power consumption: | max. 10 W (without HDD) |
| Operating temperature: | -10 °C ... 55 °C |
| Weight: | 0.41 kg |
| Dimensions: | 206 x 205 x 46 mm |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | Dahua |
