KEEYO Monitoring Kit 8x LV-E-AL5M25DF-G 5MP IR 25m
Photo gallery
-
Manufacturer
-
Product Code
ZM34633
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 5Mpx
- Enclosure: Dome
- Number of cameras: 8
- Connectivity: Wired
- Color: Black
Ask about this product show form
Related products
Product Description
IS THIS SURVEILLANCE SET SUITABLE FOR YOU?
The offered set consists of very versatile devices, the resolution of digital cameras is 5Mpx which allows you to capture images with a lot of detail.
For example, these cameras can be used for monitoring:
- Corridors / rooms
- Backyard
- Garage / driveway
- Parking lot
- Store
In addition, the kit can be installed by anyone, no special skills are needed, and the kit comes with step-by-step instructions on how to do the assembly and installation.

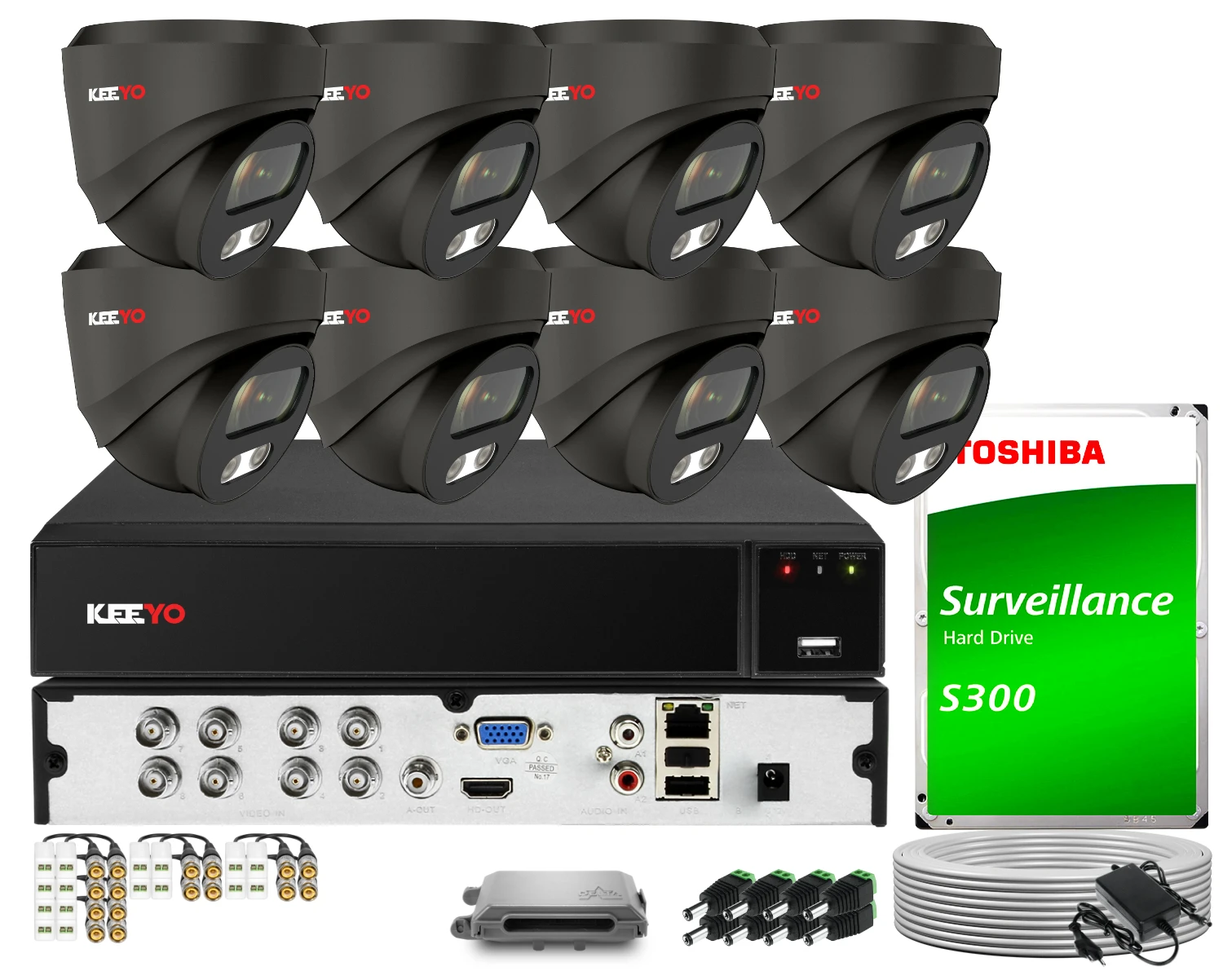

KIT CONTENTS:
- KEEYO LV-E-AL5M25DF-G 5Mpx camera (8pcs).
- KEEYO LV-E-XVR-8CH DVR (1pc).
- TOSHIBA S300 surveillance hard drive ( 1pc ).
- UTP cable (40m.).
- Set of converters ( 8pcs ) and DC plugs ( 8pcs ).
- Power splitter ( 1pcs. )
- Power supply for cameras ( 1pcs. )
- Sticker "ATTENTION MONITORED OBJECT" (1pcs.)
ADVANTAGE OF AHD MONITORING OVER IP
AHD technology has been on the market for many years. It has been developed and improved to its limits. This means, first of all, an attractive price-quality ratio.Another advantage is that there is no burden on the local network on your property. In the case of IP cameras, each additional camera has to be treated as a kind of computer, which puts additional load on the network and slows it down. If you don't have adequate network cabling and high-bandwidth routers, AHD surveillance may be just for you.
RECORD VIDEO FOR UP TO 14 DAYS
Toshiba's drives are specially designed surveillance system devices, withstanding continuous 24-hour operation that ordinary PC drives would not withstand. In addition, the 1TB drive is enough for two weeks of recording, after which time old recordings will begin to overwrite with new ones.
REMOTE ACCESS - Bitvision
Bitvision is a mobile application for smartphones and tablets that allows you to access video viewing from anywhere on earth with internet access, notification when an event is detected and, in addition, it does not require an external IP address. The app is in Polish and available for free for Android and iOS devices.
WEATHERPROOF
The cameras are IP67-certified, which means they have been adequately protected against moisture and harsh weather conditions.
In turn, they are equally suitable for indoor and outdoor installation.
BASIC MOTION DETECTION
The recorder has motion detection functions in the image, such a solution informs about any object moving in the frame. In addition, you can adjust the sensitivity of detection and the area in the image to cancel unwanted alerts caused by the movement of plants or smaller animals.
PROPER INSTALLATION OF THE SURVEILLANCE CAMERA
The suggested mounting surface for horn cameras is vertical surfaces (e.g. walls), in order to properly mount the camera it is necessary to position its frame so that the elevation on which it is mounted is not in the field of view. This will fully exploit the potential of the camera's infrared light and obtain the best possible image at night.
The suggested mounting height for horn cameras is from 2.5m to 3.5m.
LV-E-XVR-8CH specifications:
- Video Inputs: 8 x BNC
- Video Outputs: 1 x HDMI, 1 x VGA
- Audio inputs/outputs: yes
- Video compression: H.265+
- Resolution max. up to 5Mpx
- OSD menu in Polish language
- Network interface: 1 x Ethernet 10/100 Base-T (RJ-45)
- Hard drive: 1TB
- 2 USB 2.0 inputs
- Video preview:
- Mobile devices with systems: Android, iOS
- Modern housing
- Built-in web server, operation via CMS or mobile client
LV-E-AL5M25DF-G specification:
- High resolution 5Mpx video recording
- Infrared range of up to 25m
- Enhanced dynamic range with DWDR technology
- Robust metal housing with IP67 certification
DETAILED TECHNICAL SPECIFICATIONS
Recorder:
| Main processor | MC6650 |
| Operating system | Embedded LINUX |
| Video | |
| Input | |
| Normal mode: | |
| Default: 8*(AHD/TVI/CVI:8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+4*IPC (Max 8MP) | |
| Analog+Network: 6*Analog(8MP)+8*network(Max 8MP),4*Analog(8MP)+10*network(Max 8MP),2*Analog(8MP)+12*IPC(Max 8MP) | |
| Lite Mode: | |
| Default: 8*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+4*IPC(Max 8MP) | |
| Analog+Network: 6*Analog(5M@12fps)+8*IPC(Max 8MP),4*Analog(5M@12fps)+10*IPC(Max 8MP),2*Analog(5M@12fps)+12*IPC(Max 8MP) | |
| Analog+Network: 2Analog(TVI/AHD/CVI: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7network(MAX 5MP) | |
| Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P(Maximum bandwidth ≤80M) | |
| Input | 8CH BNC |
| Signal type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network. |
| Output | 1 HD, 1 VGA, 1 CVBS |
| Audio | |
| Input | 6 channels, RCA, AOC support |
| Two-way audio | NO |
| Output | 1 channel, RCA |
| Alarm | |
| Input | 4 CH |
| Output | 1 CH |
| Motion detection | 12 channels (max. 16 channels in pure network mode) |
| Trigger events | Recording, email, on-screen guidance, beep, push notifications (motion detection) |
| Email alert | Sending video to selected email address |
| AI function | People detection |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Transmission speed | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA | Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz |
| HD Output | Resolution: 3840 × 2160P/60Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz |
| Screen splitting | 16 channels/9 channels/4 channels/1 channel |
| Privacy masking | 3 rectangular zones (for each camera) |
| OSD | Camera name, time, video loss, alarm, motion detection, recording |
| Recording | |
| Video compression | H.265/H.265+/H.264/H.264+ |
| Audio compression | G.711U/G.711A |
| Resolution | "5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),3MP_Lite(1024× 1536),1080P(1920×1080),720P(1280×720),960H(960×480)" |
| Video quality | Lowest/Lowest/Good/Good/Better/Best |
| Recording speed | |
| Normal mode: | |
| Analog: PAL: 8MP_LITE (1920×2160 88fps), 5MP (2560×1952 86fps), 5MP_LITE (1280×1952 810fps), 4MP (2560×1440 88fps), 4MP_LITE (1280×1440 815fps), 3MP (2048×1536 89fps), 3MP_Lite (1024×1536 818fps), 1080P (1920x1080 815fps), 720P (1280×720 825fps), 960H (960x480 825fps) | |
| NTSC: 8MP_LITE (1920×2160 88fps), 5MP (2560×1952 86fps), 5MP_LITE (1280×1952 810fps), 4MP (2560×1440 88fps), 4MP_LITE (1280×1440 815fps), 3MP (2048×1536 89fps), 3MP_Lite (1024×1536 818fps), 1080P (1920x1080 815fps), 720P (1280×720 830fps), 960H (960×480 830fps) | |
| Lite mode: | |
| PAL: 5MP_Lite (1280×1952 810fps), 4MP_Lite (1280×1440 815fps), 3MP_Lite (1024×1536 818fps), 1080N (960x1080 825fps), 720P (1280×720 825fps), 960H (960×480 825fps) | |
| NTSC: 5MP_Lite (1280×1952 810fps), 4MP_Lite (1280×1440 815fps), 3MP_Lite (1024×1536 818fps), 1080N (960x1080 825fps), 720P (1280×720 825fps), 960H (960×480 830fps) | |
| Pure IP(H.265) mode: | |
| PAL: 8MP@9x25fps, 5MP@12x25fps, 4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps | |
| NTSC: 8MP@9x30fps, 5MP@12x30fps, 4MP@16x30fps, 3MP@16x30fps, 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps | |
| Recording mode | Manual/Time/Motion Detection/Alarm Input/Intelligent |
| Playback and backup | |
| Decoding capability | 4 channels 1080P@30fps |
| Synchronous playback | |
| Normal mode: | Analog cameras only: 8 channels 5M@6fps, 8 channels 8M_Lite@8fps, 8 channels 4M@8fps, 8 channels 3M@9fps, 8 channels 1080P@15fps |
| Mixed mode: 4 channels 5M@6fps, 4 channels 4M@8fps, 4 channels 3M@9fps, 4 channels 1080P@15fps, 1 channel 8MP@30fps, 2 channels 5MP@30fps, 2 channels 4MP@30fps, 2 channels 3MP@30fps | |
| IP cameras only: 1 channel 4K@30fps, 2 channels 5MP@30fps, 3 channels 4MP@30fps, 4 channels 3M@30fps, 4 channels 1080P@30fps, 4 channels 960P@30fps, 4 channels 720P@30fps | |
| Lite mode: | |
| Analog cameras only: 8 channels 5M_Lite@8fps, 8 channels 1080N@25fps, 8 channels 720P@25fps, 8 channels 960H@25fps | |
| Mixed mode: 4 channels 5M@6fps, 4 channels 4M@8fps, 4 channels 3M@9fps, 4 channels 1080P@15fps, 1 channel 8MP@30fps, 2 channels 5MP@30fps, 2 channels 4MP@30fps, 2 channels 3MP@30fps | |
| Pure IP: 1 channel 4K@30fps, 2 channels 5MP@30fps, 3 channels 4MP@30fps, 4 channels 3M@30fps, 4 channels 1080P@30fps, 4 channels 960P@30fps, 4 channels 720P@30fps | |
| Remote playback | 4 channels/1 channel |
| Search mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback functions | Playback, pause, stop, forward, reverse, next file, previous file, fast playback, slow playback, zoom, selected area, full screen mode, scale mode |
| Backup | USB (USB flash drive, USB hard drive) |
| Network | |
| Network interface | RJ-45 (10/100M) |
| Network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (ONVIF 2.4 support, External IP Camera support) |
| Max. number of users | 128 |
| Mobile application | |
| Supported platforms | iPhone, iPad, Android |
| Supported functions | Preview, playback, alarm, management |
| Mobile protocol | Dahua, Hikvision, Dynacolor, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, etc. |
| Storage | |
| Internal hard drive | 1 SATA HDD (hard drive up to 10 TB) |
| Interface | 1x SATA |
| Hard disk control | SATA/POE hard drive |
| USB | 2 USB 2.0 ports |
| RS485 | 1 RS485 port |
| General | |
| Power supply | DC12V/2A |
| Power consumption | <10 W (without hard disk) |
| Operating temperature | -10°C ~ +55°C |
| Humidity | 10% ~ 90% RH |
| Dimensions (W x D x H). | 260 mm × 236 mm × 48 mm |
| Weight | 2kg (without HDD) |
Camera:
| Camera | |
| Image sensor | CMOS 1/3" |
| Image resolution | 5M:25921944 4M:25601440 2M:1920*1080 |
| TV system | PAL/NTSC |
| Electronic curtain | Auto |
| Minimum illumination | Color: 0.03 lux@F2.0, AGC ON; B/W: 0 lux with IR |
| Scanning system | Progressive Scan |
| Lens | |
| Focal length | 2.8 mm |
| Focus adjustment | Fixed |
| Type of lens | Fixed |
| Night vision | |
| Infrared filter | Yes |
| Infrared diode | 42µ x 2SZT |
| Infrared range | 25M |
| Infrared status | AGC Auto Control |
| Camera features | |
| Starlight | N/D |
| Day/Night | Yes |
| OSD menu | Yes |
| WDR | DWDR |
| UTC | Yes |
| Noise reduction | DNR |
| Coaxial audio | Yes (TVI only) |
| White balance | AUTO / MANUAL |
| Gain control | AUTO |
| General | |
| Housing | Metal, IP67 |
| Handle | NO |
| Operating temperature | -10℃ ~ +60℃ RH95% Max. |
| Storage temperature | -20℃ ~ +60℃ RH95% Max |
| Power source | DC12V±10%, 500mA |
| Dimensions | ￠96 x 91 (H) mm |
| Weight | 600g |
