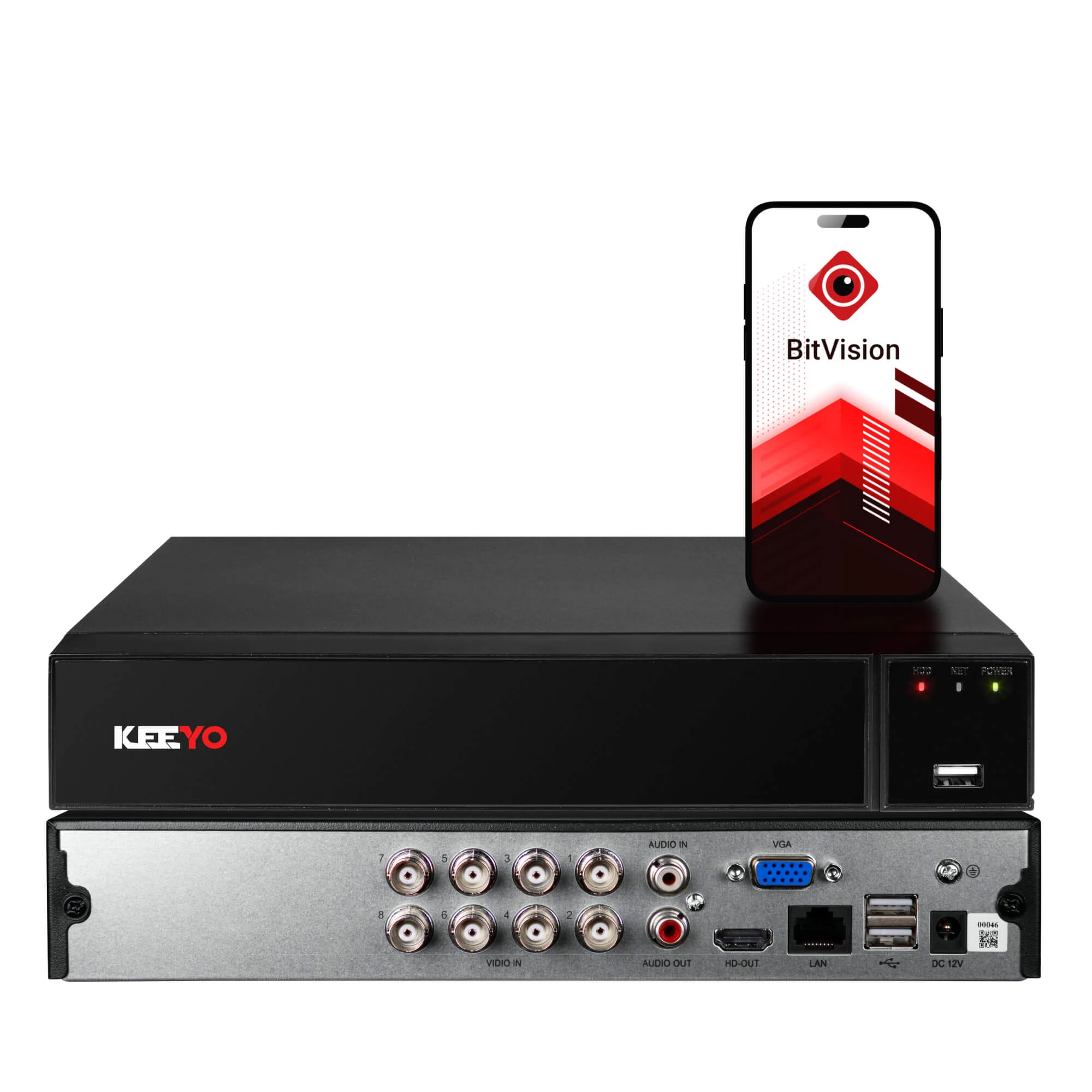

KEEYO LV-E-XVR-8CH-II 8-channel hybrid recorder
Photo gallery
-
Manufacturer
-
Product Code
LV-E-XVR-8CH-II
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI/IP
- Number of channels: 8
- Built-in POE switch: No
Ask about this product show form
Product Description
Package contents:
- 1x KEEYO LV-E-XVR-8CH-II DVR
- 1x User manual
- 1x Wired mouse
- 1x Power adapter
Main features of the recorder KEEYO LV-E-XVR-8CH-II:
- Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
- Ability to connect up to 8 analog cameras
- H.265+ video compression
- Live viewing, recording and playback of footage from cameras up to 5Mpx Lite
- 1 SATA interface for recording and backup
- 1 10/100Mbps network card with automatic speed selection
- Simultaneous HDMI/VGA output
- In-app support via mobile devices with systems: Android, iOS
- Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
- Modern housing
- Built-in web server, support via CMS or mobile client
Remote access from desktops and smartphones
Bitvision is a simple and fast way to operate your property monitoring system, thanks to it you will be able to:
✅Access video previews and playback stored footage
✅Save video snippets to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees.
Support popular browsers
KEEYO LV-E-XVR-8CH-II DVR supports popular web browsers such as Chrome, Mozilla Firefox and Safari. This allows users to enjoy convenient and hassle-free access to the surveillance system from different platforms and devices, providing full flexibility and convenience.
H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. This allows surveillance DVRs to store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.
Technical specifications:
| Model | LV-E-XVR-8CH-II |
|---|---|
| System | |
| Main processor | MC6630 |
| Operating system | Embedded LINUX |
| Video | |
| Input | Analog: 8× (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P@30fps; Analog: 960H) Analog + Network: 2× analog (5MP) + 7× network (max. 5MP), 4× analog (5MP) + 5× network (max. 5MP), 6× analog (5MP) + 3× network (max. 5MP) Network: 16× 5MP/4MP/3MP/1080P/960P/720P (total throughput ≤48M) |
| Input | 8 BNC channels |
| Signal type | Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / Network. |
| Output | 1× HDMI, 1× VGA |
| Audio | |
| Input | 1 RCA channel, AOC support |
| Two-way audio | No |
| Output | 1 RCA channel |
| Alarm | |
| Sensor input | No |
| Output | No |
| Motion detection | 8 channels (max. 16 channels in pure network mode) |
| Trigger events | Recording, email, screen notifications, buzzer, push notifications (motion detection) |
| Email alert | Sending video to designated email |
| Ai functions | |
| People detection | Yes |
| Display | |
| VGA | Resolution: 1920×1080P, 1280×1024, 1280×720, 1024×768 |
| HD output | Resolution: 1920×1080P, 1280×1024, 1280×720, 1024×768 |
| Screen division | 1/4/8/9/16 |
| Privacy masking | 3 rectangular zones (per camera) |
| OSD | Camera title, time, video loss, motion detection, recording |
| Recording | |
| Video compression | H.265/H.265+/H.264/H.264+ |
| Audio compression | G.711U/G.711A |
| Resolution | 5MP_Lite (1280×1952) 4MP_Lite (1280×1440) 1080N (960×1080) 720P (1280×720) 960H (960×480) |
| Video quality | Lowest / Low / Medium / Good / Better / Best |
| Recording speed | Analog PAL: 5MP_Lite (1296×1944 8×6fps), 4MP_Lite (1280×1440 8×8fps), 1080N (960×1080 8×15fps), 720P (1280×720 8×15fps), 960H (960×480 8×25fps) Network PAL: 5MP@8×25fps, 4MP@12×25fps, 3MP@12×25fps, 1080P@16×25fps, 960P@16×25fps, 720P@16×25fps, D1@16×25fps NTSC: 5MP@8×30fps, 4MP@12×30fps, 3MP@12×30fps, 1080P@16×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps |
| Recording mode | Manual / Schedule / Motion Detection / Intelligent. |
| Playback and backup | |
| Decoding capability | 2× 1080P@30fps |
| Playback Synchronization | Analog: 4CH 5MP Lite @6fps, 4CH 4MP Lite @8fps, 4CH 1080P Lite@15fps, 4CH 720P@15fps Mixed mode: 1CH 5MP@30fps, 4CH 5MP Lite @6fps, 4CH 1080P Lite@15fps Network: 1CH 5MP @30fps, 1CH 4MP @30fps, 2CH 1080P@30fps, 4CH 720P@30fps |
| Remote playback | 4 channels / 1 channel |
| Search mode | All, Channel, Manual, Time, Date, Motion detection, People detection, Tag |
| Playback functions | Playback, Pause, Stop, Fast playback, Slow playback, Rewind, Next file, Previous file, Next camera, Previous camera, Full screen, Backup selection, Digital zoom |
| Smartphone playback | 4 channels |
| Backup mode | USB device (with FAT 32 file system) / Network / FTP |
| Network | |
| Interface | 1× RJ-45 10M/100M self-adaptive Ethernet interface |
| Network functions | TCP/IP, HTTP, HTTPS, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, NTP, UPnP |
| DDNS support | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET |
| Web browsers | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS software | Windows 7/8/10/11, MAC OS support |
| Additional stream | CIF/D1 (1-30fps) |
| Smartphone support | iPhone, Android |
| Hard drive | |
| Interface type | 1× SATA interface |
| Capacity | 1× SATA hard drive (2.5"/3.5", up to 8TB) |
| General | |
| Language | Polish |
| UTC control | Yes |
| USB interface | 2× USB 2.0 |
| Power consumption | DC 12V/1.5A ≤ 7W (without HDD) |
| Operating environment | -10~55℃/10~90% |
| Dimensions (S×G×W) | 260×23×43(mm) |
| Weight | 0.86kg (without HDD) |
