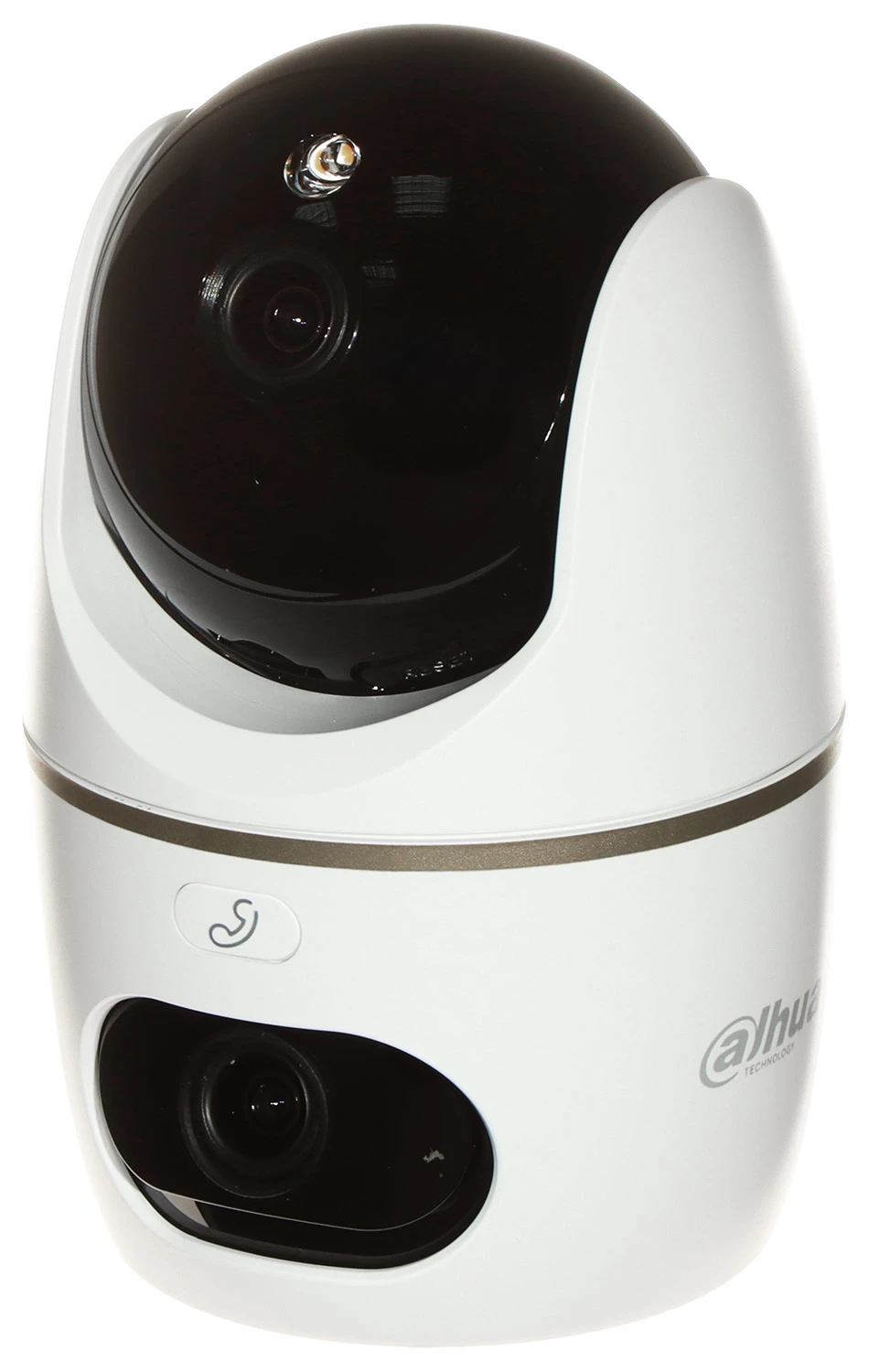

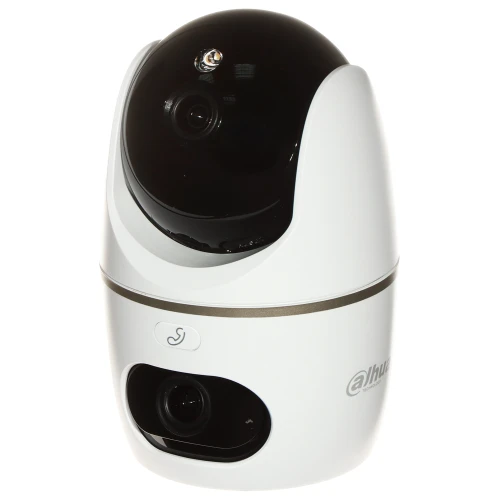

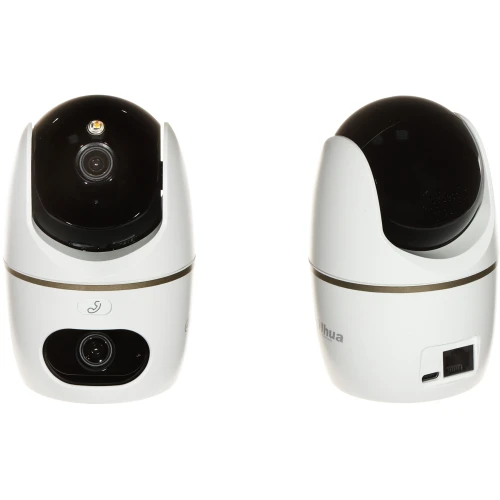

Dahua Hero H5D-5F WiFi Wireless Camera

• Rotating camera - H5D-5F
• Documentation - User manual, warranty card, adjustments
• Power supply - The key electronic component that provides power to the device

Dahua products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Fixed-position module:

• Sensor: 1/3" 5MP HD CMOS image sensor
• Resolution: 2880×1620 (5Mpx) @ 15 fps
• Lens: 3.6mm
• Illuminator: 850nm IR LED (range 30m)

PT Module:

• Sensor: 1/3" 5MP HD CMOS image sensor
• Resolution: 2880×1620 (5Mpx) @ 15 fps
• Lens: 3.6mm
• IR LED 850nm (30m range)
• LED white light (30m range)
• Full-Color - 24/7 color image technology
• Smart detection - object detection (human / animal)
• Auto Tracking - tracking of the detected object
• Preset patrol - programming of observation zones
• Active deterrence - flashing LED (white) + sound signal
• Built-in microphone and speaker - two-way conversation
• Button for audio call
• Manual adjustment of lens position (for fixed camera)
• Memory card support: microSD / microSDHC / microSDXC up to 256 GB
• Smartphone notifications: when motion is detected
• Alert: of unusual sounds
• Configuration and operation: DMSS app
• Mobile devices: Android, iOS
• Housing: plastic
• Power supply: 5V DC (power adapter included)
• Dimensions: ⌀80.9 × 125.7 mm (W/D).
• Warranty: 24 months

Super clear image with more details The camera records in high resolution, providing clearer and brighter images without losing any details.

Super clear images even at night The camera is equipped with a built-in infrared illuminator and LED, so it can record high-quality images in total darkness for clearer night vision.

360° monitoring without blind spots

The camera's electronic head can be controlled via the DMSS app, allowing it to rotate and tilt for full monitoring of all corners.


Focuses on the target, saves labor costs

The people detection function remains alert and detects the movement of people in a specific area in real time. It immediately notifies the phone if any activity occurs. Human targets are detected and tracked, providing their movement path so you are well informed.

Communicate Anywhere, Anytime

Convenient for remote communication, you can talk through the built-in speaker and microphone and enjoy real-time video via DMSS at any time.


Easy Installation

Even if you've never used a Dahua wireless infrared network camera before, you can still install it easily. Professional wiring is not required, and you can place the device anywhere and move it around as needed. It can be placed on a desk or mounted on the ceiling.

P2P function

In the H5D-5F is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

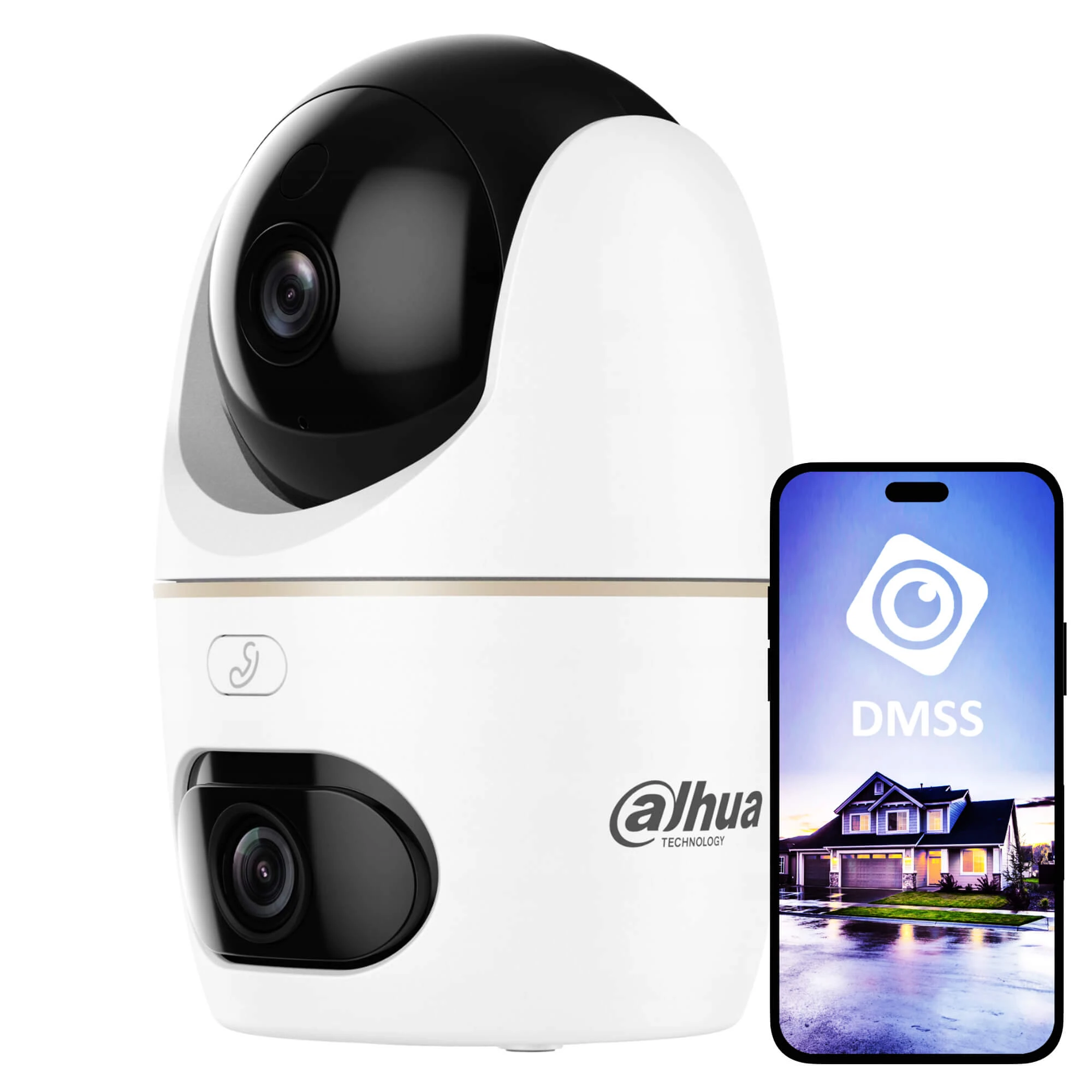

Remote access from phone and desktop computer

Dahua systems allow you to configure, control and view using the DMSS app, which will provide you with constant access to your surveillance from anywhere on earth with internet access. DMSS allows you to:

• Access video preview and play back recorded footage
• Save portions of the video to your smartphone memory
• Configure time frames for motion detection
• Receive notifications from motion detection or other events
• Share your device with other smartphones with the mobile app, such as family members or employees

Efficient storage

H.265 encoding, also known as High Efficiency Video Coding (HEVC), is an advanced video compression technology used in modern surveillance systems. The main features of H.265 coding in surveillance DVRs are:

• H.265 makes it possible to significantly reduce the size of video files while maintaining the same image quality. This makes it possible to save disk space and increase the storage time of recordings.
• More efficient compression allows to reduce the load on the processor, which translates into lower power consumption in monitoring devices.

Two-way communication The H5D-5F 's two-way communication function allows not only observation, but also active interaction with those within the camera's range, which can be useful for monitoring and managing real-time situations. This two-way communication capability allows you to quickly respond to incidents, ensure security, and communicate effectively in various scenarios, such as managing facilities, monitoring children, or conducting interactions with employees.

Automatic day/night mode Adapted to work in all lighting conditions, the H5D-5F with up to 10m visibility even in total darkness. In addition, the Day/Night sensor switches the vision mode automatically based on the amount of light reaching the lens.

Pan-Tilt-Zoom A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control the direction (pan and tilt) and zoom (zoom in and out) of an image. With these functions, the H5D-5F camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.

Audiovisual recording on a memory card

Wide Dynamic Range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) function, or Wide Dynamic Range, in surveillance cameras is a technology that improves image quality in difficult lighting conditions, especially when there are simultaneously very bright and very dark areas in the camera's field of view. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important features that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

Technical specifications:

Technical specifications
Main - fixed-position module
Sensor	1/3" 5MP HD CMOS image sensor
Resolution	5Mpx, 2880 (H) x 1620 (V) pixels
Shutter	Automatic / manual, 1/3s ~ 1/100000s
Minimum illumination	0 Lux (IR on)
Illuminator - fixed-position module
Type and number of diodes	2 IR LEDs (infrared, 850nm)
Illumination range	30m
Illuminator control - on/off.	Automatic
Illuminator operation modes	IR mode
IR mode	Operation: IR illuminator only - infrared, invisible to humans; At dusk or in low light conditions, the camera illuminates the monitored area with an IR light beam; Daytime image: color (illuminator off); Nighttime image: black and white
Lens - fixed module
Type	Fixed-focus
Focal length	3.6mm (F2.0)
Viewing angle	H: 86° | V: 46° | D: 104°
Lens position adjustment	Vertical (0° ~ 15°)
Main - rotating module (PT)
Sensor	1/3" 5MP HD CMOS image sensor
Resolution	5Mpx, 2880 (H) x 1620 (V) pixels
Shutter	Automatic / manual, 1/3s ~ 1/100000s
Minimum illumination	0 Lux (IR on)
Camera rotation	Horizontal: 0° ~ 349° | Vertical: -5° ~ 90°
Illuminator - rotating module (PT)
Type and number of LEDs	2 IR LEDs (850nm), 1 LED (white light)
Illumination range	IR: 30m | LED: 30m
Illuminator control - on/off.	Automatic
Illuminator operation modes	IR mode | Warm Light mode | Dual Light mode (IR + LED)
Lens - rotating module (PT)
Type	Fixed focal length
Focal length	3.6mm (F2.0)
Viewing angle	H: 86° | V: 46° | D: 104°
Video compression	H.265
Processing resolution	5Mpx (2880x1620) / nHD (640x360)
Processing speed	15fps @ 5Mpx (main stream), 15fps @ nHD (auxiliary stream)
Audio
Compression	G.711a
Microphone	Yes (built-in)
Speaker	Yes (built-in)
Active deterrence
Warning light	1 LED (white)
Audible warning	Audible alarm
Interface
Ethernet	1x RJ45 10/100Mbps
USB	1x USB-C
Memory	MicroSD card slot up to 256GB
Other
Power supply	DC 5V (power adapter included)
Power consumption	Basic: 2.5W, Max: 5.4W
Operating temperature	-10°C ~ +45°C
Weight	233g
Dimensions	⌀80.9x125.7mm
Warranty	24 months
