Ropam BasicLTE-SET LTE 2G/4G Communication Module, 12V

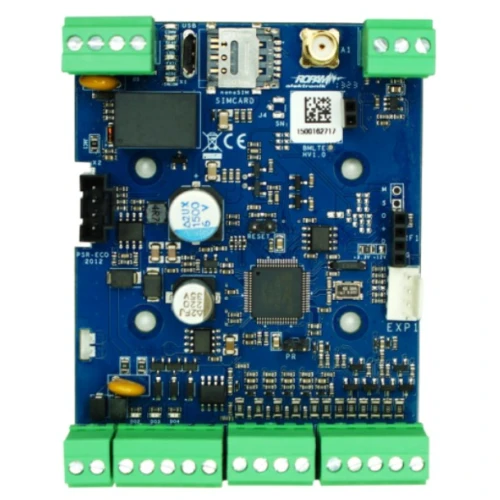

The image shows a Ropam communication module featuring multiple green terminal blocks for connectivity and a blue circuit board with various electronic components. It includes a SIM card slot and USB port, designed for integration into security and automation systems.
  • Manufacturer

    ROPAM
  • Product Code

    BasicLTE


Ask about this product show form

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

144,27 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Notification and control module with control panel functions. The built-in LTE modem allows data transmission in 4G and 2G technologies. Thanks to its modular design, the device can be expanded with a graphical LCD-HMI-D4M display and EXP-RF radio receiver. BasicLTE can work as a standalone unit or be an extension of other systems.

Main features of the kit BasicLTE:


Advanced alarm device for intuitive visualization and control of security systems. Equipped with a range of modern features and expandability, it is the perfect solution both for standalone operation and as an extension of other systems.

  • Intuitive operation of control panels - visualization and control from the application level
  • Built-in LTE modem with support for 4G and 2G networks
  • (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
  • Event notifications via: SMS, voice calls, e-mail, PUSH notifications (RopamBasic application)
  • Remote control via: SMS, CLIP, DTMF and RopamBasic application
  • Support for up to 8 users: 8 phone numbers and 8 e-mail addresses
  • Expandable with EXP-RF radio receiver - control with TR-4H series remote controls
  • Registration of up to 1000 events with overwriting function
  • Support for temperature and humidity sensors (TSR and RHT-2 series)
  • Automatic prepaid card status monitoring with low balance notifications
  • Real-time clock (RTC), calendar and synchronization with LTE network or NTP servers
  • BasicLTEManager software for configuration: - locally via micro USB
  • Remotely via RopamBridge (LTE) server
  • Built-in LogicProcessor for advanced functions: 10 independent logic conditions, 10 time relays, 4 calendar timers
  • Free RopamBasic mobile application (iOS / Android)
  • Support for GPRS monitoring - cooperation with RMS and Kronos NET servers

BasicLTE communication modules, thanks to their design and functionality, are designed for integration with other devices. The built-in LTE modem allows event transmission and remote control and monitoring of the system via SMS, CLIP, DTMF and e-mail.

Technical parameters:

  • Built-in LTE modem with support for 4G and 2G networks
  • 6 configurable inputs (NO/NC)
  • 2 NO/NC or analog inputs (0-10V / 4-20mA)
  • Dedicated FAC input for 230V AC power supervision
  • 1 relay output
  • 3 OC type outputs (load capacity up to 0.7 A)
  • Protected AUX output (1 A) for supplying additional devices
  • 4 programmable timers with calendar function
  • SMA antenna connector for connecting an external antenna
  • Detachable terminal connectors - convenient installation and service
  • Support for up to 8 voice messages
  • MicroUSB port for local configuration and software updates
  • Slot for nanoSIM card
  • Power supply 230V AC - 12V / 1.5 A adapter included

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
