HiLook Hikvision Monitoring Kit 6x IPCAM-T8-30DL 4K Smart Hybrid Light 30m, Detection

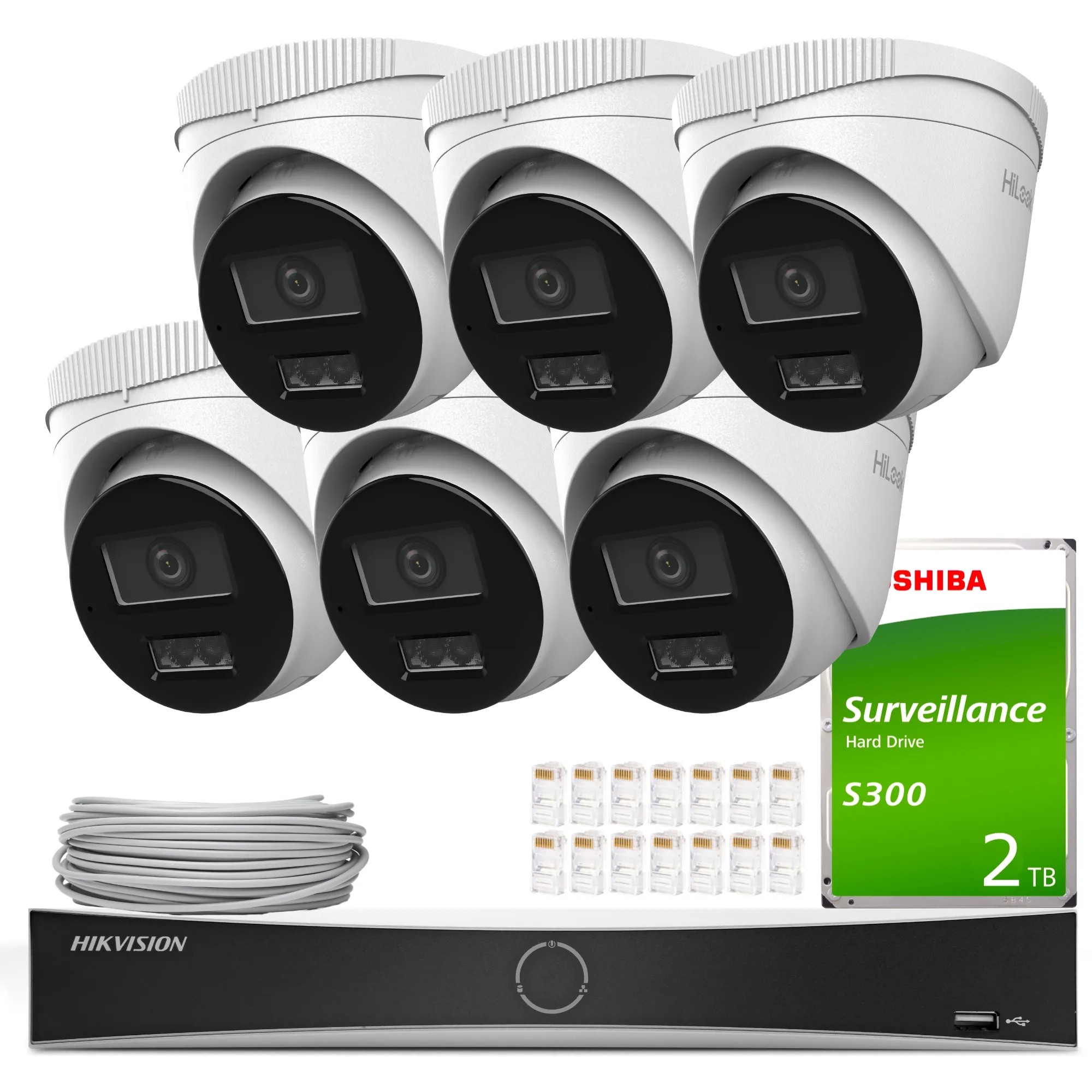

Kit contents:

• 6x 8Mpx dome camera - HiLook by Hikvision IPCAM-T8-30DL
• 1x Network DVR DS-7608NXI-K1(D)
• 1x Toshiba S300 2TB hard drive from Surveillance series, dedicated to CCTV solutions
• 30 meters of UTP cat.5e cable
• A set of signal connectors
• "ATTENTION MONITORED OBJECT" sticker.

Features of the set:

• High-quality 8Mpx images
• Supports human and vehicle detection
• Smart Dual-Light: Intelligent white and infrared light illumination
• Built-in microphone
• Water and dust resistant (IP67)
• Powerful H.265+ compression technology
• Free Hik-Connect app for surveillance management

Top image quality and high detail saturation

The IPCAM T8-30DL 's high 8Mpx resolution provides exceptional image clarity, enabling identification of fine details and features, which is crucial for evidence analysis. It allows for greater area coverage without sacrificing quality, reducing the number of cameras needed to monitor large areas. In addition, the improved image quality facilitates facial recognition and vehicle identification, which increases the effectiveness of prevention and investigation efforts.

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in surveillance cameras is an advanced feature that allows monitoring systems to be more precise and effective. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Color image in total darkness

The IPCAM-T8-30DL's hybrid illumination combines the advantages of LED and infrared illumination for effective monitoring both during the day and at night. With this technology, the cameras can capture clear images at low light levels without visible light sources, minimizing the risk of detection by intruders. In addition, hybrid illumination enables color recognition, which is crucial for identifying details such as the color of a car or an intruder's clothes, increasing the effectiveness and reliability of the monitoring system.

Reliable in all conditions IP66 waterproofing in a surveillance camera is key, as it provides full protection from dust and strong water jets, allowing the camera to operate reliably in harsh weather conditions. As a result, the IP66-certified IPCAM-T8-30DL can be installed outdoors without fear of damage from rain, snow or dust, increasing its durability and functionality. In addition, its resistance to adverse environmental conditions makes the IPCAM-T8-30DL ideal for long-term monitoring of dusty or humid areas, providing uninterrupted protection and security.

Video and audio recording The audio recording function of the IPCAM-T8-30DL allows you to record audio along with video, which greatly enhances the capabilities and efficiency of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording makes it possible to collect more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

IPCAM-T8-30DL camera features:

• High-quality 8Mpx images
• Supports human and vehicle detection
• Smart Dual-Light: Intelligent white and infrared light illumination
• Built-in microphone
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology

Main features of DS-7608NXI-K1(D) DVR:

• Supports 8 IP cameras
• Maximum supported resolution of 12Mpx (4000x3000)
• Efficient H.265+ video encoding
• Maximum HDD capacity - 16TB
• Network interface 1x Ethernet 10/100/1000Mbps
• AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (8 channels)
• AcuSense technology - Object classification and alarm filtering
• ONVIF, RTSP, P2P
• Remote access applications: iVMS4200 and Hik-Central (Desktop computer), Hik-Connect and Hik-ProConnect (mobile devices)



Technical specifications:

Camera	IPCAM-T8-30DL
Camera
Image sensor	1/2.7" CMOS with progressive scan
Max resolution	3840 x 2160
Minimum illumination	Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Day and Night	IR cut filter
Angle adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Tilt: 0° to 360°
Lens
Lens type	Fixed focal length 2.8mm
Focal length and field of view	2.8mm, horizontal field of view 113°, vertical field of view 62°, diagonal 134°
Lens mount	M12
Aperture type	Fixed
Aperture	F2.0
DORI
DORI	2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
Illumination
Additional light type	IR, White light
Range of auxiliary light	Up to 30m
Intelligent backlighting	Yes
IR wavelength	850nm
Video
Main stream	50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream	50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video compression	Main stream: H.265+/H.265/H.264+/H.264, Podstrumień: H.265/H.264/MJPEG
Video bit rate	32 Kbps to 16 Mbps
H.264 type	Baseline Profile, Main Profile, High Profile
Type H.265	Main Profile
Bit rate control	CBR, VBR
Scalable video compression	H.264 and H.265 encoding
Region of interest (ROI)	1 fixed area for the main stream
Audio
Audio type	Mono
Ambient noise filtering	Yes
Sampling frequency	8 kHz/16 kHz
Audio compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio bit rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Networking
Security	Password protection, complex password, watermark, basic and complex authentication for HTTP, WSSE and complex authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous live viewing	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host	Up to 32 users
User levels	Administrator, operator, user
Client	Hik-Connect, iVMS-4200
Web browser	Plug-in required for live viewing: IE 10, IE 11, local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Day/Night switch	Day, Night, Auto, Schedule
Image enhancement	BLC, HLC, 3D DNR
Image settings	Pan mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
Privacy mask	4 programmable polygon masks
Interface
Ethernet interface	1 RJ45 10 M/100 M port with self-adaptation
Built-in microphone	Yes
Events
Basic events	Motion detection (support for alarm triggering by specific types of targets - people and vehicles), tamper alarm, exception
Connection	FTP upload, email sending, monitoring center notification, capture
General
Power supply	12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material	Metal and plastic
Dimensions	Ø112 mm × 82 mm (Ø4.41" × 3.23")
Package dimensions	150 mm × 150 mm × 141 mm
Weight	Approximately 270 g (0.6 lb.)
Weight with packaging	Approximately 481 g (1.1 lb.)
Storage conditions	-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Commissioning and operating conditions	-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Language	Polish
General functions	Heartbeat, anti-banding, mirror, password protection, password reset via email
Approvals
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No. 1907/2006
Protection	IP67: IEC 60529-2013

DVR	DS-7608NXI-K1(D)
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA Possibility to configure SPOT function on one of the video outputs
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pcs. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	H.265+ / H.265 / H.264 / H.264+
Supported hard drives:	1 x 10 TB SATA
Recording modes:	Manual, motion detection, schedule
Network protocols:	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Advanced search (every second) Synchronous playback of all channels, Smart Search function Simultaneous playback of recordings from up to 8 cameras
Bitrate (bitrate):	max. 80 Mbps
Network functions:	Live video preview, Playback of recordings, Archiving of recordings Max. 128 online users - iVMS-4200 application
ONVIF:	Yes
Cell phone access:	Port: 8000 or access via cloud (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app
Default IP address:	192.168.1.64
Default admin login / password:	admin / - Administrator password should be set on first startup
Web access ports:	80, 8000
Access ports via PC application:	8000
Access ports via mobile application:	8000
RTSP URLS:	rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Secondary stream
Alarm inputs/outputs:	No
PTZ head control:	Yes
Motion detection:	Yes
Intelligent Video Analysis:	Yes
Selected features:	Intelligent motion detection (distinguishing between people and vehicles) False alarm filtering based on person and vehicle recognition Face detection Face comparison with database images Support for up to 16 face databases, with a total of 20,000 face images Intelligent search for a person based on a face image AcuSense series NVRs
USB:	2 pcs. USB 2.0
Mouse operation:	Yes
IR remote control included:	No
Power supply:	12 V DC / 1.5 A (power adapter included)
Weight:	1.1 kg
Dimensions:	320 x 240 x 48 mm
Supported languages:	Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, French, German, Greek, Hungarian, Italian, Dutch, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian
Manufacturer/Brand:	Hikvision
SAP Code:	303616135
