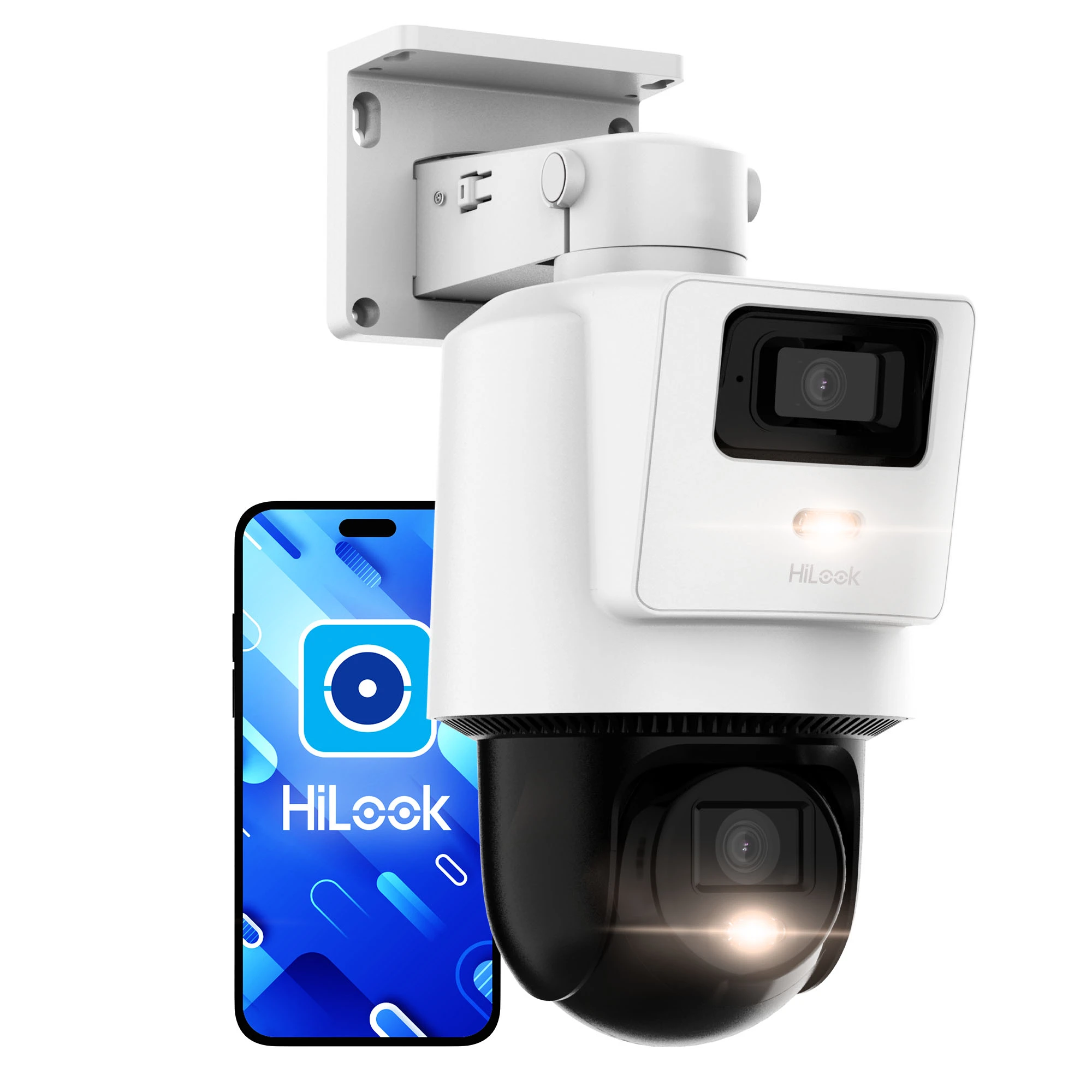

PTZ-D4 Rotating Camera HiLook by Hikvision

The PTZ-D4 camera also comes with useful instructions and mounting accessories to speed up the entire camera mounting process.

✅ 4Mpx ✅ Smart Hybrid Light ✅ Built-in microphone and speaker ✅ Silhouette detection ✅ PTZ ✅ Auto-Tracking Lite

PTZ-D4 is a high quality 4Mpx camera that is best suited for small or medium sized properties like home, store or small business. Thanks to its 30m IR illuminator, it won't disappoint after dark either, and the Hybrid Light system, will additionally allow for color images at night, thanks to white light. It can be used both indoors and outdoors.

Features of PTZ-D4 HiLook by Hikvision camera:

• ✅ High-quality recordings from both lenses with 4Mpx resolution.
• ✅ Wide viewing angle of 94° for fixed lens and 44° for swivel lens
• ✅ Pan-tilt camera with remote control in mobile app
• ✅ Support for human and vehicle detection
• ✅ Built-in speaker and microphone with support for two-way audio communication
• ✅ Privacy masks
• ✅ Video compression: H.265+/H.264+/H.265/H.264
• ✅ Active warning

Pan-Tilt-Zoom

A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control the direction (pan and tilt) and zoom (zoom in and out) of the image. With these functions, the PTZ camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.

Remote access from desktops and smartphones The mobile app is a quick and easy way to operate your property's surveillance system, allowing you to:   ✅Access the video preview and play back the recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees

Technical specifications:

Camera	PTZ-D4
Main
Image sensor	[Bullet channel] 1/2.8" Progressive CMOS [PTZ channel] 1/2.8" Progressive CMOS
Minimum illumination	[Bullet channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR [PTZ channel] Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time	1 s to 1/30,000 s
Slow shutter	Yes
Day/Night mode	ICR
Maximum resolution	[Bullet channel] 2560 x 1440 [PTZ channel] 2560 x 1440
Lens
Focal length	[Bullet channel] 2.8 mm [PTZ channel] 8 mm
Field of view (FOV)	[Panorama Channel] horizontal: 94°, vertical: 49°, diagonal: 114° [PTZ Channel] horizontal: 44°, vertical: 24°, diagonal: 51°
Aperture	[Bullet channel] F1.6 [PTZ channel] F1.6
Auxiliary lighting
Auxiliary light type	[Bullet channel] Hybrid (IR and White light) [PTZ channel] Hybrid (IR and White light)
Intelligent lighting	Yes
Range of additional light	[Bullet channel] up to 30 m [PTZ channel] up to 30 m
PTZ
Range of Motion (Panorama)	[Bullet channel] 0° to 355° [PTZ channel] 0° to 345°
Range of Motion (Tilt)	[Bullet channel] 7° to 17° (manual adjustment) [PTZ channel] 0° to 80°
Panning speed	Adjustable: 4° to 25°/s, preselection speed: 25°/s
Tilt speed	Adjustable: from 4° to 20°/s, preselection speed: 20°/s
Preselections	300
Memory after shutdown	Yes
Video
Scalable Coding (SVC)	Yes
Area of interest (ROI)	1 fixed area for main stream
Main stream	[Bullet channel] 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720) [PTZ Channel] 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Secondary stream	[Bullet channel] 50 Hz: 25 fps (640 x 480, 640 x 360) 60 Hz: 30 fps (640 x 480, 640 x 360) [PTZ channel] 50 Hz: 25 fps (640 x 480, 640 x 360) 60 Hz: 30 fps (640 x 480, 640 x 360)
Video compression	Main stream: H.265/H.264/Smart264/Smart265 Secondary stream: H.265/H.264/MJPEG
Video bitrate	From 32 Kbps to 4 Mbps
H.264 type	Base profile, Main profile, High profile
Type H.265	Base profile
Audio
Audio compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bitrate	64 Kbps (G.711law/G.711law)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-160 Kbps (MP2L2)/16-64 Kbps (AAC-LC)/8-160 Kbps (MP3)/8-48 Kbps (PCM)
Audio sampling frequency	8 kHz/16 kHz
Noise filtering	Yes
Network
APIS	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Security	Authorized user and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filtering
Protocols	TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, WebSocket, QoS, RTCP, HTTPS, PPPoE, SNMP, NTP, RTP, UDP, DNS, HTTP, DHCP, Bonjour, 802.1x, IPv4, IPv6, DDNS, ICMP, UPnP
Number of simultaneous live broadcasts	Up to 20 channels
User/Host	Up to 32 users, 3 access levels: administrator, operator, user
Client	iVMS-4200, HiLookVision
Web browser	Chrome 31 to 44, Firefox 30 to 51, Safari 8.0+
Image settings	Saturation, brightness, contrast, sharpness
Wide dynamic range (WDR)	Digital WDR
SNR	≥ 52 dB
Day/night switching	Day, night, auto, schedule
Image enhancements	BLC, HLC, 3D DNR
Privacy mask	[Bullet channel] 4 programmable privacy masks [PTZ channel] 4 programmable privacy masks
Switching of image parameters	Yes
Interface
Ethernet interface	1 x RJ45 10 M/100 M self-adaptive Ethernet port
Built-in memory	Supports microSD/microSDHC/microSDXC cards up to 512 GB
Reset	Yes
Events
Basic events	Motion detection (supports alarm triggering by specific types of targets, e.g. people and vehicles), exception
Linking	FTP/NAS/memory card upload, surveillance center notification, emailing, triggering, audible warning
General
Material	Plastic
General functions	Mirror, password protection, watermark, IP address filter
Power supply	12 VDC ± 25%, 1.5 A, max. 18 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3at, Class 4, max. 21.5 W
Operating conditions	-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimensions	134 mm x 213.5 mm x 291.7 mm (5.3" x 8.4" x 11.5")
Weight	Weight: 1000 g (2.2 lb.) Weight with packaging: 1500 g (3.3 lb.)
Certifications	IP66 standard, surge protection and transient voltage protection
