Not sure if the devices you have chosen are suitable? Click here and fill out the form, and our advisor will prepare an offer tailored to your requirements.

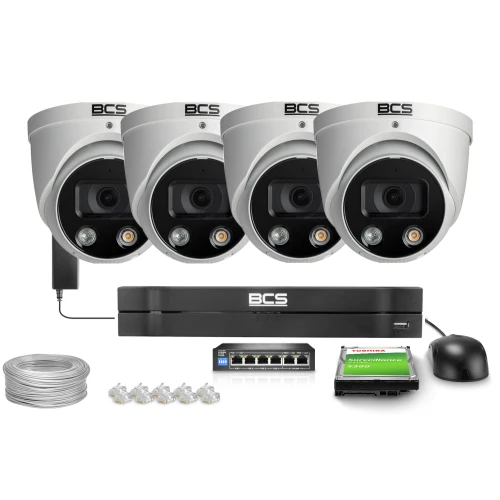

Monitoring set 4x BCS-L-EIP16FCR3L3-Ai1, 6MP, IR 30m, NightColor, WDR 120dB
Photo gallery
-
Manufacturer
-
Product Code
ZM35449
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 6Mpx
- Enclosure: Dome
- Number of cameras: 4
- Memory card slot: Yes
- Color: White
Ask about this product show form
Product Description
Set of 4 Wi-Fi cameras with DVR
Kit contents:
The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the kit.
Kit contents:
- 4x BCS-L-EIP16FCR3L3-Ai1
- 1x BCS-L-NVR0401-4KE(2) DVR
- 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
- 1x Switch BCS-B-SP0402
- A set of necessary accessories, needed to launch the system
- "ATTENTION MONITORED OBJECT" sticker
The products are devices that focus on ease of use, literally anyone can cope with their installation and configuration thanks to the instructions included in the kit.
Advantages of the set:
- Wi-Fi dome type cameras with 1/2.7" CMOS sensor and 6 Mpx resolution
- 2.8mm lens with wide angle of view - as wide as 132° (D)
- NightColor mode - color images even at night thanks to white LED lighting
- Built-in microphone and two-way audio support
- Advanced H.265+ compression - smaller recording size while maintaining quality
- Support for motion detection (SMD Plus) and smart detection zones
- Power supply via PoE or 12V DC, metal housing with waterproof rating IP67
- DVR for 4 cameras, support for viewing via mobile apps and browser
- 1TB Toshiba drive included - ready to operate immediately after installation
- Compatible with ONVIF, HTTPS, RTSP, encryption and security certifications
- Easy installation and configuration - ideal for home and business users
BCS-L-EIP16FCR3L3-Ai1 camera
- Camera type: Dome (dome), BCS LINE product line
- Resolution: 6 Mpx (3288×1850), 1/2.7'' CMOS sensor, progressive scanning
- Lens: Fixed 2.8 mm, F1.6, viewing angle: H: 112°, V: 61°, D: 132°
- Night illumination: IR LED and white light (WhiteLight), range up to 30m, NightColor mode
- Sensitivity: 0.007 Lux (color), 0.0007 Lux (B/W), 0 Lux (IR)
- Audio: Built-in microphone, G.711A / G.711Mu / G.726 / PCM compression
- Video: H.265 / H.264 / MJPEG, bitrate up to 8192 Kbps, two streams
- Image features: WDR 120 dB, 3D DNR, BLC/HLC, AGC, white balance (auto/manual), mirror/flip (corridor mode)
- Day/night mode: Mechanical ICR filter
- Memory: MicroSD slot up to 256 GB, NAS/FTP/SFTP support
- Compatibility: ONVIF (S/G/T), extensive network protocol support
- Security: Transmission encryption, IP/MAC filtering, support for X.509, HTTPS, 802.1x
- Power supply: 12V DC or PoE (802.3af), power consumption max. 5.7 W
- Housing: Metal, white, IP67 rating, dimensions Ø106×94 mm, weight 0.39 kg.
- Operating conditions: -40°C to +55°C, humidity up to 95%
- Software: Web Service, CMS BCS Manager (Windows/Linux/macOS), mobile application (iOS/Android)
- Extras: 4 motion detection zones, 4 privacy masks, 16× digital zoom, RAM 256 MB, ROM 128 MB
- Perimeter protection (intrusion, line crossing)
- Person/vehicle recognition (false alarm reduction)
- SMD Plus - intelligent motion detection
BCS-L-NVR0401-4KE 4 channel DVR(2)
- Recording resolution: 16Mpx
- Video compression: H.265+
- Video outputs 1x HDMI, 1x VGA
- Simultaneous video playback from 4 cameras
- Possibility of remote monitoring via web browser, PC application and mobile device application.
- Disk support: 1x HDD (Maximum 16TB)
- 12VDC power supply
Reduce unnecessary noise
3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-L-EIP16FCR3L3-Ai1, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.
Main advantages:
- Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
- Better compression and smaller file size: Video noise can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
- Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
- Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.
Wide Dynamic Range - That is, high quality in difficult conditions
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP16FCR3L3-Ai1 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP16FCR3L3-Ai1 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.
Benefits of WDR 120dB
- Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
- Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
- Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.
D.O.R.I.
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP16FCR3L3-Ai1 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-EIP16FCR3L3-Ai1 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
- Detection (64m): The system is able to detect the presence of an object or person at a distance of up to 64 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
- Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
- Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, car or other object.
- Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.
Detection of people and vehicles
Motion detection with silhouette recognition of people and vehicles in BCS-L-EIP16FCR3L3-Ai1 cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Motion detection with silhouette recognition of people and vehicles in BCS-L-EIP16FCR3L3-Ai1 cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.
Automatic day/night mode
Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Capture the widest possible area
The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-EIP16FCR3L3-Ai1 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality image
A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP16FCR3L3-Ai1 records at 6Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
- A: 1280x720p ( 1Mpx )
- B: 1920x1080p ( 2Mpx )
- C: 2048x1536p ( 3Mpx )
- D: 2560x1440p ( 4Mpx )
- E: 3288×1850p ( 6Mpx )
- F: 3840x2160p ( 8Mpx )
Slot for microSD card
The BCS-L-EIP16FCR3L3-Ai1 camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.
IP67 weatherproof design
This housing protects the BCS-L-EIP16FCR3L3-Ai1 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.
Microphone - a more complete picture of the situation
The BCS-L-EIP16FCR3L3-Ai1 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places that require detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.
Technical specifications of the camera:
| Device Name | BCS-L-EIP16FCR3L3-Ai1 |
|---|---|
| Product line | BCS LINE |
| Camera type | Dome |
| Resolution | 6 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3288(H)×1850(V) |
| RAM | 256 MB |
| ROM | 128 MB |
| Lens | Fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| Iris | Fixed |
| Digital zoom | 16× |
| Viewing angle | H: 112°, V: 61°, D: 132° |
| DORI | Detect 64m / Observe 25m / Recognize 13m / Identify 6m |
| Sensitivity of the camera | 0.007Lux (Color), 0.0007Lux (B/W), 0Lux (IR) |
| S/N ratio | 56 dB |
| White balance (AWB) | Auto / manual |
| WDR | 120 dB |
| Backlight compensation | BLC / HLC / WDR (120 dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control (AGC) | Auto / manual |
| Noise reduction | 3D DNR |
| Image rotation | Mirror, Flip 0°/90°/180°/270° (corridor mode) |
| Number of streams | 2 |
| Resolutions | 6M (3288×1850 / 3200×1800), 5M (2880×1620), 4M (2688×1520), 3M (2048×1536 / 2304×1296), 1080p (1920×1080), 1.3M (1280×960), 720p (1280×720), D1 (704×576 / 704×480), VGA (640×480), CIF (352×288 / 352×240) |
| Main stream | 3288×1850@(1-20 fps) / 2688×1520@(1-25/30 fps) |
| Second stream | 704×576@(1-25 fps) / 704×480@(1-30 fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps, H.265: 12 Kbps~8192 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/Night | ICR - mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30 m |
| WhiteLight range | 30 m |
| NightColor | Yes |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD up to 256 GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) |
| Motion detection | 4 zones |
| Privacy masks | 4 |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF (S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration |
| Security | Video/Firmware/Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1x, Trusted boot/execution/upgrade |
| Power supply type | 12VDC / PoE (802.3af) |
| Power consumption | max 5.7 W |
| Housing color | White |
| IP protection class | IP67 |
| Operating conditions | -40°C ~ +55°C, max 95% RH |
| Dimensions | Ø106 × 94 mm |
| Weight | 0.39 kg |
| Housing | Metal |
| Ai - Intelligent functions | Built-in image recognition and analysis algorithms |
| Ai - Perimeter protection | Intrusion into the area, crossing the line |
| Ai - Object recognition | Person/vehicle recognition - false alarm reduction |
| Ai - SMD | SMD Plus - intelligent motion detection |
Technical specifications of the DVR:
| Device Name | BCS-L-NVR0401-4KE(2) |
| Product line | BCS Line |
| System | IP |
| Pentaplex function | Live viewing / recording / playback / archiving / remote access |
| Channels | 4 |
| Drives | 1 (not included) |
| Disk capacity | 16 TB |
| Max recording resolution | 16 Mpx |
| Input bandwidth | 80Mbps |
| Output bandwidth | 80Mbps |
| Display capacity | 2×16M(30fps) / 2×12M(30fps) / 4×8M(30fps) / 1×16M Ai(30fps) / 2×12M Ai(30fps) / 3×8M Ai(30fps) / 4×5M Ai(30fps) |
| Recording resolution | 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| Video outputs | HDMI4K/VGA |
| HDMI display resolution | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolution | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Output split | 1/4 |
| Playback | 1/4 |
| Archiving | Possibility of ripping material to external media such as USB FLASH, USB HDD |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Networking | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T), support for third-party cameras |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, auto register |
| Power supply | 12V DC |
| Power consumption (without drives) | max 10W |
| Operating conditions | -10°C~+55°C max 93% RH |
| Enclosure | 1U |
| Dimensions (W×D×H) | 260×232.5×50.3mm |
| Weight (without drives) | 0.86 kg |
| Ai - Intelligent functions from the DVR | Face detection, face identification, perimeter protection (person/vehicle recognition mechanical), SMD Plus |
| Ai - Intelligent functions from cameras | Face detection, face identification, perimetric protection (person/vehicle recognition mechanical), SMD Plus, people counting, ARTR, heat map |
| Ai - Perimetric protection | 2 channels from DVR, 10 rules per channel / 4 channels from cameras |
| Ai - Face detection | 1 channel from DVR (12 images/s) / 4 channels from cameras / face attributes (gender, age, glasses, expression face, mask, beard) |
| Ai - Face identification | 4 channels of detection from camera + identification from DVR (12 images/s) / 1 channel of detection from DVR + identification from DVR (12 images/s) / 8 channels of identification from cameras / up to 10 face databases, 20 thousand images, up to 2.5GB |
| Ai - SMD | 4 channels from DVR / 4 channels from cameras |
