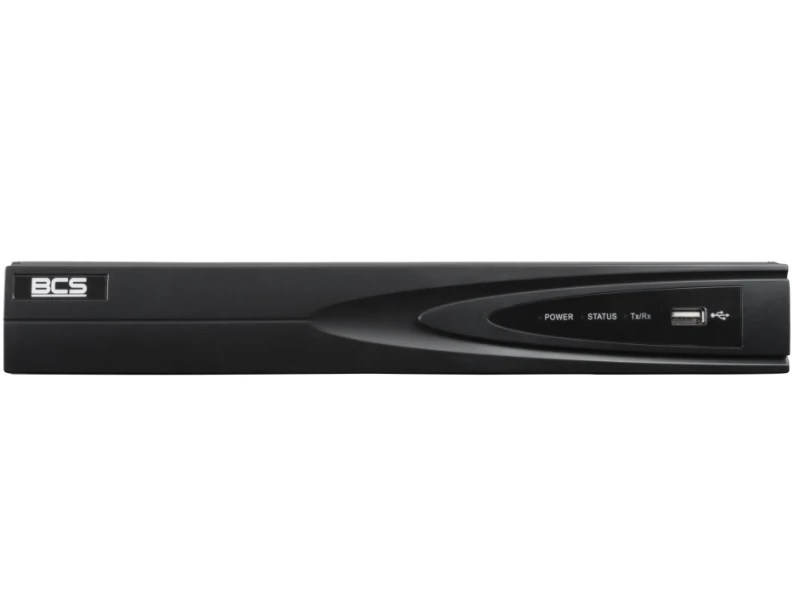

IP Recorder BCS View BCS-V-NVR1601-4KE(3) - 16-channel, HDMI 4K/VGA, 12MP
Photo gallery
-
Manufacturer
-
Product Code
BCS-V-NVR1601-4KE(3)
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 16
- Built-in POE switch: No
Ask about this product show form
Product Description
Product Contents:
The box includes:
The box includes:
- 1x DVR - BCS-V-NVR1601-4KE(3) BCS View.
- Documentation - User manual, warranty card, regulations
- 1x Power supply
- 1x Mouse
- Screws for hard drive mounting
Main features:
- Supports 16 IP channels and recording at a maximum resolution of 12 Mpx - ideal for advanced surveillance systems.
- Pentaplex function - simultaneous live viewing, recording, playback, archiving and remote access.
- High transmission performance - 160 Mbps input bandwidth, 80 Mbps output bandwidth.
- Advanced AI functions from DVR and cameras - face detection and identification, SMD, perimeter protection, person and vehicle recognition.
- Face identification on 4 channels - up to 16 databases and 20,000 images.
- HDMI 4K and VGA outputs - with resolutions up to 3840×2160.
- H.265+ and H.264+ compression - efficient space and bandwidth savings while maintaining quality.
- Archiving via USB Flash or USB HDD - fast and convenient security of materials.
- Support for iSCSI, NFS and ONVIF - compatibility with NAS and third-party cameras.
- Compact 1U metal chassis (320×240×48 mm) - low weight and easy installation.
P2P function
In BCS-V-NVR1601-4KE(3) DVRs, BCS View is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
In BCS-V-NVR1601-4KE(3) DVRs, BCS View is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
- Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
- Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
- Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.
Efficient storage
H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern DVRs such as BCS-V-NVR1601-4KE(3) BCS View. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ encoding in surveillance DVRs are:
H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern DVRs such as BCS-V-NVR1601-4KE(3) BCS View. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ encoding in surveillance DVRs are:
- Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
- Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
Remote access from phone and desktop computer
BCS systems allow you to configure, control and view using apps that will provide you with constant access to your monitoring from anywhere on earth with internet access. The above programs allow you to:
BCS systems allow you to configure, control and view using apps that will provide you with constant access to your monitoring from anywhere on earth with internet access. The above programs allow you to:
- Access video preview and play back recorded footage
- Save portions of the video to your smartphone's memory
- Configure time frames for motion detection
- Receive notifications from motion detection or other events
- Share your device with other smartphones with the mobile app, such as family members or employees
Compatibility with NAS servers
Recording on a NAS (Network Attached Storage) server on the BCS-V-NVR1601-4KE(3) BCS View allows you to centralize video data storage in one place, making it easier to manage and access recordings from multiple cameras. In addition, the use of NAS servers can enhance data security through redundancy and the ability to use advanced protection and backup mechanisms, minimizing the risk of losing important recordings.
Recording on a NAS (Network Attached Storage) server on the BCS-V-NVR1601-4KE(3) BCS View allows you to centralize video data storage in one place, making it easier to manage and access recordings from multiple cameras. In addition, the use of NAS servers can enhance data security through redundancy and the ability to use advanced protection and backup mechanisms, minimizing the risk of losing important recordings.
Technical specifications:
| DVR specifications | |
|---|---|
| System | IP |
| Function | Pentaplex (Live viewing, recording, playback, archiving, remote access) |
| Channels | 16 |
| Drives | 1 |
| Disk capacity | 16 TB |
| Max recording resolution | 12 Mpx |
| Input bandwidth | 160 Mbps |
| Output bandwidth | 80 Mbps |
| Display capacity | 2×12M(30fps) / 4×8M(30fps) / 8×4M(30fps) / 16×2M(30fps) |
| AI: Display performance | 2×12M(30fps) / 3×8M(30fps) / 6×4M(30fps) / 12×2M(30fps) |
| Recording resolution | 12M / 8M / 6M / 5M / 4M / 3M / 2M / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video compression | H.265+ / H.265 / H.264+ / H.264 |
| HDMI output | HDMI 4K |
| VGA output | VGA |
| HDMI display resolution | 3840×2160 / 2560×1440 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 |
| VGA display resolution | 1920×1080 / 1280×1024 / 1280×720 |
| Output split | 1/4/6/8/9/16 |
| Playback | 1/4/9/16 |
| Archiving | Ripping to USB FLASH / USB HDD |
| Users | 128 |
| Interfaces | 2×USB 2.0 |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android) |
| Networking | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support for third-party cameras |
| Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Power supply | 12V DC |
| Power consumption (without drives) | Max 10W |
| Operating conditions | -10°C~+55°C, max 90% RH |
| Enclosure | 1U |
| Dimensions (W×D×H) | 320×240×48mm |
| Weight (without drives) | 1 kg |
| AI - Intelligent Functions (DVR) | Motion detection (person/vehicle recognition), face detection and identification, perimeter protection |
| AI - Intelligent Functions (Cameras) | Motion detection, face identification, perimeter protection, ARTR |
| AI - Perimeter protection | 1 4Mpx channel (person/vehicle recognition) |
| AI - Face detection | 1 8Mpx channel |
| AI - Face identification | 4 channels, 16 databases, 20K images (4MB max, 1GB total) |
| AI - SMD | 16 channels 4Mpx |
