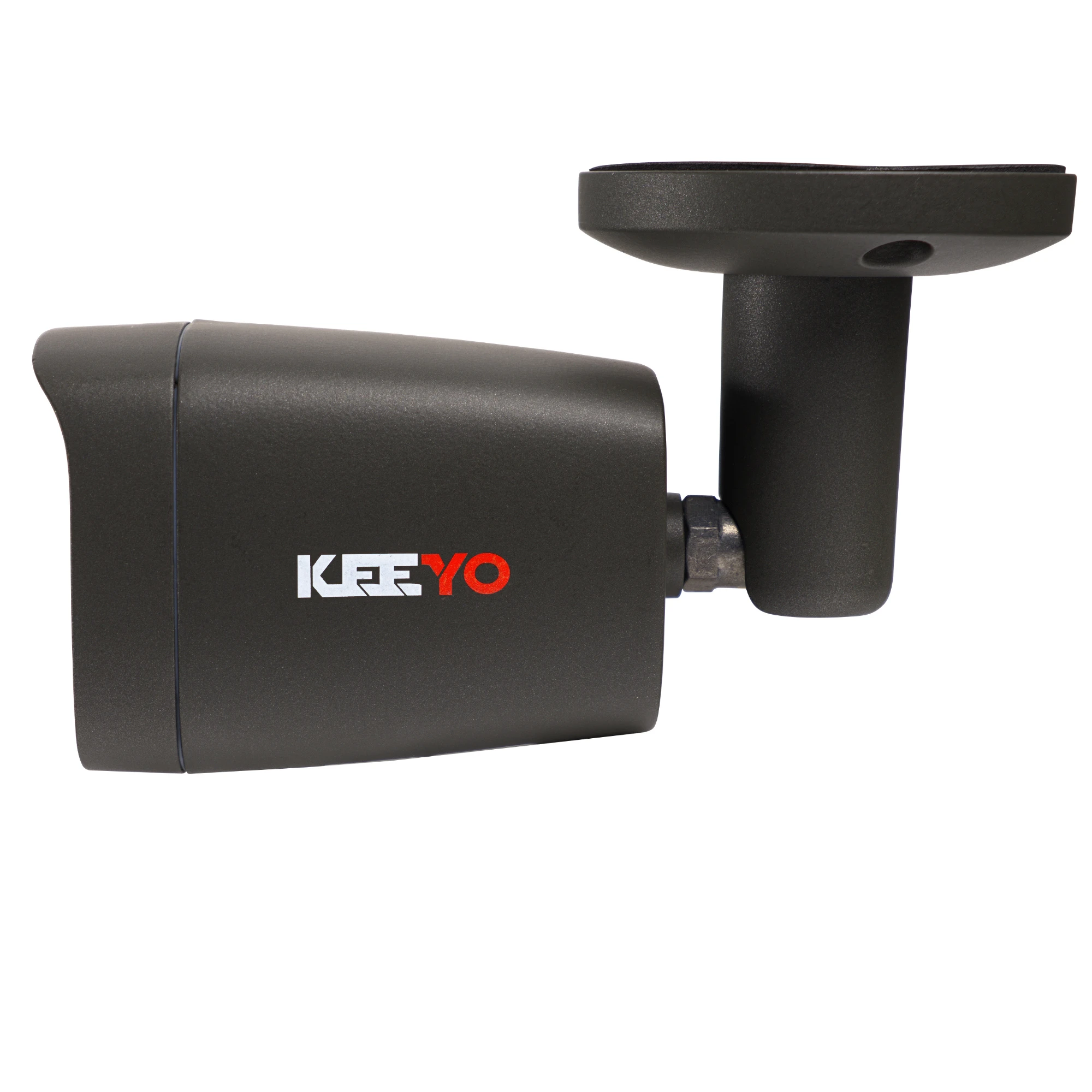

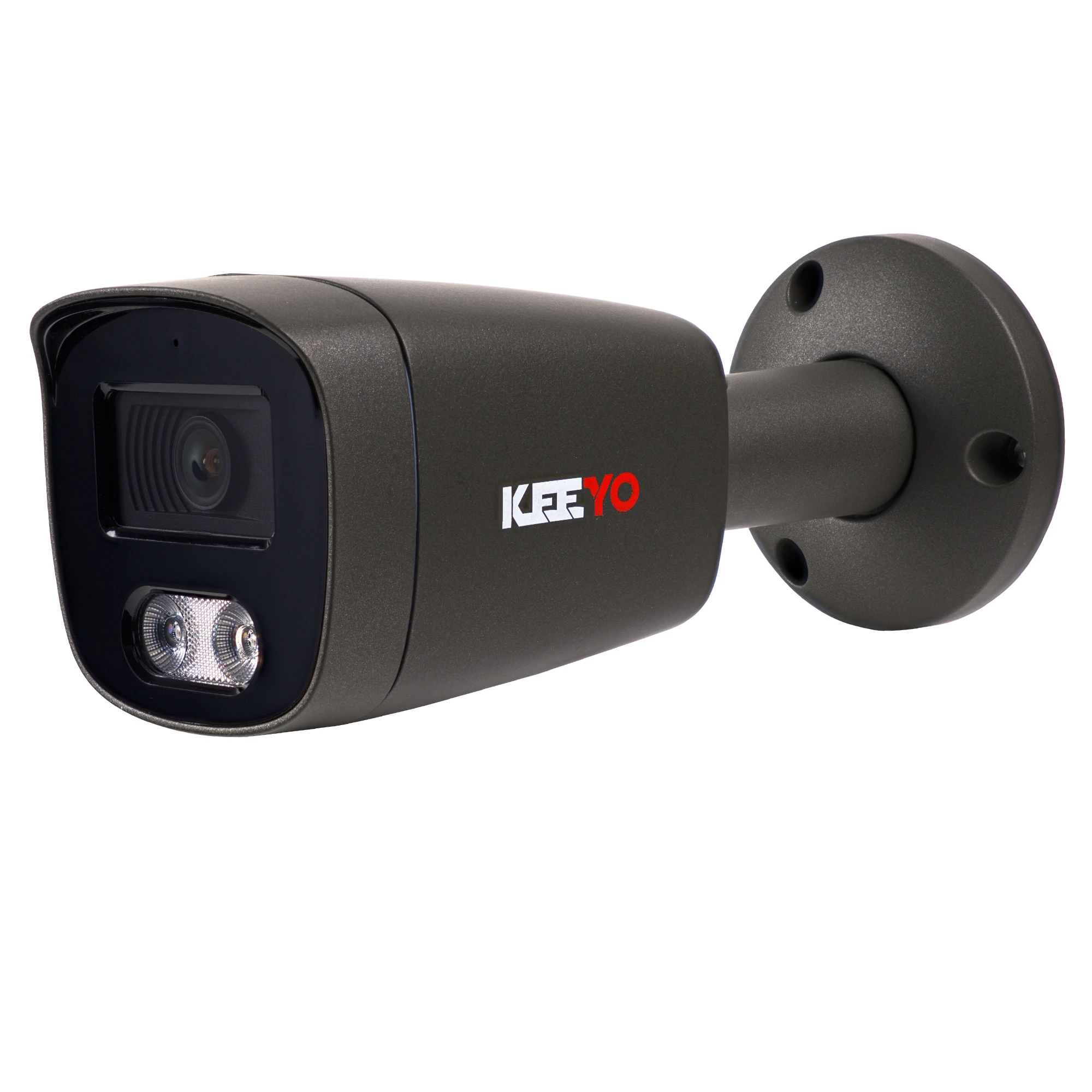

Tubular camera 4in1 5Mpx IR25m KEEYO LV-E-AL5M25TF-G
Photo gallery
-
Manufacturer
-
Product Code
LV-E-AL5M25TF-G
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 5Mpx
- Enclosure: Tube
- Night visibility: up to 25m
- Connectivity: Wired
- Memory card slot: No
- Audio: No
- Color: Black
Ask about this product show form
Files attached to the product show files
Files for download
-
Size: 0,28 MB
-
Size: 0,68 MB
Related products
Product Description
LV-E-AL5M25TF-GThis is a camera working in four AHD/TVI/CVI/CVBS systems. It will allow you to conduct video surveillance 24/7 both day and night thanks to IR LEDs with a range of 25 meters. It will be ideal for such places as:
In addition, it is made entirely of metal, resulting in a solid and reliable device. Features of the camera:
|
 |

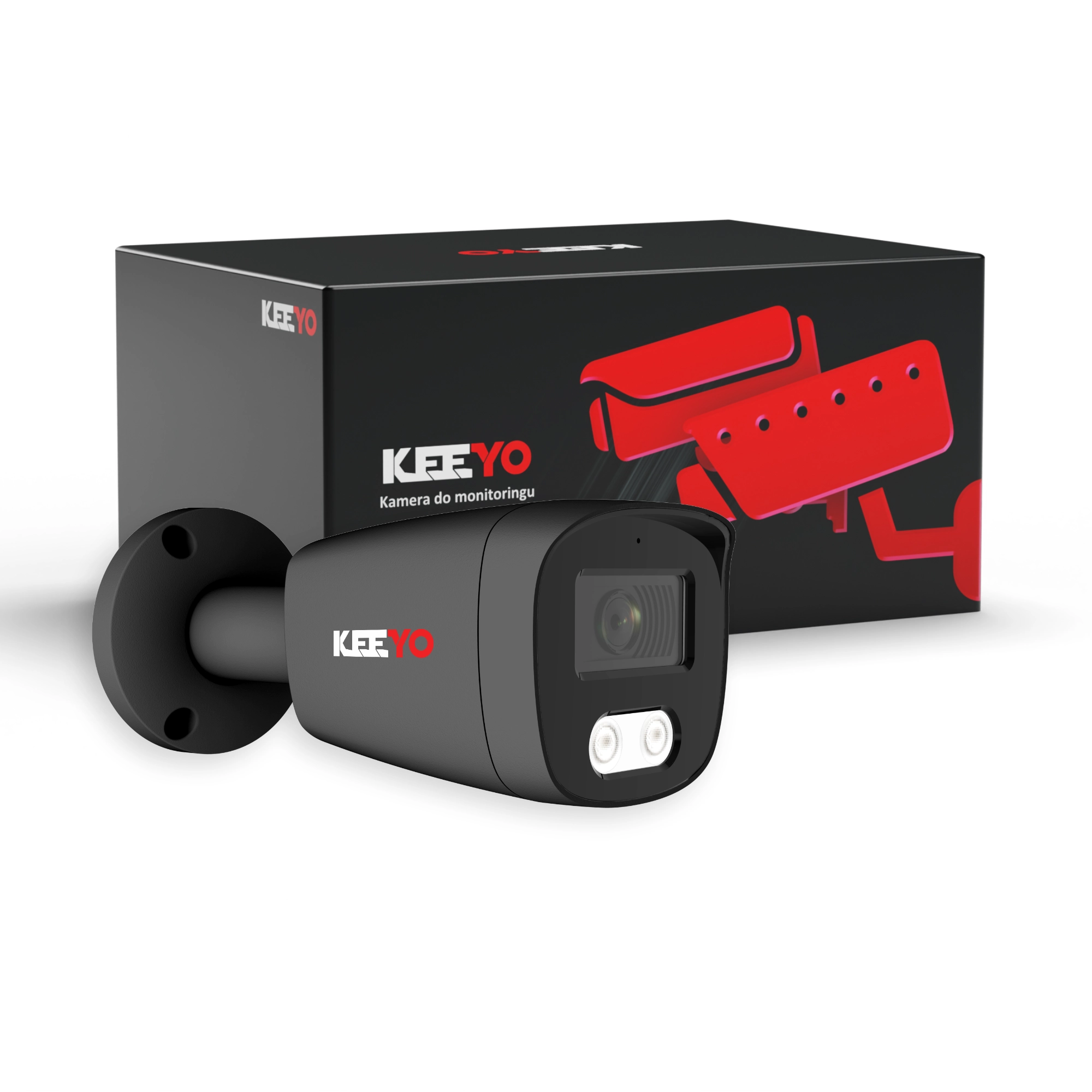

Product contents:
In the box, in addition to the camera, there are also useful instructions and mounting accessories to speed up the whole process of mounting the camera.
The box includes:
- 1x 5Mpx AHD tube camera - KEEYO LV-E-AL5M25DF-G.
- Documentation - User manual, warranty card, adjustments
- Template - Small size template with mounting holes of the camera
- Screws and mounting studs - Everything you need to mount the camera
- Waterproof kit - A set of accessories to protect the camera's connectors from moisture
KEEYO's products are easy to use devices that require no specialized knowledge or skills, and the included instructions guide you step-by-step through the installation process.

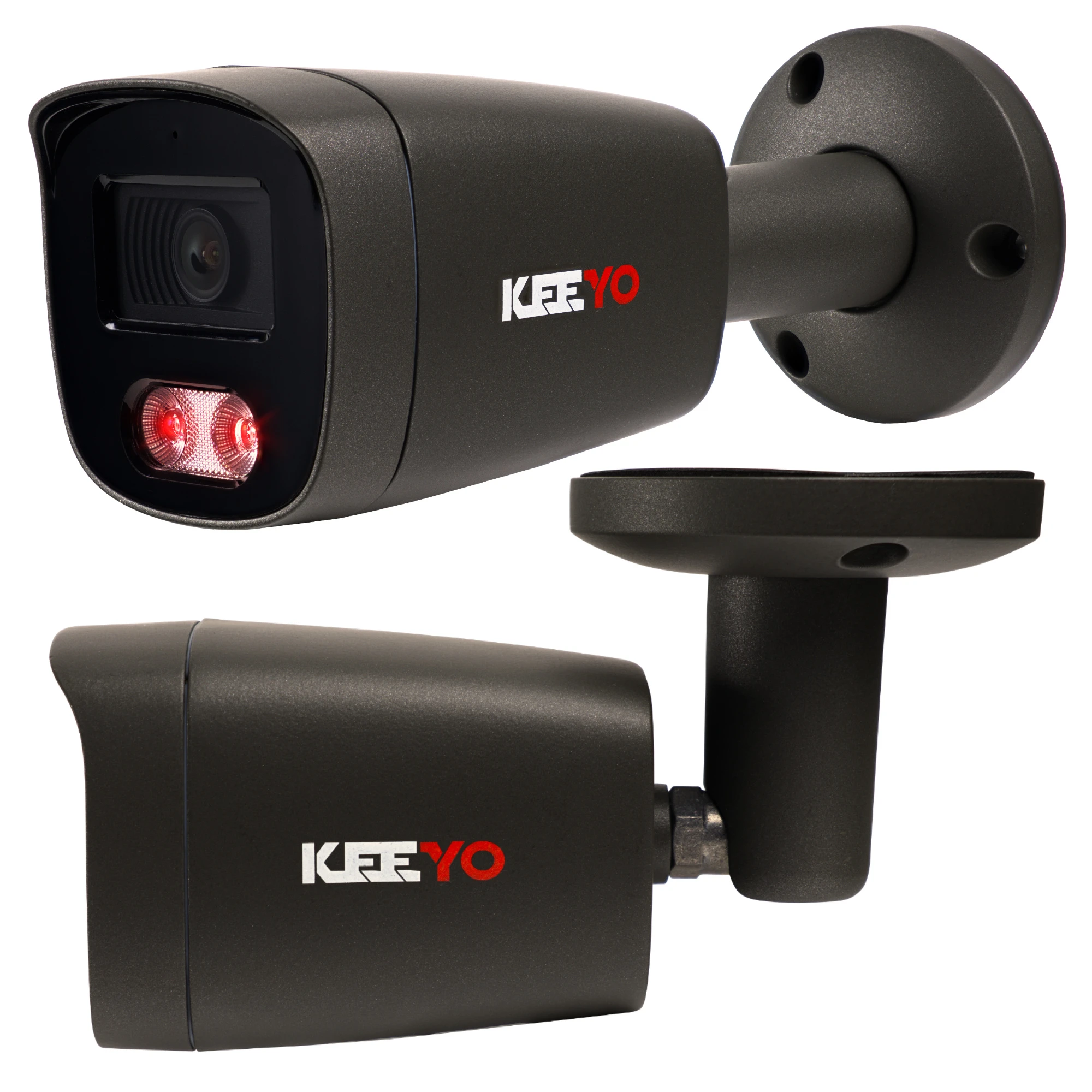

Automatic Day/Night Mode
Cameras need to be on guard around the clock, so they also need to see in the dark. Two IR LEDs with a range of 25 meters turn on automatically when the ambient light level drops to an appropriate level. For example, when the sun goes down.
| Camera | |
| Image sensor | 1/3" CMOS |
| Image resolution | 5M:25921944, 4M: 25601440,2M: 1920*1080 |
| TV system | PAL/NTSC |
| Electronic shutter | Auto |
| Minimum illumination | Color: 0.03 lux @F2.0, AGC ON; B/W: 0 lux with IR |
| Scanning system | Progressive scan |
| Lens | |
| Focal length | 2.8 mm |
| Focus control | Fixed |
| Type of lens | Fixed |
| Night vision | |
| Infrared filter | YES |
| Infrared LEDs | 42µ x 2 WIDES. |
| Infrared range | 25 m |
| Infrared status | Automatic AGC control |
| Camera functions | |
| Starlight | N/D |
| Day/Night | YES/NO |
| OSD menu | YES |
| WDR | DWDR |
| UTC | YES |
| Noise reduction | DNR |
| White balance | AUTO / MANUAL |
| Gain control | AUTO |
| General | |
| Housing | Metal, IP67 |
| Handle | YES |
| Operating temperature | -10°C to +60°C, max RH 95% |
| Storage temperature | -20°C to +60°C, max RH 95% |
| Power source | DC12V±10%, 500mA |
| Dimensions | 70 (S) x 67.5 (W) x 169 (D) mm |
| Weight | 600 g |
