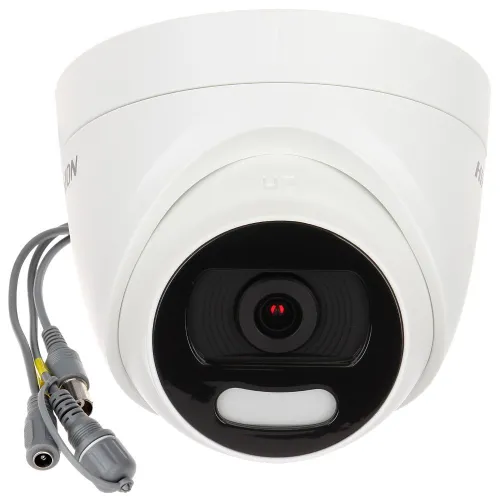

AHD, HD-CVI, HD-TVI, PAL CAMERA DS-2CE72HFT-F28(2.8MM) ColorVu - 5Mpx Hikvision
Photo gallery
-
Manufacturer
-
Product Code
DS-2CE72HFT-F28(2.8MM)
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 5Mpx
- Enclosure: Dome
- Connectivity: Wired
- Memory card slot: No
- Color: White
Ask about this product show form
Product Description
The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable at a maximum resolution of 8 Mpx (4K UHD) During transmission, there are no delays and the original high image quality is maintained.
In the case of video transmission via twisted-pair cable and impedance-matching transformers, it is necessary to take into account the possibility of signal reflections appearing and signals penetrating each other.
ColorVu series camera does not have black and white mode Thanks to the camera's highly sensitive sensor and LED illuminator emitting visible white light, the device allows to obtain clear color images in any lighting conditions.
| Standard: | AHD / HD-CVI / HD-TVI / PAL |
| Resolution: | 2560 x 1944 - 5 Mpx @ AHD / HD-TVI, 20 fps, 2560 x 1440 - 4 Mpx @ AHD / HD-TVI / HD-CVI @ 25 fps, 1920 x 1080 - 1080p @ HD-TVI, 25 fps 960 x 576 - 960H @ CVBS |
| Processor: | Progressive Scan CMOS |
| Range of white light illuminator (LED): | 20 m |
| Lens: | 2.8 mm |
| Viewing angle: | 100 ° |
| Video output: | AHD / HD-CVI / HD-TVI / PAL, 1 Vpp / 75 Ω |
| Selected features: |
|
| OSD on-screen menu: | OSD menu available through Hikvision HD-TVI DVR |
| Power supply: | 12 V DC / 290 mA |
| Power consumption: | ≤ 3.5 W |
| Operating temperature : | -40 °C ... 60 °C |
| Housing: | Dome, Metal + Plastic |
| Color: | White |
| Waterproof class: | IP67 |
| Mechanical protection class: | No |
| Weight: | 0.36 kg |

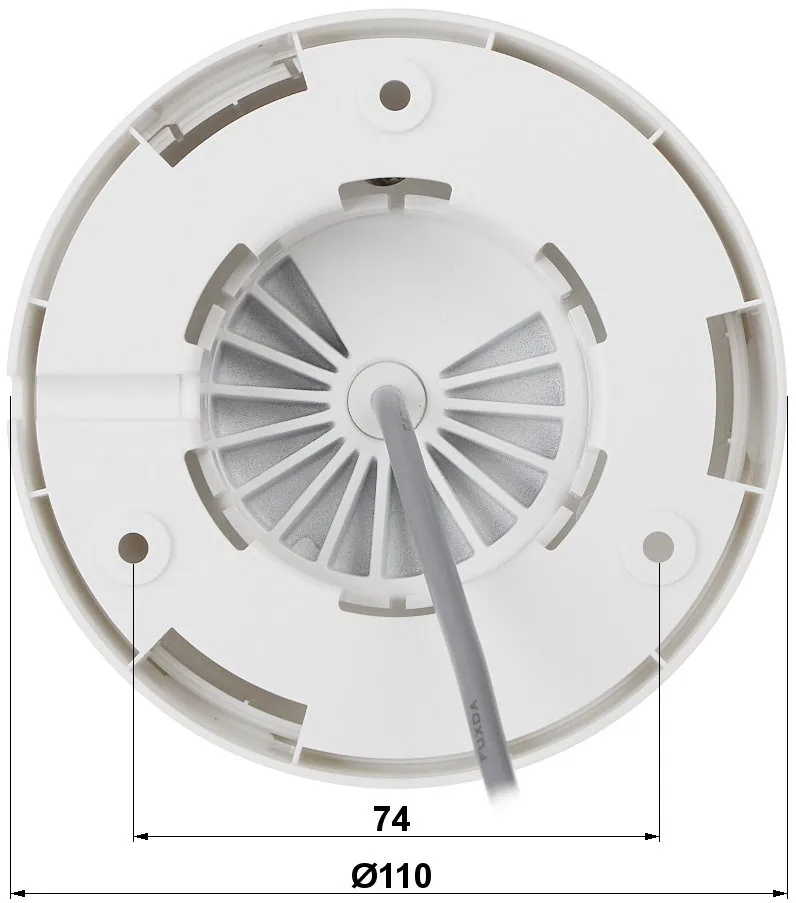

| Dimensions: | Ø 110 x 86 mm |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 300613800 |
