BCS-L-XVR3202(6) Recorder, 5Mpx Lite, 32 channels, 16TB x2, 5-in-1, intelligent functions

A sleek black digital video recorder with a minimalist design, featuring a USB port on the front panel. The device is branded with the BCS logo prominently displayed on the top.
A sleek black digital video recorder with a minimalist design, featuring a front panel with a USB port and indicator lights. The device is compact and suitable for modern security systems.
A sleek black digital video recorder with a minimalist design, featuring a USB port on the front panel. The device is branded with the BCS logo, offering advanced video recording capabilities.

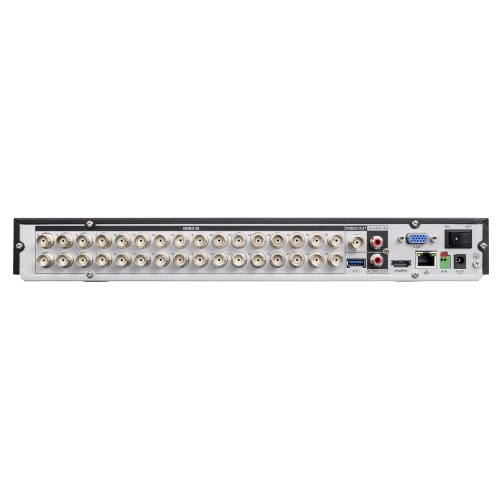

The image shows the back panel of a digital video recorder featuring multiple BNC connectors for video input, along with HDMI, VGA, USB, and Ethernet ports for versatile connectivity options. The device is designed for comprehensive surveillance system integration, offering robust input and output capabilities.
The image features a gold circular emblem with the text "Autoryzowany Dystrybutor BCS" prominently displayed in the center. The emblem signifies official authorization and includes decorative stars around the text.

  • Manufacturer

    BCS Line

  • Product Code

    BCS-L-XVR3202(6)

  • Warranty

    36 miesięcy

  • Technology: AHD/HD-CVI/HD-TVI/IP
  • Number of channels: 32
  • Built-in POE switch: No

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Save -59%
  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

410,16 € 994,48 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Shipping from: 12,98 €

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Here are the main features of the BCS-L-XVR3202(6):

  • Product line: BCS Line
  • Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG / IP
  • System: Analog HD + IP
  • Pentaplex function: live viewing, recording, playback, archiving, remote access
  • Channels: 32
  • Disks: 2 (max. capacity 16 TB each)
  • Maximum recording resolution: 5 Mpx
  • Input, output and recording bandwidth: 128 Mbps
  • Supported HD-CVI cameras: 5MP@20fps, 5MP@25fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps
  • Supported AHD cameras: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
  • Supported HD-TVI cameras: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
  • Supported analog cameras: CVBS PAL/NTSC
  • IP cameras: Support up to 6M, 32 IP channels
  • Recording resolutions: 5M, 5M Lite, 4M Lite, 1080P, 1080N, 720P, 960H, D1, CIF
  • Main stream: 5M (6fps), 5M Lite (12fps), 4M Lite/1080P (15fps), 1080N/720P/960H/D1/CIF (25/30fps)
  • Second stream: D1/CIF (15fps)
  • Bitrate: 32 Kbps ~ 6144 Kbps
  • Video compression: H.265+, H.265, H.264+, H.264, Ai coding
  • HDMI outputs: HDMI 4K
  • VGA outputs: VGA
  • HDMI display resolution: 3840×2160, 1920×1080, 1280×1024, 1280×720
  • VGA display resolution: 1920×1080, 1280×1024, 1280×720
  • Output split: 1/4/8/9/16/25/36
  • Playback: 1/4/9/16
  • Archiving: Ripping footage to USB FLASH media, USB HDD.
  • Users: 128
  • Interfaces:
    • 1×USB2.0
    • 1×USB3.0
  • Serial port: RS485
  • Audio input/output: 1 input, 1 output
  • Audio compression: G.711A, G.711U, PCM
  • Motion detection: Zones: 396 (22×18)
  • Privacy masks: 4
  • Network: RJ-45 (10/100/1000 Mbps)
  • Compatibility: ONVIF
  • Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
  • Power supply: 12V DC
  • Power consumption (without drives): Max 16W
  • Operating conditions: -10°C~+55°C, max 90% RH
  • Enclosure: 1U
  • Dimensions: 375×289×53 mm
  • Weight (without drives): 1.9 kg
  • AI intelligent functions: yes
  • Intelligent functions from DVR:
    • Perimeter protection (person/vehicle recognition)
    • Intelligent motion detection (person/vehicle recognition)
    • Face detection and identification (up to 10 face databases, 10k images)
    • SMD (16 channels analog HD)
  • Ai - Perimeter protection: 8 HD analog channels
  • Ai - Face detection: 2 analog HD channels, max 12 images per second, facial attribute analysis (gender, age, glasses, facial expression, mask, facial hair)
